Made to order
- Validated cure profile + datasheet for the printers we sell
- Mutual NDA before any file or spec review

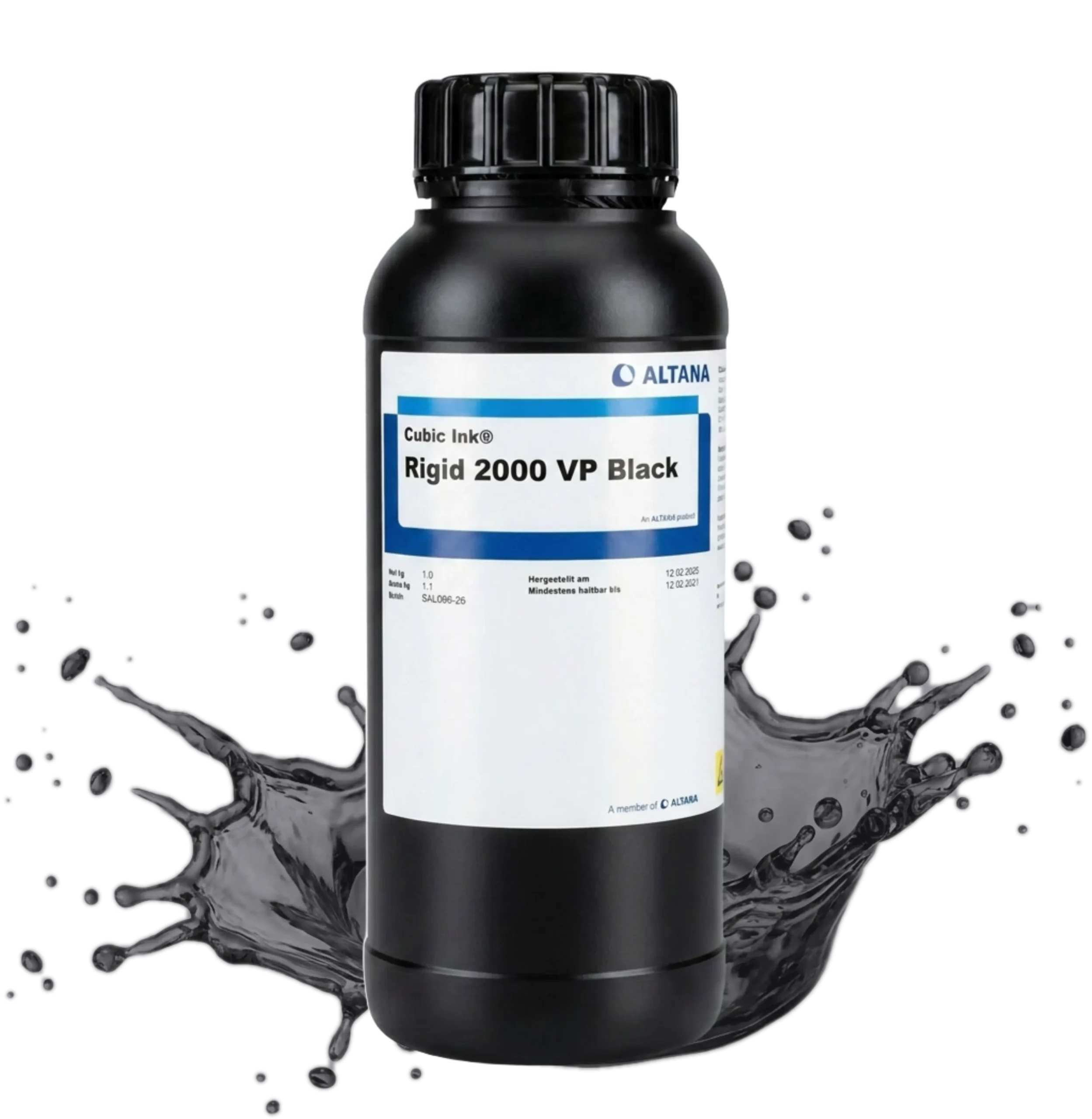

ALTANA Cubic Ink Rigid 2000 VP – Rigid High-Strength Industrial Resin, HDT 122 °C (DLP/LCD/mSLA)
Easy-to-print all-round industrial resin with excellent rigidity, an HDT of 122 °C and outstanding chemical resistance — for functional prototypes and demanding industrial parts.
- ✓ 92 MPa tensile · 3600 MPa modulus · HDT-B 122 °C — stiff and heat-stable
- ✓ Outstanding chemical resistance (<1% mass gain) & 0.3% water uptake
- ✓ Post-machinable (drill, grind); long-term thermal stability
- ✓ A cost-effective alternative to Loctite IND249 High Temp
What your process engineer actually checks
Rigidity and heat we can validate
The 92 MPa tensile, 3600 MPa modulus and HDT-B 122 °C come straight from the ALTANA TDS. We help set exposure and post-cure so parts reach full rigidity and heat resistance.
A materials engineer on the line
Factory-trained support. We help you choose between Rigid 2000 and the Loctite IND249 grade we also stock. Sub-24h reply, NDA standard.
ALTANA Cubic Ink Rigid 2000 VP is an easy-to-print, all-round industrial resin with excellent rigidity, an HDT of 122 °C and outstanding chemical resistance — for functional prototypes and demanding industrial parts.
Why engineers choose Rigid 2000 VP
Stiff, heat-stable and chemically robust.
Excellent rigidity
92 MPa tensile strength, 3600 MPa modulus and 140 MPa flexural strength hold tight tolerances under load.
Heat-stable to 122 °C
HDT-B 122 °C and Tg 135 °C support long-term use at elevated temperature.
Outstanding chemical resistance
Under 1% mass gain across acids, bases and solvents, and just 0.3% water uptake for dimensional stability in fluids.
Post-treatable
Robust enough to drill, grind and machine after printing without cracking.
Technical properties
Measured on uncolored resin (TDS v4, 13 Mar 2026). Post-cured 2×15 min UV @ 80 °C.
| Property | Value | Method |
|---|---|---|
| Viscosity (25 °C) | 340 mPa·s | DIN EN ISO 3219 |
| Density | 1.17 g/mL | DIN EN ISO 15212-1 |
| Ultimate tensile strength | 92 MPa | DIN EN ISO 527-5A |
| Tensile modulus | 3600 MPa | DIN EN ISO 527-5A |
| Elongation at break | 4.8 % | DIN EN ISO 527-5A |
| Flexural strength / modulus | 140 / 3300 MPa | DIN EN ISO 178 |
| Izod, notched | 14 J/m | DIN EN ISO 180 |
| Shore hardness | 85 D | DIN EN ISO 7619 |
| Tg (TMA) | 135 °C | TMA |
| HDT-A / HDT-B | 101 / 122 °C | DIN EN ISO 75 |
| Dielectric strength | 27 kV/mm | IEC 60243-1 |
| Water uptake (24 h) | 0.3 % | Internal |
| Flammability | UL 94 HB @ 3.2 mm | UL 94 |
| Colors | Uncolored / Black | — |
A similar option to Loctite IND249 High Temp
Same rigid, high-temp industrial class. Additive Plus stocks and supports both.
| Property | Loctite IND249 High Temp | Cubic Ink Rigid 2000 VP |
|---|---|---|
| Ultimate tensile strength | 98 MPa | 92 MPa |
| Tensile modulus | 3300 MPa | 3600 MPa |
| Elongation at break | 5 % | 4.8 % |
| Notched Izod | 24 J/m | 14 J/m |
| HDT (0.45 MPa) | 115 °C | 122 °C |
| Shore hardness | 88 D | 85 D |
| Price (1 kg) | $260 | $228 |
Comparable strength with higher modulus and HDT at a lower price; IND249 has slightly higher tensile and impact. Additive Plus stocks and supports both, so you can compare and choose with guidance.
Typical applications
Rigid, heat- and chemical-exposed industrial parts.
How you run it
Print → wash → UV post-cure.
LCD / DLP / mSLA at 385 or 405 nm. Stir before use; store away from light.
Wash
Cubic Ink Cleaner 400; dry with compressed air.
Post-cure
UV post-cure (2×15 min at 80 °C) for full rigidity and HDT.
| Size | 1 kg, 5 kg |
| Brand | ALTANA Cubic Ink |
We formulate and qualify. Custom variants on request.
Need a tuned resin, a filled or castable formulation, or a profile for a printer we don't list yet? Our materials team qualifies custom formulations and prints test specimens before you commit. Typical lead 2–4 weeks.
