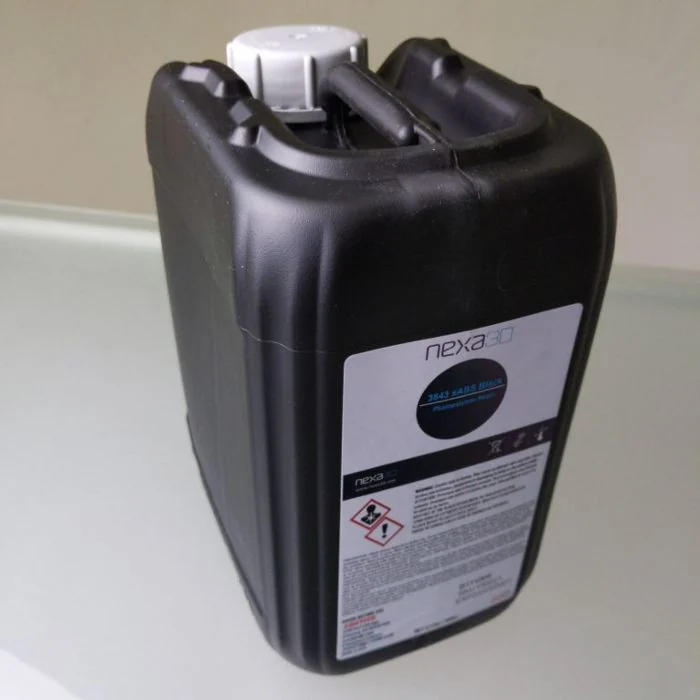

Nexa3D xABS3843 Black Resin 5kg
$1,295
Tough and durable material with the aesthetics of injection molded black ABS. High performance, high modulus material boasting excellent flexural and tensile physical properties with a relatively high degree of elongation.
Details
| Weight | 12 lbs |
|---|---|
| Dimensions | 9 × 6 × 10 in |
| Brand | |
| Available colors | Black |
| Weight | 5 kg |
| Country of origin | USA |
| Platform | NX |
Description
CHARACTERISTICS
- ABS-like stiffness
- Tough & durable
- Great feature detail
USES
- Design verification models
- Functional prototypes
- Snap fits
- Jigs and fixtures
- Patterns
- End-use parts
- Good weathering performance
PHYSICAL AND MECHANICAL PROPERTIES
| Tensile Modulus | ASTM D638 | 1400 MPa |
| Ultimate Tensile Strength | ASTM D638 | 30 MPa |
| Flex Strength | ASTM D790 | 30 MPa |
| Shore Hardness | ASTM D2240 | 86 |
| Notched Izod | ASTM D256 | 54 J/m |
| HDT O.45 MPa | ASTM D648 | 56 C |
| Tensile Elongation at Break | ASTM D638 | 50% |
