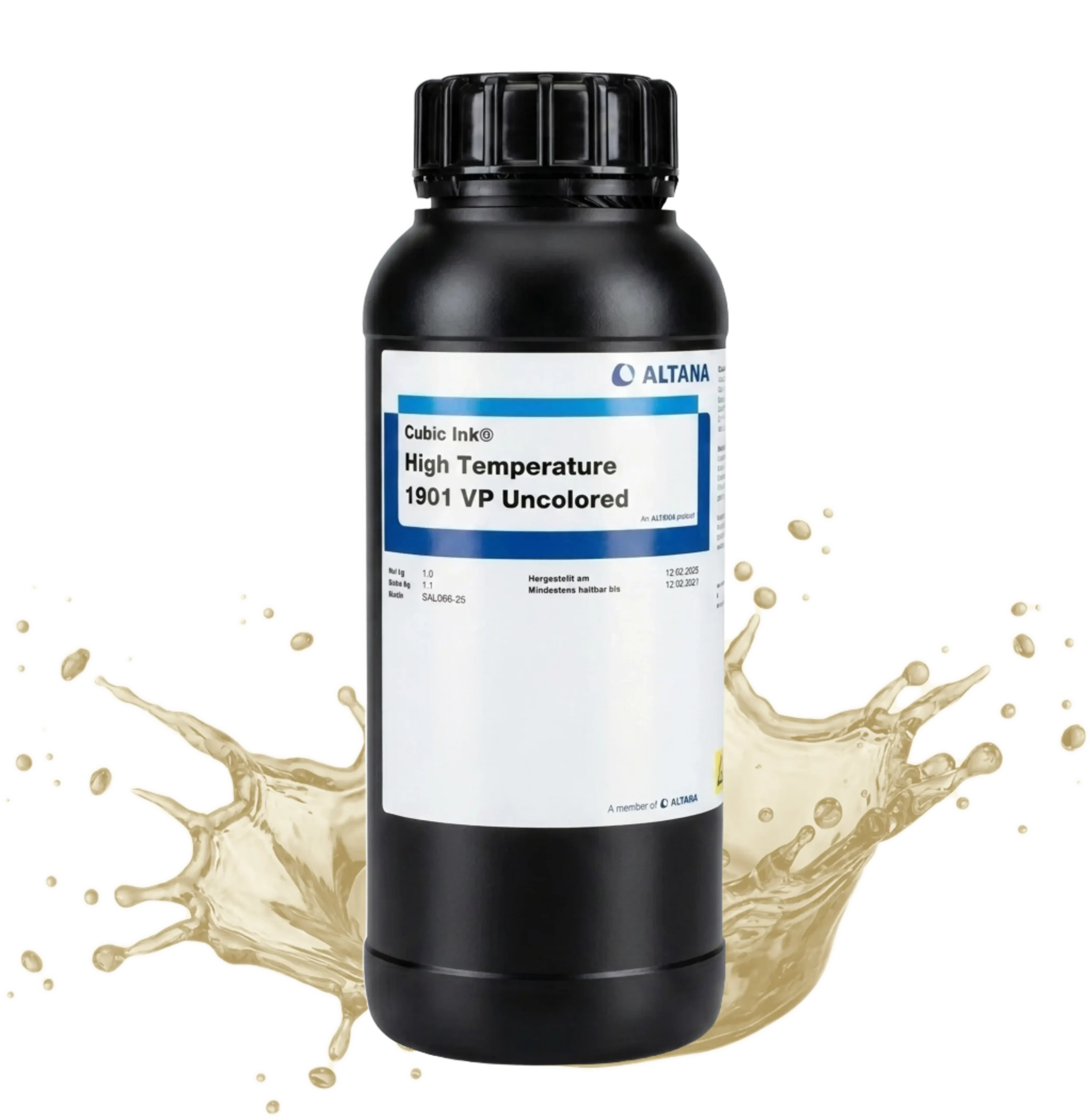

ALTANA Cubic Ink HT 1901 VP – High-Temp Tooling Resin (DLP/LCD/mSLA)
Easy-to-print DLP/LCD/mSLA resin with an HDT-B of 272 °C, superior chemical resistance and — unlike most high-temp resins — real toughness instead of brittleness.
- ✓ HDT-B 272 °C · Tg > 300 °C — holds geometry under sustained heat
- ✓ Tough, not brittle — drill, grind and machine without shattering
- ✓ Superior chemical resistance · cytotoxicity passed (ISO 10993)
- ✓ A similar alternative to Loctite IND147 for the same high-temp applications
What your process engineer actually checks
Heat data you can trust
The HDT-B 272 °C figure comes straight from the ALTANA TDS, verified on standard specimens. We help you match post-cure to the HDT your part actually needs.
A materials engineer on the line
Factory-trained support, not a remote ticket queue. We help you choose between HT 1901 and the Loctite IND147 grade we also stock. Sub-24h reply, NDA on request.
ALTANA Cubic Ink High Temperature 1901 VP is an easy-to-print DLP/LCD/mSLA resin with an HDT-B of 272 °C and strong chemical resistance — and, unusually for a high-temp resin, it stays tough instead of turning brittle.
Why engineers choose HT 1901 VP
Heat resistance that does not trade away toughness.
Heat that holds
HDT-B 272 °C and Tg > 300 °C. Parts keep their geometry against molten-material contact, high-pressure steam and sustained heat.
Tough, not brittle
4.8% elongation at break and 14 J/m notched Izod. Drill, grind and machine finished parts without shattering.
Superior chemical resistance
Under 0.5% mass gain across acids, bases, solvents and fuels after 24 h submersion — built for harsh service.
Clean regulatory profile
In-vitro cytotoxicity passed (ISO 10993-5/-12), low 0.4% water uptake, and 26 kV/mm dielectric strength for electrical parts.
See it in use

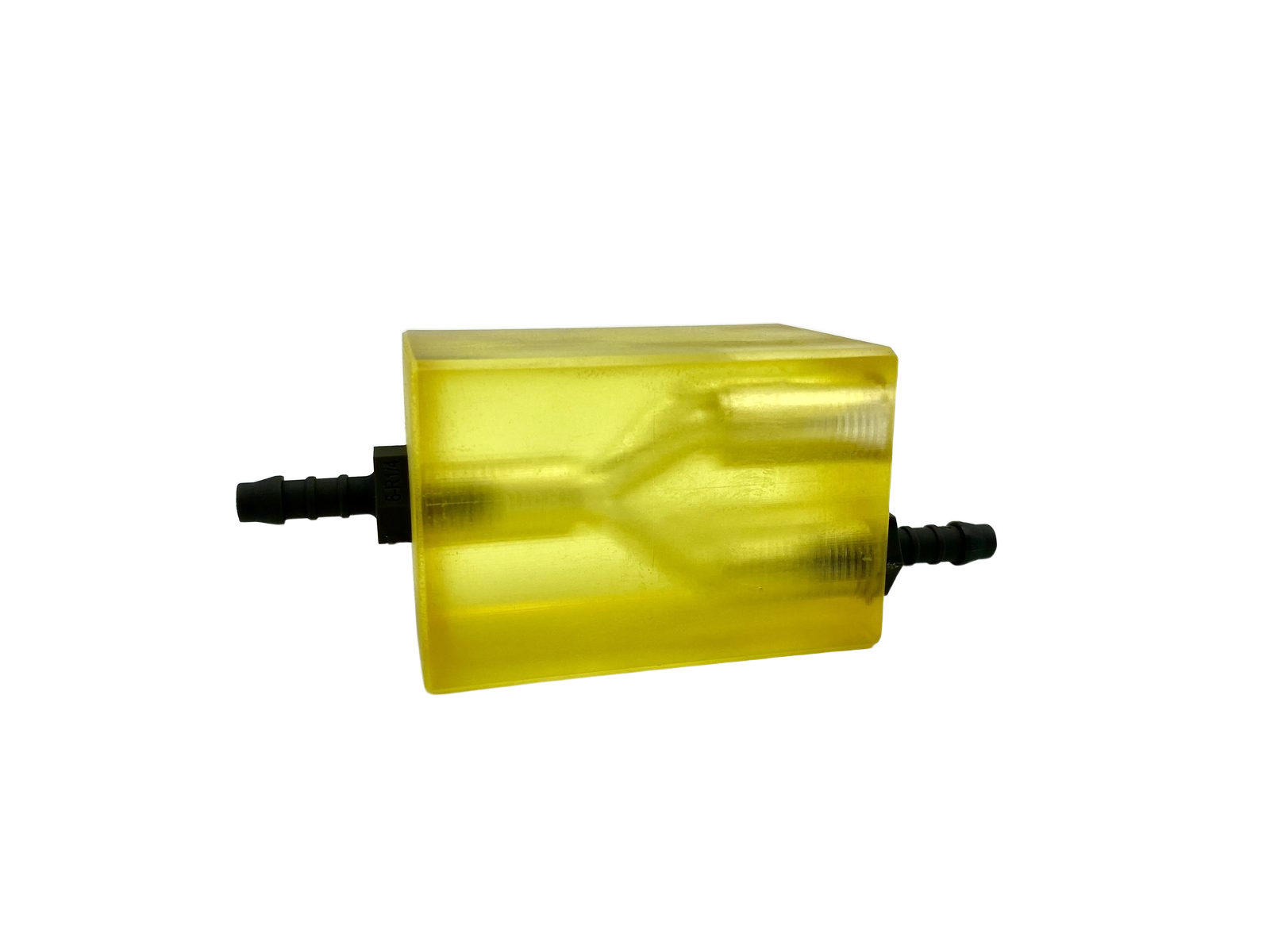

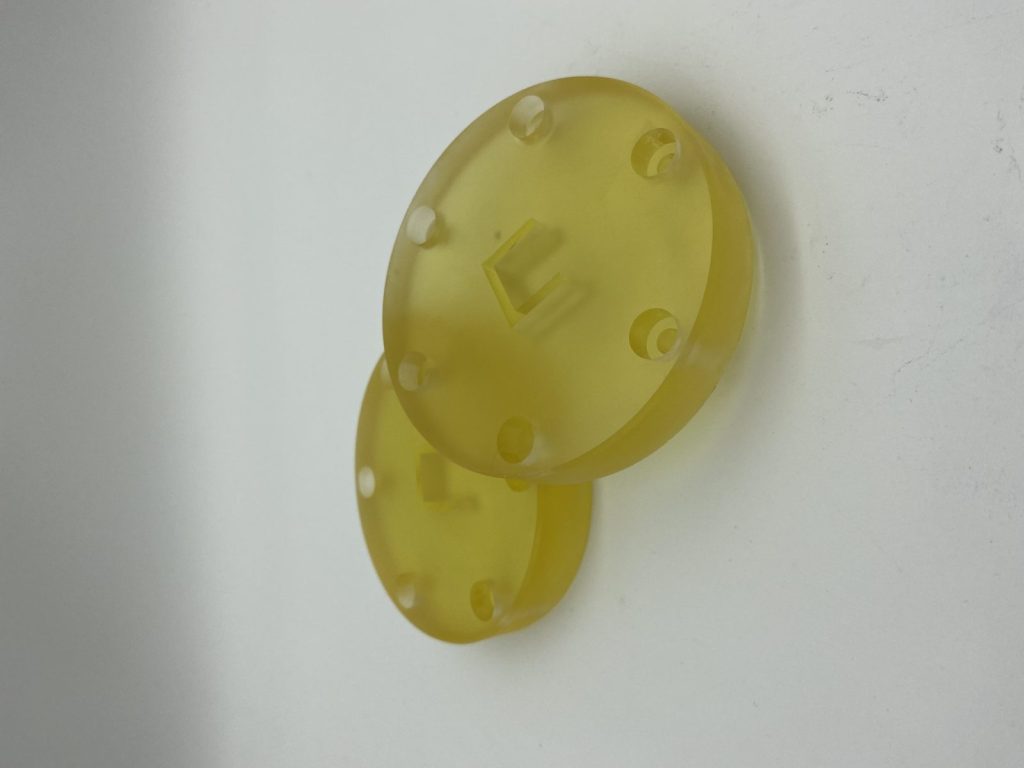

Printed HT 1901 parts — a fluidic manifold and translucent flanges.
Technical properties
Measured on uncolored resin (TDS v4, 13 Mar 2026). Post-cured 2×15 min UV @ 80 °C.
| Property | Value | Method |
|---|---|---|
| Viscosity (25 °C) | 230 mPa·s | DIN EN ISO 3219 |
| Density | 1.17 g/mL | DIN EN ISO 15212-1 |
| Ultimate tensile strength | 63 MPa | DIN EN ISO 527-5A |
| Tensile modulus | 2500 MPa | DIN EN ISO 527-5A |
| Elongation at break | 4.8 % | DIN EN ISO 527-5A |
| Flexural strength | 90 MPa | DIN EN ISO 178 |
| Flexural modulus | 2100 MPa | DIN EN ISO 178 |
| Izod, notched | 14 J/m | DIN EN ISO 180 |
| Shore hardness | 85 D | DIN EN ISO 7619 |
| Tg (TMA) | > 300 °C | TMA |
| HDT-A | 122 °C | DIN EN ISO 75 |
| HDT-B | 272 °C | DIN EN ISO 75 |
| Heat capacity (20 °C) | 0.96 J/(g·K) | DIN EN ISO 11357-4 |
| Dielectric strength | 26 kV/mm | IEC 60243-1 |
| Water uptake (24 h) | 0.4 % | Internal |
| In-vitro cytotoxicity | Passed | DIN EN ISO 10993-5/-12 |
| Flammability | UL 94 HB @ 3.2 mm | UL 94 |
| Colors | Uncolored / Black | — |
A similar option to Loctite IND147 High Temp
Same high-temp application class. Additive Plus stocks and supports both — a short technical comparison.
| Property | Loctite IND147 High Temp | Cubic Ink HT 1901 VP |
|---|---|---|
| HDT (0.45 MPa) | 290 °C | 272 °C |
| Ultimate tensile strength | 67 MPa | 63 MPa |
| Tensile modulus | 3200 MPa | 2500 MPa |
| Elongation at break | ~2 % | 4.8 % |
| Notched Izod | 15 J/m | 14 J/m |
| Shore hardness | 94 D | 85 D |
| Price (1 kg) | $260 | $249 |
Both are high-temperature, tough resins suited to the same tooling and molding applications. Additive Plus stocks and supports both, so you can compare and choose with guidance.
Print settings
Starting exposure by printer (Cubic Ink measured). Tune per geometry.
| Printer | Color | Layer | Bottom exp. | Default exp. |
|---|---|---|---|---|
| Prusa SL1S Speed (LCD, 405 nm) | Black | 50 µm | 10.0 s | 6.00 s |
| Formlabs Form 4 (LCD, 405 nm) | Uncolored / Black | 100 / 50 µm | 20.2 / 18.6 s | 0.69 / 0.44 s |
| Asiga Pro 4K80 (DLP, 385 nm) | Uncolored / Black | 100 / 50 µm | 2.3 / 22.2 s | 0.52 / 0.60 s |
Also validated on Phrozen 8K Mighty / Mega S. Wash 1–3 min (Cleaner 400 or IPA); post-cure UV at ≥80 °C, then thermal cure — e.g. +3 h at 150 °C raises HDT-B toward ~295 °C. Full parameters in the processing guide (download above).
Typical applications
Tooling · machinery · automotive · aerospace.
How you run it
Print → wash → UV + thermal post-cure.
LCD / DLP / mSLA. Validated on Formlabs Form 4, Asiga Pro 4K, Prusa SL1S and Phrozen 8K. Uncolored or black.
Wash
1–3 min in Cubic Ink Cleaner 400 or IPA, then dry. Ultrasonic bath optional.
Post-cure
Intense UV at ≥80 °C, then thermal post-cure (up to 130–150 °C) for full HDT. Black needs extra cure to avoid cracking.
| Size | 1 kg, 5 kg |
| Brand | ALTANA Cubic Ink |
We formulate and qualify. Custom variants on request.
Need a tuned resin, a filled or castable formulation, or a profile for a printer we don't list yet? Our materials team qualifies custom formulations and prints test specimens before you commit. Typical lead 2–4 weeks.
