SLM 280 HIPed Ti64 Build Plate | SLM 280 HIPed Ti64 Build Platform

The SLM 280 HIPed Ti64 Build Platform is engineered for high-performance titanium additive manufacturing. Produced using hot isostatic pressing (HIP), this build plate achieves 100% density and a refined microstructure, eliminating internal porosity and minimizing distortion during LPBF processing.

Unlike conventional machined plates, the HIPed titanium build plate for SLM 280 offers improved homogeneity and uniform mechanical properties throughout its thickness. This significantly enhances fatigue resistance and dimensional stability, particularly during long or thermally intensive builds.

The SLM 280 HIPed Ti64 Build Platform performs as an efficient heat sink, reducing thermal gradients, residual stress, and cracking in complex Ti-6Al-4V geometries. With no alpha-case inclusions or surface films, it ensures consistent metallurgical behavior across the entire printing surface.

Manufactured in California, USA, and compliant with AMS 4994A, this platform is ideal for aerospace-certified, medical-grade, and high-value industrial titanium production.

KEY FEATURES & BENEFITS

• HIPed Powder Metallurgy Construction

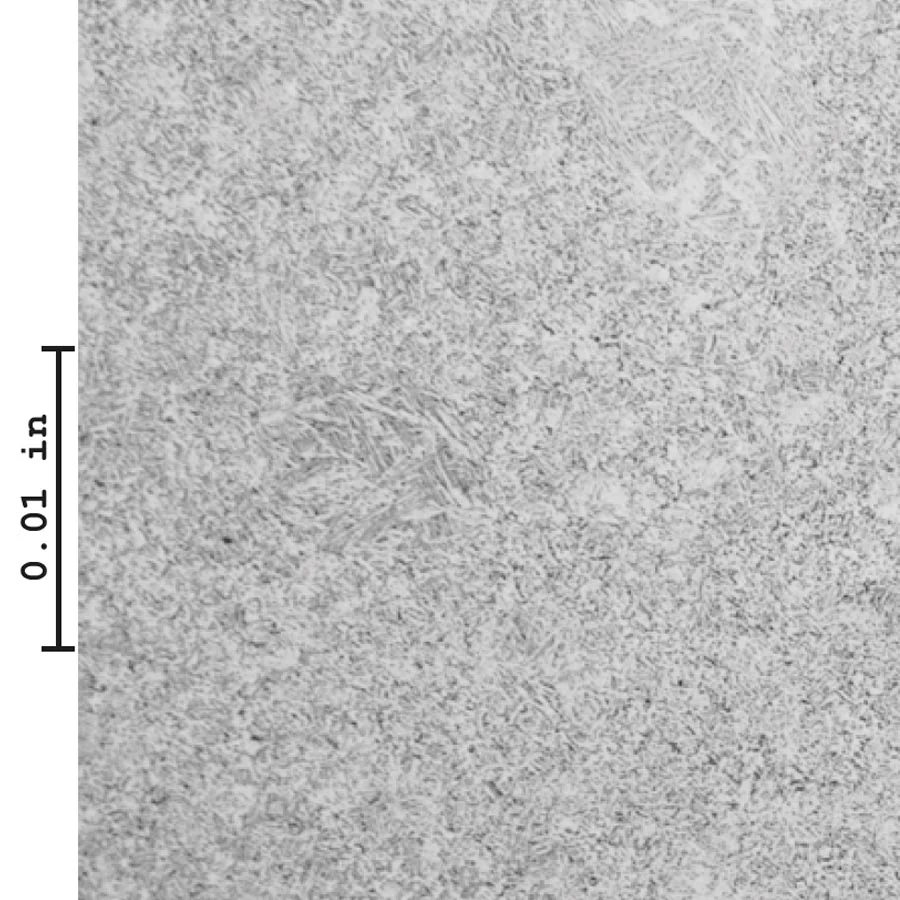

The SLM280 HIPed Ti-6Al-4V build plate is consolidated under high temperature and isostatic pressure, eliminating porosity and producing a fully dense microstructure.

• Improved Uniformity & Homogeneity

The SLM 280 HIP titanium platform ensures distortion-free builds with consistent first-layer performance.

• Extended Operational Lifespan

Up to 10× longer service life compared to standard titanium plates due to improved structural integrity.

• Optimized Thermal Performance

Enhanced heat transfer properties stabilize temperature gradients and reduce residual stress in LPBF titanium builds.

• Flexible Part Placement

Uniform mechanical behavior across the surface allows greater freedom in component positioning.

MATERIAL OPTIONS & CUSTOMIZATION

Available materials:

• Ti6Al4V Grade 5
• Ti6Al4V Grade 23 (ELI)
• Cp Titanium Grade 2
• IN625
• IN718

Additional options:

• Custom thickness from HIPed billets
• Tailor-made geometries (square, circular, ring)
• Production from customer-supplied HIPed powder
• Manufacturing from over-spec or reclaimed powders

Machine-to-print HIPed build plates available upon request.

APPLICATIONS

• Aerospace

Structural brackets, engine components, airframe assemblies requiring certified titanium.

• Medical

Orthopedic implants, surgical tools, dental frameworks demanding biocompatibility and traceability.

• Power Engineering

High-temperature titanium testbeds and turbine components.

• Automotive & Motorsport

Lightweight high-strength titanium components.

• Precision Tooling

Conformal cooling molds and specialized tooling applications.

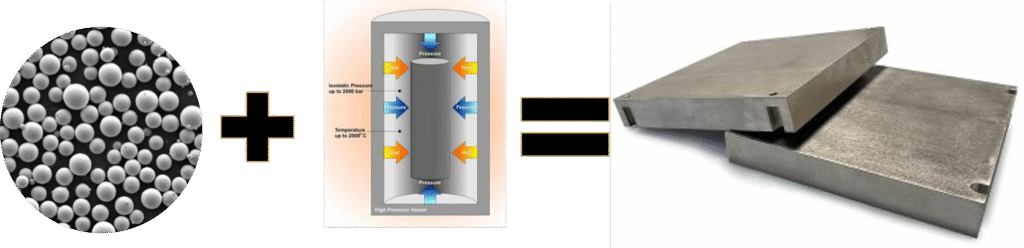

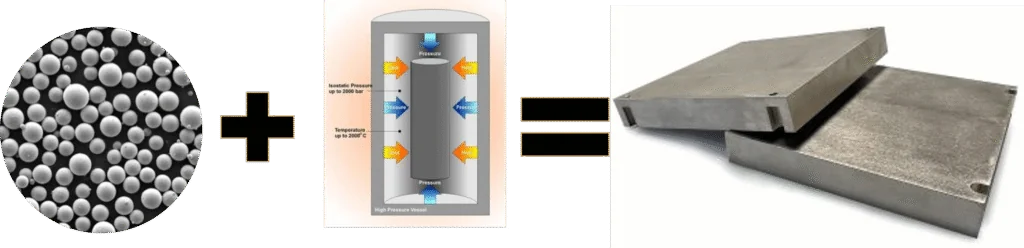

Hot isostatic pressing (HIP)

Hot isostatic pressing (HIP) is a materials fabrication process in which a starting powder or a remolded shape is simultaneously subjected to both high temperatures and high isostatic pressures, using a gas transfer medium.
This technique has developed from an invention conceived before the 1960s, used initially for the primary purpose of fabricating clad nuclear fuel elements and referred to as “gas pressure bonding”.
Today, it is employed for a broad range of metallic and nonmetallic materials. The three most common industrial applications are post densification of cemented carbides, sintering of specialty steels and the healing of super alloy and titanium castings.
