QLS

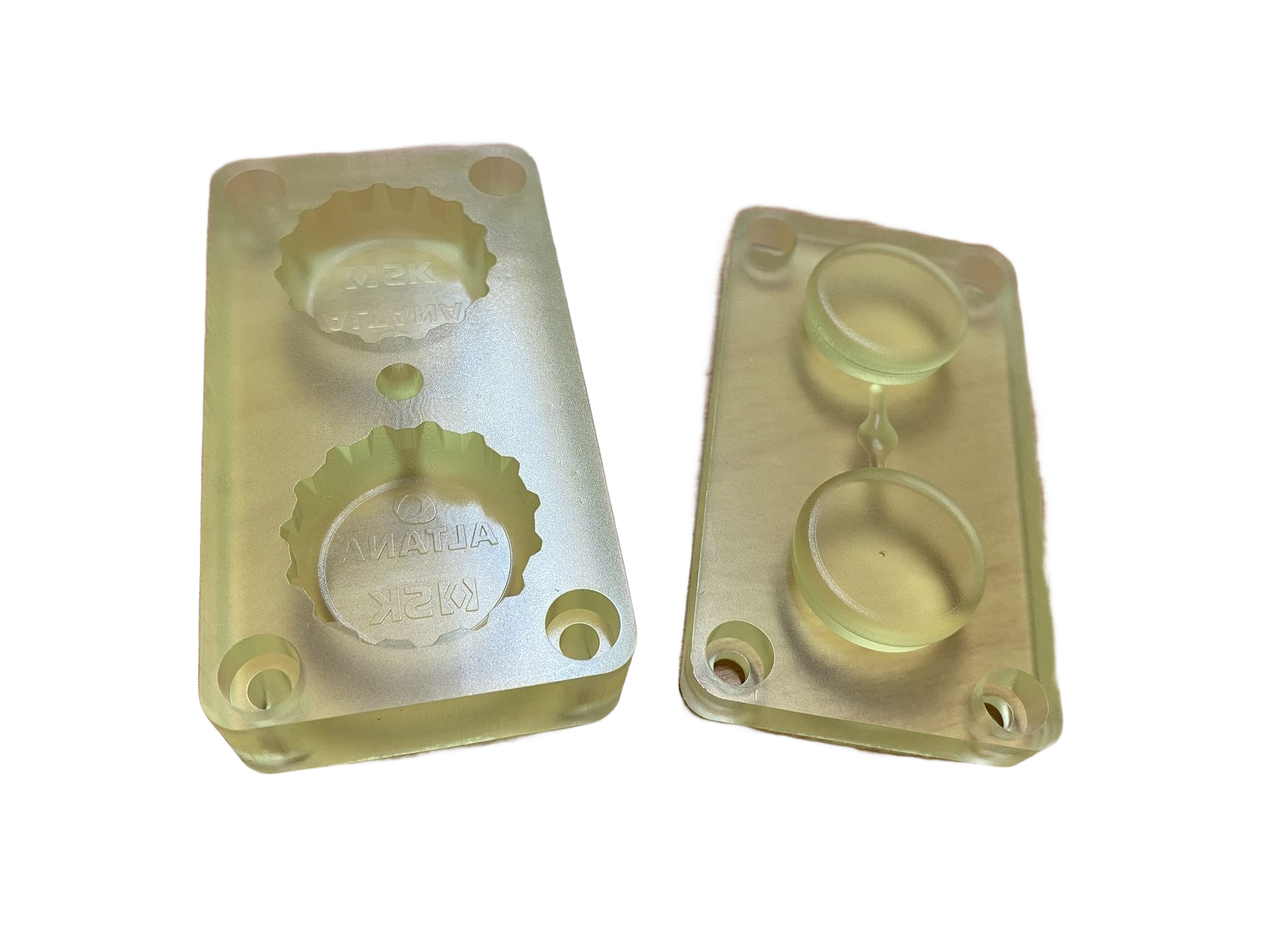

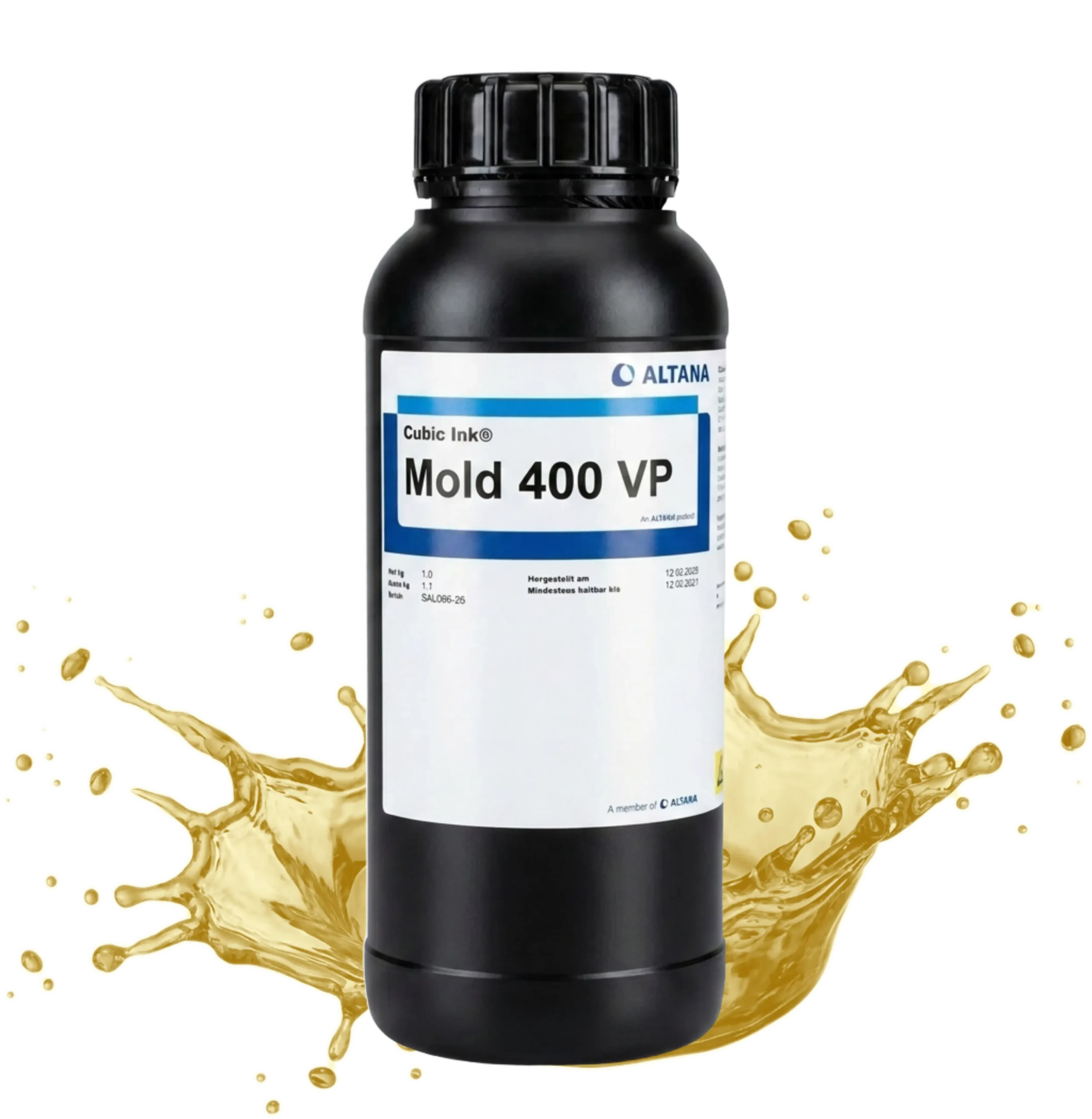

ALTANA Cubic Ink Mold 400 VP – Water-Breakable Casting & Injection-Molding Resin (DLP/LCD/mSLA) | 1 kg & 5 kg
Water-breakable One-Shot Mold (OSM) resin: 3D-print a sacrificial mold, cast or inject your real target material, then dissolve the mold in plain water — minimal swelling, clean automated release.
- ✓ One-Shot Mold tech — takes real fill temperature & pressure (up to 380 °C, 1200 bar)
- ✓ Breaks up completely in water, minimal swelling — no solvent, no mechanical breakout
- ✓ Compatible with silicones, epoxies, PU, PEEK, PPS, PA-GF and low-melt metals
- ✓ Always in stock · ships in ~2 business days
Two bottle sizes: 1 kg — $296.40 · 5 kg — $272.46/kg (volume saving). Invoiced per kg; USD reference.
$296
Price held 7 days after order.
What your process engineer actually checks
Tooling we run ourselves
Additive Plus runs 3D-printed tooling in-house, so we know what a water-breakable mold has to do on a real cycle — not just on a datasheet. We help match Mold 400 to your fill material before you commit.
A materials engineer on the line
Factory-trained support, not a remote ticket queue. We size the mold, fill and release cycle to your part and target material. Sub-24h reply, NDA standard.
About this product
ALTANA Cubic Ink Mold 400 VP is a water-breakable casting resin that 3D-prints sacrificial molds for injection molding, casting and silicone work — then breaks apart in plain water, with minimal swelling, so parts release cleanly on an automatable cycle.
Why engineers choose Mold 400 VP
One-Shot Mold technology, not another castable resin.
One-Shot Mold (OSM) technology
The printed mold tolerates real filling temperature and pressure — up to 380 °C at the process and 1200 bar — so you cast in your target material, not a stand-in.
Water-breakable release
The cured mold disintegrates in water with minimal swelling. No mechanical breakout, no solvent baths — release is clean and repeatable.
Short, automatable cycles
Print, fill, release in water, repeat. OSM is built for short cycle times you can put on a production line.
Rigid & dimensionally stable
42 MPa tensile strength, 1900 MPa modulus and 80 Shore D hold cavity geometry, with 30/50 µm xy/z accuracy.
See it in use

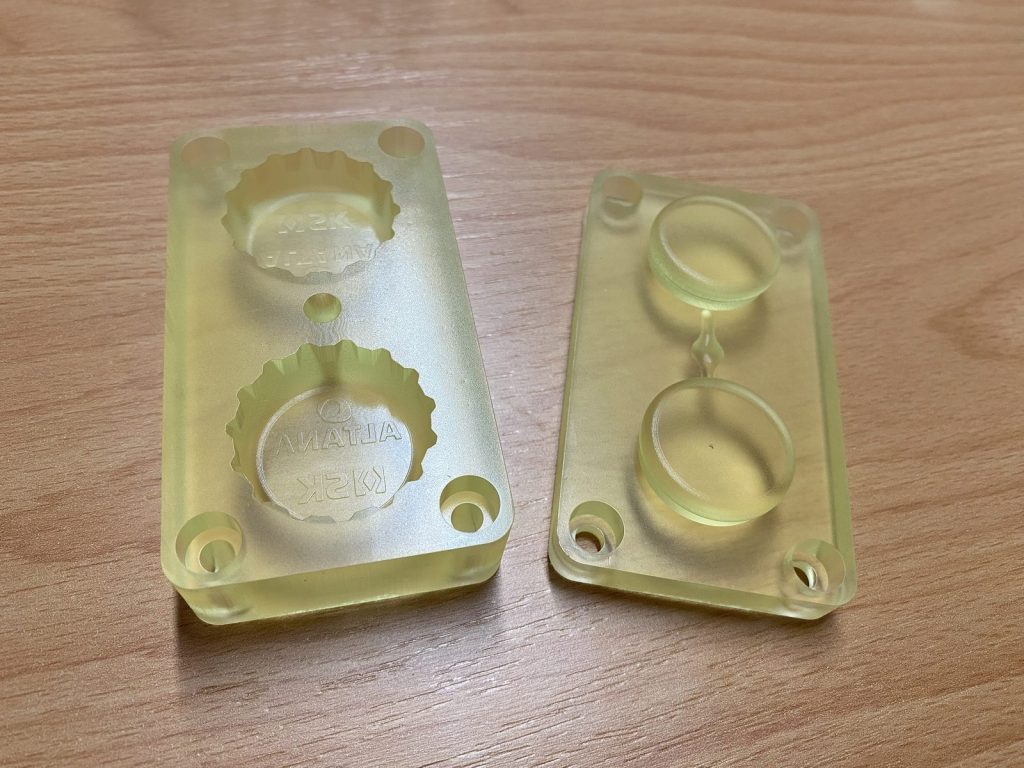

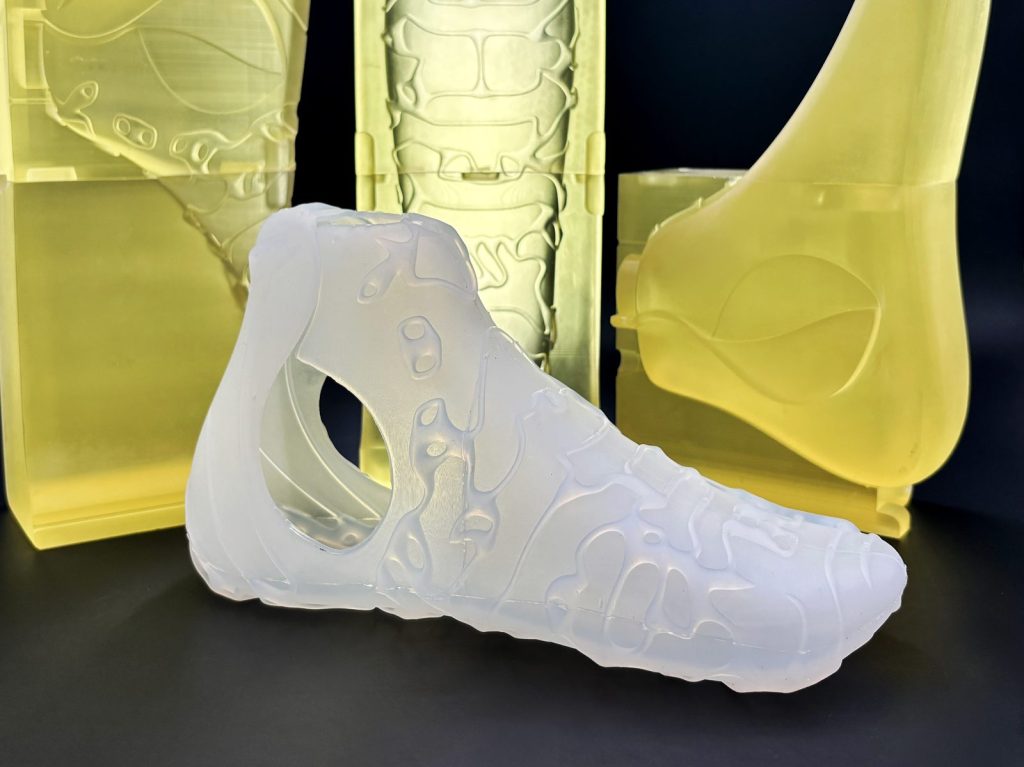

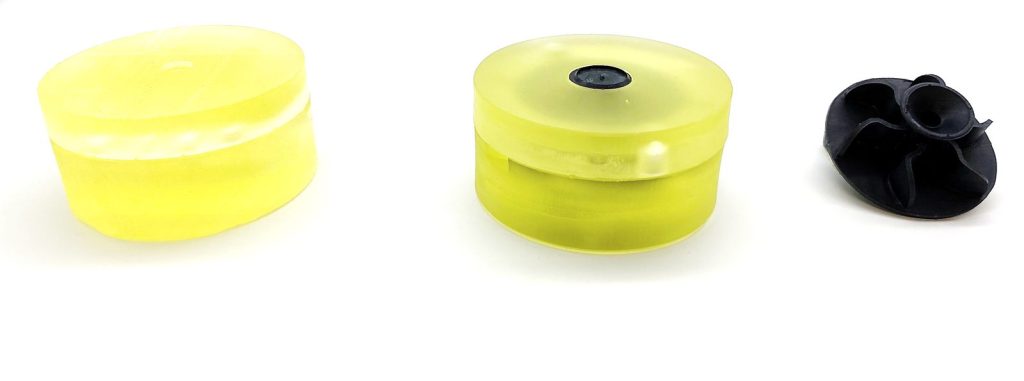

Printed OSM mold, a water-released part, and molded application examples.
Technical properties
Measured on uncolored resin (TDS v4, 26 Mar 2026). Post-cured 30 min UV, Prusa CW1s.
| Property | Value | Method |
|---|---|---|
| Viscosity (25 °C) | 70 mPa·s | DIN EN ISO 3219 |
| Density | 1.11 g/mL | DIN EN ISO 15212-1 |
| Ultimate tensile strength | 42 MPa | DIN EN ISO 527-5A |
| Yield strength | 41 MPa | DIN EN ISO 527-5A |
| Tensile modulus | 1900 MPa | DIN EN ISO 527-5A |
| Elongation at break | 42 % | DIN EN ISO 527-5A |
| Shore hardness | 80 D | DIN EN ISO 7619 |
| Color | Translucent, light yellow | — |
| Cleaner compatibility | Cubic Ink Cleaner 400 | — |
Injection & casting limits
What the printed OSM tool can take.
| Parameter | Value |
|---|---|
| Max. temperature at process | 380 °C |
| Max. injection pressure | 1200 bar |
| Min. wall thickness (mold) | 200 µm |
| Min. thickness (filling material) | 100 µm |
| Accuracy (xy / z) | 30 / 50 µm |
| Pot life (casting) | up to 3.5 h |
Compatible filling materials
Successfully tested by customers; the list keeps growing. Compatibility also depends on part geometry.
| Injection molding | Casting |
|---|---|
| Polyethylene · Polypropylene (up to 36% GF) | 2K silicones (RTV & LSR) |
| PBT (up to 40% GF) · PA6 (up to 40% GF) · PA12 | 2K epoxides (incl. GF & fillers) |
| PVC · Polycarbonate (up to 20% GF) | 2K polyurethanes · 2K polyesters |
| PEEK (up to 30% CF) · PPS (up to 80% CF) | Metal alloys (melting point < 200 °C) |
| Recycled / renewable compounds (e.g. ARBOFILL) | — |
Print settings
Starting exposure by printer, uncolored (Cubic Ink measured). Tune per geometry.
| Printer | Layer | Bottom exp. | Default exp. |
|---|---|---|---|
| Prusa SL1S Speed (LCD, 405 nm) | 50 µm | 8.00 s | 1.00 s |
| Formlabs Form 4 (LCD, 405 nm) | 50 / 100 µm | 0.45 / 0.72 s | 0.30 / 0.36 s |
| Nexa XiP (LCD, 405 nm) | 50 µm | 5.00 s | 2.00 s |
| Asiga Pro 4K80 (DLP, 385 nm) | 50 / 100 µm | 1.00 s | 0.26 / 0.31 s |
Also tested on Phrozen 8K Mighty / Mega S, Elegoo Saturn, Anycubic Photon Mono 4 and more. Wash up to 5 min (IPA or Cleaner 400); UV post-cure 2×30 min. Full parameters in the processing guide (download above).
Typical applications
Where a sacrificial, water-releasable mold pays off.
Injection-molding tooling
Cavities & inserts for short runs
Casting patterns & cavities
Target-material casting
Silicone molding
Complex internal geometry
Functional prototypes
In the real production material
How you run it
Print → wash & cure → fill & release in water.
Step 01
Print the mold
LCD / DLP / mSLA at 385 or 405 nm. Stir before use; store ≥21 °C, away from light.
Step 02
Wash & UV-cure
Clean with Cubic Ink Cleaner 400 or IPA, then UV post-cure to reach full properties.
Step 03
Fill & release
Cast or inject your target material, then dissolve the mold in water (or Mold Remover 100, 50–80 °C).
A direct alternative to Nexa3D xMOLD. Filling silicone, or need faster dissolution? Ask about alternative Mold options — a materials engineer will match the mold to your fill material and cycle. Sub-24h reply, NDA standard.
| Brand | ALTANA Cubic Ink |
| Available colors | Uncolored |
| Print Feature | Injection Molding |
| Tensile Stress at Break (MPa) | 42 |
| Tensile Modulus (MPa) | 1900 |
| Elongation at Break (%) | 42 |
| Shore Hardness (3s) | 80 |
| Solid Density g/cm3 | 1.11 |
Frequently bought together
Complete the workflow
QLS

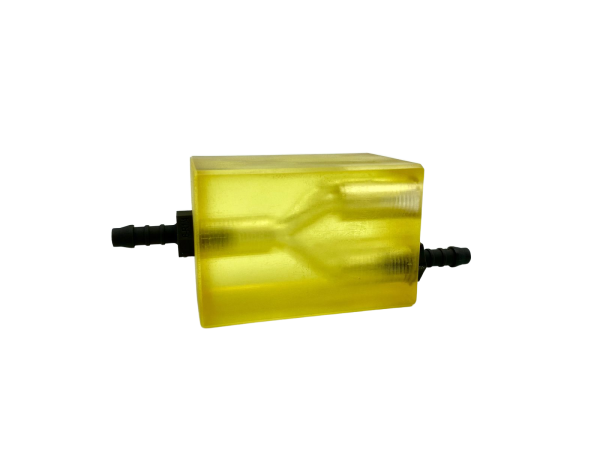

ALTANA Cubic Ink High Temperature 1901 VP – High-Temp Tooling Resin (DLP/LCD/mSLA), HDT-B 272 °C | 1 kg & 5 kg
Easy-to-print DLP/LCD/mSLA resin with an HDT-B of 272 °C, superior chemical resistance and — unlike most high-temp resins — real toughness instead of brittleness.
- ✓ HDT-B 272 °C · Tg > 300 °C — holds geometry under sustained heat
- ✓ Tough, not brittle — drill, grind and machine without shattering
- ✓ Superior chemical resistance · cytotoxicity passed (ISO 10993)
- ✓ A similar alternative to Loctite IND147 for the same high-temp applications
Two bottle sizes: 1 kg — $193.80 · 5 kg — $159.60/kg (volume saving). Uncolored or Black. Invoiced per kg; USD reference.
From $193
Add to cart
Limited US stock (uncolored) · other colors/sizes ship in ~10 business days
QLS

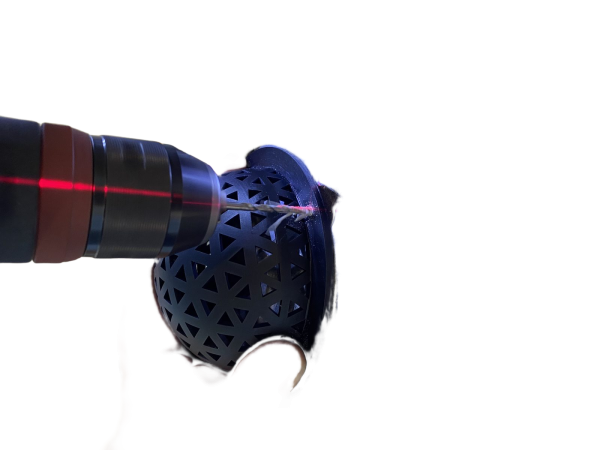

ALTANA Cubic Ink Rigid 2000 VP – Rigid High-Strength Industrial Resin, HDT 122 °C (DLP/LCD/mSLA) | 1 kg & 5 kg
Easy-to-print all-round industrial resin with excellent rigidity, an HDT of 122 °C and outstanding chemical resistance — for functional prototypes and demanding industrial parts.
- ✓ 92 MPa tensile · 3600 MPa modulus · HDT-B 122 °C — stiff and heat-stable
- ✓ Outstanding chemical resistance (<1% mass gain) & 0.3% water uptake
- ✓ Post-machinable (drill, grind); long-term thermal stability
- ✓ A cost-effective alternative to Loctite IND249 High Temp
Two bottle sizes: 1 kg — $228.00 · 5 kg — $180.12/kg (volume saving). Invoiced per kg; USD reference.
From $228
Add to cart
Limited US stock (black) · other colors/sizes ship in ~10 business days
QLS
ALTANA Cubic Ink Tough 2100 VP – Fast Functional Resin, Impact-Resistant & Tough (DLP/LCD/mSLA) | 1 kg & 5 kg
Fast, easy-to-print functional resin with a strong balance of toughness, impact resistance and HDT — robust enough for drilling, grinding and real functional parts.
- ✓ High impact resistance — 36 J/m notched Izod, 12% elongation, 380 J/m unnotched
- ✓ 73 MPa tensile · 2800 MPa modulus · 84 Shore D — stiff yet not brittle
- ✓ Post-machinable (drill, grind); uncolored, black & custom colors
- ✓ A cost-effective alternative to Loctite IND403 HDT80
Two bottle sizes: 1 kg — $159.60 · 5 kg — $129.96/kg (volume saving). Invoiced per kg; USD reference.
From $159
Add to cart
Limited US stock (black) · other colors/sizes ship in ~10 business days
Other products teams run alongside ALTANA Cubic Ink Mold 400 VP – Water-Breakable Casting & Injection-Molding Resin (DLP/LCD/mSLA) | 1 kg & 5 kg
QLS

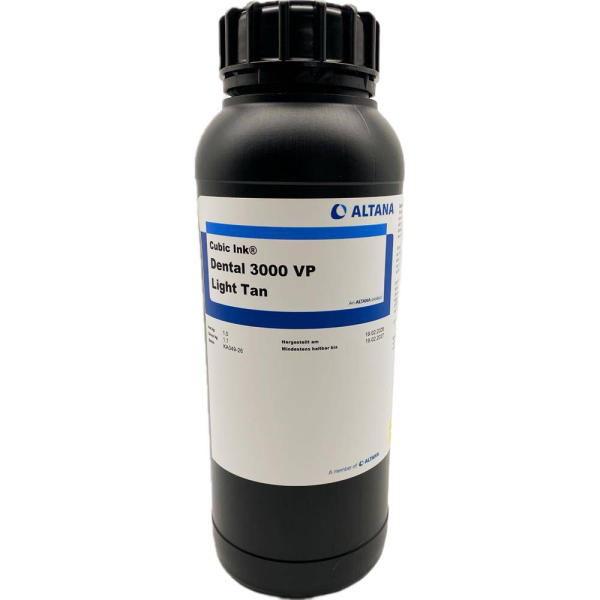

ALTANA Cubic Ink Dental 3000 VP Light Tan – Dental Model Resin for Aligner Thermoforming (DLP/LCD) | 1 kg & 5 kg
Model material for the dental industry — high-resolution, dimensionally accurate dental models for aligner thermoforming, with excellent printability up to 150 µm layers. Produced in the USA.
- ✓ High-detail dental models & hollow objects on common DLP/LCD machines
- ✓ Robust post-treatment via temperature & pressure (thermoforming-ready)
- ✓ Cytotoxicity passed (ISO 10993); light tan, custom colors on request
- ✓ Scalable pricing — 1 kg, 5 kg and 200 L drums; made in the USA
Bottle sizes: 1 kg — $125.40 · 5 kg — $100.32/kg · 200 L drums (call for pricing). Invoiced per kg; USD reference.
From $125
Add to cart
In stock
· Made to order (USA) · ships in ~10 business days · 200 L drums on request
QLS

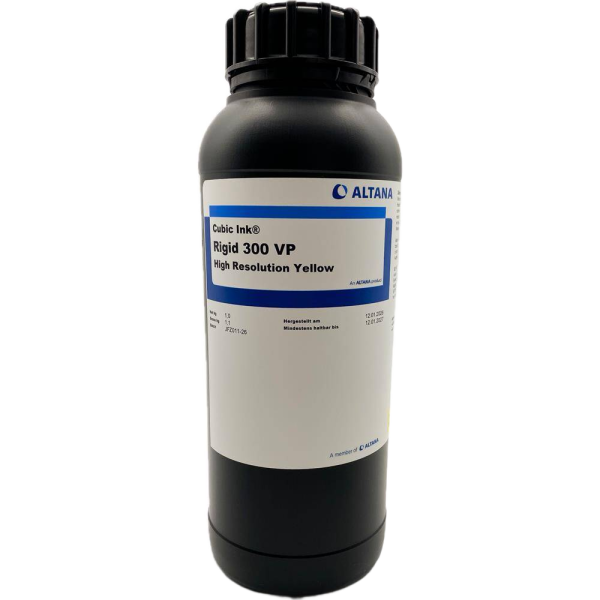

ALTANA Cubic Ink Rigid 300 VP High Resolution – Fine-Detail Precision Resin (DLP/LCD/mSLA) | 1 kg & 5 kg
Rigid resin engineered for outstanding printing resolution — ultra-thin layers and crisp XY detail at high print speed, with low water uptake for dimensional stability in fluids.
- ✓ Ultra-thin layers & crisp XY resolution — fine-detail precision parts
- ✓ 37 MPa tensile · 1900 MPa modulus · 8% elongation — rigid yet not brittle
- ✓ Very low water uptake (0.3%) & strong chemical resistance
- ✓ Fast printing thanks to high reactivity
Two bottle sizes: 1 kg — $216.60 · 5 kg — $175.56/kg (volume saving). Invoiced per kg; USD reference.
From $216
Add to cart
In stock
· Made to order · ships in ~10 business days
3D Printed Parts & Models
Fun & Unique 3D Printed Toys – Fidgets, Miniatures & More
Unleash creativity and fun with our collection of 3D printed toys!
In stock
QLS
ALTANA Cubic Ink High Temperature 1901 VP – High-Temp Tooling Resin (DLP/LCD/mSLA), HDT-B 272 °C | 1 kg & 5 kg
Easy-to-print DLP/LCD/mSLA resin with an HDT-B of 272 °C, superior chemical resistance and — unlike most high-temp resins — real toughness instead of brittleness.
- ✓ HDT-B 272 °C · Tg > 300 °C — holds geometry under sustained heat
- ✓ Tough, not brittle — drill, grind and machine without shattering
- ✓ Superior chemical resistance · cytotoxicity passed (ISO 10993)
- ✓ A similar alternative to Loctite IND147 for the same high-temp applications
Two bottle sizes: 1 kg — $193.80 · 5 kg — $159.60/kg (volume saving). Uncolored or Black. Invoiced per kg; USD reference.
From $193
Add to cart
In stock
· Limited US stock (uncolored) · other colors/sizes ship in ~10 business days
QLS
ALTANA Cubic Ink Rigid 2000 VP – Rigid High-Strength Industrial Resin, HDT 122 °C (DLP/LCD/mSLA) | 1 kg & 5 kg
Easy-to-print all-round industrial resin with excellent rigidity, an HDT of 122 °C and outstanding chemical resistance — for functional prototypes and demanding industrial parts.
- ✓ 92 MPa tensile · 3600 MPa modulus · HDT-B 122 °C — stiff and heat-stable
- ✓ Outstanding chemical resistance (<1% mass gain) & 0.3% water uptake
- ✓ Post-machinable (drill, grind); long-term thermal stability
- ✓ A cost-effective alternative to Loctite IND249 High Temp
Two bottle sizes: 1 kg — $228.00 · 5 kg — $180.12/kg (volume saving). Invoiced per kg; USD reference.
From $228
Add to cart
In stock
· Limited US stock (black) · other colors/sizes ship in ~10 business days
QLS

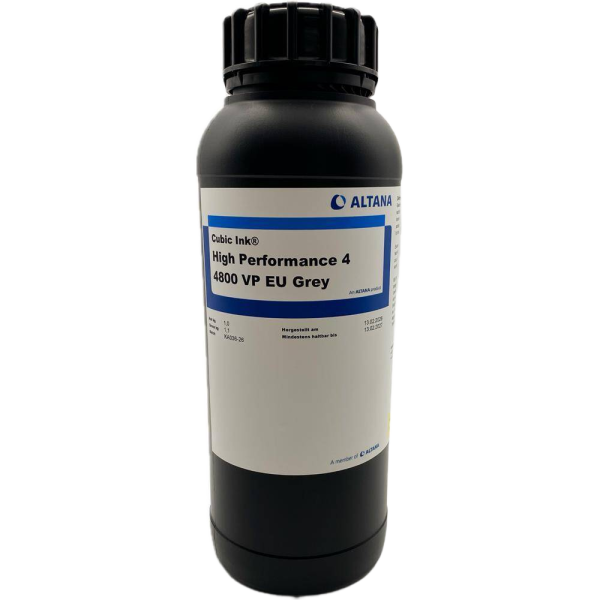

ALTANA Cubic Ink High Performance 4-4800 VP – Impact-Resistant Final-Part Resin (DLP/LCD/mSLA) | 1 kg & 5 kg
Highly impact-resistant, flexible final-part resin with good toughness, scratch resistance and heat resistance (HDT-B 90 °C), plus a clean regulatory profile.
- ✓ 44 J/m notched · 350 J/m unnotched Izod · 16% elongation — durable end-use parts
- ✓ HDT-B 90 °C, UV-stable, low water uptake, cytotoxicity passed (ISO 10993)
- ✓ Scratch-resistant; uncolored, black, blue, pink, grey
- ✓ A similar option to Loctite IND406 / 3843 for final-part production
Two bottle sizes: 1 kg — $250.80 · 5 kg — $228.00/kg (volume saving). Invoiced per kg; USD reference.
From $250
Add to cart
In stock
· Limited US stock (grey) · other colors/sizes ship in ~10 business days
QLS

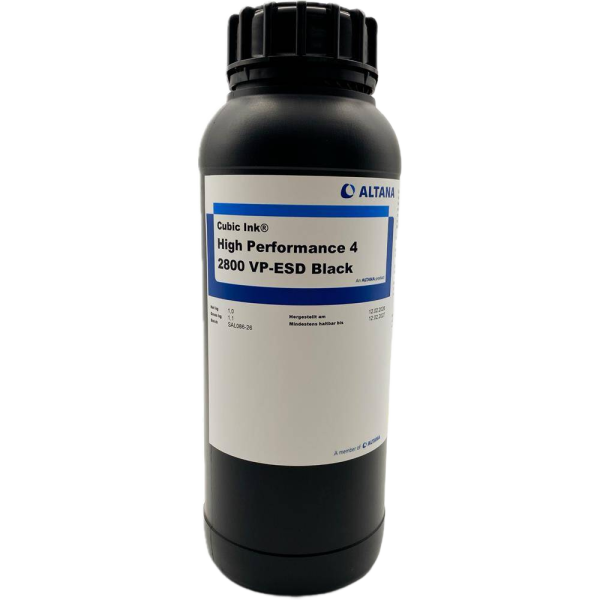

ALTANA Cubic Ink High Performance 4-2800 VP-ESD Black – ESD Resin for Final Parts (DLP/LCD/mSLA) | 1 kg & 5 kg
