QATM BRILLANT 230 Abrasive Cut-off Machine – Ø 110 mm Capacity | Floor-Standing Wet Sectioning
The QATM BRILLANT 230 is a floor-standing wet abrasive cut-off machine with fine dynamic manual wheel movement and automatic cross travel — sectioning samples up to Ø 110 mm with wheels to Ø 300 mm (12″).
- ✔ Ø 110 mm capacity · wheel to Ø 300 mm (12″) · 2750 rpm, 4 kW drive
- ✔ Openings both sides for long parts · Quick-Change wheel system · door interlock & LED chamber
- ✔ Lead time: configured to order — installation & training included
What your metallography lab actually checks
Fine dynamic, deformation-free cutting
The manual cutting movement is regulated through a set of gears for a jerk-free, precise cut, while wet cooling and a gentle pulsed mode keep heat and load off sensitive material — so the microstructure you examine reflects the sample, not the saw.
A metallography engineer on the line
Questions about abrasive wheel choice, cutting long stock or clamping a tricky geometry? Our engineers run these machines and the whole prep line. Sub-4h reply, NDA on request.
QATM BRILLANT 230 is a floor-standing wet abrasive cut-off machine with fine dynamic manual wheel movement and automatic cross travel — for deformation-free sectioning of larger samples up to Ø 110 mm.
Why metallographers choose the BRILLANT 230
A robust floor-standing abrasive saw with a precise manual feel and automatic cross travel.
Fine dynamic manual cut-off
With the manual cutting movement, the force is regulated through a set of gears for a jerk-free, more precise cut. An easy-to-use lever brake fixes the cutting disc in any position.
Ø 110 mm capacity, 300 mm wheel
Wet abrasive cutting up to Ø 110 mm with wheels to Ø 300 mm (12″) at 2750 rpm on a 4 kW drive. A large, x-adjustable table and 125 mm vertical movement handle demanding work.
Long parts & automatic cross travel
Openings on the left and right pass continuous long material through the large chamber. Manual or automatic horizontal movement cuts long parts longitudinally, the automatic Z-axis sets parallel cuts to 0.1 mm, and pulsed mode sections sensitive material gently.
Access, safety & quick wheel change

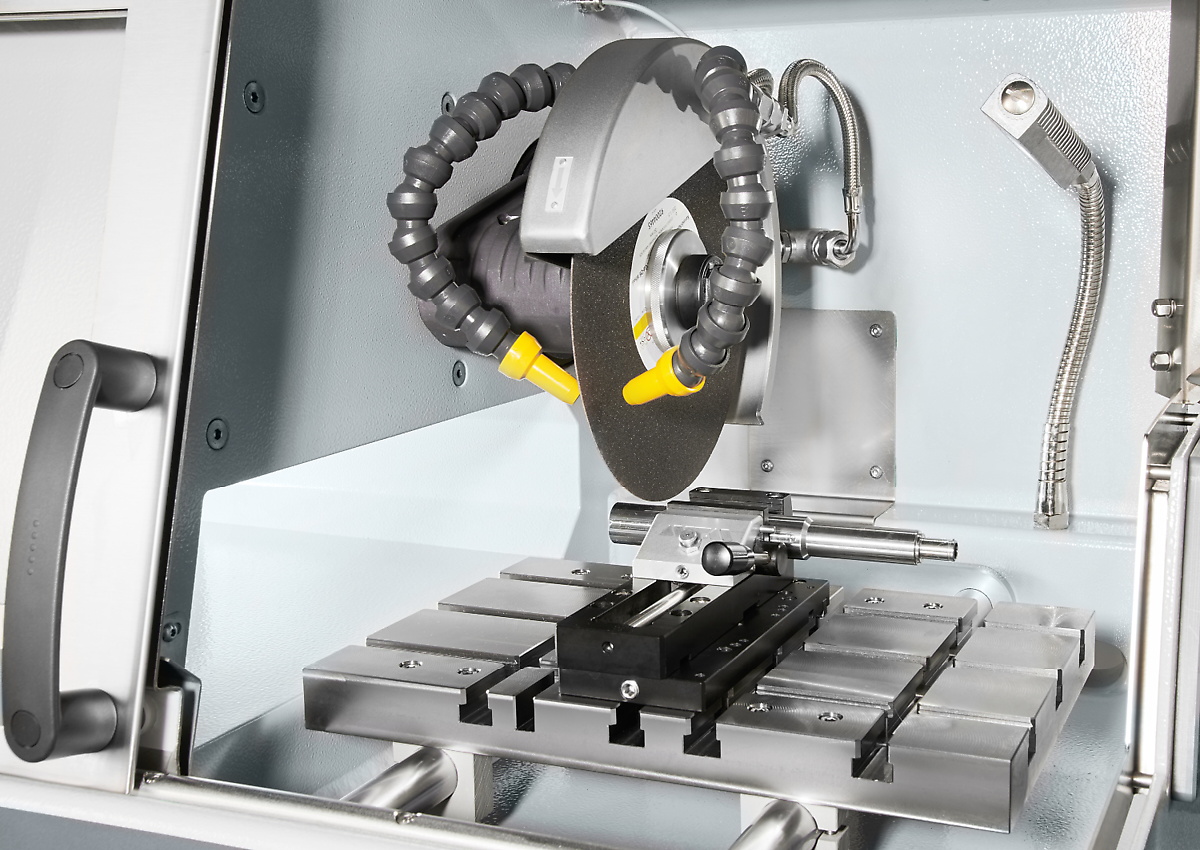

A sliding front door and a side door with safety interlock give superior access to the LED-lit chamber. The Quick-Change-System speeds wheel changes and maintenance, with a ceramic-protected flange and easy nut.
With every QATM cut-off machine
Configured, installed and supported by a metallography team — not shipped as a bare crate.
Matched to your samples
Tell us the parts you section — alloy, size and how sensitive they are. We spec the cutting wheel, clamping tools and cooling so the machine arrives configured for your lab.
Installed and dialled in
We install the machine, run first cuts on your own material and train the operator on the manual feed, cross travel and wheel selection — not a crate left on a pallet.
Backed by a metallography engineer
Wheel and parameter advice, consumable reorders and the next steps — mounting, grinding, polishing and hardness — from one partner. Sub-24h response.
Typical applications
Where the BRILLANT 230 does its work.
Not sure the BRILLANT 230 is the right fit?
Compare the QATM wet abrasive range by capacity and automation.
Why source the BRILLANT 230 through Additive Plus
- QATM metallography specialists — sectioning, mounting, grinding/polishing and hardness testing in one workflow.
- Application engineering: cutting wheel, clamping and parameter selection for your materials.
- Installation, operator training and validated first cuts on your own samples.
- Cutting wheels and clamping tools stocked — reorder without re-qualifying.
- Under-24h response · 200+ lab and AM systems delivered across 23 countries.
| Cutting wheel | up to ø 300 mm/12" |
| Max. cutting capacity | ø 110 mm |
| Wheel flange size | ø 32 mm |
| Y-axis (vertical movement) | 125 mm |
| Table WxD | 380 x 250 mm, stainless |
| T-slot | 12 mm |
| Connection power | 6 kVA |
| Drive power (main drive) | 4 kW S1 |
| Speed | 2750 rpm |
| Brand | QATM |
