QATM QCUT 250 M Abrasive Cut-off Machine – Ø 90 mm Capacity | Manual Wet Sectioning
The QATM QCUT 250 M is a user-friendly manual wet abrasive cut-off machine with fine dynamic lever feed — sectioning samples up to Ø 90 mm with cutting wheels to Ø 250 mm (10″).
- ✔ Ø 90 mm capacity · wheel to Ø 250 mm (10″) · 145 mm Y-axis
- ✔ Openings both sides for long parts · large stainless table · door interlock & standstill monitoring
- ✔ Lead time: configured to order — installation & training included
What your metallography lab actually checks
Fine dynamic, deformation-free cuts
Continuous coolant flow and a jerk-free lever feed keep heat and load off larger abrasive cuts. The cutting-depth limiter makes each cut repeatable, so what you examine reflects the material — not the saw.
A metallography engineer on the line
Questions about abrasive wheel choice, cutting a long part or clamping a tricky geometry? Our engineers run these machines and the whole prep line. Sub-4h reply, NDA standard.
QATM QCUT 250 M is a user-friendly manual wet abrasive cut-off machine with fine dynamic lever feed — for deformation-free sectioning of larger samples up to Ø 90 mm before mounting and metallographic examination.
Why metallographers choose the QCUT 250 M
A robust wet abrasive saw with a light, precise manual feel for larger samples.
Fine dynamic manual cut-off

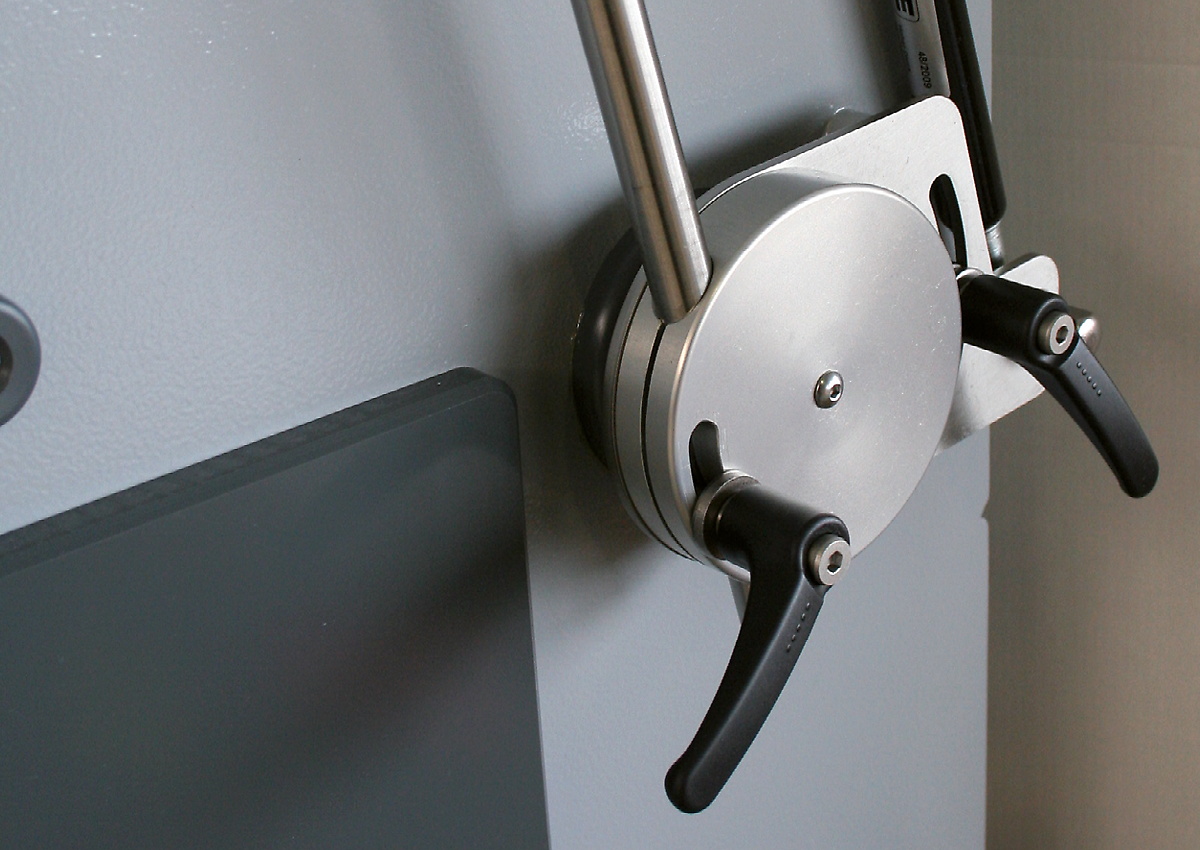

The manual Y-axis cuts precisely and jerk-free via a lever whose length and angle adjust to the operator. A cutting-depth limiter sets the cut so results stay consistent through a shift.
Ø 90 mm capacity, 250 mm wheel
Wet abrasive cutting up to Ø 55 mm solid — or Ø 90 mm on parts up to 25 mm long — with cutting wheels to Ø 250 mm (10″). A 145 mm Y-axis handles taller work.
Long parts, large stainless table

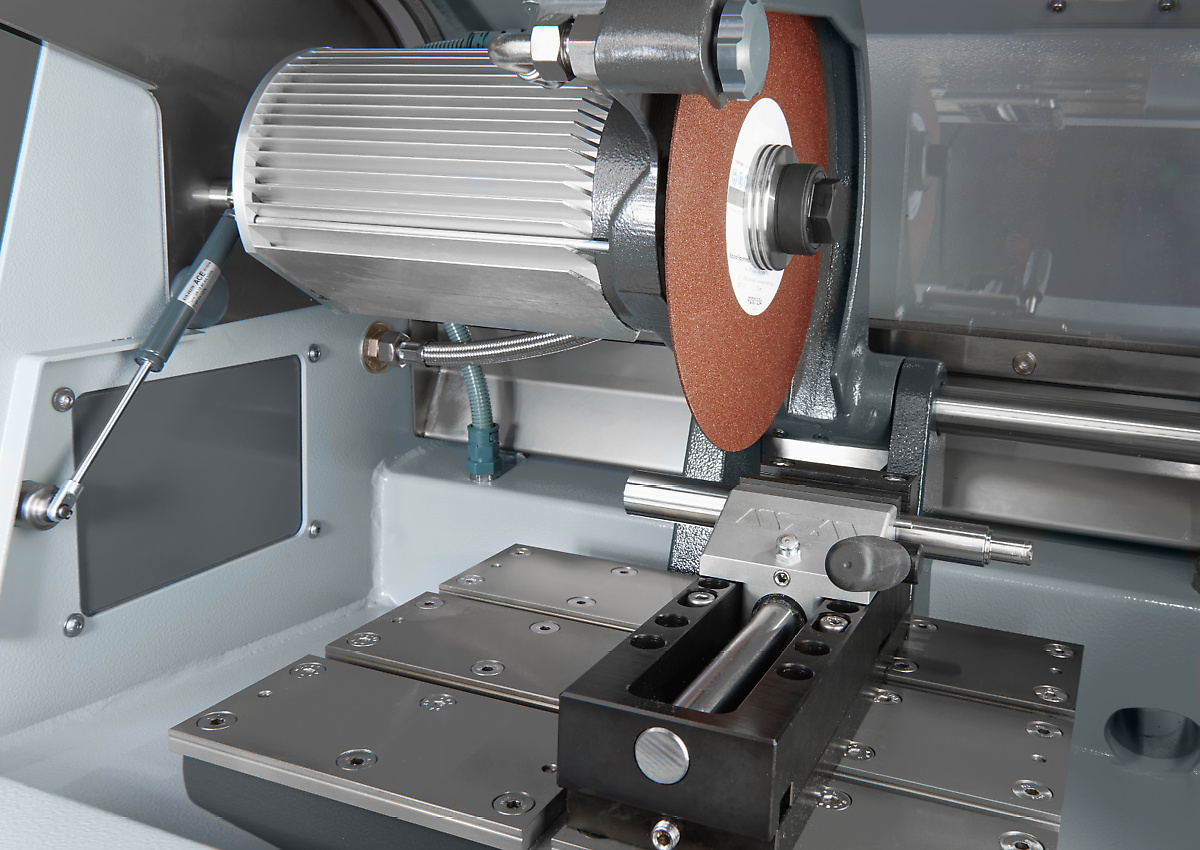

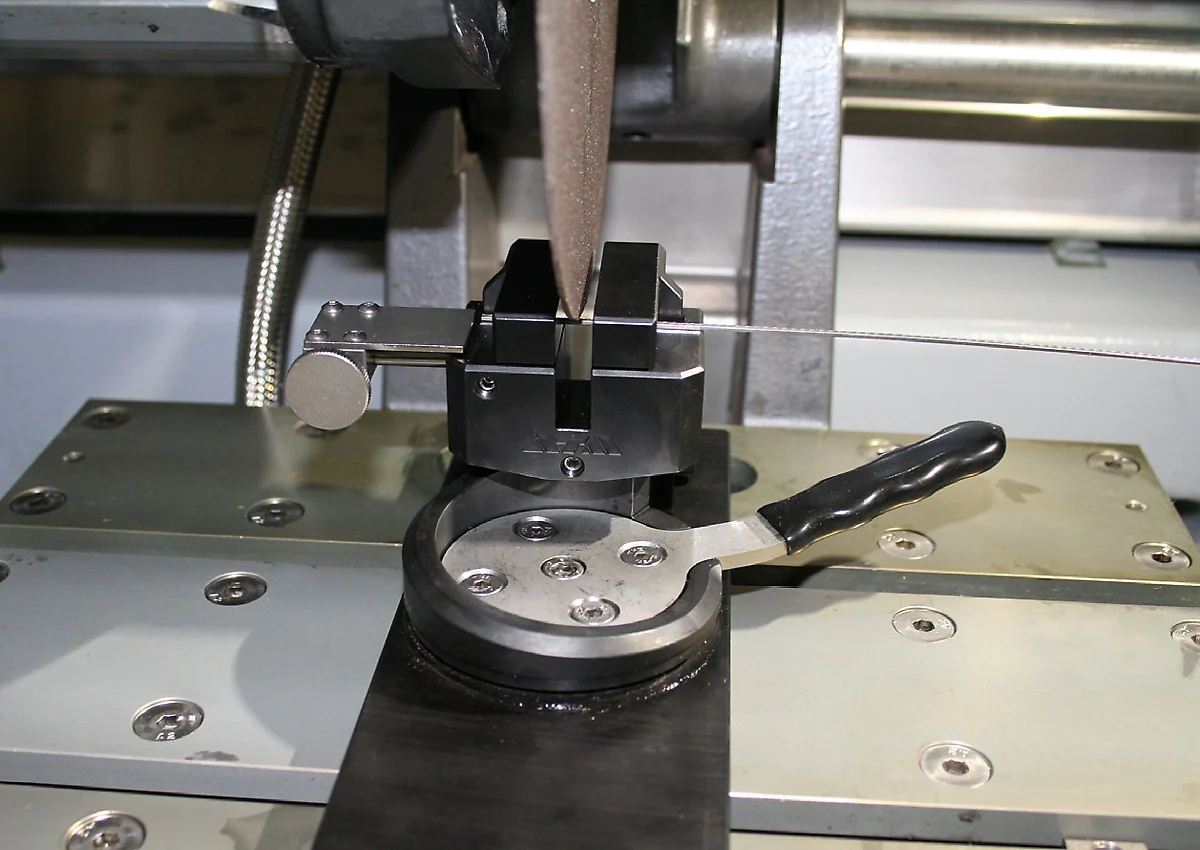

Openings on the left and right pass continuous long material through the chamber. The 350 × 288 mm stainless table with exchangeable wear plates and 12 mm T-slots takes QATM clamping systems.
Safe, well-lit chamber
Standstill monitoring allows opening only when the wheel has stopped, and a door interlock meets current safety standards. A large rounded window and optional flexible LED light keep the cut in clear view.
With every QATM cut-off machine
Configured, installed and supported by a metallography team — not shipped as a bare crate.
Matched to your samples
Tell us the parts you section — alloy, size and how sensitive they are. We spec the cutting wheel, clamping tools and cooling so the machine arrives configured for your lab.
Installed and dialled in
We install the machine, run first cuts on your own material and train the operator on lever feed, depth setting and wheel selection — not a crate left on a pallet.
Backed by a metallography engineer
Wheel and parameter advice, consumable reorders and the next steps — mounting, grinding, polishing and hardness — from one partner. Sub-24h response.
Typical applications
Where the QCUT 250 M does its work.
Not sure the QCUT 250 M is the right fit?
Compare the QATM wet abrasive range by capacity and automation.
Why source the QCUT 250 M through Additive Plus
- QATM metallography specialists — sectioning, mounting, grinding/polishing and hardness testing in one workflow.
- Application engineering: cutting wheel, clamping and parameter selection for your materials.
- Installation, operator training and validated first cuts on your own samples.
- Cutting wheels and clamping tools stocked — reorder without re-qualifying.
- Under-24h response · 200+ lab and AM systems delivered across 23 countries.
| Cutting wheel | up to ø 250 mm/10" |
| Max. cutting capacity | ø 55 mm / ø 90 mm (up to 25 mm length) |
| Wheel flange size | ø 32 mm |
| Y-axis (vertical movement) | 145 mm |
| Table WxD | 350 x 288 mm, stainless |
| T-slot | 12 mm |
| Connection power | 4.5 kVA |
| Drive power (main drive) | 3 kW S6 40% |
| Weight | ~ 75 kg |

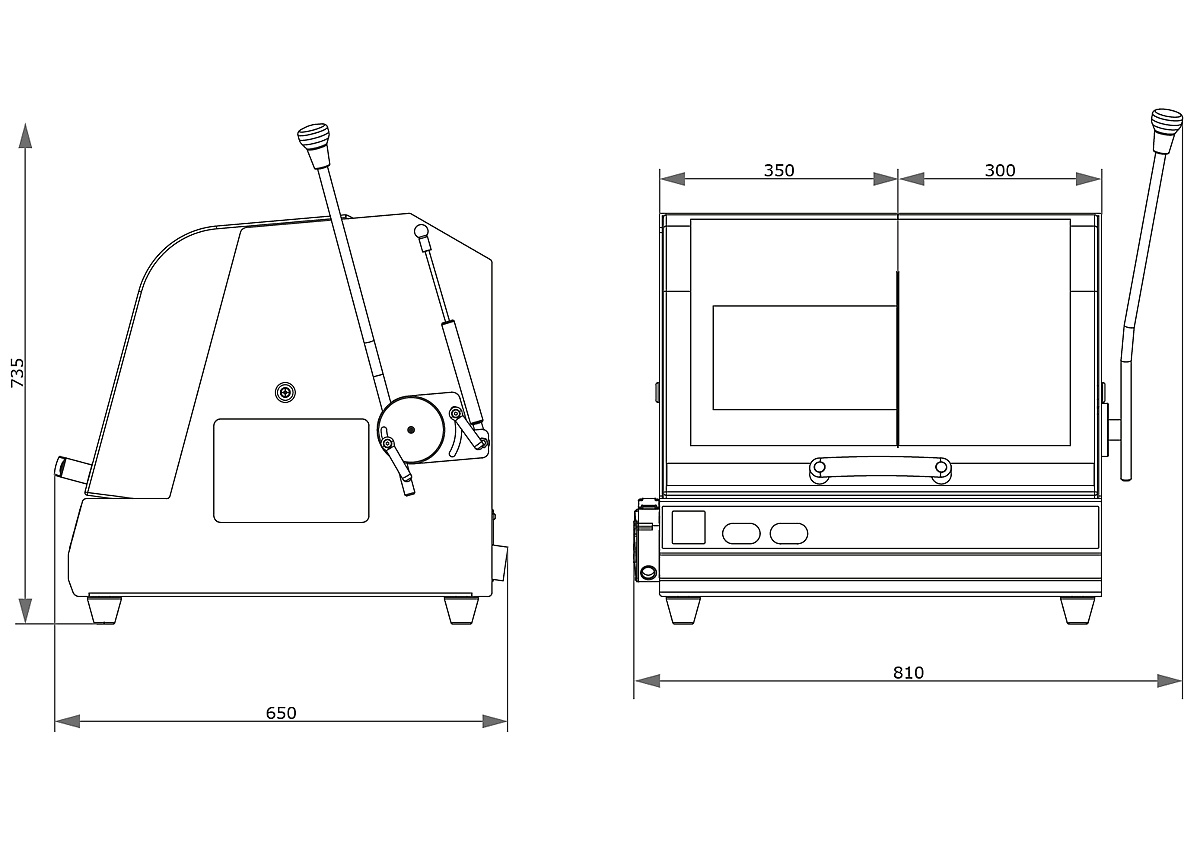

| W x H x D | 810 x 735 x 650 mm / 31.89 x 28.94 x 25.59 in |
