QCUT 250 A
The Qcut 250 A is a compact and flexible semi-automatic abrasive cut-off machine
Need an official request?
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
PRODUCT ADVANTAGES
• Manual Y-axis with electromechanical lever brake
• Care-Cut: facilitates gentle cutting
• 7″ Touch-Screen user interface with intuitive QATM user software
• Automatic travel X-axis – manual travel via hand wheel
• Cutting-force dependent feed control (X-axis)
• Superior LED illumination of cutting chamber
• Parallel setting of wheel guard during cutting sequences increases cutting capacity
• Opening on both sides for long parts
• Manual Y-axis with electromechanical lever brake
• Care-Cut: facilitates gentle cutting
• 7″ Touch-Screen user interface with intuitive QATM user software
• Automatic travel X-axis – manual travel via hand wheel
• Cutting-force dependent feed control (X-axis)
• Superior LED illumination of cutting chamber
• Parallel setting of wheel guard during cutting sequences increases cutting capacity
• Opening on both sides for long parts
FINE DYNAMIC CUT-OFF

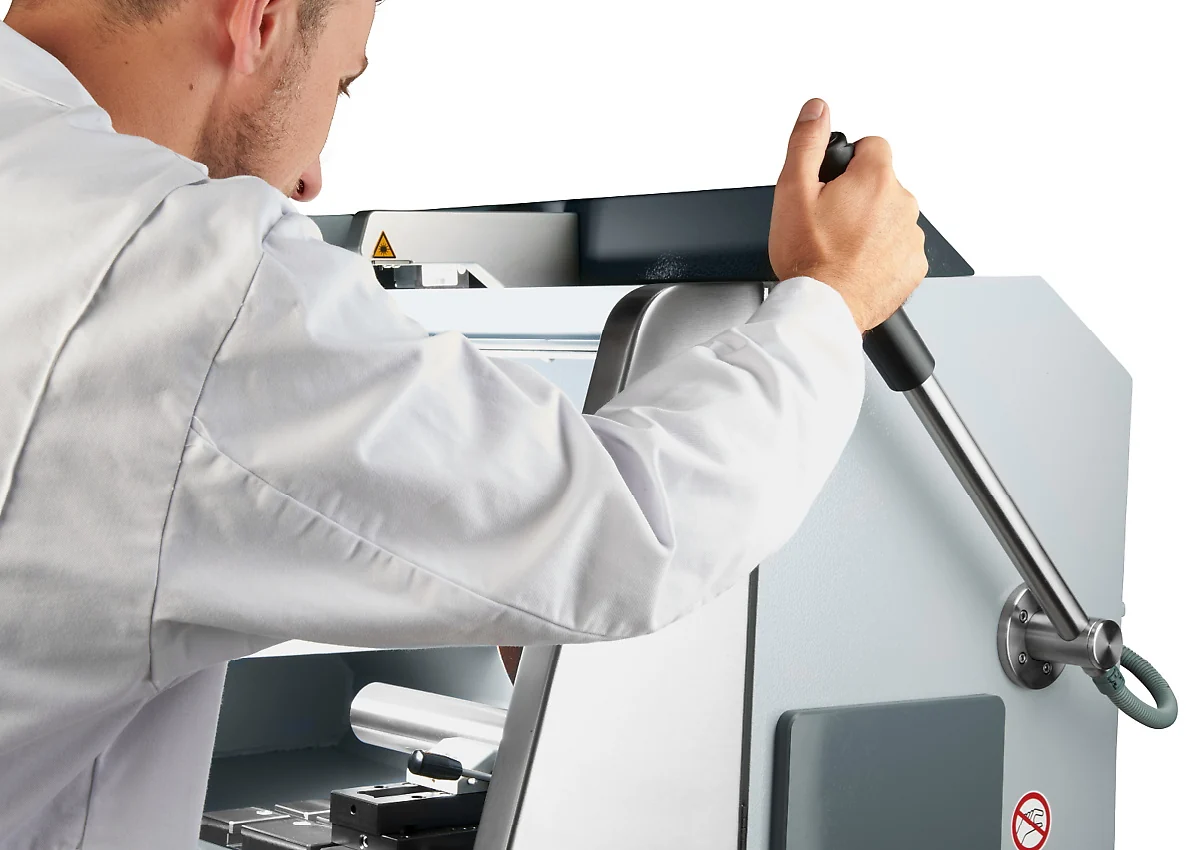

With the manual cutting movement, the cutting force is regulated through a set of gears. The cut is thereby jerk-free and more precise.
MANUAL HORIZONTAL MOVEMENT

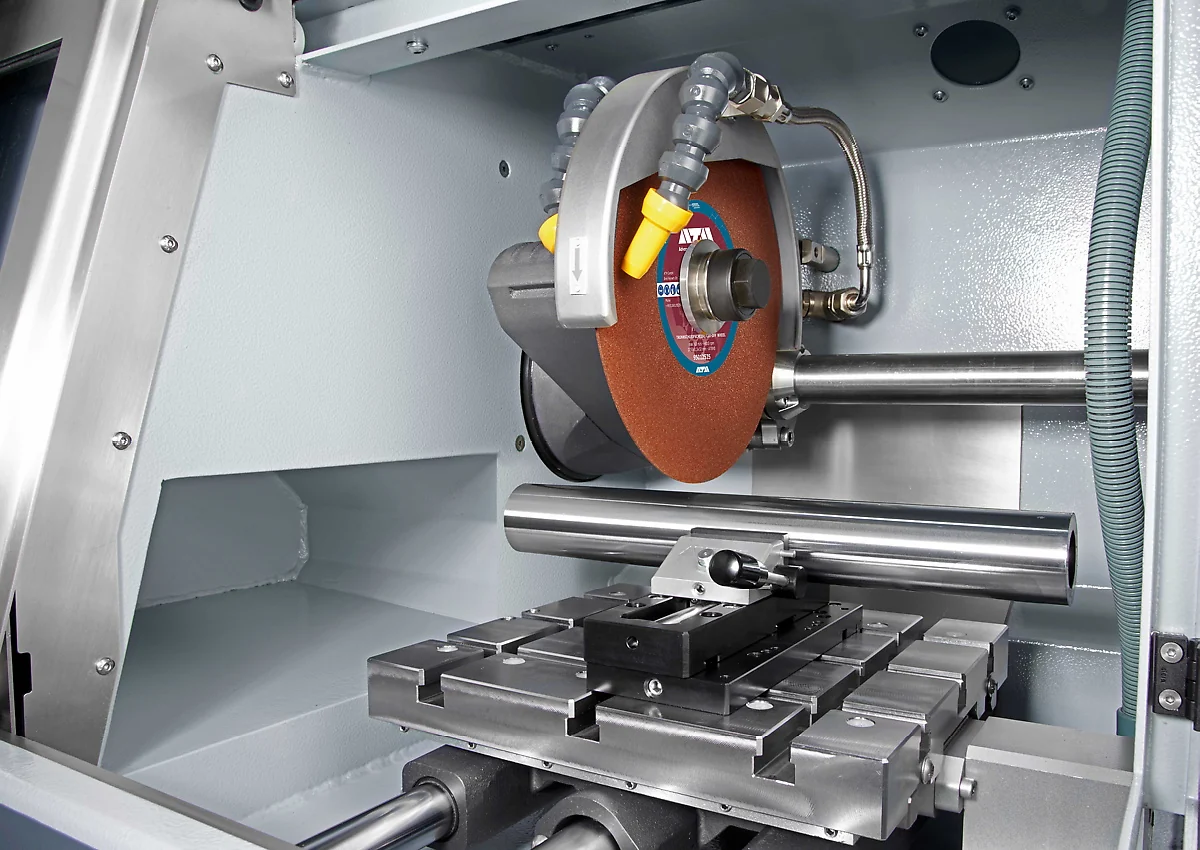

The manual horizontal movement allows cutting long parts longitudinally and easy positioning of the sample below the cut-off wheel.
INNOVATIVE DETAILS

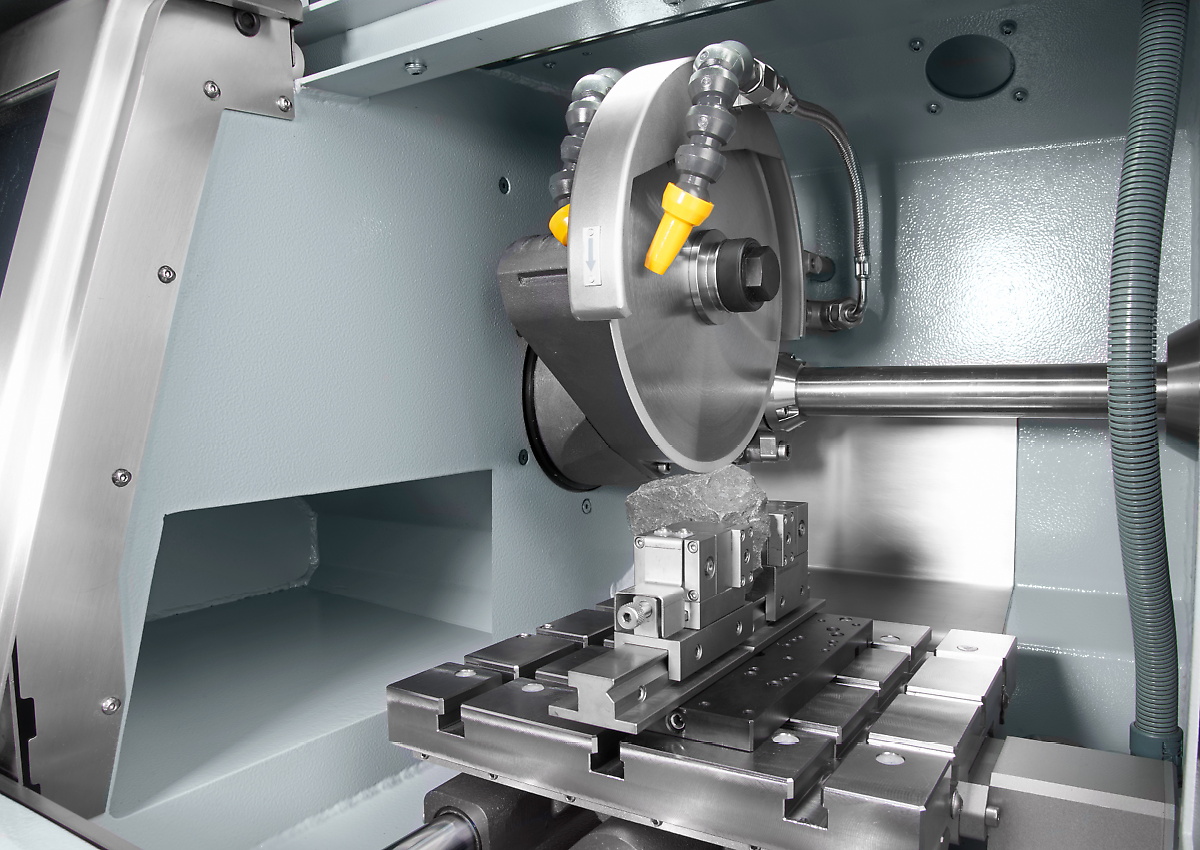

The sliding front door and the side door with safety interlock allow easy and optimal access to the
cutter chamber. Further, the LED cutting chamber illumination is energy-saving. The arbour is protected against wearing by an interchangeable ring.
Z-AXIS
The manual Z-axis can be adjusted with 0.1 mm precision for parallel cuts.
FINE DYNAMIC CUT-OFF
With the manual cutting movement, the cutting force is regulated through a set of gears. The cut is thereby jerk-free and more precise.
MANUAL HORIZONTAL MOVEMENT
The manual horizontal movement allows cutting long parts longitudinally and easy positioning of the sample below the cut-off wheel.
INNOVATIVE DETAILS
The sliding front door and the side door with safety interlock allow easy and optimal access to the
cutter chamber. Further, the LED cutting chamber illumination is energy-saving. The arbour is protected against wearing by an interchangeable ring.
Z-AXIS
The manual Z-axis can be adjusted with 0.1 mm precision for parallel cuts.
- Brand QATM
- Cutting wheel up to 254 mm / 10''
- Max. cutting capacity ø 95 mm
- X-axis automatic & manual 225 mm
- Y-axis manual 170 mm
- Z-axis automatic (option) 120 mm
- Precision Z-axis 0.1 mm
- Table without Z-axis WxD 380 x 270 mm
- Table with Z-axis WxD 300 x 270 mm
- T-slot 12 mm
- Connection power 5.5 kVA
- Drive power (main drive) 3 kW, S1; 4 kW, S3/60%
- Speed 3015 rpm at 50Hz and 3100 rpm at 60Hz

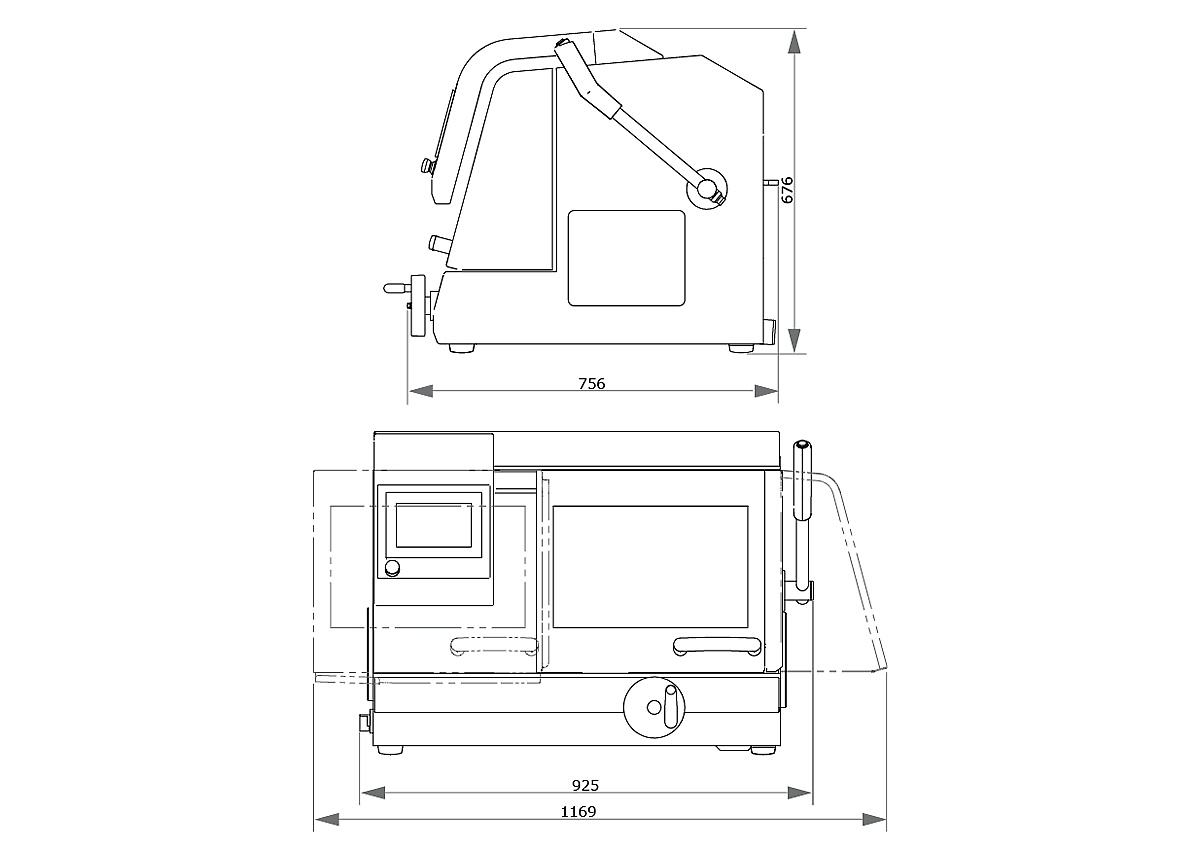

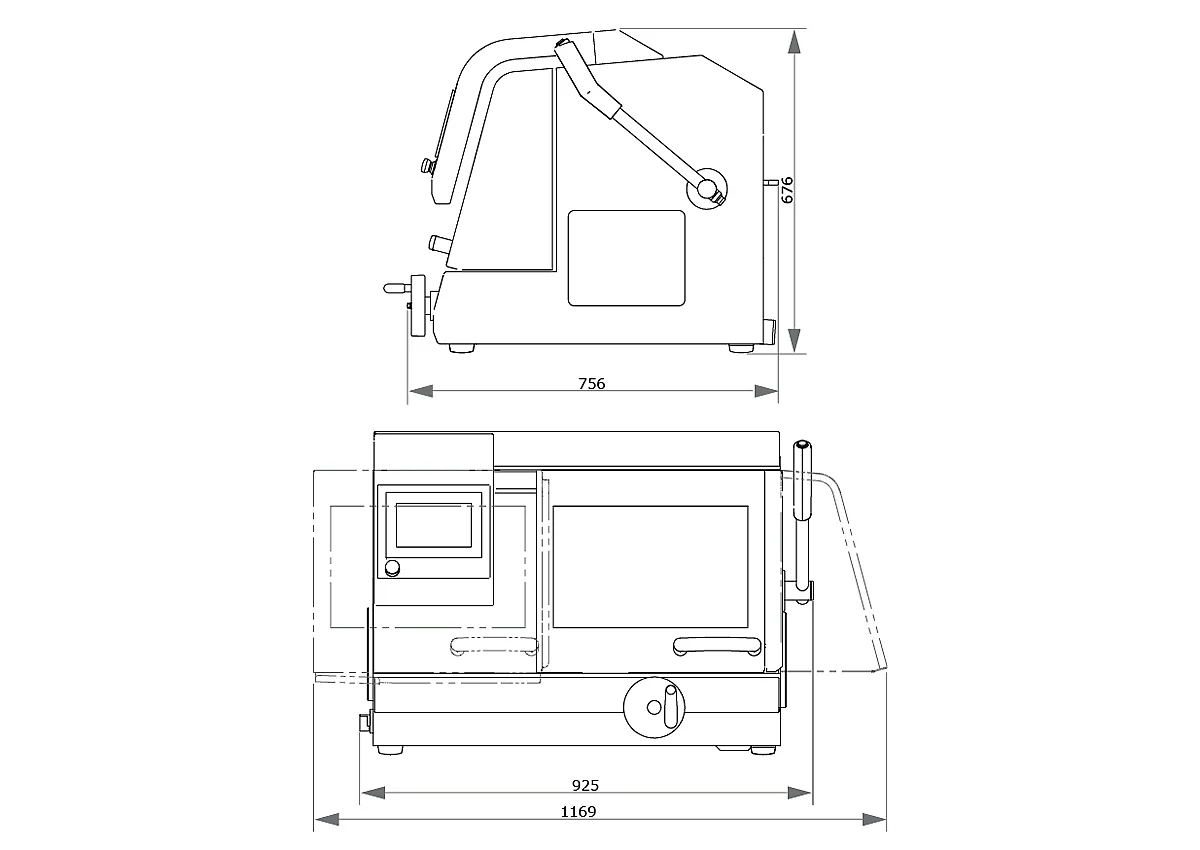

- W x H x D 925 x 676 x 756 mm / 36.42 x 26.61 x 29.76 in
- Weight (depends on equipment) ~ 130 kg
