QCUT 350 A

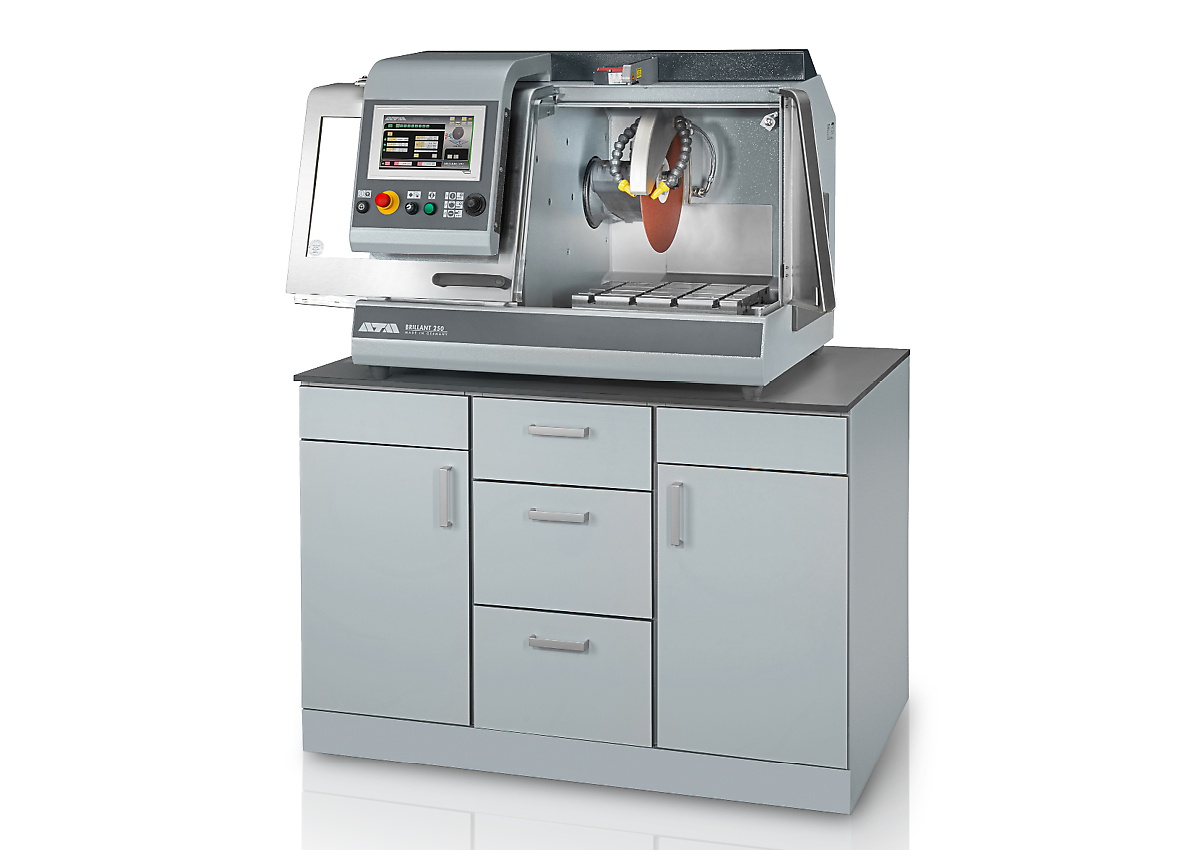

The Qcut 350 A is an automatic wet abrasive cut-off machine for samples up to max. Ø 135 mm
Need an official request?
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
PRODUCT ADVANTAGES
• Automatic horizontal movement
• Automatic vertical movement
• Electronic control of cutting force
• Electronic control of distance
• Electronic cutting force limiter
• Memory for saving programs
• Large range of different clamping tools and systems available
• Opening on the right for long parts
• Automatic horizontal movement
• Automatic vertical movement
• Electronic control of cutting force
• Electronic control of distance
• Electronic cutting force limiter
• Memory for saving programs
• Large range of different clamping tools and systems available
• Opening on the right for long parts
ELECTRONIC PERFORMANCE CONTROL
The feed rate is reduced upon reaching the preset maximum power. This protects the machine and its cutting components from overloading.
ELECTRONIC CONTROL
Cutting parameters for the automatic traverse cuts can be saved in the electronic control, and then loaded later. The position of the manual traverse cut is also
shown on the display.
All parameters such as feed rate, travel and cutting force can be altered during automatic cycles.
MULTI-POSITION-PROCESS MPP With the “Multi-Position-Process” (MPP) you can place
multiple specimens on the table and cut them in one sequence. The teach-in function enables a simple and user-friendly setting of various cutting positions.
PULSED CUTTING
In cases where there are heavy sections and materials which are difficult to cut, the variable pulsed cutting system gives decisive advantages.

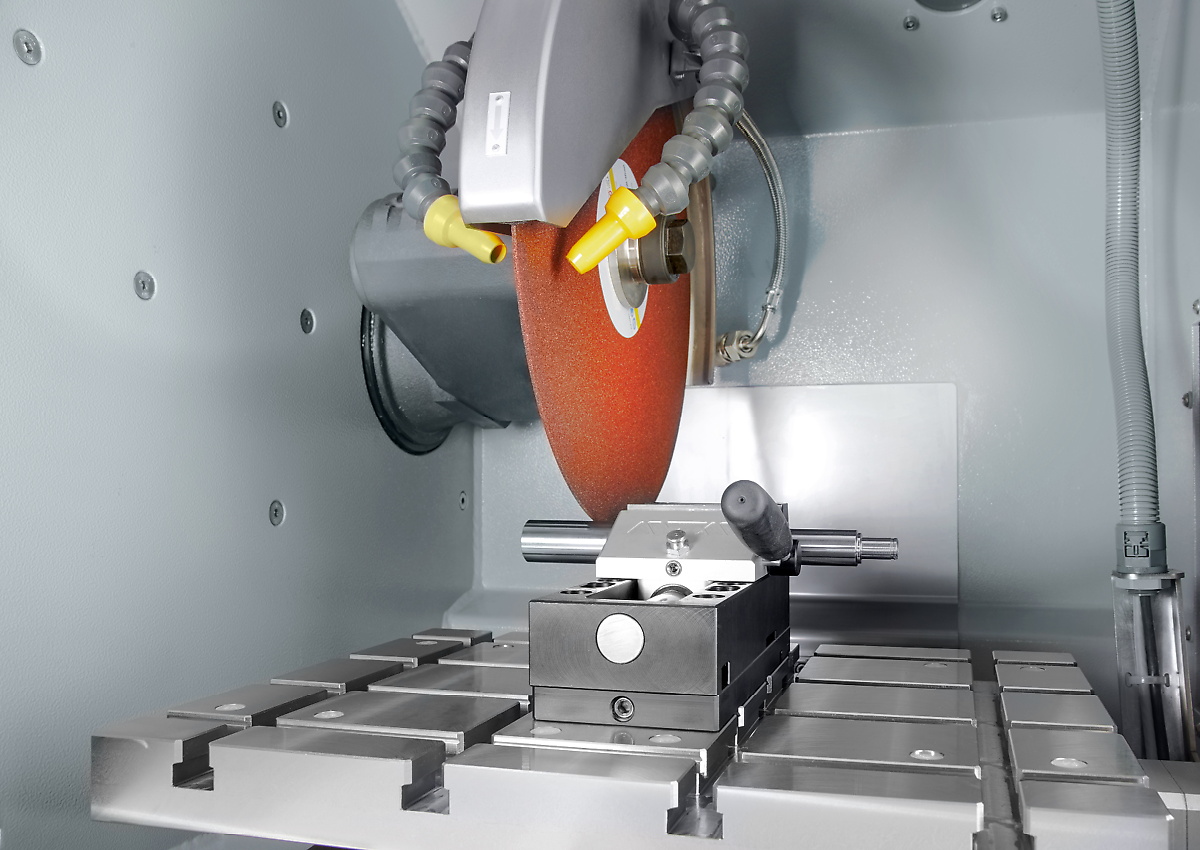

AUTOMATIC TOUCH DETECTION
After automatic start of the cutting process the sample
is approached in rapid run. By touching the cut-off wheel the sample is cut efficiently and safely with preset cutting parameters.
ELECTRONIC PERFORMANCE CONTROL
The feed rate is reduced upon reaching the preset maximum power. This protects the machine and its cutting components from overloading.
ELECTRONIC CONTROL
Cutting parameters for the automatic traverse cuts can be saved in the electronic control, and then loaded later. The position of the manual traverse cut is also
shown on the display.
All parameters such as feed rate, travel and cutting force can be altered during automatic cycles.
MULTI-POSITION-PROCESS MPP With the “Multi-Position-Process” (MPP) you can place
multiple specimens on the table and cut them in one sequence. The teach-in function enables a simple and user-friendly setting of various cutting positions.
PULSED CUTTING
In cases where there are heavy sections and materials which are difficult to cut, the variable pulsed cutting system gives decisive advantages.
AUTOMATIC TOUCH DETECTION
After automatic start of the cutting process the sample
is approached in rapid run. By touching the cut-off wheel the sample is cut efficiently and safely with preset cutting parameters.
- Brand QATM
- Cutting wheel up to Ø 356 mm/14"
- Max. cutting capacity Ø 135 mm
- Wheel flange size Ø 32 mm

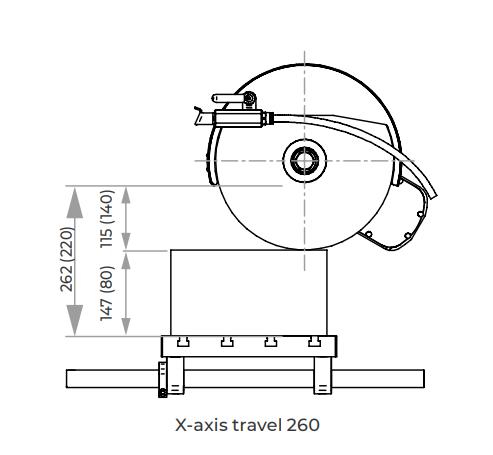

- X-axis automatic 260 mm
- Y-axis automatic 180 mm
- Z-axis automatic (option) 140 mm
- Precision Z-axis 0.1 mm
- Table without Z-axis WxD 400 x 300 mm, stainless
- Table with Z-axis WxD 500 x 300 mm, stainless
- T-slot 12 mm
- Connection power 9.5 kVA
- Drive power (main drive) 4 kW S1; 5.5 kW S3
- Speed variable 800-3400 rpm

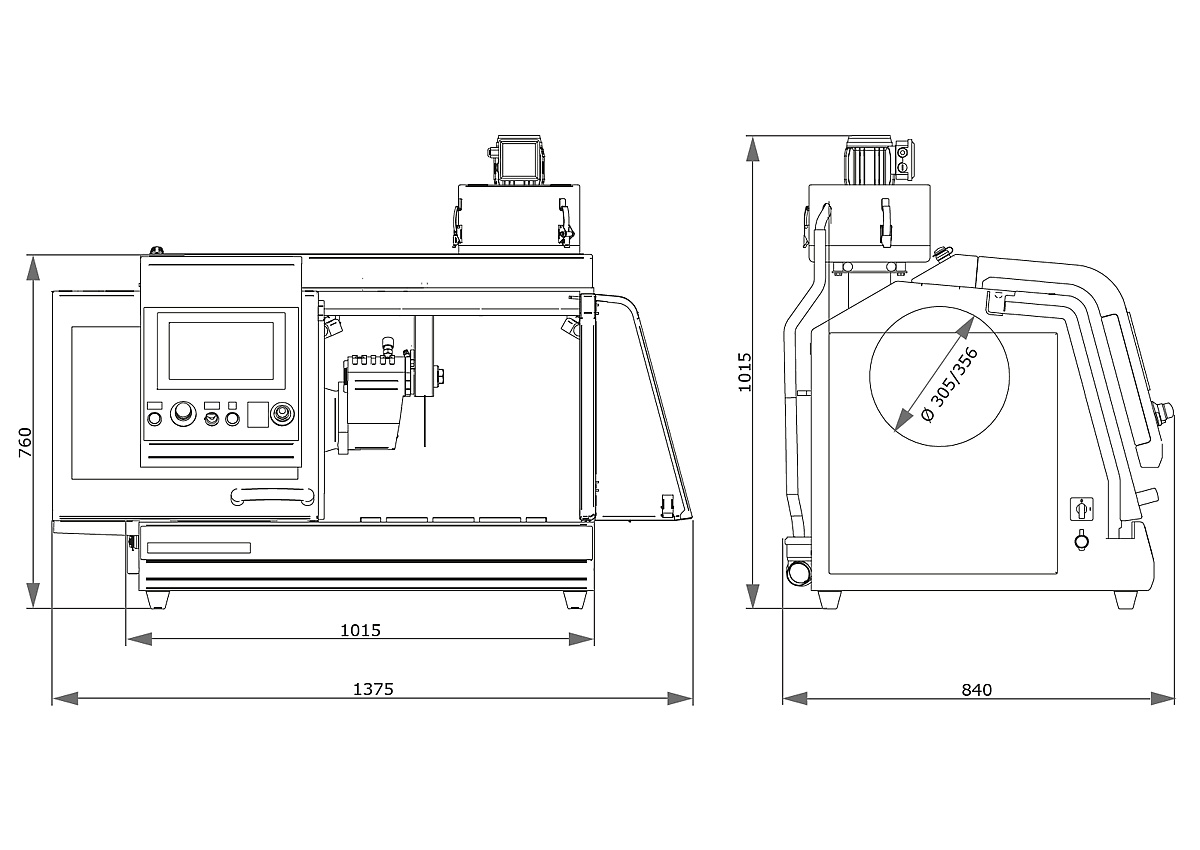

- W x H x D 1015 x 760 x 810 mm mm / 39.96 x 29.92 x 31.89 in
- Weight (depends on equipment) ~ 200 kg (depends on equipment)
