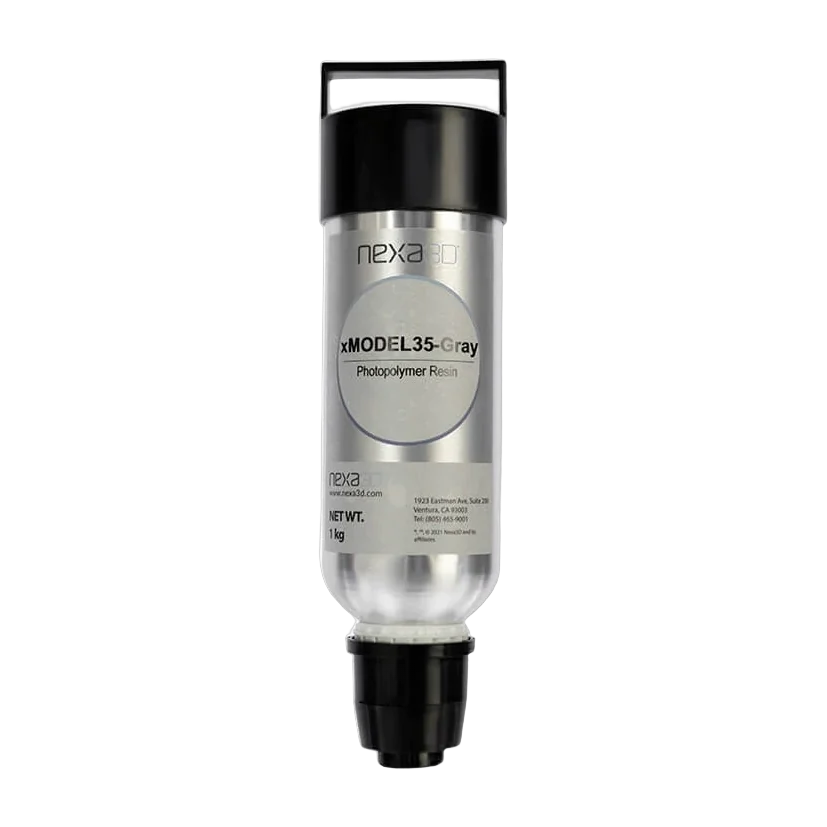

Nexa3D xMODEL35-Gray Resin – Rigid High-Temp Photopolymer for XiP | 1.5 kg
What your process engineer actually checks
Cure state, not just the datasheet
The 87 °C HDT at 1.82 MPa and 2300 MPa flexural modulus quoted for xMODEL35-Gray assume a full post-cure — 2 × 30 min in the XiP Cure or 60 min in the xCURE, after a 2 min xClean and 5 min IPA wash on a fully dried part. We ship the validated wash and cure routine with the cartridge so your measured parts match the TDS.
A materials engineer on the line
Questions on cure settings, finishing or switching from another resin? Our engineers run Nexa3D LSPc resins in-house. Sub-4h reply, NDA standard.
Nexa3D xMODEL35-Gray is a rigid LSPc photopolymer that combines stiffness, strength and temperature resistance in one model resin. Gray pigment reads surface detail cleanly under raking light, so design reviews happen on the part.
Why engineers choose xMODEL35-Gray
The step up from xMODEL15 when a XiP part must hold shape under load and warmth.
87 °C HDT at 1.82 MPa
Heat deflection is 87 °C at 1.82 MPa and 64 °C at 0.45 MPa (ASTM D648) — fixtures and housings hold shape in a warm shop.
2300 MPa flexural modulus
2300 MPa flexural modulus and 108 MPa flexural stress (ASTM D790) keep thin walls and long spans from sagging.
53 MPa tensile, 83 D hardness
53 MPa tensile strength, 1765 MPa Young’s modulus and 83 D Shore hardness (ASTM D638 / D2240) — a hard surface that sands and paints well.
UL94 HB and low water pickup
UL94 HB at 1.5 mm and 0.42% water absorption over 24 h (ASTM D570), so parts hold properties in humid storage.
How we supply xMODEL35-Gray
From sealed cartridge to cured part, with the LSPc settings.
Formulated & tested
Genuine Nexa3D chemistry, characterised against the ASTM methods listed below. No relabelled resin.
Stocked & lot-matched
1.5 kg cartridges in US stock, lot-matched on request, so a qualification batch and the follow-on print alike.
Print, wash & cure
Ships with the validated XiP and XiP Pro exposure profile plus the wash and post-cure routine.
Physical and mechanical properties
| Property | Method | Value |
|---|---|---|
| Young’s modulus | ASTM D638 | 1765 MPa |
| Ultimate tensile strength | ASTM D638 | 53 MPa |
| Elongation at break | ASTM D638 | 9% |
| Viscosity, 25 °C | ASTM D7867 | 950 cP |
| Viscosity, 30 °C | ASTM D7867 | 630 cP |
| Flexural modulus | ASTM D790 | 2300 MPa |
| Flexural stress | ASTM D790 | 108 MPa |
| IZOD impact (notched / unnotched) | ASTM D256 | 21 / 112 J/m |
| HDT @ 0.45 MPa | ASTM D648 | 64 °C |
| HDT @ 1.82 MPa | ASTM D648 | 87 °C |
| Glass transition (DMA tan δ) | ASTM D4065 | 112 °C |
| Shore hardness | ASTM D2240 | 83 D |
| Water absorption (24 h) | ASTM D570 | 0.42% |
| Flammability | UL94 | HB (1.5 mm) |
| Liquid density | ASTM D4052 | 1.11 g/cm³ |
Printed properties depend on part geometry, orientation and post-cure. Values are typical, not a specification.
Typical applications
Where a stiff, heat-tolerant gray model earns its place.
Compatible printers & post-processing
This 1.5 kg cartridge feeds the Nexa3D XiP and XiP Pro LSPc printers. The same resin also comes in a 5 kg bottle for the NXE 400 and NXE 400 Pro. Post-processing is a two-stage wash: up to 2 minutes in xClean, then up to 5 minutes in IPA. Dry fully, then UV post-cure — 2 × 30 minutes in the XiP Cure, or one 60-minute cycle in the xCURE. Full cure is what delivers the quoted 87 °C HDT and 2300 MPa flexural modulus; under-cured parts fall short of both.
Not sure xMODEL35-Gray is the right resin?
Three neighbours in the LSPc line — by budget, application and volume.
Why source xMODEL35-Gray through Additive Plus
- Genuine Nexa3D xMODEL35-Gray in the 1.5 kg cartridge — lot-matched, US stock, ships in 2 business days.
- Validated LSPc exposure and cure profiles for XiP and XiP Pro, with xClean and IPA wash times.
- Materials engineers who run Nexa3D LSPc resins in-house — sub-4h reply, NDA standard.
- Volume pricing and official purchase orders for production accounts.
Downloads
