QATM QETCH 1000 Automatic Electrolytic Polisher & Etcher – Touch-Screen | 90 V, 14 A
The QATM QETCH 1000 is a fully automatic electrolytic polisher and etcher with intuitive touch-screen control — 90 V DC up to 14 A, a scan function that maps a material's voltage curve, and interchangeable 1 L electrolyte tanks.
- ✔ Fully automatic electrolytic polishing (1 s–25 min) and etching (1 s–5 min)
- ✔ Scan function displays a material's voltage curve for fast results without structural change
- ✔ Interchangeable 1 L electrolyte tanks; separated unit works in a fume cabinet
- ✔ Lead time: configured to order — request the current timeline
What your metallography lab actually checks
Repeatable etching, less guesswork
A scan of the material's voltage curve finds the working parameters fast, and automatic timed cycles apply them the same way every time — so grain-boundary and phase etching on AM alloys is consistent, not operator-dependent.
An applications engineer on the line
Method setup, consumable selection and troubleshooting from engineers who run sample prep and materials characterization in-house. Sub-4h reply, NDA standard.

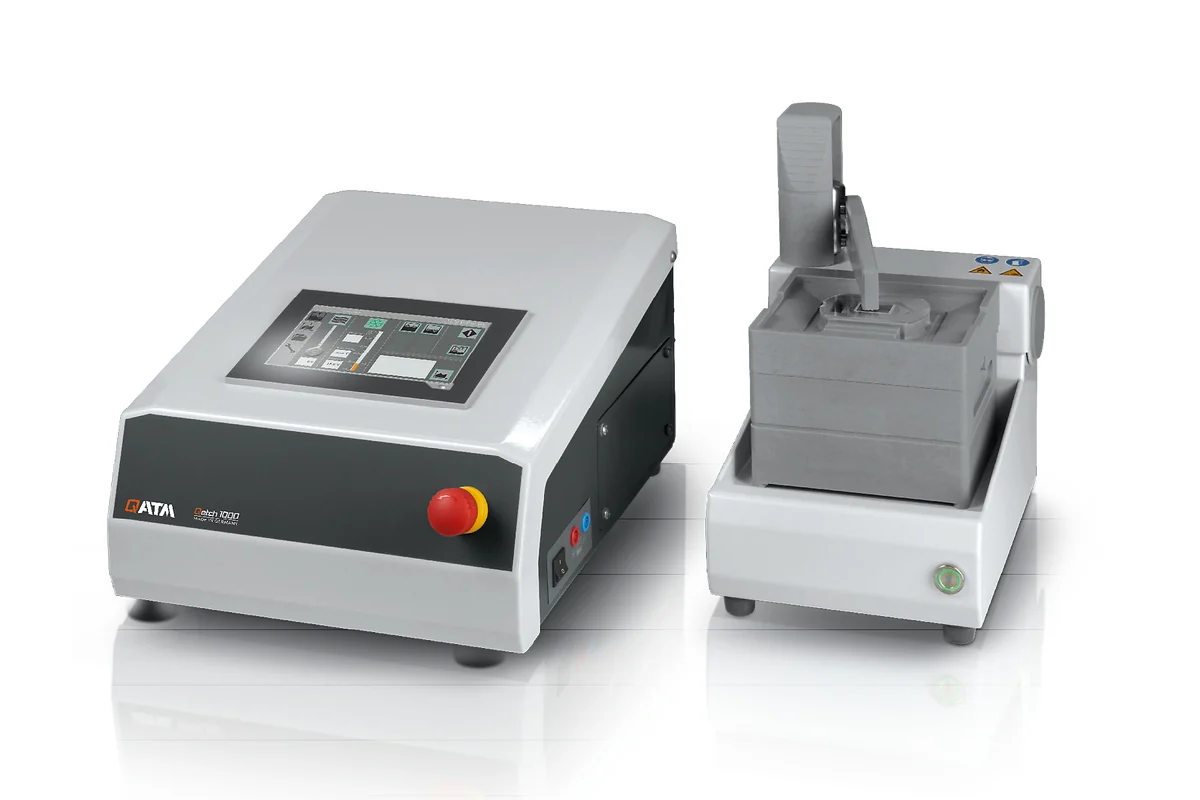

The QATM QETCH 1000 is a fully automatic electrolytic polisher and etcher with intuitive touch-screen operation. The polishing/etching unit is separated from the control unit so it can be used inside a fume cabinet, and a scan function finds the right parameters quickly — clean, fast, repeatable electrolytic preparation.
Why labs choose the QETCH 1000
Automatic, repeatable electrolytic polishing and etching.
Scan function
Displays the current voltage curve of a material and finds polishing parameters fast, without structural changes.
Automatic cycles
Fully automatic polishing (1 s–25 min) and etching (1 s–5 min) at up to 90 V / 14 A.
Swappable electrolytes
Interchangeable 1 L tanks let you change and store electrolytes easily, each with a lid.
Fume-cabinet ready

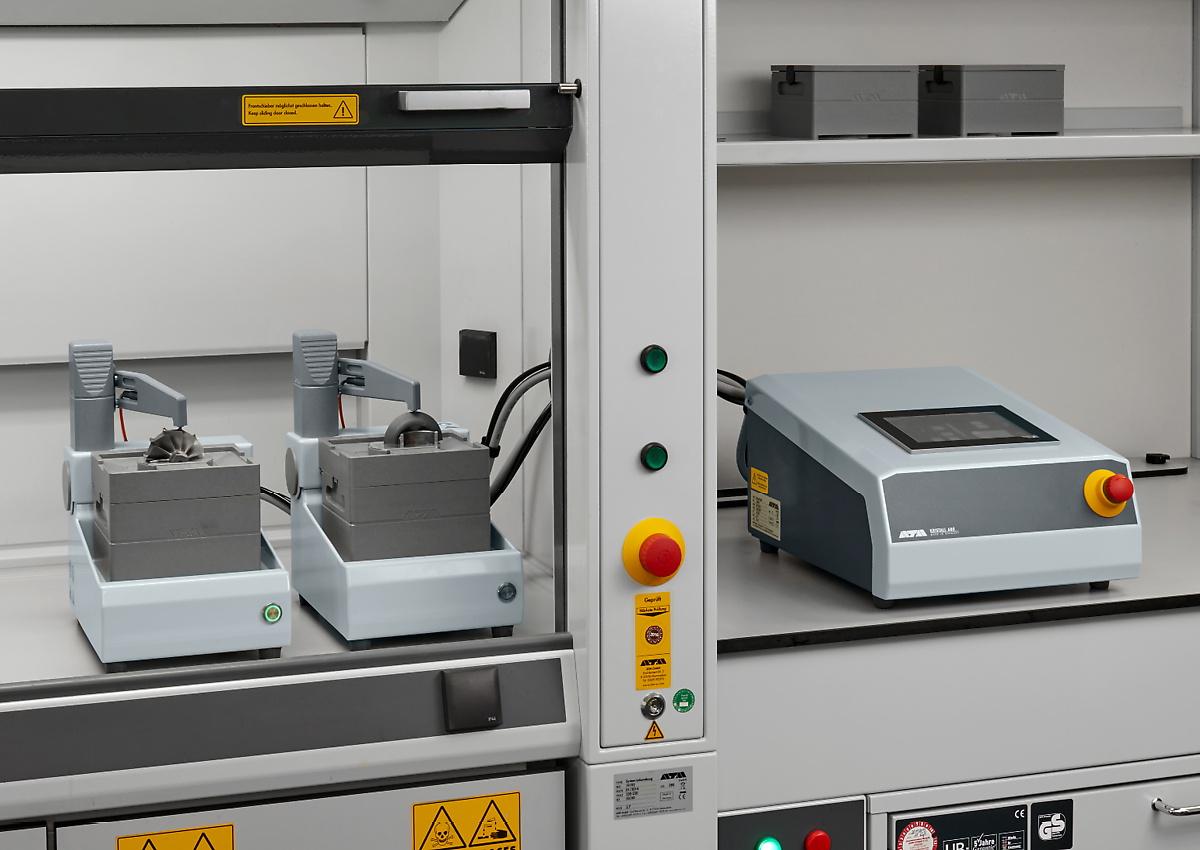

The etching unit is separate from the controls so it can sit in a lab fume cabinet; a wash program cleans with water.
How Additive Plus delivers the QETCH 1000
Not a drop-shipped box — configured, installed and supported.
Configured to your specimens
We match wheels, consumables, holders and mould sizes to your materials and sample sizes before the machine ships.
Installed and trained on-site
Delivery, setup and operator training at your lab. Your team runs a first preparation cycle with us on the line.
Validated methods, ongoing support
Saved preparation methods dialed in for your alloys, plus method help and service from engineers who run sample prep in-house.
Key specifications
Automatic electrolytic polisher/etcher, 2 kVA, 90 V DC, up to 14 A, polishing 1 s–25 min, etching 1 s–5 min, interchangeable 1 L tanks, ~7 kg. See the full Specifications tab below for every value.
Typical applications
Where the QETCH 1000 earns its place in the lab.
Not sure the QETCH 1000 is the right etcher?
Compare the closest machines in the QATM line.
Why source the QETCH 1000 through Additive Plus
- Authorized QATM channel — sales, installation, training and service from one partner
- Full prep chain: sectioning, mounting, grinding, polishing, etching and optical analysis
- Electrolytes and methods matched to your materials before shipping
- Method help from engineers who run metallographic prep in-house
- <24h response · 200+ systems delivered across 23 countries
| Brand | QATM |
| Connection power | 2 kVA |
| Max. voltage | 90 V DC |
| Max. current | 14 A |
| Polishing duration | 1 sec - 25 min |
| Etching duration | 1 sec - 5 min |
| W x H x D | 330 x 220 x 400mm / 12.99 x 8.66 x 15.75 in |
| Weight | ~ 7 kg |
