 QATM QPOL VIBRO Vibratory Polisher – Deformation-Free Finish for EBSD | Ø 308 mm
QATM QPOL VIBRO Vibratory Polisher – Deformation-Free Finish for EBSD | Ø 308 mm
QATM QPOL VIBRO Vibratory Polisher – Deformation-Free Finish for EBSD | Ø 308 mm
QATM QPOL VIBRO Vibratory Polisher – Deformation-Free Finish for EBSD | Ø 308 mm
QATM QPOL VIBRO Vibratory Polisher – Deformation-Free Finish for EBSD | Ø 308 mm
QATM QPOL VIBRO Vibratory Polisher – Deformation-Free Finish for EBSD | Ø 308 mm
With every system
  • Install + training on-site setup and operator training included
  • Configured to order holders, consumables and methods matched to your specimens
Grinders & Polishers, Automatic Grinder & Polisher

QATM QPOL VIBRO Vibratory Polisher – Deformation-Free Finish for EBSD | Ø 308 mm

The QATM QPOL VIBRO is a vibratory polishing device that prepares specimen surfaces practically without deformation — the final step for EBSD, AFM nano-indentation and micro-hardness, with a Ø 308 mm bowl and 60–120 Hz vibration.

  • ✔ Deformation-free surfaces for EBSD, AFM and micro-hardness work
  • ✔ Ø 308 mm bowl polishes a full holder or up to 21 mounted specimens at once
  • ✔ Tool-free double magnetic system fixes and releases 300/305 mm cloths in seconds
  • ✔ Lead time: configured to order — request the current timeline
Prices follow supplier cost and stock availability and are updated regularly. The price you see is today's price — once you order, it's held for 7 days.
Install + training included Tailored service plan
Ø308 mm polishing bowl
60–120 Hz vibration
up to 21 mounted samples
EBSD deformation-free

What your metallography lab actually checks

Strain-free surfaces for EBSD

Mechanical polishing leaves a deformed surface layer that ruins EBSD indexing. The QPOL VIBRO removes material gently at 60–120 Hz to leave a practically strain-free surface — the difference between clean diffraction patterns and noise on AM microstructures.

An applications engineer on the line

Method setup, consumable selection and troubleshooting from engineers who run sample prep and materials characterization in-house. Sub-4h reply, NDA standard.

About this product

The QATM QPOL VIBRO vibratory polishing device prepares specimen surfaces practically without deformation. That makes it the ideal final step before EBSD (electron backscatter diffraction), AFM nano-indentation or micro-hardness testing — and its gentle removal suits soft, ductile materials that mechanical polishing smears.

QATM QPOL VIBRO vibratory polisher
QPOL VIBRO vibratory polisher

Why labs choose the QPOL VIBRO

The gentle final polish that clean EBSD data depends on.

Deformation-free

Gentle vibratory removal leaves a strain-free surface — the prerequisite for reliable EBSD and AFM.

Soft & ductile materials

Suited to Ti-Al, pure copper and copper alloys, aluminium alloys, soft steel and nickel-based alloys.

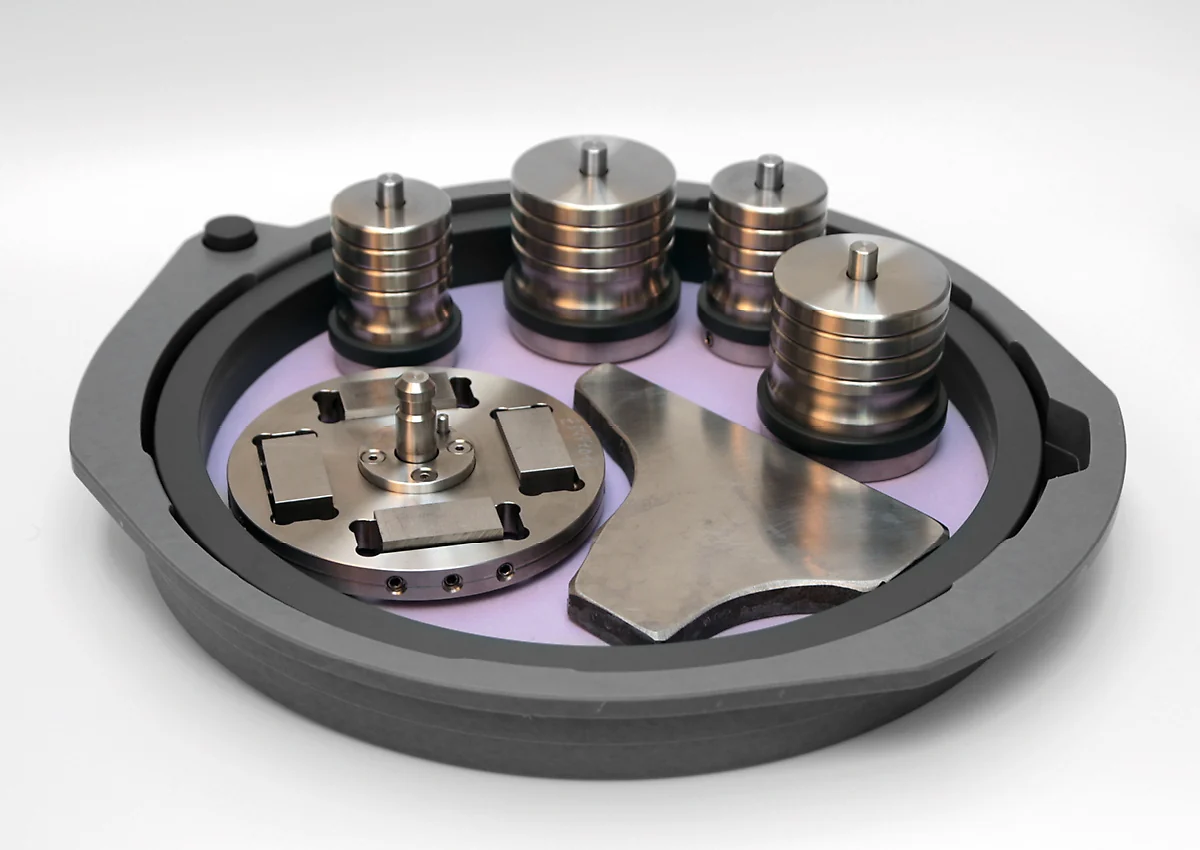

Batch capacity

The Ø 308 mm bowl fits a full sample holder, large specimens, or up to 21 mounted samples at once.

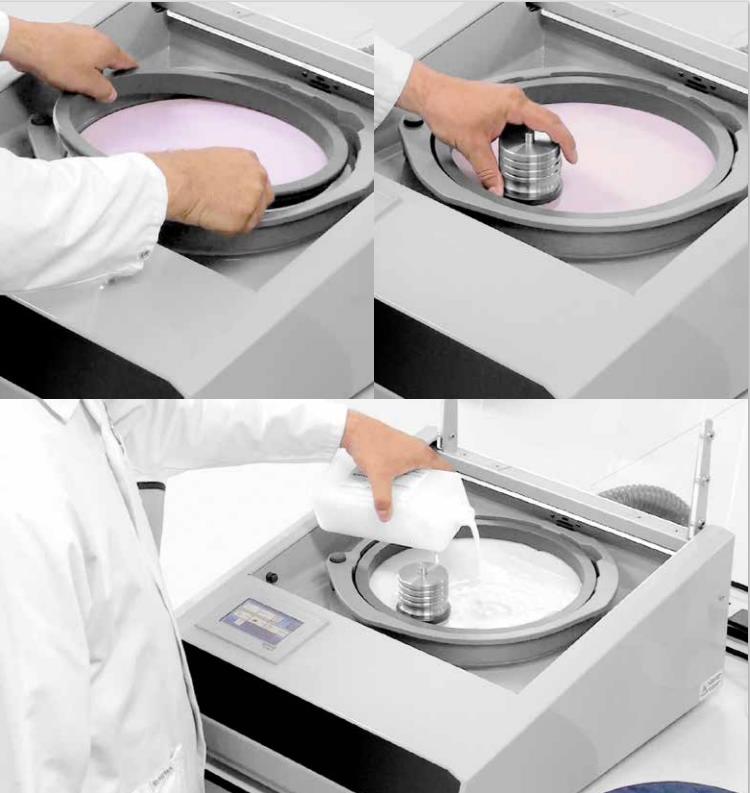

Tool-free cloths

A double magnetic system fixes, removes and cleans the bowl or 300/305 mm cloth in seconds, without tools.

How Additive Plus delivers the QPOL VIBRO

Not a drop-shipped box — configured, installed and supported.

Step 01
Configured to your specimens

We match wheels, consumables, holders and mould sizes to your materials and sample sizes before the machine ships.

Step 02
Installed and trained on-site

Delivery, setup and operator training at your lab. Your team runs a first preparation cycle with us on the line.

Step 03
Validated methods, ongoing support

Saved preparation methods dialed in for your alloys, plus method help and service from engineers who run sample prep in-house.

Key specifications

Vibratory polisher, polishing bowl Ø 308 mm (300/305 mm cloths), vibration 60–120 Hz, USB/Ethernet, 0.25 kVA, 510 × 300 × 590 mm, ~45 kg. See the full Specifications tab below for every value.

Typical applications

Where the QPOL VIBRO earns its place in the lab.

EBSD preparation
Strain-free surfaces for clean diffraction patterns
AFM nano-indentation
Deformation-free finish for atomic-force work
Micro-hardness
Surfaces free of prep artefacts
Soft/ductile alloys
Ti-Al, Cu, Al, soft steel, Ni-based
AM microstructure
Final polish for grain-orientation mapping
Research labs
Highest-quality final surfaces
QATM QPOL VIBRO — deformation-free polishing bowl
QPOL VIBRO — deformation-free polishing bowl

Not sure vibratory polishing is your final step?

Compare the closest machines in the QATM line.

Electrolytic finishQATM QETCH 1000Automatic electrolytic polishing & etchingView machine →
Automated mechanicalQATM QPOL 250 BOTRobot cell for reproducible prepView machine →
Bench double-wheelQATM QPOL 300 A2-ECO+Two-wheel grinder/polisher, Ø 250/300 mmView machine →
Tell us your material and downstream method (EBSD, AFM or micro-hardness) — a applications engineer will recommend the right configuration and consumables. Sub-4h reply, NDA standard.

Why source the QPOL VIBRO through Additive Plus

  • Authorized QATM channel — sales, installation, training and service from one partner
  • Full prep chain: sectioning, mounting, grinding, polishing, etching and optical analysis
  • Cloths and suspensions matched to your materials before shipping
  • Method help from engineers who run metallographic prep in-house
  • <24h response · 200+ systems delivered across 23 countries
Brand QATM
Polishing bowl ø 308 mm (compatible with 300 mm or 305 mm (12") polishing cloths)
Vibration frequency 60 - 120 Hz
Plugs USB, Ethernet
Connection power 0.25 kVA
Drive power 135 VA

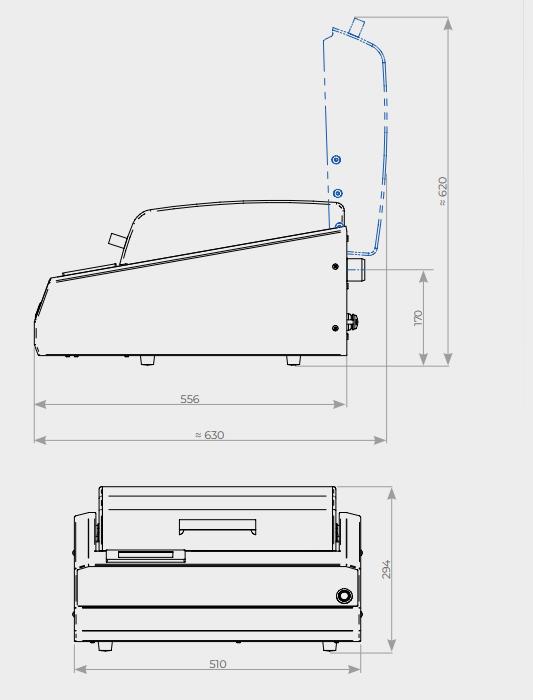

W x H x D 510 x 300 x 590 mm / 20.1 x 11.8 x 23.2 in
Weight ~ 45 kg

Product videos

Other products teams run alongside QATM QPOL VIBRO Vibratory Polisher – Deformation-Free Finish for EBSD | Ø 308 mm

SAPHIR 550 / RUBIN 520
Grinders & Polishers
SAPHIR 550 / RUBIN 520

The QATM SAPHIR 550 with the motor-driven RUBIN 520 head is a single-wheel metallographic grinder-polisher — it prepares 1–6 mounted samples at once with single or central force and automatic material-removal measurement, for deformation-free surfaces ready for hardness testing and microscopy.

  • ✔ Ø 200–300 mm working wheel · single force 5–100 N or central 20–400 N
  • ✔ Automatic material-removal measurement to 0.01 mm · touch-screen stored methods
  • ✔ Lead time: 4–8 weeks — configured to order · install & training included
Get quote

Made to order

· Lead time: 4–8 weeks — configured to order
QATM QETCH 1000 Automatic Electrolytic Polisher & Etcher – Touch-Screen | 90 V, 14 A
Grinders & Polishers
QATM QETCH 1000 Automatic Electrolytic Polisher & Etcher – Touch-Screen | 90 V, 14 A

The QATM QETCH 1000 is a fully automatic electrolytic polisher and etcher with intuitive touch-screen control — 90 V DC up to 14 A, a scan function that maps a material's voltage curve, and interchangeable 1 L electrolyte tanks.

  • ✔ Fully automatic electrolytic polishing (1 s–25 min) and etching (1 s–5 min)
  • ✔ Scan function displays a material's voltage curve for fast results without structural change
  • ✔ Interchangeable 1 L electrolyte tanks; separated unit works in a fume cabinet
  • ✔ Lead time: configured to order — request the current timeline
Get quote

Made to order

· Lead time: configured to order — request current timeline
SAPHIR 560 / RUBIN 520
Grinders & Polishers
SAPHIR 560 / RUBIN 520

The QATM SAPHIR 560 with the motor-driven RUBIN 520 head is a twin-wheel metallographic grinder-polisher — two independent wheels let you grind on one and polish on the other, preparing 1–6 mounted samples per run with automatic material-removal measurement for deformation-free surfaces.

  • ✔ Twin Ø 200–300 mm wheels · single force 5–100 N or central force via holder
  • ✔ Automatic material-removal measurement to 0.01 mm · touch-screen stored methods
  • ✔ Lead time: 4–8 weeks — configured to order · install & training included
Get quote

Made to order

· Lead time: 4–8 weeks — configured to order
QATM QPOL GO Grinding & Polishing Head – Entry-Level Automatic | Retrofittable
Grinders & Polishers
QATM QPOL GO Grinding & Polishing Head – Entry-Level Automatic | Retrofittable

The QATM QPOL GO is a compact grinding and polishing head — the entry point to automatic sample preparation. It mounts on the manual QPOL 250 M1/2 and QPOL 300 M1/2 machines and holds 1–4 samples Ø 40 mm.

  • ✔ Automatic head for 1–4 samples Ø 40 mm on a Ø 120 mm holder
  • ✔ Adjust single pressure (5–45 N) and time directly on the head
  • ✔ Retrofits to QATM manual grinders; pairs with Qdoser ONE/ECO dosing
  • ✔ Lead time: configured to order — request the current timeline
Get quote

Made to order

· Lead time: configured to order — request current timeline
QATM QPOL 300 A1-ECO Single-Wheel Grinder-Polisher – Ø 250/300 mm | 200 Methods
Grinders & Polishers
QATM QPOL 300 A1-ECO Single-Wheel Grinder-Polisher – Ø 250/300 mm | 200 Methods

The QATM QPOL 300 A1-ECO is a single-wheel grinding and polishing machine for the metallographic laboratory, for working wheels Ø 250/300 mm — 4.3" touch control, up to 200 stored preparation methods and adjustable pressure, speed and rotation direction.

  • ✔ Single-disc holder — metallographic prep without a carrier disc
  • ✔ Store and recall up to 200 preparation methods with user-account protection
  • ✔ Cleaning Boost spin-dries the medium at 750 rpm in ~3 s; pairs with Qdoser dosing
  • ✔ Lead time: configured to order — request the current timeline
Get quote

Made to order

· Lead time: configured to order — request current timeline
QATM QGRIND 100 Wet Double-Belt Pre-Grinder – Deburring & Planar Grinding
Grinders & Polishers
QATM QGRIND 100 Wet Double-Belt Pre-Grinder – Deburring & Planar Grinding

The QATM QGRIND 100 is a stable wet double-belt grinder for deburring and pre-grinding metallographic and AM samples — two endless belts run at 7 m/s, and you can mount two different grits at once.

  • ✔ Two endless belts (100 × 920 mm) — run two grit sizes side by side
  • ✔ Wet grinding at 7 m/s flushes swarf away through the water supply
  • ✔ Deburr as-cut and printed parts fast before fine grinding and polishing
  • ✔ Lead time: configured to order — request the current timeline
Get quote

Made to order

· Lead time: configured to order — request current timeline
QATM QPOL 300 BOT Fully Automated Grinder-Polisher – 4–8 Stations | Cleaning & Drying
Grinders & Polishers
QATM QPOL 300 BOT Fully Automated Grinder-Polisher – 4–8 Stations | Cleaning & Drying

The QATM QPOL 300 BOT fully automates grinding and polishing — including cleaning and drying — across a configurable 4–8 station line with working wheels up to Ø 300 mm and a Ø 350 mm grinding stone.

  • ✔ Full automation of grinding, polishing, cleaning and drying in one line
  • ✔ Configurable 4–8 stations; central pressure 50–450 N, wheels to Ø 300 mm
  • ✔ Touch-screen access to all parameters; ultrasonic cleaning option (400 W)
  • ✔ Lead time: configured to order — request the current timeline
Get quote

Made to order

· Lead time: configured to order — request current timeline
QATM QPOL 250 A2-ECO Double-Wheel Grinder-Polisher – Ø 200/250 mm | 200 Methods
Grinders & Polishers
QATM QPOL 250 A2-ECO Double-Wheel Grinder-Polisher – Ø 200/250 mm | 200 Methods

The QATM QPOL 250 A2-ECO is a double-wheel grinding and polishing machine for the metallographic laboratory, for working wheels Ø 200/250 mm — 4.3" touch control, up to 200 stored preparation methods and adjustable pressure, speed and rotation direction.

  • ✔ Two working wheels — grinding and polishing ready side by side
  • ✔ Store and recall up to 200 preparation methods with user-account protection
  • ✔ Cleaning Boost spin-dries the medium at 750 rpm in ~3 s; pairs with Qdoser dosing
  • ✔ Lead time: configured to order — request the current timeline
Get quote

Made to order

· Lead time: configured to order — request current timeline
1 / 1

Common questions

Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.

Why use vibratory polishing on the QPOL VIBRO for EBSD?
Mechanical polishing leaves a thin deformed surface layer that degrades EBSD indexing. The QPOL VIBRO removes material very gently by vibration, leaving a practically deformation-free (strain-free) surface — the prerequisite for clean electron backscatter diffraction patterns, AFM nano-indentation and micro-hardness testing on AM and conventional microstructures.
Which materials suit the QPOL VIBRO?
Because material removal is very gentle, the QPOL VIBRO is especially suited to soft and ductile materials that mechanical polishing tends to smear — titanium-aluminium, pure copper and copper alloys, aluminium alloys, soft steel and nickel-based alloys. It is used as the final polishing step before high-resolution characterization.
How many samples and what cloth size does the QPOL VIBRO take?
Its Ø 308 mm bowl provides space for a complete sample holder, large specimens, or up to 21 mounted specimens polished simultaneously. A double magnetic system fixes, removes and cleans the bowl or cloth in seconds without tools, using magnetic 300 mm or 305 mm (12") polishing cloths.
What vibration frequency does the QPOL VIBRO use?
The QPOL VIBRO polishes at an adjustable vibration frequency of 60–120 Hz, with USB and Ethernet connectivity for control and logging. Tuning the frequency and time lets you optimize the deformation-free finish for each material and downstream method.
What is the lead time for the QPOL VIBRO and what's included?
The QPOL VIBRO is configured to your specimens and built to order, so lead time depends on the current configuration and production queue — request a current timeline and we'll confirm it in writing. Every unit includes installation and operator training plus a tailored service plan. Additive Plus is an authorized QATM channel, so sales, setup, training and service run through one partner. Tell us your materials and sample sizes and we'll quote the right configuration.
What support does Additive Plus provide after the QPOL VIBRO is installed?
After the QPOL VIBRO is installed and your team is trained, you get method help, consumable selection and troubleshooting from engineers who run metallographic sample preparation in-house — not a remote ticket queue. Reply times are under 24 hours, typically sub-4h, NDA standard. A tailored service plan covers maintenance and spare parts so the machine stays in production, and we help dial in methods for your specific alloys.
How does the QPOL VIBRO fit additive-manufacturing quality control?
Reliable AM QC — porosity and density counts, grain and phase analysis, layer-bonding and weld inspection, failure analysis — all start from a correctly prepared cross-section. The QPOL VIBRO is one step in that chain (sectioning, mounting, grinding, polishing, etching and optical analysis), and Additive Plus can supply the whole chain so results stay consistent and defensible. Send a specimen and we'll prepare it as a service before you commit.
