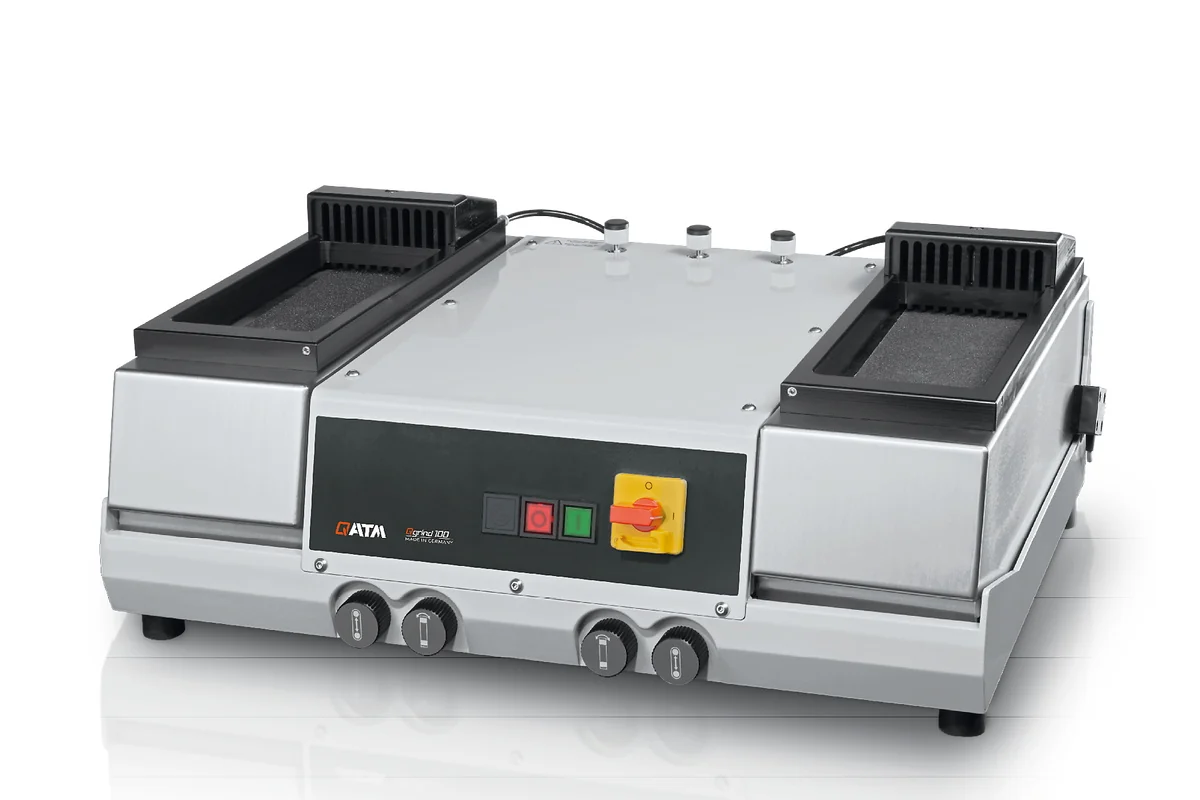

QGRIND 100
The Qgrind 100 is a stable wet double-belt grinder for deburring and pre-grinding of samples
Need an official request?
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
PRODUCT ADVANTAGES
• Two grinding belts
• Water cooling
• Manual belt centering
• Two grinding belts
• Water cooling
• Manual belt centering

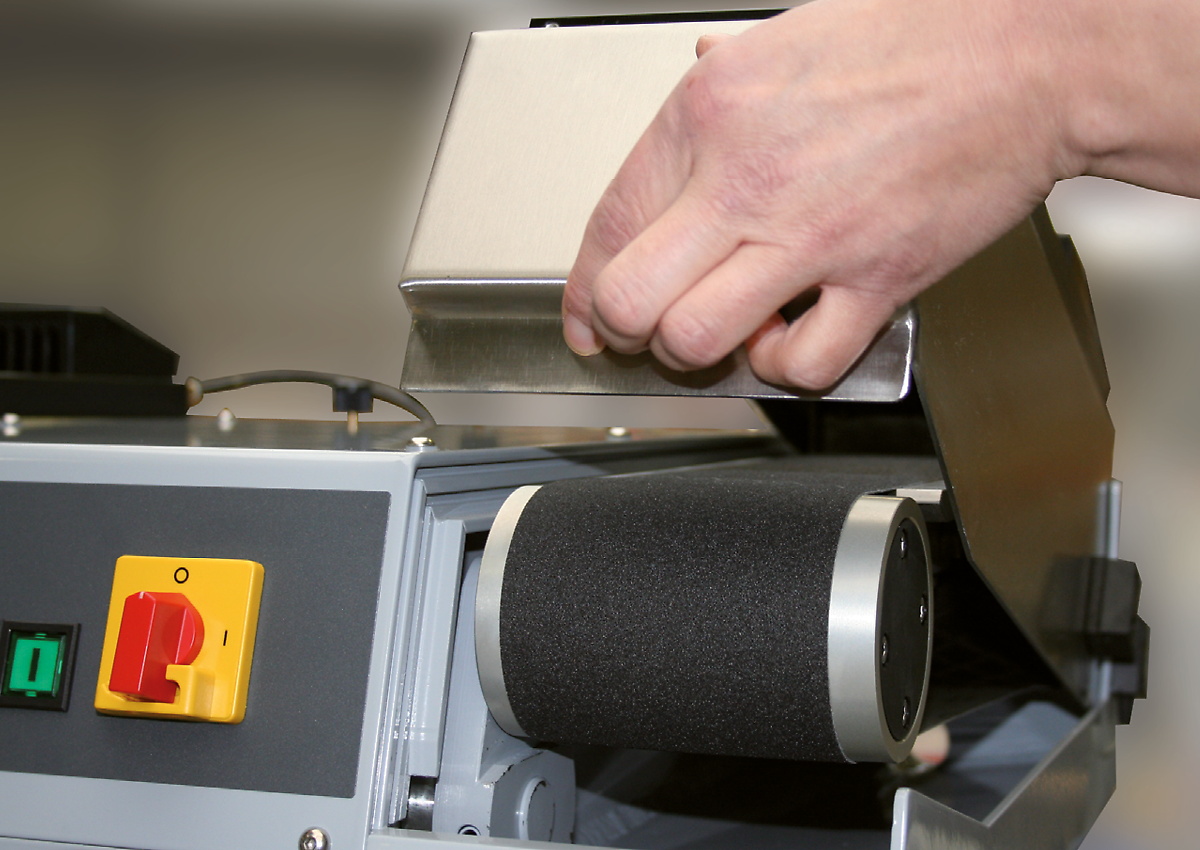

EASY BELT EXCHANGE
Both shroud covers are made of stainless steel and are simply opened backwards. This allows free access to the individual belts. Rotate the front tension wheel to loosen the belt which can then be removed from the side. Similarly, by rotating the adjustment wheel, the new belt can be centred onto the middle of the working surface.
DRIVE
A powerful motor drives both belts at the same time. The rubber coated drive wheels, which are fitted with a
special tread, prevent the belt from slipping.
WATER-COOLING
A water film is created over the whole width of the front end of the belt. Waste material generated is carried to the back with the water and both are drained-off into the machine. Drain-offs are separated, one to the left, one to the right.
EASY BELT EXCHANGE
Both shroud covers are made of stainless steel and are simply opened backwards. This allows free access to the individual belts. Rotate the front tension wheel to loosen the belt which can then be removed from the side. Similarly, by rotating the adjustment wheel, the new belt can be centred onto the middle of the working surface.
DRIVE
A powerful motor drives both belts at the same time. The rubber coated drive wheels, which are fitted with a
special tread, prevent the belt from slipping.
WATER-COOLING
A water film is created over the whole width of the front end of the belt. Waste material generated is carried to the back with the water and both are drained-off into the machine. Drain-offs are separated, one to the left, one to the right.
- Brand QATM
- Grinding belts endless grinding belts 100 x 920 / 100 x 915 mm
- Belt speed 7 m/ sec
- Water connection 1x fresh water connection R½" max. 6 bars
- Water outlet right and left, ø 40 mm
- Water valve right and left
- Connection power 1.4 kVA
- Drive power (main drive) 0.75 kW S6/60%

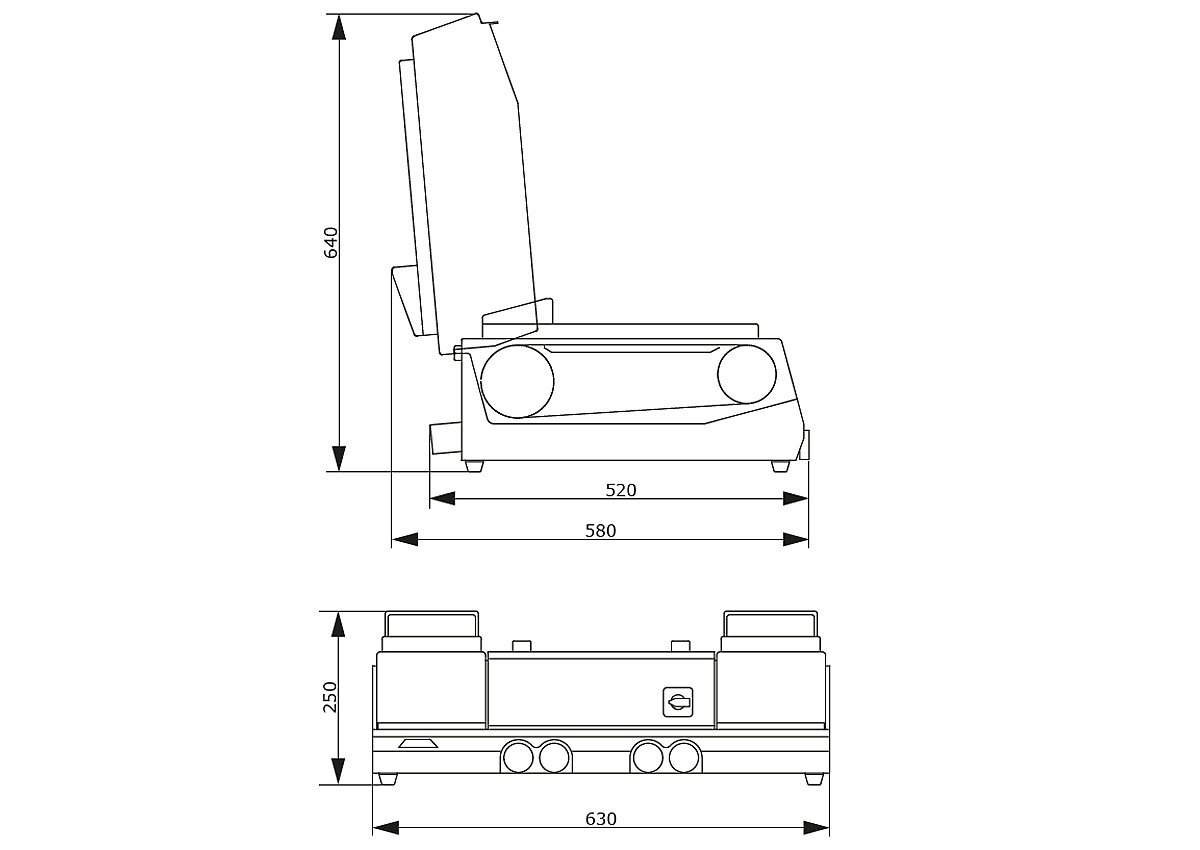

- W x H x D 630 x 250 x520 mm / 24.8 x 9.84 x 20.47 in
- Weight ~ 55 kg
