SAPHIR 550 / RUBIN 520
The QATM SAPHIR 550 with the motor-driven RUBIN 520 head is a single-wheel metallographic grinder-polisher — it prepares 1–6 mounted samples at once with single or central force and automatic material-removal measurement, for deformation-free surfaces ready for hardness testing and microscopy.
- ✔ Ø 200–300 mm working wheel · single force 5–100 N or central 20–400 N
- ✔ Automatic material-removal measurement to 0.01 mm · touch-screen stored methods
- ✔ Lead time: 4–8 weeks — configured to order · install & training included
What your metallography lab actually checks
Repeatable prep, not operator feel
The RUBIN 520 head applies single force 5–100 N or central force 20–400 N and measures material removal automatically to 0.01 mm. A hardness reading or micrograph is only defensible when the prepared surface is the same run after run — the SAPHIR 550 takes operator variation out.
A materialography engineer on the line
Wheel size, sample holders and preparation methods matched to your material mix by engineers who run metallographic prep in-house at Additive Plus. Sub-4h reply, NDA standard.
SAPHIR 550 with RUBIN 520 is a single-wheel metallographic grinder-polisher with a motor-driven grinding and polishing head — it prepares 1–6 mounted samples at once for reproducible, deformation-free surfaces ready for hardness testing and microscopy.
Why metallography labs choose the SAPHIR 550
Repeatable preparation is what makes a hardness reading or micrograph defensible — the RUBIN 520 head takes the operator variation out.
Single and central pressure
Single force 5–80 N per sample or central force 20–400 N across the holder — mix diameters and materials in one run without re-clamping.
Automatic removal measurement
Set a target removal to 0.01 mm; the machine measures material removed automatically and switches off when the preset value is reached.
Independent variable speeds
Base wheel 50–600 rpm and head 30–150 rpm, adjustable during the cycle. Clockwise/counter-clockwise head rotation for cleaner polishing.
Touch control, memory, safety
Programmable methods on a touch display with password protection per program. Preparation starts only with the front cover extended; the basin is LED-lit.
How Additive Plus supplies the SAPHIR 550
A grinder-polisher is only as good as the method behind it — we set both up together.
Configure to your lab
Working-wheel diameter (Ø 200–300 mm), sample-holder set, and RUBIN 520 head matched to your throughput and material mix.
Install and train
Delivered, levelled and connected to water; your operators are trained on force, speed and removal settings so results are repeatable from day one.
Validated methods and consumables
We hand over saved preparation programs plus matched discs, cloths and suspensions — reorder without re-developing the method.
Grinding and polishing performance

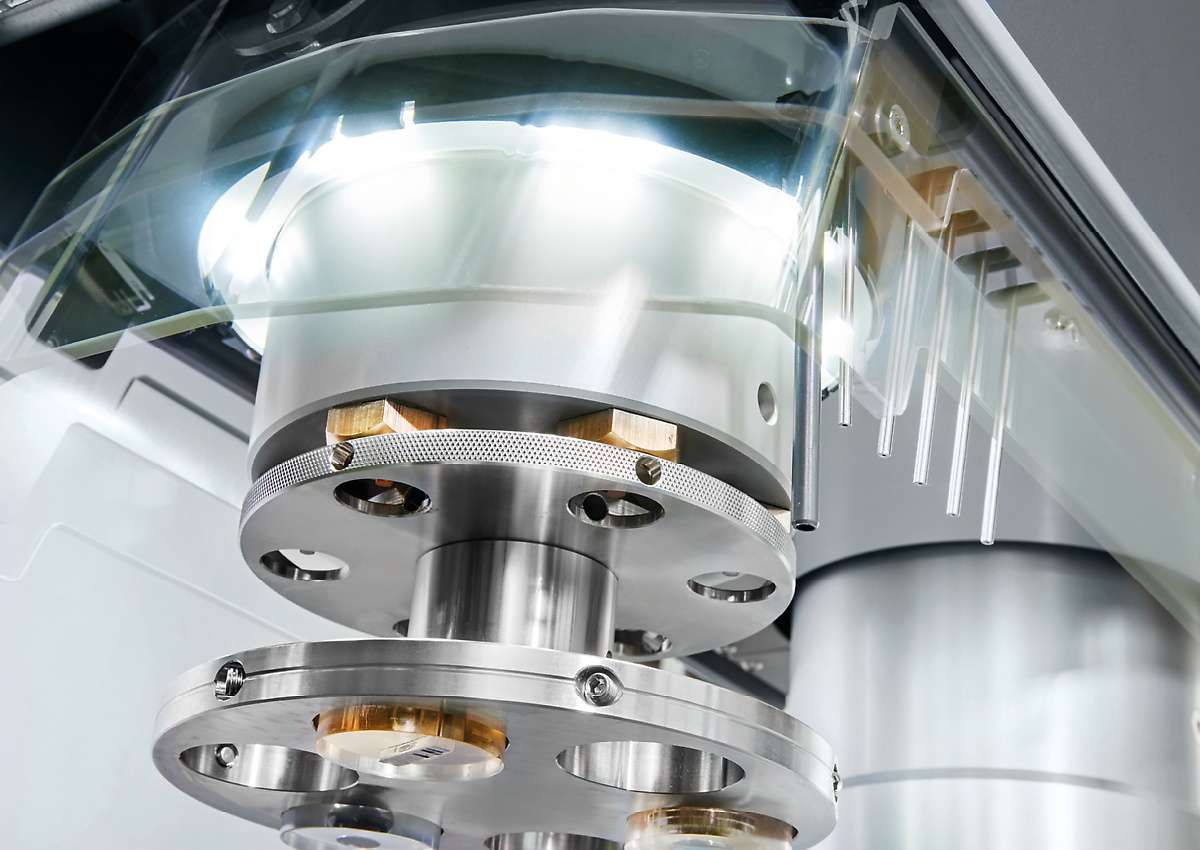

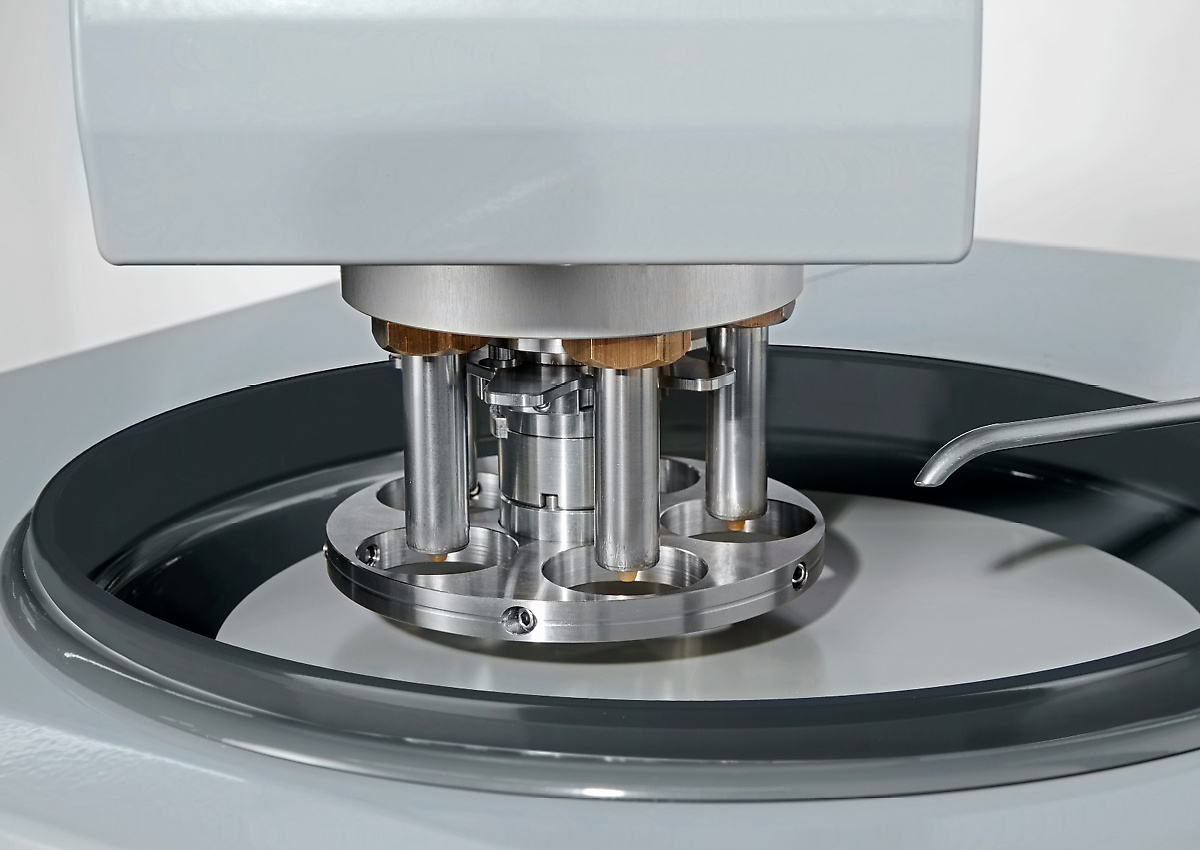

The RUBIN 520 head applies individual pressure to each sample, so specimens of different diameter and material reach the same surface in a single run. It carries a memory function for side and height setting, a quick-change function for sample holders, and clockwise/counter-clockwise rotation. Integrated basin rinsing cools the working wheel and cleans the basin throughout the cycle. See the full specifications tab below for connection power, drive ratings and dimensions.
Typical applications
Wherever a defensible hardness reading or micrograph starts with a clean, flat, deformation-free surface.
Not sure the SAPHIR 550 is the right size?
Compare the single-wheel SAPHIR 550 against higher-throughput grinder-polishers in the QATM line.
Why source the SAPHIR 550 through Additive Plus
- QATM grinder-polishers configured, installed and trained by engineers who run metallographic prep in-house
- Matched consumables — discs, cloths, suspensions — supplied and reorderable without re-qualifying the method
- Full prep-to-test chain from one partner: sectioning, mounting, grinding/polishing, etching, hardness testing and imaging
- Leasing and financing available for capital lab equipment · <24h response · 200+ systems delivered across 23 countries
| Brand | QATM |
| Working wheels | ø 200 - 300 mm |
| No. of samples (single pressure) | 1-6 samples ø 50 mm |
| Single pressing force | variable, 5-100 N |
| Central pressing force | variable, 20-400 N |
| Connection power | 3.2 kVA |
| Drive power (grinder) | 0.75 kW (S1) |
| Drive power (head) | 0.17 kW (S1) |
| Speed (grinder) | 50 – 600 rpm |
| Speed (head) | 30 – 150 rpm |

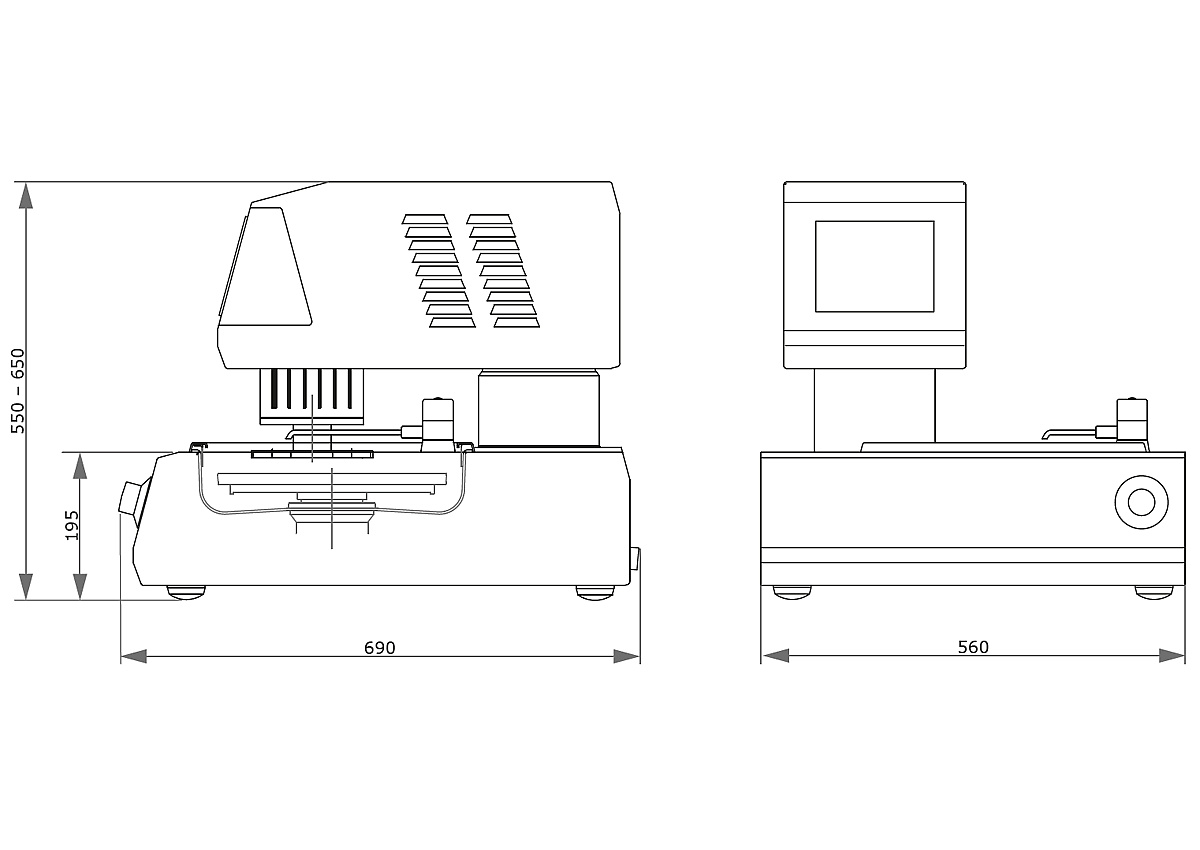

| W x H x D | 560 x 550 - 650 x 660 mm / 22.05 x 21.65-25.59 x 25.98 in |
| Weight | ~ 85 kg |
| Water connection | 1x fresh water connection R½" max. 6 bars |
Send representative specimens and we'll grind, polish and return them prepared on the SAPHIR platform — so you see the finish before you commit.
