QATM QETCH 100 M Mobile Electrolytic Polisher & Etcher – Battery-Powered | 90 V

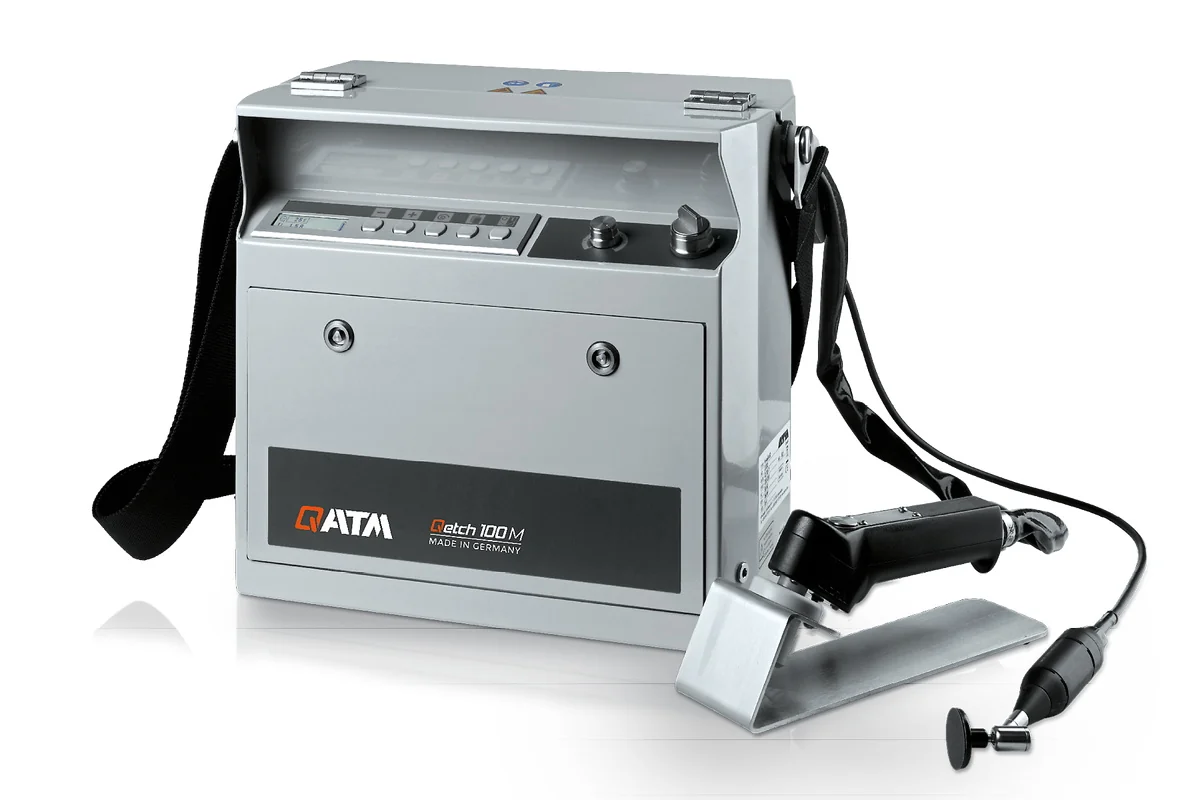

The QATM QETCH 100 M is a mobile, battery-powered electrolytic polisher and etcher for use outside the lab — 90 V DC, 2 A, a ~Ø 9 mm polishing area, in a rugged epoxy-coated aluminium case with handle and carrying strap.
- ✔ Battery-powered and portable — electrolytic polishing and etching in the field
- ✔ 90 V DC, 2 A, ~Ø 9 mm polishing area for on-site metallography
- ✔ Rugged epoxy-coated aluminium housing; sensitive parts protected for transport
- ✔ Lead time: configured to order — request the current timeline
What your metallography lab actually checks
Metallography where the part is
Some components can't be sectioned or brought to the lab. The battery-powered QETCH 100 M electrolytically polishes and etches a surface on site — so failure analysis and microstructure checks happen at the part, not weeks later.
An applications engineer on the line
Method setup, consumable selection and troubleshooting from engineers who run sample prep and materials characterization in-house. Sub-4h reply, NDA standard.
The QATM QETCH 100 M is a mobile, battery-supplied electrolytic polisher and etcher. Compact and robust, it brings electrolytic surface preparation to work outside the lab — on-site failure analysis, large components, field inspection — with simple operation and high functionality.
Why labs choose the QETCH 100 M
Electrolytic polishing and etching, anywhere.
Battery-powered
No mains needed — electrolytic polishing and etching on components that can’t come to the lab.
On-site metallography

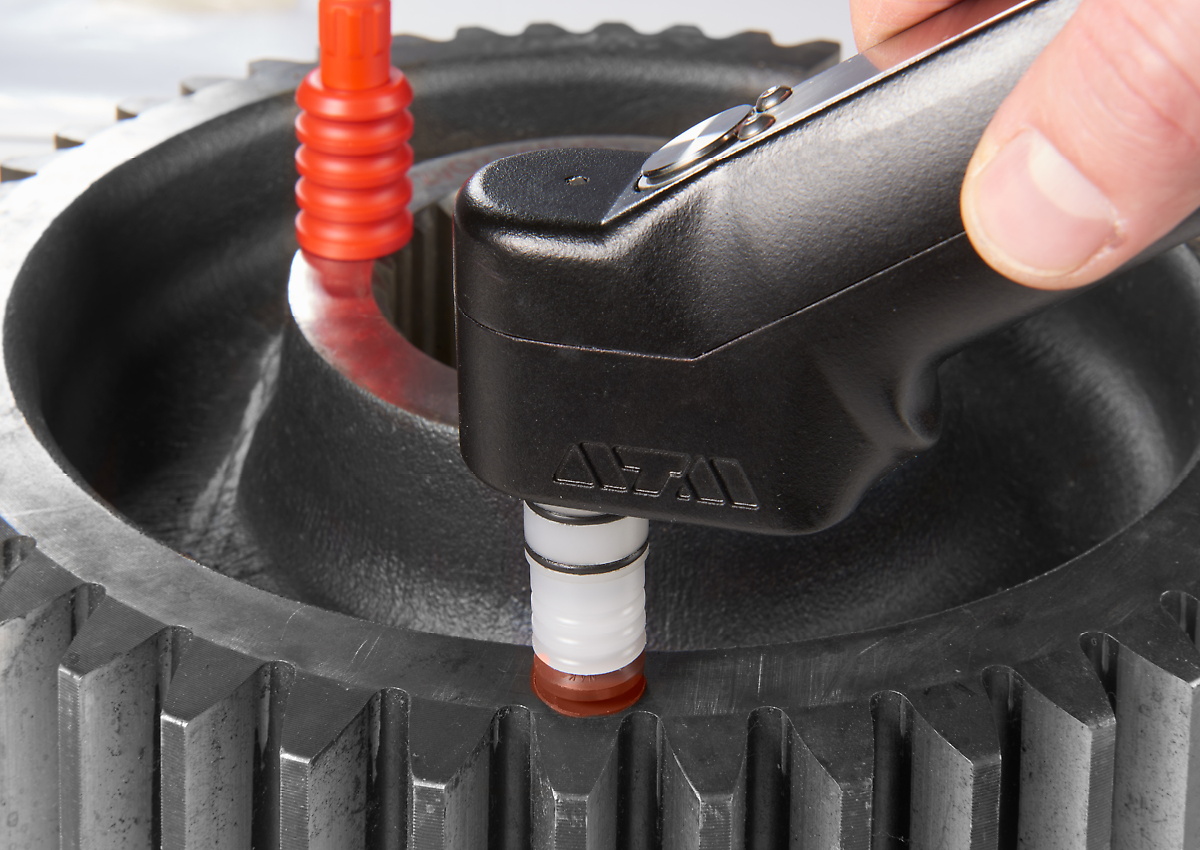

A ~Ø 9 mm polishing area prepares a surface in place for replica or portable-microscope inspection.
Rugged & protected

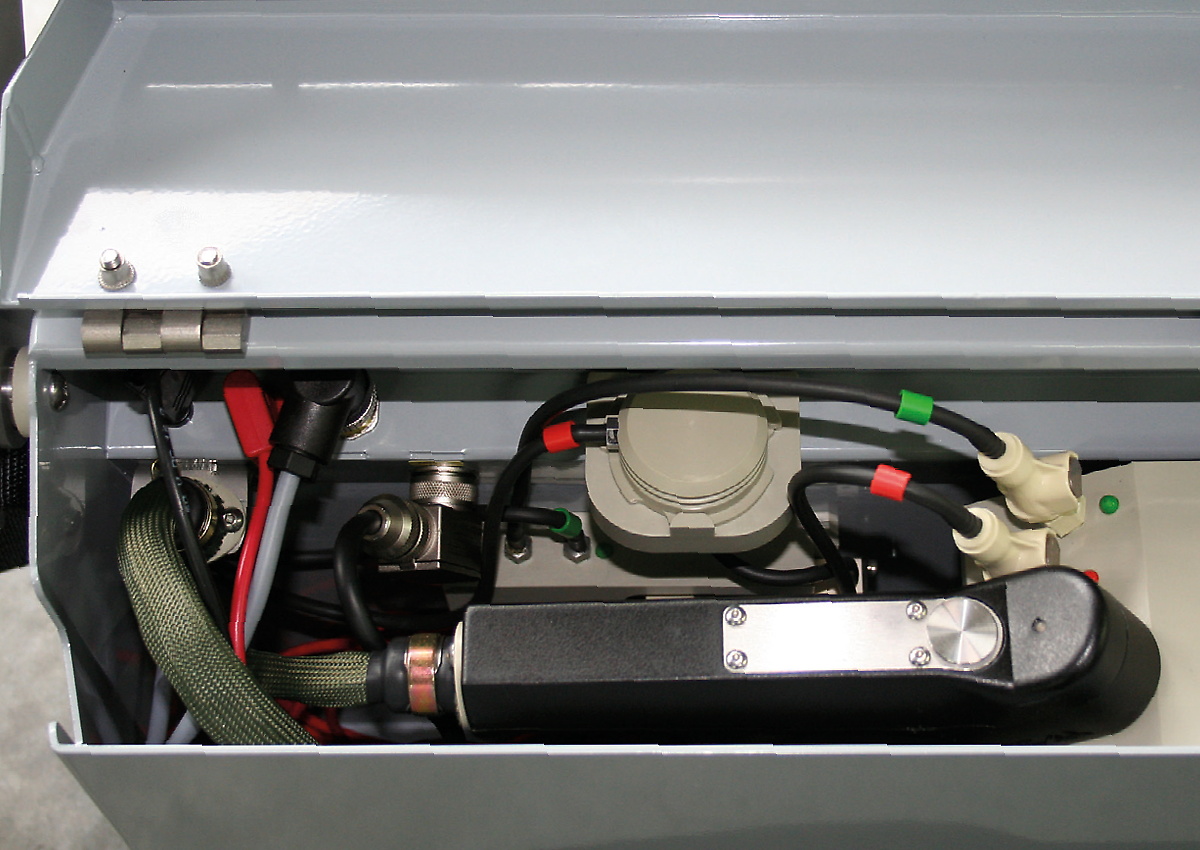

Epoxy-coated aluminium housing meets high demands on stability; sensitive parts protected for transport.
Field-ready

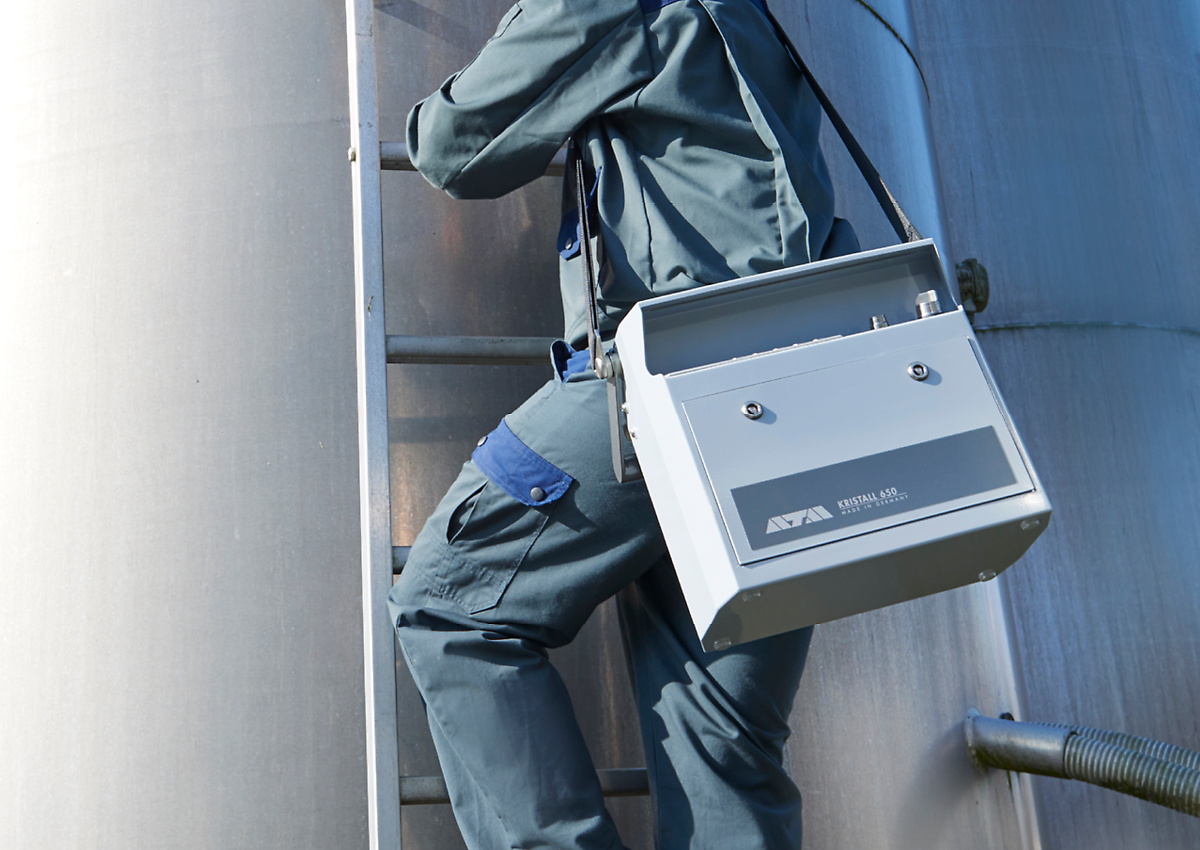

Handle and carrying strap for maximum comfort in local operation.
How Additive Plus delivers the QETCH 100 M
Not a drop-shipped box — configured, installed and supported.
Configured to your specimens
We match wheels, consumables, holders and mould sizes to your materials and sample sizes before the machine ships.
Installed and trained on-site
Delivery, setup and operator training at your lab. Your team runs a first preparation cycle with us on the line.
Validated methods, ongoing support
Saved preparation methods dialed in for your alloys, plus method help and service from engineers who run sample prep in-house.
Key specifications
Mobile battery electrolytic polisher/etcher, max 160 W, 90 V DC, 2 A, polishing area ~Ø 9 mm, 1 L electrolyte tank, ~8.5 kg (without electrolyte). See the full Specifications tab below for every value.
Typical applications
Where the QETCH 100 M earns its place in the lab.
Not sure the mobile QETCH 100 M fits?
Compare the closest machines in the QATM line.
Why source the QETCH 100 M through Additive Plus
- Authorized QATM channel — sales, installation, training and service from one partner
- Full prep chain: sectioning, mounting, grinding, polishing, etching and optical analysis
- Electrolytes matched to your materials before shipping
- Method help from engineers who run metallographic prep in-house
- <24h response · 200+ systems delivered across 23 countries
| Brand | QATM |
| Max. power | 160 W |
| Max. voltage | 90 V DC |
| Max. current | 2 A |
| Polishing area | ~ ø 9 mm |

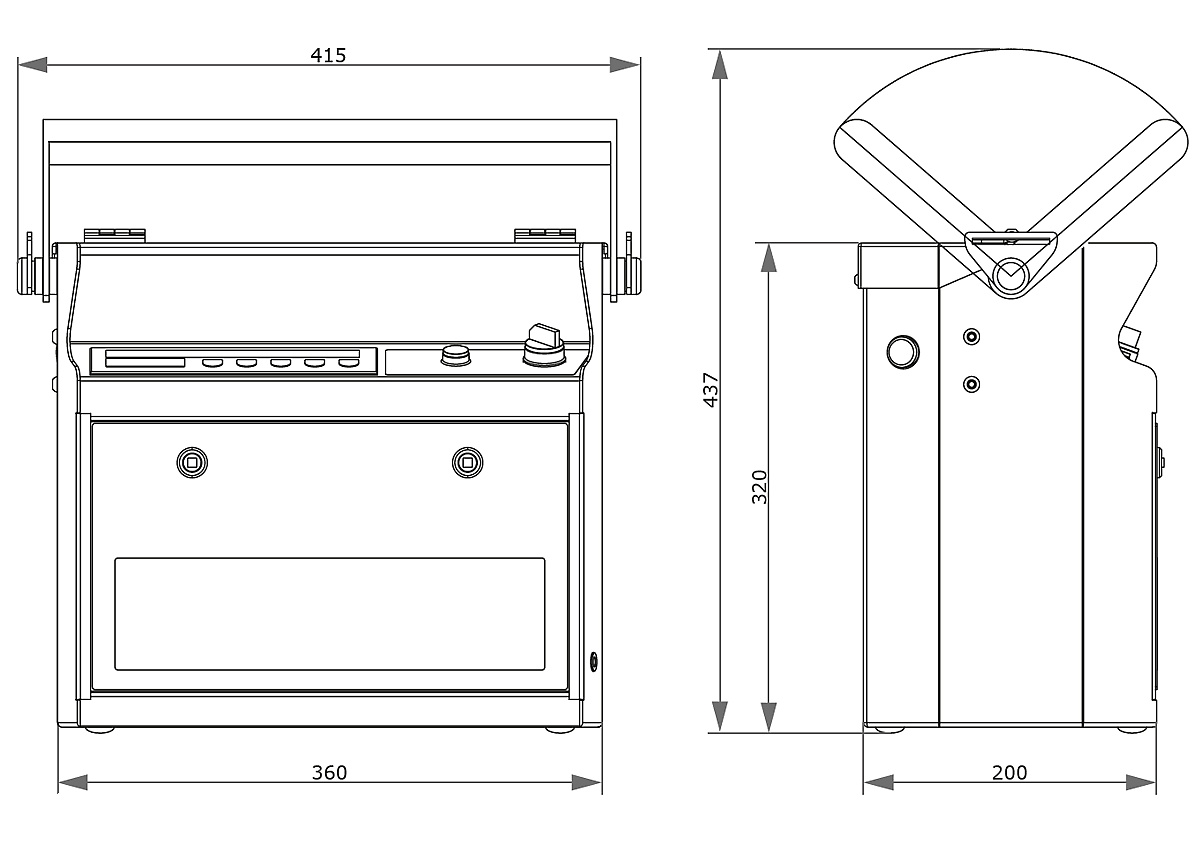

| W x H x D | 380 x 355 x 180 mm / 14.96 x 13.98 x 7.09 in |
| Tank of elektrolyte | 1 L |
| Weight | ~ 8.5 kg (without elektrolyte) |
