Manual Grinder & Polisher, Grinders & Polishers

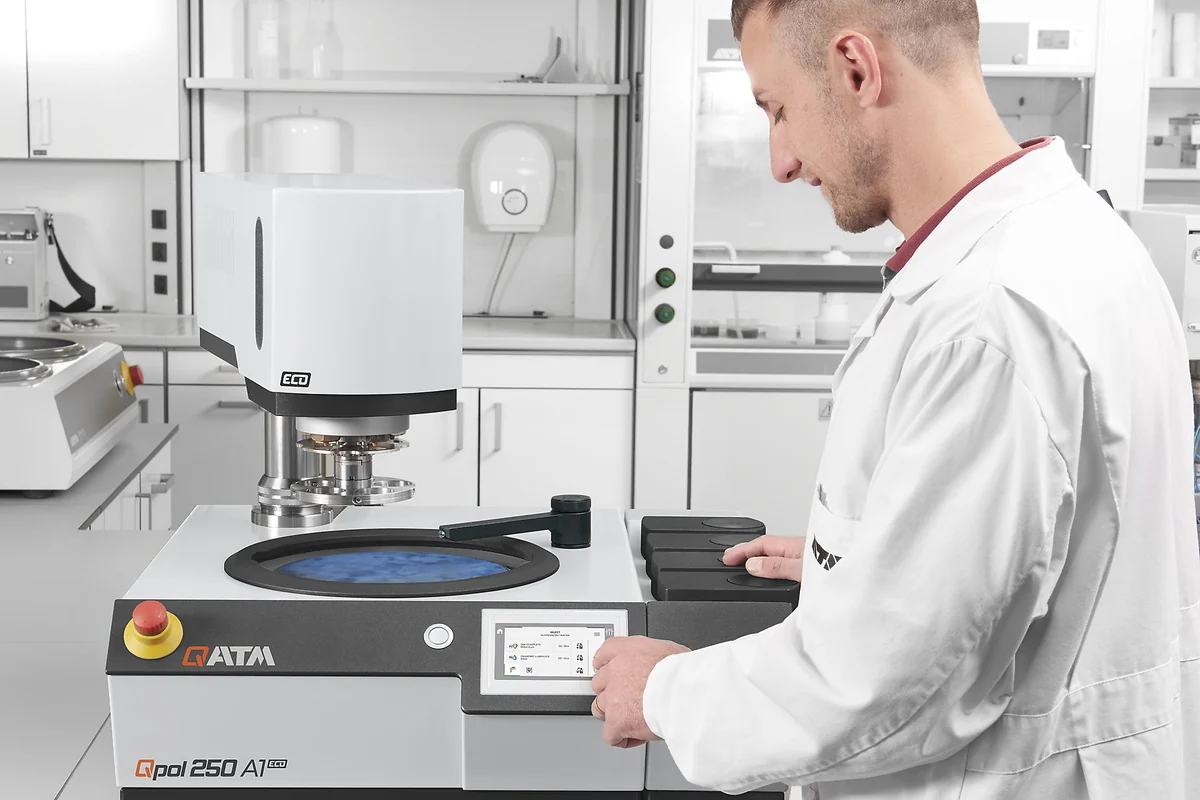

QPOL 250 A1-ECO
The Qpol 250 A1-ECO is a single-wheel grinding and polishing machine for the metallographic laboratory
Lot # and price held 7 days after order.
NDA standard
Ships in 1–2 business days
Spec-match guarantee on every lot
Built for production teams
What your process engineer actually checks
Locked, traceable lot chemistry
Every lot ships with a COA documenting PSD, sphericity, flow rate, apparent density, and full chemistry — and a lot number you can trace. Aerospace and medical teams reorder 4+ times without re-qualifying.
Qualified parameters, not just powder
Validated parameter sets for EOS M 290, Renishaw 500Q, SLM 280, and our own AO Metal LPBF ship with the order. Load the profile and hit density on the first build — no parameter-development burn.
A materials engineer on the line
Questions on ferrite content, flowability, recyclate ratios, or HIP response? A materials engineer answers directly — not a contact-form bot. Most replies in under 4 hours, NDA standard.
About this product
PRODUCT ADVANTAGES
• Single wheel grinder / polisher for metallographic sample preparation
• Spin cycle feature (Cleaning Boost)
• 4.3″ Touch-Screen with intuitive QATM user software
• 200 customized programs storable
• Easy cleaning/rinsing of bowl by lifting the working wheel (single-disc design)
• Variable speed of working wheel and polishing head
• Working wheel and polishing head: clockwise / counter-clockwise rotation
• Impact-proof plastic bowl
• Aluminium case, powder coated
• Economic LED illumination
• Single wheel grinder / polisher for metallographic sample preparation
• Spin cycle feature (Cleaning Boost)
• 4.3″ Touch-Screen with intuitive QATM user software
• 200 customized programs storable
• Easy cleaning/rinsing of bowl by lifting the working wheel (single-disc design)
• Variable speed of working wheel and polishing head
• Working wheel and polishing head: clockwise / counter-clockwise rotation
• Impact-proof plastic bowl
• Aluminium case, powder coated
• Economic LED illumination
FEATURES
The ECO grinding & polishing head with adjustable swivelling limits is equipped with recessed grips on both sides and integrated buttons for easy swivelling and adjustment. A large gap between the working surface and the polishing head ensures convenient changing of the sample holder.
After removal of the splash protection ring, the working wheel is freely accessible. The wheel is automatically arrested when placed on the new mounting system. On lifting the wheel, all parts below are accessible for easy cleaning.
The ECO polishing head is equipped with LED illumination of the working area and a holder for the nozzles of the Qdoser ECO dosing system. Water is supplied automatically via the head.
QATM offers a wide selection of standard sample holders in various diameters and for different applications and machines. Samples with unusual dimensions can be clamped with the help of special design sample holders.
The automatic grinders and polishers can be combined with the fully automatic dosing system Qdoser ECO or the manual dosing solution Qdoser One, thus offering a high degree of flexibility for sample preparation and ease of use.
The ECO grinding & polishing head with adjustable swivelling limits is equipped with recessed grips on both sides and integrated buttons for easy swivelling and adjustment. A large gap between the working surface and the polishing head ensures convenient changing of the sample holder.
After removal of the splash protection ring, the working wheel is freely accessible. The wheel is automatically arrested when placed on the new mounting system. On lifting the wheel, all parts below are accessible for easy cleaning.
The ECO polishing head is equipped with LED illumination of the working area and a holder for the nozzles of the Qdoser ECO dosing system. Water is supplied automatically via the head.
QATM offers a wide selection of standard sample holders in various diameters and for different applications and machines. Samples with unusual dimensions can be clamped with the help of special design sample holders.
The automatic grinders and polishers can be combined with the fully automatic dosing system Qdoser ECO or the manual dosing solution Qdoser One, thus offering a high degree of flexibility for sample preparation and ease of use.
PROTECTIVE HOOD (OPTIONAL)
The optional protective hood for grinding and polishing machines of the Qpol 250/300 series is available in 2 versions:
Variant 1: transparent hood for access and splash protection with connection for external exhaust system.
Variant 2: with additional automatic locking during the grinding and polishing process
The optional protective hood for grinding and polishing machines of the Qpol 250/300 series is available in 2 versions:
Variant 1: transparent hood for access and splash protection with connection for external exhaust system.
Variant 2: with additional automatic locking during the grinding and polishing process
| Brand | QATM |
| Working wheels | ø 200/250 mm |
| No. of samples (single pressure) | 1-6 samples ø 40 mm |
| Single pressing force | variable, 5-80 N |
| Central pressing force | variable, 20-350 N |
| Connection power | 2.3 kVA |
| Drive power (grinder) | 0.55 kW (S1) |
| Drive power (head) | 0.18 kW (S1) |
| Speed (grinder) | 30 - 600 min-1 |
| Speed (head) | 30 - 160 min-1 |
| W x H x D | 511 x 530-610 x 710 mm / 20.12 x 20.87-24.02 x 27.95 in |
| Weight | ~ 64 - 72 kg |
| Water connection | 1x fresh water connection R½" max. 6 bars |
| Dosing system (option) | Qdoser ECO |
