QATM QPOL 250 A2-ECO Double-Wheel Grinder-Polisher – Ø 200/250 mm | 200 Methods
The QATM QPOL 250 A2-ECO is a double-wheel grinding and polishing machine for the metallographic laboratory, for working wheels Ø 200/250 mm — 4.3" touch control, up to 200 stored preparation methods and adjustable pressure, speed and rotation direction.
- ✔ Two working wheels — grinding and polishing ready side by side
- ✔ Store and recall up to 200 preparation methods with user-account protection

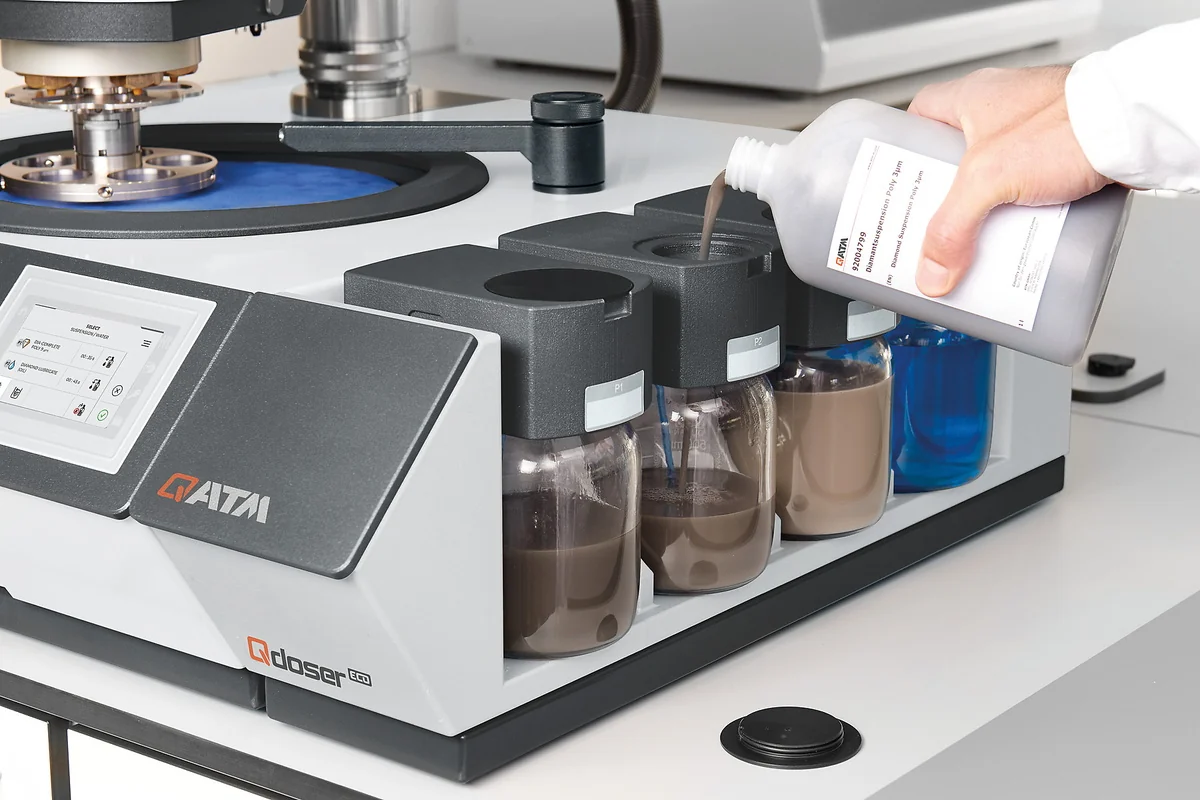

- ✔ Cleaning Boost spin-dries the medium at 750 rpm in ~3 s; pairs with Qdoser dosing
- ✔ Lead time: configured to order — request the current timeline
What your metallography lab actually checks
Deformation-free, repeatable surfaces
Adjustable force, speed and direction plus 200 saved methods mean the final surface is set by a recipe, not by feel — so porosity counts and grain analysis on AM cross-sections repeat operator to operator, run to run.
An applications engineer on the line
Method setup, consumable selection and troubleshooting from engineers who run sample prep and materials characterization in-house. Sub-4h reply, NDA standard.
The QATM QPOL 250 A2-ECO is a double-wheel grinding and polishing machine for the metallographic laboratory, suitable for working wheels Ø 200/250 mm. A 4.3″ touch screen, 200 stored methods and fully adjustable pressure, speed and rotation make reproducible sample prep straightforward.
Why labs choose the QPOL 250 A2-ECO
Reproducible manual grinding and polishing with saved methods.
200 saved methods
Edit and store up to 200 preparation methods, protected by user-account management — every operator repeats the same recipe.
Full parameter control
Pressure, speed and direction of rotation (head and working disc) are all adjustable to the material.
Two wheels ready
Two working wheels keep grinding and polishing set up at once — no compromise on performance.
Cleaning Boost
A spin cycle dries the grinding/polishing medium at 750 rpm in about three seconds at the end of the run.
How Additive Plus delivers the QPOL 250 A2-ECO
Not a drop-shipped box — configured, installed and supported.
Configured to your specimens
We match wheels, consumables, holders and mould sizes to your materials and sample sizes before the machine ships.
Installed and trained on-site
Delivery, setup and operator training at your lab. Your team runs a first preparation cycle with us on the line.
Validated methods, ongoing support
Saved preparation methods dialed in for your alloys, plus method help and service from engineers who run sample prep in-house.
Key specifications
Double-wheel grinding & polishing, working wheels Ø 200/250 mm, single 5–80 N / central 20–350 N pressing force, grinder 30–600 rpm, head 30–160 rpm, ~78–85 kg. See the full Specifications tab below for every value.
Typical applications
Where the QPOL 250 A2-ECO earns its place in the lab.
Not sure the QPOL 250 A2-ECO is the right machine?
Compare the closest machines in the QATM line.
Why source the QPOL 250 A2-ECO through Additive Plus
- Authorized QATM channel — sales, installation, training and service from one partner
- Full prep chain: sectioning, mounting, grinding, polishing, etching and optical analysis
- Wheels, cloths and consumables matched to your materials before shipping
- Method help from engineers who run metallographic prep in-house
- <24h response · 200+ systems delivered across 23 countries
| Brand | QATM |
| Working wheels | ø 200/250 mm |
| No. of samples (single pressure) | 1-6 samples ø 40 mm |
| Single pressing force | variable, 5-80 N |
| Central pressing force | variable, 20-350 N |
| Connection power | 2.3 kVA |
| Drive power (grinder) | 0.55 kW (S1) |
| Drive power (head) | 0.18 kW (S1) |
| Speed (grinder) | 30 - 600 min-1 |
| Speed (head) | 30 - 160 min-1 |
| W x H x D | 901 x 530-610 x 710 mm / 35.47 x 20.87-24.02 x 27.95 in |
| Weight | ~ 78 - 85 kg |
| Water connection | 1x fresh water connection R½" max. 6 bars |
| Dosing system (option) | Qdoser ECO |
