In stock
QLS

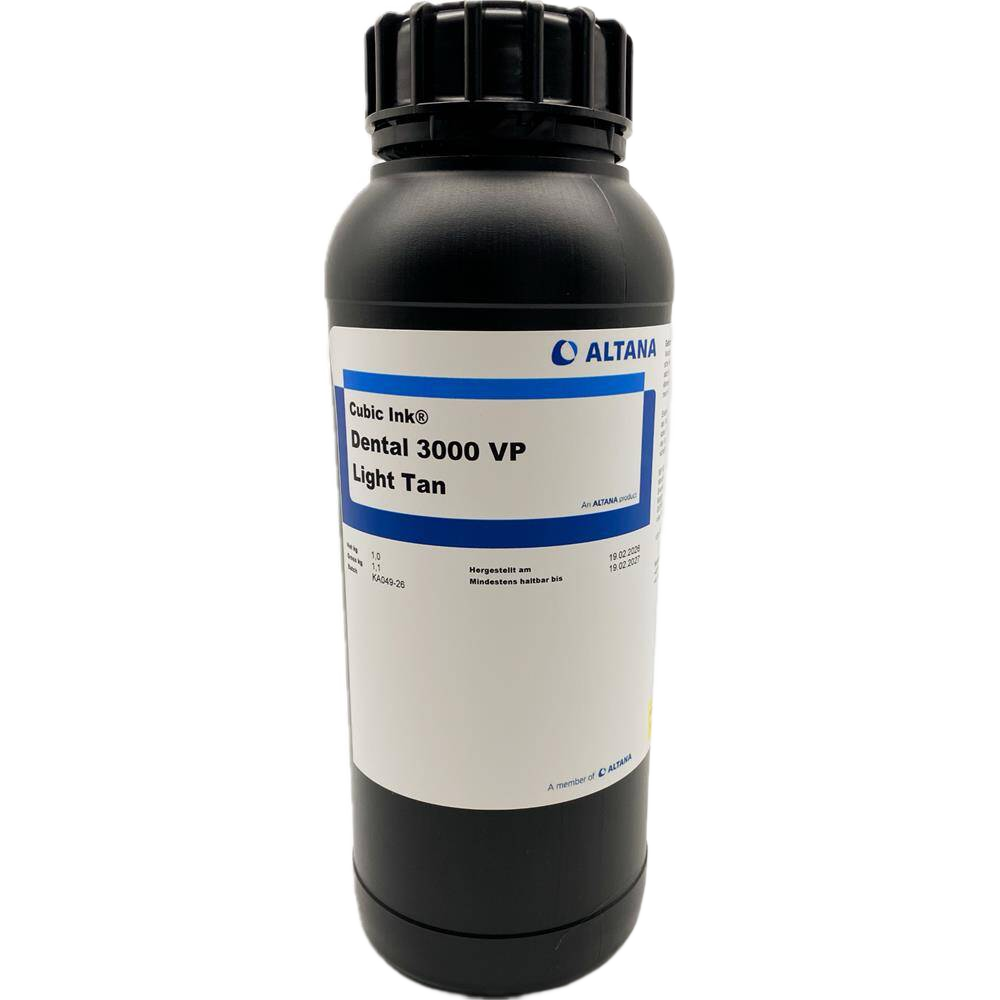

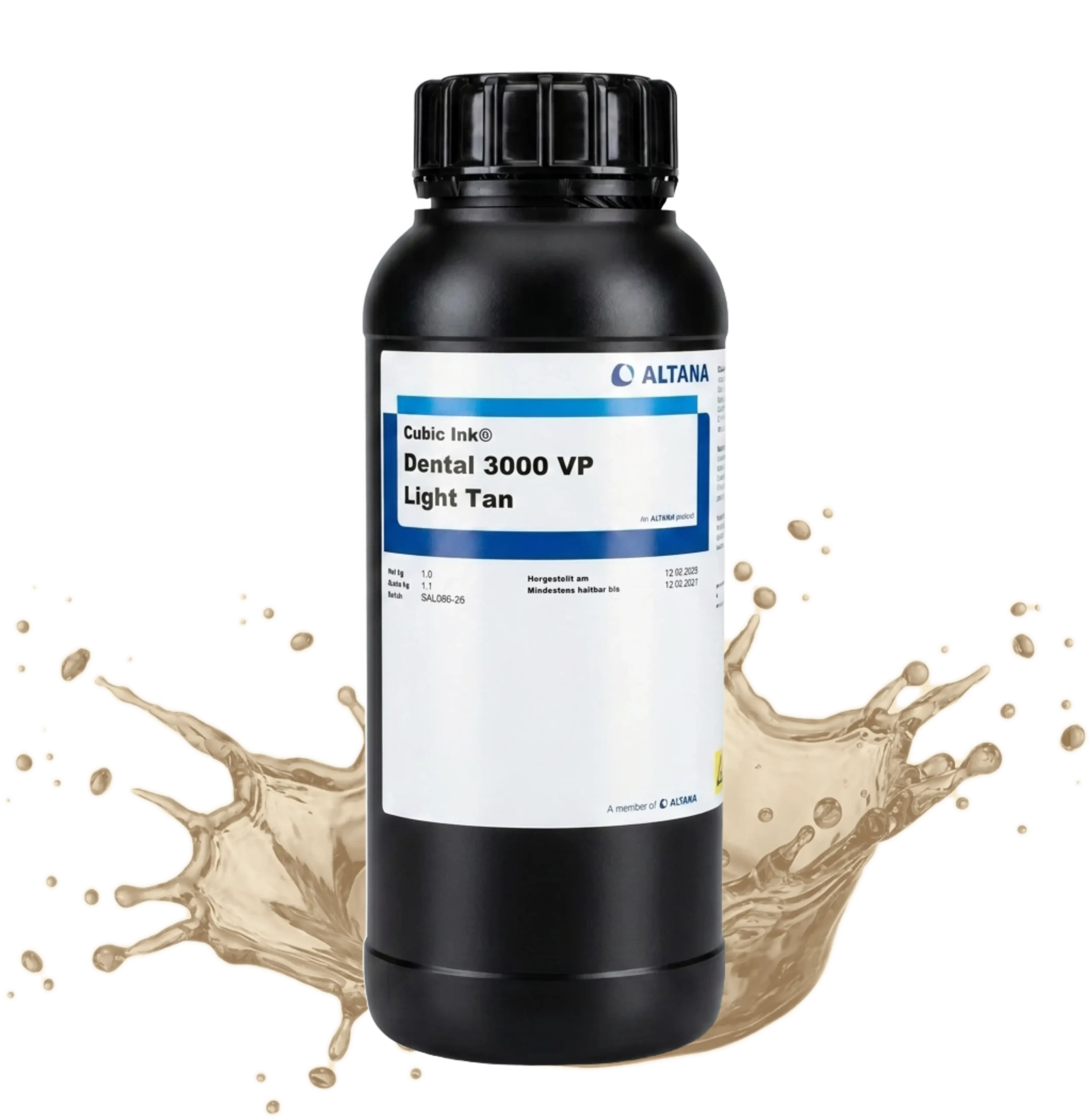

ALTANA Cubic Ink Dental 3000 VP Light Tan – Dental Model Resin for Aligner Thermoforming (DLP/LCD) | 1 kg & 5 kg
Model material for the dental industry — high-resolution, dimensionally accurate dental models for aligner thermoforming, with excellent printability up to 150 µm layers. Produced in the USA.
- ✓ High-detail dental models & hollow objects on common DLP/LCD machines
- ✓ Robust post-treatment via temperature & pressure (thermoforming-ready)
- ✓ Cytotoxicity passed (ISO 10993); light tan, custom colors on request
- ✓ Scalable pricing — 1 kg, 5 kg and 200 L drums; made in the USA
Bottle sizes: 1 kg — $125.40 · 5 kg — $100.32/kg · 200 L drums (call for pricing). Invoiced per kg; USD reference.
$125
Price held 7 days after order.
What your dental lab actually checks
Model accuracy we can validate
The dimensional accuracy, up-to-150 µm printability and passed cytotoxicity come straight from the ALTANA TDS. We help set printing and post-cure so models come out accurate and thermoforming-ready.
US production, scalable pricing
Produced in the USA and available from 1 kg up to 200 L drums. Talk to a materials engineer for volume pricing, lead time and custom shades. Sub-24h reply, NDA standard.
About this product
ALTANA Cubic Ink Dental 3000 VP Light Tan is a model material for the dental industry — high-resolution, dimensionally accurate dental models for aligner thermoforming, with excellent printability up to 150 µm layers. Produced in the USA.
Why dental labs choose Dental 3000 VP
Accurate models that survive thermoforming.
Built for dental models
High-resolution, dimensionally accurate models for aligner thermoforming, on common DLP and LCD machines.
Thermoforming-ready
Fine-tuned thermo-mechanical properties and scratch resistance allow robust post-treatment via temperature and pressure.
Excellent printability
Prints up to 150 µm layers, including hollow objects, with high detail sharpness and smooth surfaces.
Clean profile
In-vitro cytotoxicity passed (ISO 10993-5/-12). For dental models without body contact; light tan, custom colors on request.
Technical properties
Measured on light-tan resin (TDS v3, 13 Mar 2026). Post-cured Otoflash under N&sub2;.
| Property | Value | Method |
|---|---|---|
| Viscosity (25 °C) | 710 mPa·s | DIN EN ISO 3219 |
| Density | 1.10 g/mL | DIN EN ISO 15212-1 |
| Ultimate tensile strength | 51 MPa | DIN EN ISO 527-5A |
| Tensile modulus | 2500 MPa | DIN EN ISO 527-5A |
| Elongation at break | 7.0 % | DIN EN ISO 527-5A |
| Flexural strength / modulus | 83 / 2200 MPa | DIN EN ISO 178 |
| Deflection at fracture | > 10 % | DIN EN ISO 178 |
| Shore hardness | 85 D | DIN EN ISO 7619 |
| HDT-B | 70 °C | DIN EN ISO 75 |
| In-vitro cytotoxicity | Passed | DIN EN ISO 10993-5/-12 |
| Color | Light tan (custom on request) | — |
Typical applications
Dental models — no body contact.
Aligner thermoforming models
Clear-aligner workflows
Orthodontic models
Accurate arches
Study & demo models
High detail sharpness
Hollow models
Material-efficient
How you run it
Print → wash → post-cure.
Step 01
Common DLP / LCD machines, layers up to 150 µm. Stir before use.
Step 02
Wash
Cubic Ink Cleaner 400 or IPA; dry with compressed air.
Step 03
Post-cure
UV post-cure (e.g. Otoflash under N&sub2;) for full model properties.
Produced in the USA with scalable pricing — available in 1 kg, 5 kg and 200 L drums. Need volume pricing or a custom shade? A materials engineer can help. Sub-24h reply, NDA standard.
| Brand | ALTANA Cubic Ink |
| Available colors | Light Tan |
| Print Feature | Dental Models |
| Country of origin | USA |
| Tensile Stress at Break (MPa) | 51 |
| Tensile Modulus (MPa) | 2500 |
| Elongation at Break (%) | 7.0 |
| Flexural Strength (MPA) | 83 |
| Flexural Modulus (MPa) | 2200 |
| Shore Hardness (3s) | 85 |
| [email protected] MPA (°C) | 70 |
