Made to order
- COA on request — PSD, sphericity, flow rate, chemistry
- Mutual NDA before any file or spec review

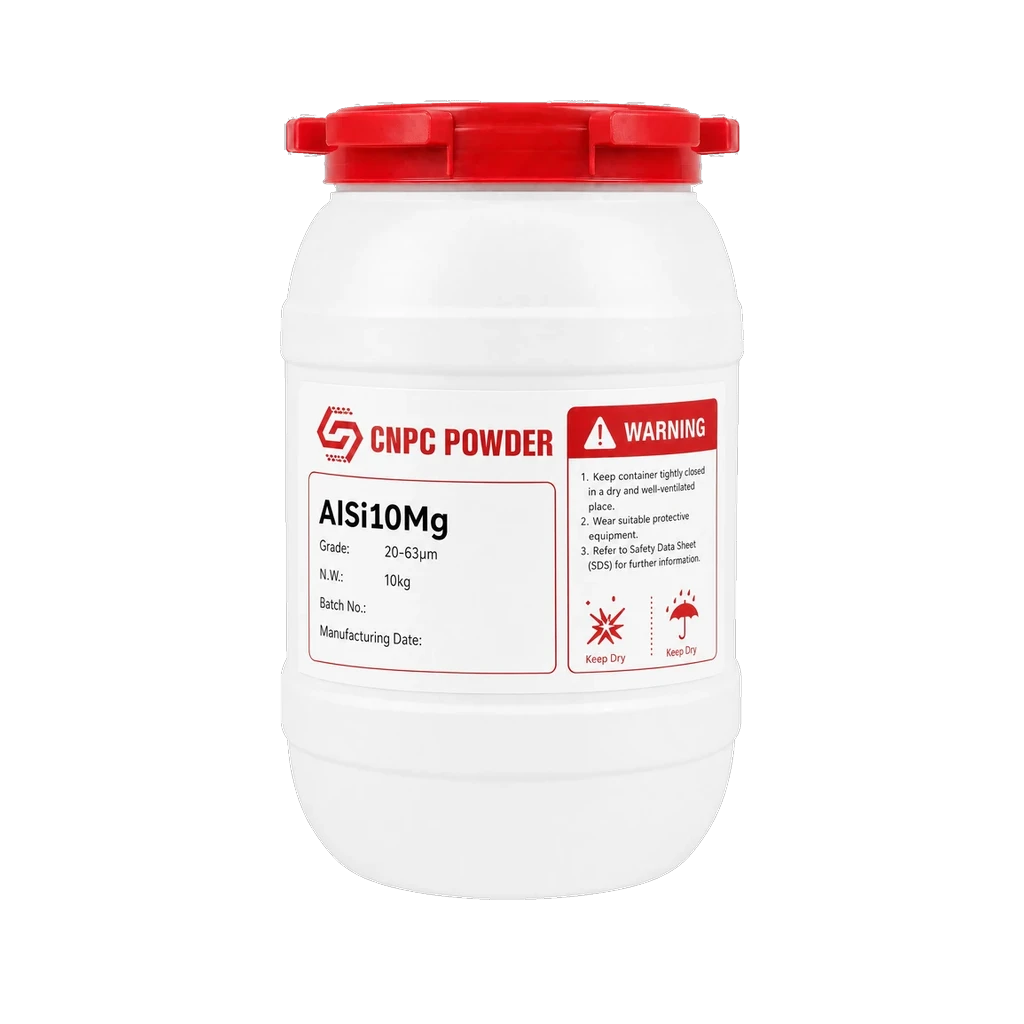

CNPC AlSi10Mg Aluminum Alloy Powder for LPBF — 20–63 µm, 10 kg
CNPC AlSi10Mg Aluminum powder price: $410 per 10 kg ($41.00/kg)
Lightweight aluminum-silicon-magnesium alloy with good specific strength, wear and corrosion resistance and high thermal and electrical conductivity. Made by CNPC Powder in China and sold and supported in the US by Additive Plus.
Values from the CNPC Powder catalog (Ve.2609). Catalog figures are minimums or ranges; the certificate for your lot is available on request.
Which AlSi10Mg is right for your build?
All of them are in our catalog at a published price. Pick by machine, timing and country of origin.
| Powder | Particle size | Origin | Availability | Good fit for | 10 kg | |
|---|---|---|---|---|---|---|
 Carpenter Additive AlSi10MgNamed mill | 20–63 µm · LPBF | Confirmed per lot | In stock | Programs that need a named mill and fast delivery | $815 | View |
 CNPC Powder AlSi10MgThis page | 20–63 µm · LPBF | China | Made to order | Lower price per kg | $410 | Add to cart |

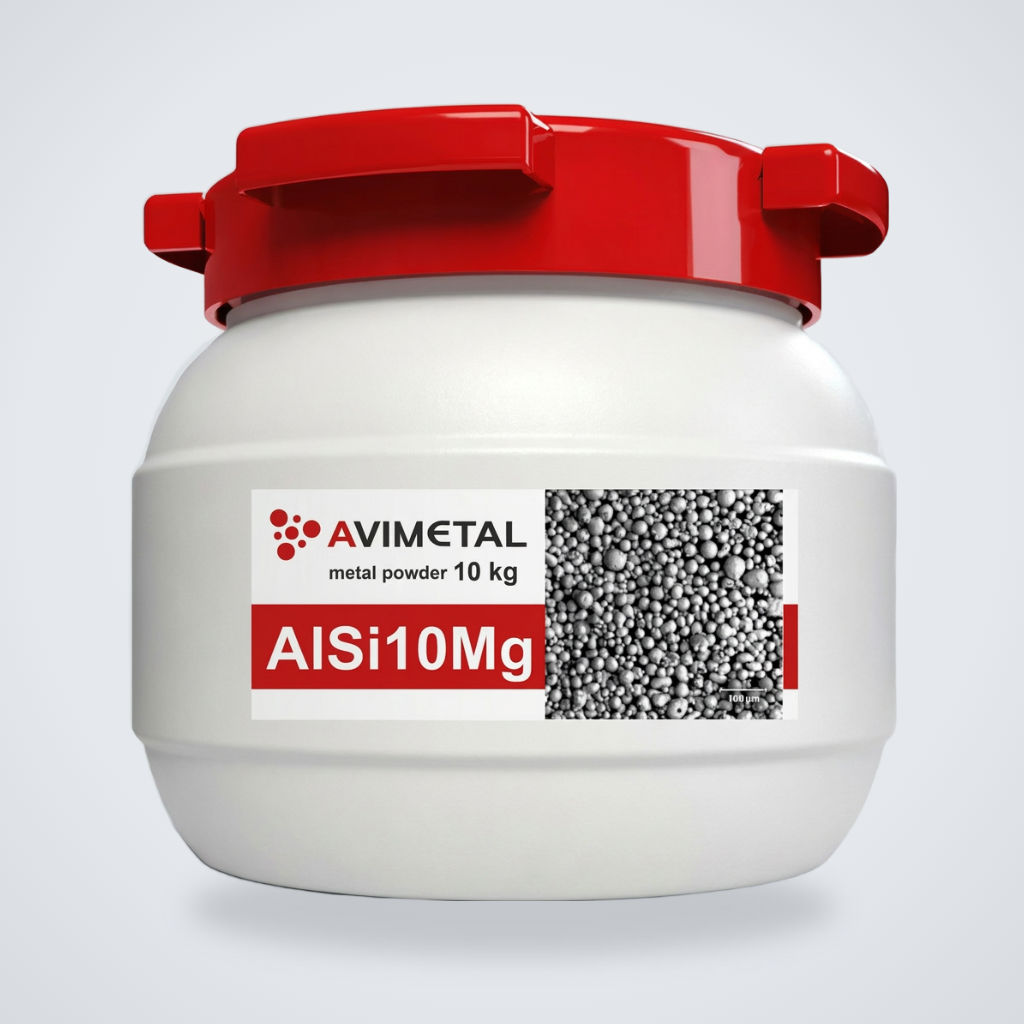

 A-Powder AlSi10Mgby AO Metal | 20–63 µm · LPBF | China | Made to order | Lowest price per kg in our catalog | $380 | View |
Need a specific country of origin for a government or defense program? Ask before ordering and we will confirm it in writing for your lot.
What is in the container
Specification from the manufacturer. The certificate for your lot is available on request.
Specification
Chemistry, CNPC Powder catalog (Ve.2609) (wt%). The certificate for your lot lists all measured elements.
| Element | wt% |
|---|---|
| Aluminum (Al) | Balance |
| Silicon (Si) | 9.0–11.0 |
| Magnesium (Mg) | 0.25–0.45 |
| Powder property | Requirement |
|---|---|
| D10 / D50 / D90 | 15–30 / 30–45 / 55–70 µm |
| Hall flow | ≤ 90 s / 50 g |
| Oxygen | ≤ 0.1% |
| Apparent / tap density | ≥ 1.1 / ≥ 1.3 g/cm³ |
| Sphericity | ≥ 90% |
What comes with your lot
From the manufacturer certificate
- Chemistry against the specification limits on the left
- Particle size distribution: D10, D50, D90
- Flow rate and apparent density
- Lot number for traceability
The certificate for your lot is available on request. The manufacturer datasheet for this alloy has no particle image; ask us if you need one.
How the printed metal performs
Printed-property minimums from the CNPC Powder catalog (Ve.2609). A guide for your own qualification, not design data.
| Condition | Orientation | Yield, MPa | UTS, MPa | Elongation | Rel. density | Hardness, HV1 |
|---|---|---|---|---|---|---|
| As-built | — | ≥ 350 | ≥ 420 | ≥ 7% | 99.94% | 127 |
| 250 °C, 2 h | — | ≥ 250 | ≥ 340 | ≥ 10% | — | 100 |
Heat treatment
Manufacturer data
- Heat treatment in the catalog data: 250 °C for 2 hours. It lowers strength but raises thermal conductivity from 103.0 to 181.5 W/(m·K) and electrical conductivity from 23.2 to 43.1 %IACS.
- Use the stress-relief or T6 cycle your specification calls for.
Before you order
Aluminum powder is reactive. A dust cloud of fine aluminum can ignite. Keep it dry, use grounded equipment and an ATEX-rated vacuum, and follow the safety data sheet.
How this AlSi10Mg compares
Published tensile data, X–Y direction unless noted, one representative condition per alloy. Conditions differ, so use this to shortlist, not to design.
| Alloy | Condition | Yield, MPa | UTS, MPa | Elongation | Choose it for | 10 kg |
|---|---|---|---|---|---|---|
| AlSi10Mg | 250 °C, 2 h (CNPC catalog) | ≥ 250 | ≥ 340 | ≥ 10% | Lower price per kg | $410 |
| Ti-6Al-4V Grade 23 | 800 °C, 2 h, vacuum (Z, Amaero) | 1054 | 1119 | 13.5% | Highest strength-to-weight; ELI chemistry | $2,405 |
| 316L | As-built | 552 | 703 | 57% | Corrosion resistance; does not age-harden | $670 |
Will it run on my printer?
Runs on open-parameter laser powder bed fusion systems with AlSi10Mg parameters. Our materials engineer shares recommended starting parameters that you tune on your machine.
AO MetalA30 · A50 · A100Benchtop to production LPBF with open parameters. Ask our materials engineer for starting parameters.From $59,000 · A30See AO Metal printers →
FarsoonMetal LPBF lineOpen-platform LPBF from compact R&D frames to 16-laser production systems.FS121M · FS191M · FS200M · FS273M · FS301M · FS350M · FS422M · FS621M · FS721M · FS812M · FS1311M · FS1521MQuote on requestSee Farsoon metal printers →Machine names identify compatible equipment only. Additive Plus is not affiliated with these manufacturers, and the powder is not approved by them. Process parameters are tuned per machine.
Store sealed
Keep the container closed, dry and at room temperature until you load the printer.
Sieve
Sieve before loading and every time you reuse powder recovered from a build.
ATO Sieve · quoteLoad and purge
Fill the dispenser, close the chamber and purge with argon.
Print and relieve
Stress-relieve on the plate, then remove parts and supports.
Recover
Collect unfused powder, sieve it and return it to a sealed container.
Delfin Mistral 451 BL Inert — vacuum for reactive metal powder · $11,391Wear a respirator, gloves and eye protection when handling metal powder. Read the safety data sheet before first use.

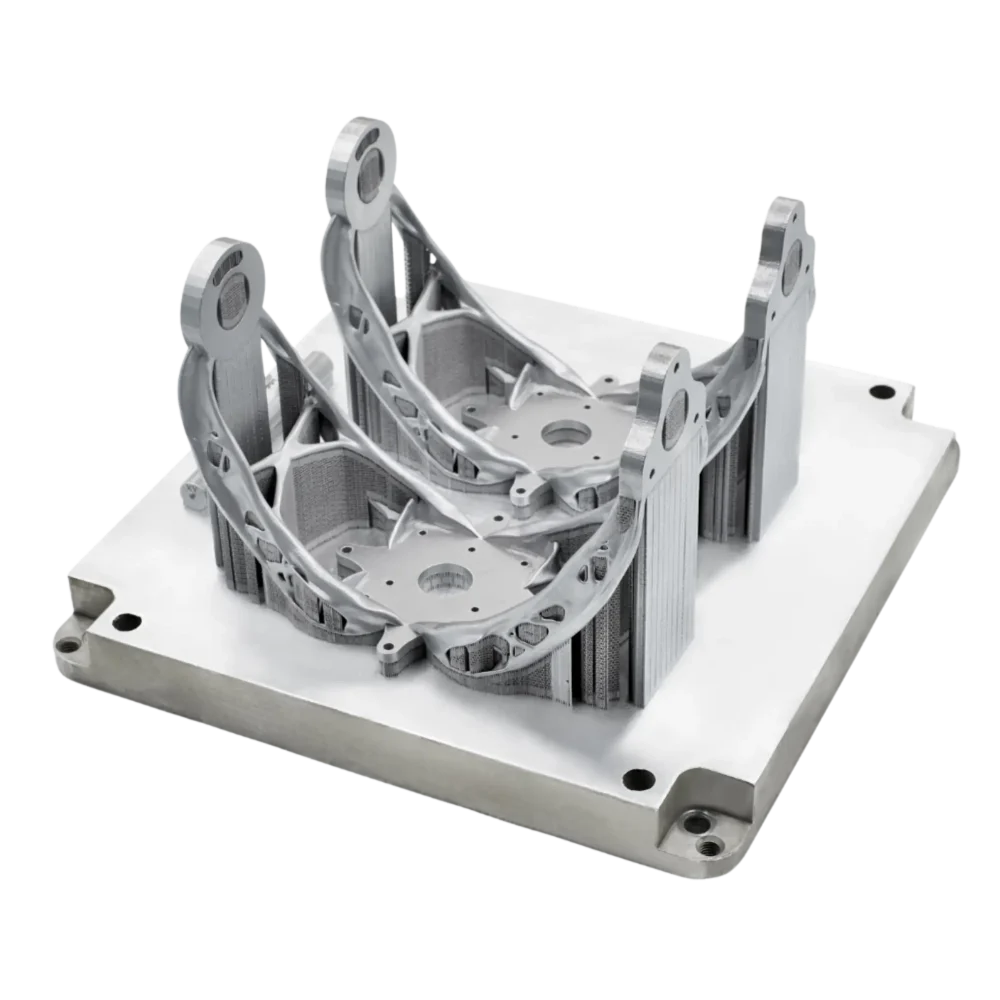

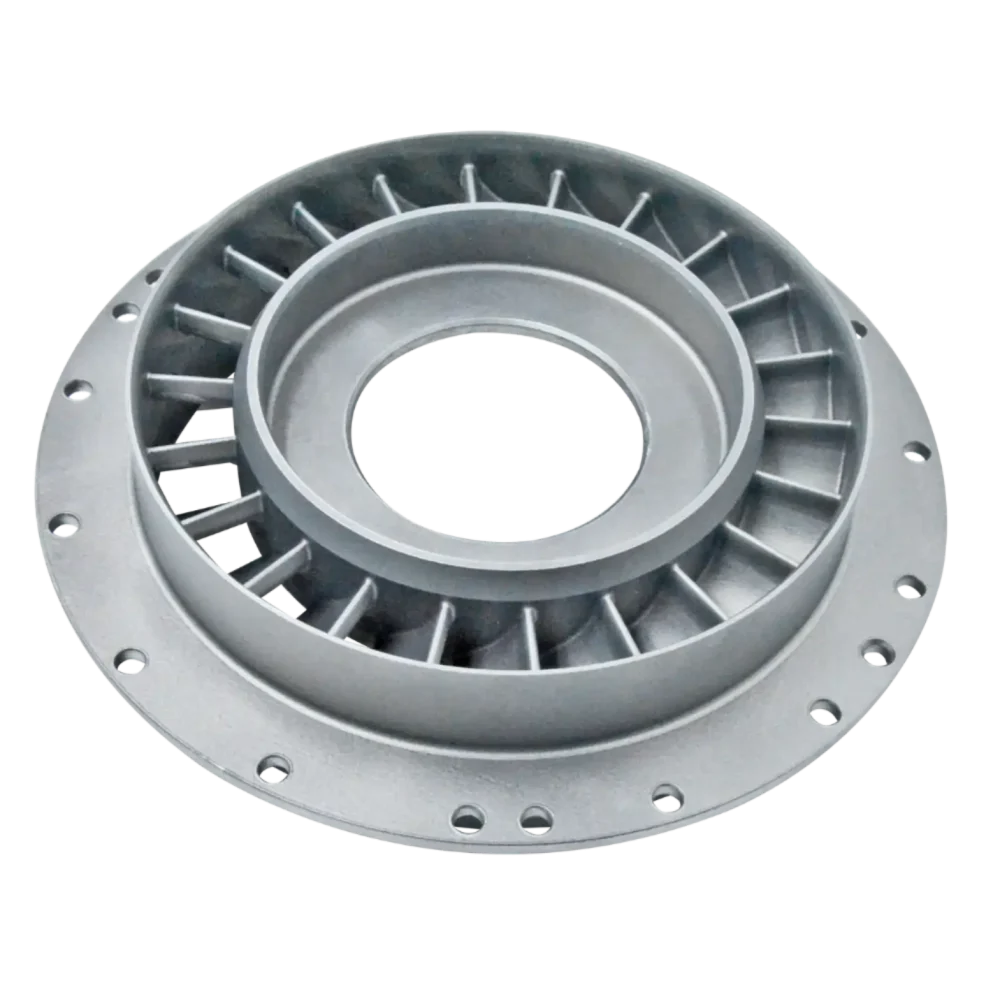

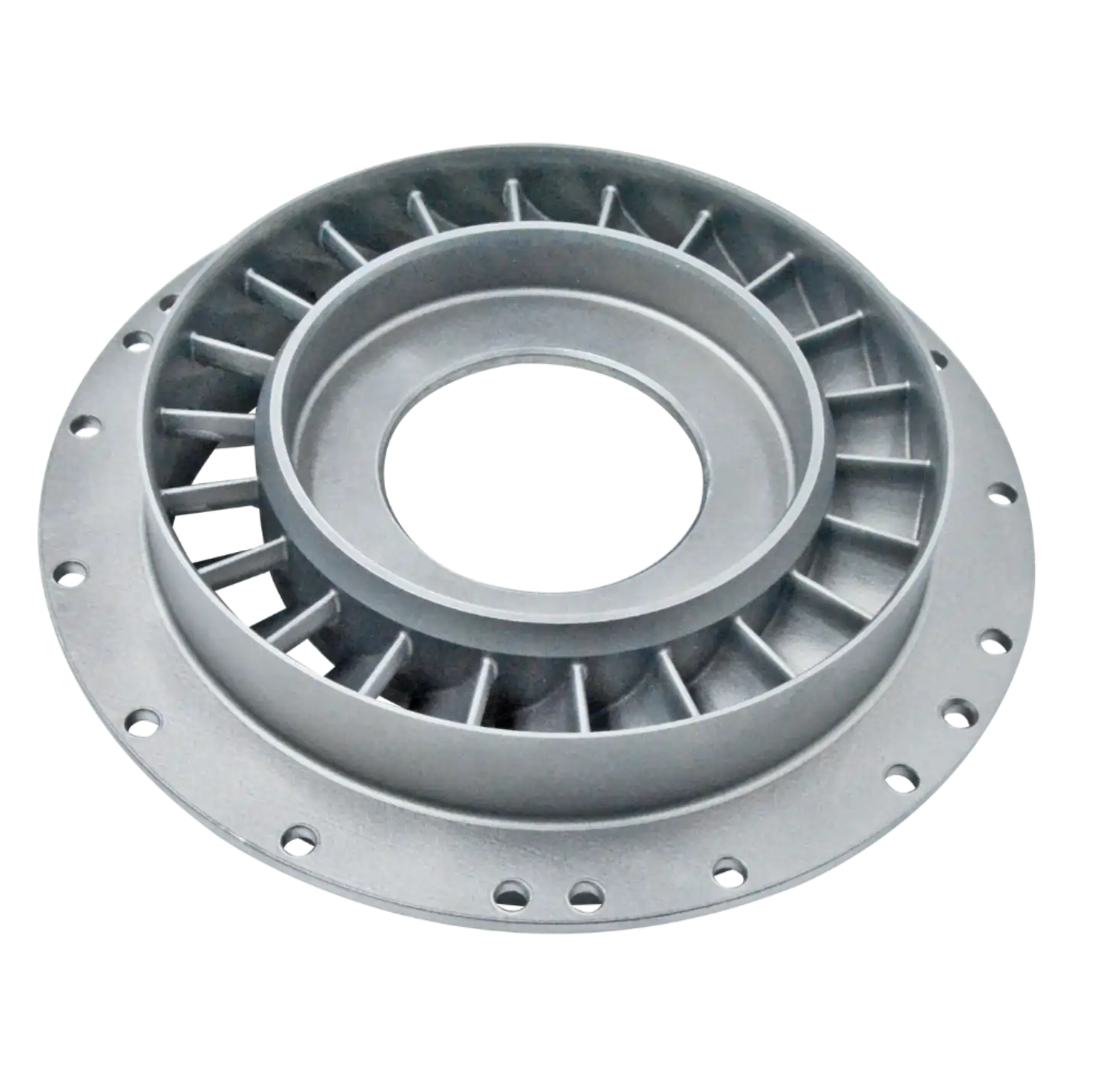

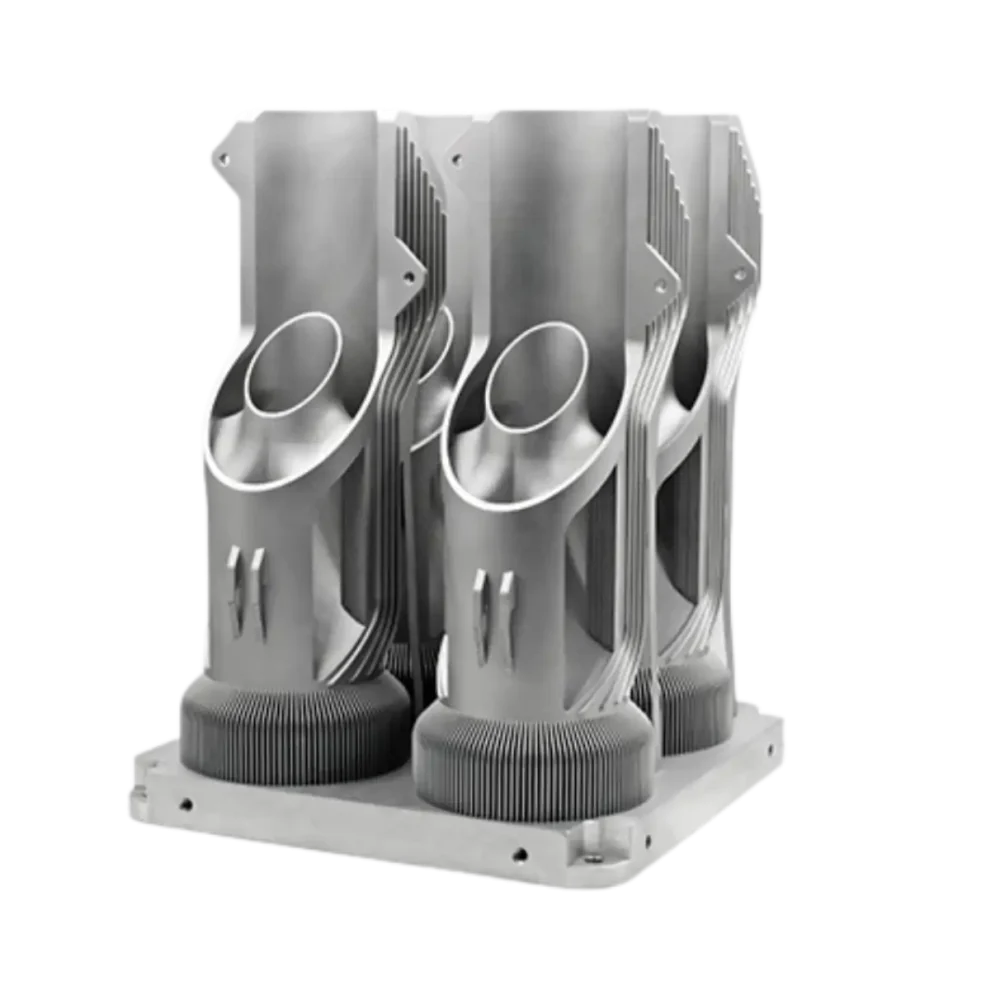

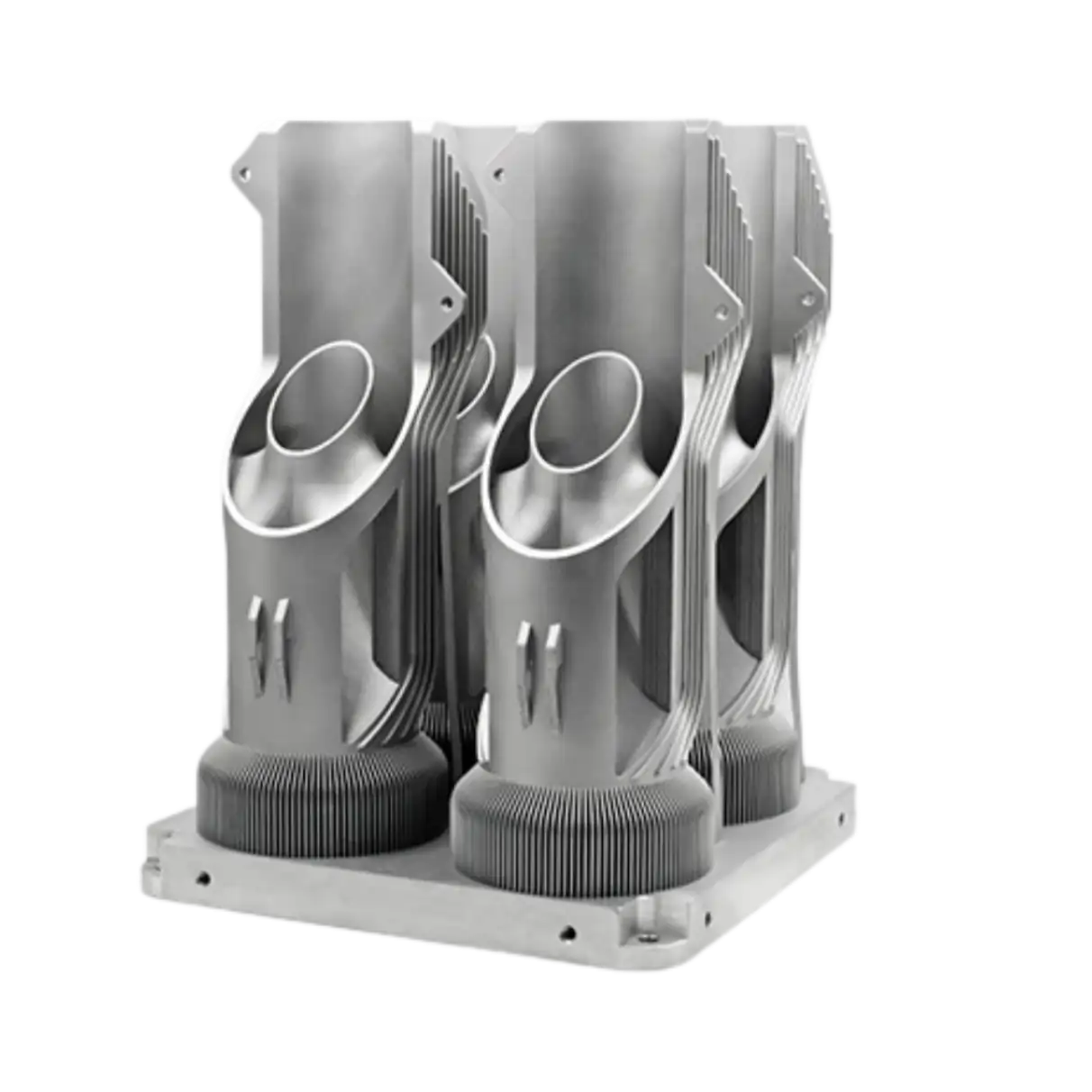

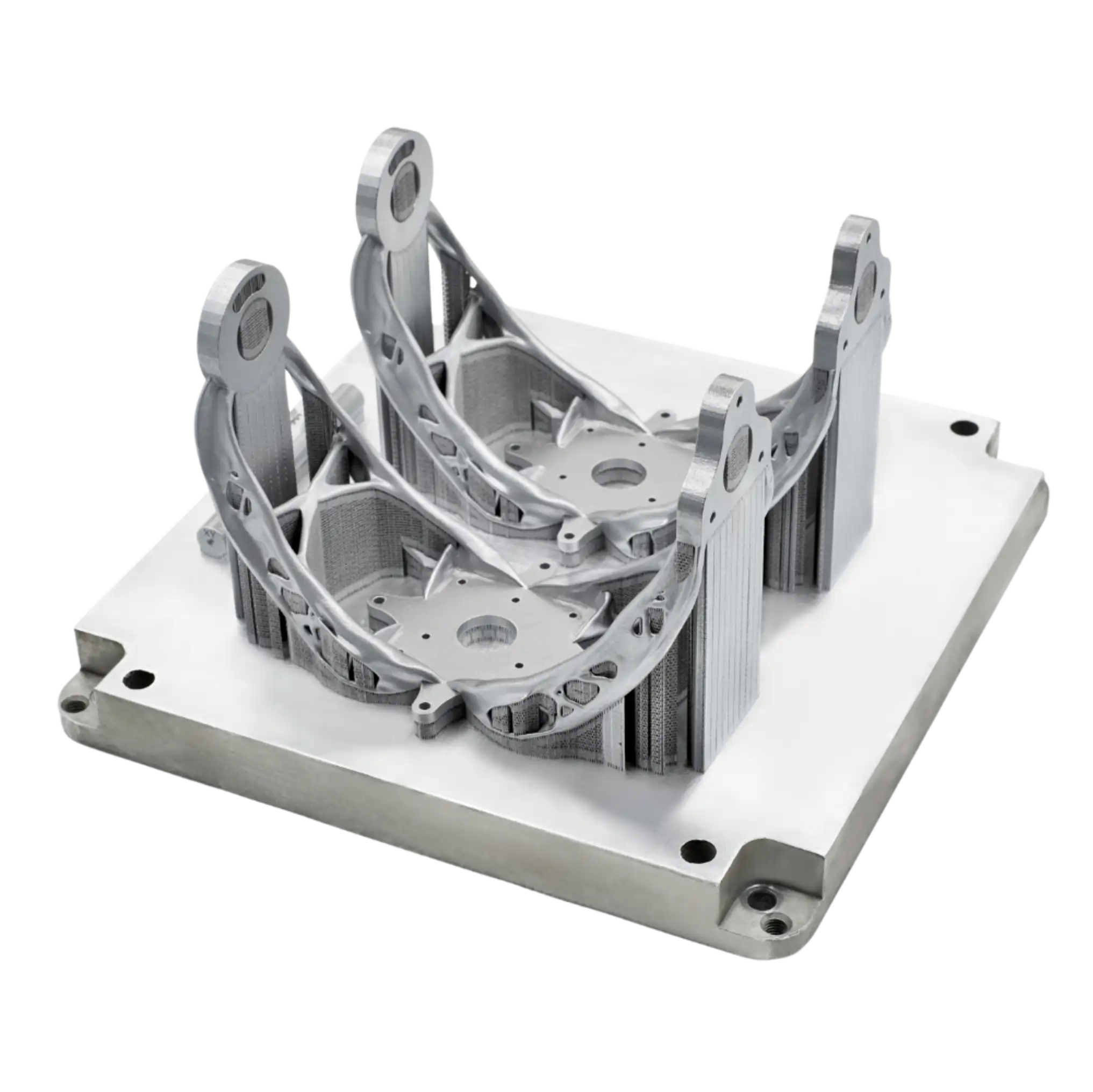

Printed on AO Metal
Real builds on the LPBF printers we sell, and what teams make from this alloy.
Parts printed on AO Metal printers, which we sell. Alloys, parameters and powder lots differ from part to part; these photos show the process, not parts made from this specific powder lot.
- Consumer electronics
- Aerospace and automotive parts
- Robotics
- Marine parts
Applications as listed in the CNPC Powder catalog (Ve.2609).
Ordering, delivery and our promise
A sealed 10 kg container of 20–63 µm powder, with the certificate of analysis for the lot on request.
The ship date shows next to the Add to Cart button. Shipping cost is calculated at checkout.
Card or PayPal at checkout, an invoice, or a purchase order — choose how you buy next to Add to Cart.
100 kg and more: ask for a volume quote with your alloy, quantity and ship-to.
If the powder is not right, we make it right.
If your lot’s chemistry or particle size falls outside its certificate or this page, or it arrives damaged or wrong, tell us within 14 days of delivery. We replace it or refund you, and we pay for shipping both ways.
Complete the workflow
- ✓ 316L — stronger pitting and chemical resistance than 304 stainless
- ✓ Precision-ground flatness for consistent first-layer adhesion
- ✓ Made to order — choose your speed below: Express 2–3 wks, or Standard 6–8 wks (save ~45%)
Immersion-separation industrial vacuum for reactive metal powder — aluminium, titanium and similar alloys — in 3D printing and powder handling. Captures powder under liquid so it's never a dry, ignition-sensitive cloud. ATEX-rated, antistatic, single-phase.
- ✓ For reactive AM powder (Al, Ti, Mg) — the safe alternative to a dry vacuum
- ✓ Two-stage antistatic filtration + grounded construction · ATEX docs on request
- ✓ In US stock · ships in 2 business days · genuine Delfin unit
Hose and tools are not part of the standard configuration. The Delfin KT1006 accessory kit ($721) fits this 2-inch inlet: 10 ft hose, wand, floor brush and nozzle.
Automated 2-in-1 blasting cell that depowders and surface-finishes powder-bed 3D-printed parts in one enclosed, software-controlled cycle.
- ✓ Depowdering + surface finishing in one ATEX-compliant cell
- ✓ Polymer PBF (SLS, MJF, HSS, SAF) + de-powdered metal parts
- ✓ Lead time: 4–8 weeks — built to order · install + training included
CNPC 316L powder for LPBF — made by CNPC Powder, nitrogen gas-atomized, 15–53 µm, sold in 10 kg containers.
- 10 kg container · $38/kg · $380
- Certificate of analysis (COA) for the lot, on request
- Ships in 6–8 weeks · exact date confirmed by email after you order
Manufacturer: CNPC Powder · materials engineer on call · order below or talk to an engineer first.
