Made to order
- Validated cure profile + datasheet for the printers we sell
- Mutual NDA before any file or spec review

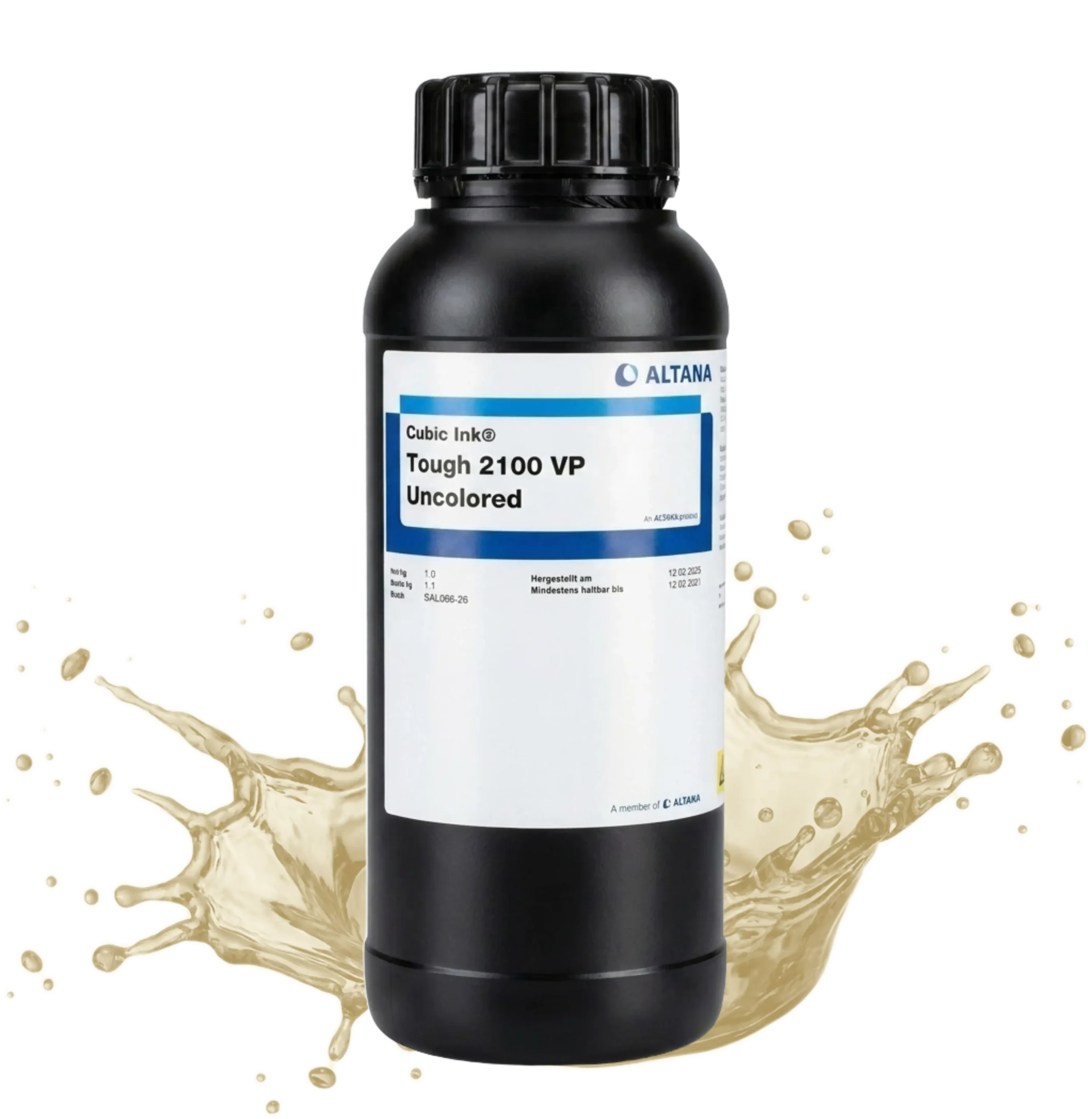

ALTANA Cubic Ink Tough 2100 VP – Fast Functional Resin, Impact-Resistant & Tough (DLP/LCD/mSLA)
Fast, easy-to-print functional resin with a strong balance of toughness, impact resistance and HDT — robust enough for drilling, grinding and real functional parts.
- ✓ High impact resistance — 36 J/m notched Izod, 12% elongation, 380 J/m unnotched
- ✓ 73 MPa tensile · 2800 MPa modulus · 84 Shore D — stiff yet not brittle
- ✓ Post-machinable (drill, grind); uncolored, black & custom colors
- ✓ A cost-effective alternative to Loctite IND403 HDT80
What your process engineer actually checks
Toughness that survives handling
The 36 J/m notched and 380 J/m unnotched Izod and 12% elongation come straight from the ALTANA TDS. We help you set exposure and post-cure so parts reach full impact strength.
A materials engineer on the line
Factory-trained support, not a remote ticket queue. We help you choose between Tough 2100 and the Loctite IND403 grade we also stock. Sub-24h reply, NDA standard.
ALTANA Cubic Ink Tough 2100 VP is a fast, easy-to-print functional resin with a strong balance of toughness, impact resistance and heat deflection — robust enough to drill, grind and finish into real functional parts.
Why engineers choose Tough 2100 VP
Impact resistance without the brittleness.
High impact, low brittleness
36 J/m notched and 380 J/m unnotched Izod, 12% elongation and >10% deflection at fracture. Parts absorb impact instead of cracking.
Stiff and strong
73 MPa tensile strength, 2800 MPa modulus and 118 MPa flexural strength hold load without excessive flex.
Machinable functional parts
Robust enough for post-treatment — drill, grind and finish without shattering.
Fast, colorful printing
Highly reactive with short exposure times. Available uncolored, black, cyan, magenta, yellow and clear.
Technical properties
Measured on uncolored resin (TDS v4). Post-cured 2×30 min UV, Formcure L @ 80 °C.
| Property | Value | Method |
|---|---|---|
| Viscosity (25 °C) | 170 mPa·s | DIN EN ISO 3219 |
| Density | 1.11 g/mL | DIN EN ISO 15212-1 |
| Ultimate tensile strength | 73 MPa | DIN EN ISO 527-5A |
| Tensile modulus | 2800 MPa | DIN EN ISO 527-5A |
| Elongation at break | 12 % | DIN EN ISO 527-5A |
| Flexural strength | 118 MPa | DIN EN ISO 178 |
| Flexural modulus | 2700 MPa | DIN EN ISO 178 |
| Izod, notched | 36 J/m | DIN EN ISO 180 |
| Izod, unnotched | 380 J/m | DIN EN ISO 180 |
| Shore hardness | 84 D | DIN EN ISO 7619 |
| Tg (TMA) | 95 °C | TMA |
| HDT-A / HDT-B | 62 / 76 °C | DIN EN ISO 75 |
| Dielectric strength | 29 kV/mm | IEC 60243-1 |
| Water uptake (24 h) | 3.5 % | ASTM D570 |
| Flammability | UL 94 HB @ 3.2 mm | UL 94 |
| Colors | Uncolored, black, cyan, magenta, yellow, clear | — |
A similar option to Loctite IND403 HDT80 High Modulus
Same tough, high-modulus application class. Additive Plus stocks and supports both.
| Property | Loctite IND403 HDT80 | Cubic Ink Tough 2100 VP |
|---|---|---|
| Ultimate tensile strength | 70 MPa | 73 MPa |
| Tensile modulus | 2600 MPa | 2800 MPa |
| Elongation at break | 10 % | 12 % |
| Notched Izod | 27 J/m | 36 J/m |
| HDT (0.45 MPa) | 80 °C | 76 °C |
| Shore hardness | 78 D | 84 D |
| Price (1 kg) | $230 | $199 |
Comparable stiffness and HDT with higher impact and elongation. Additive Plus stocks and supports both, so you can compare and choose with guidance.

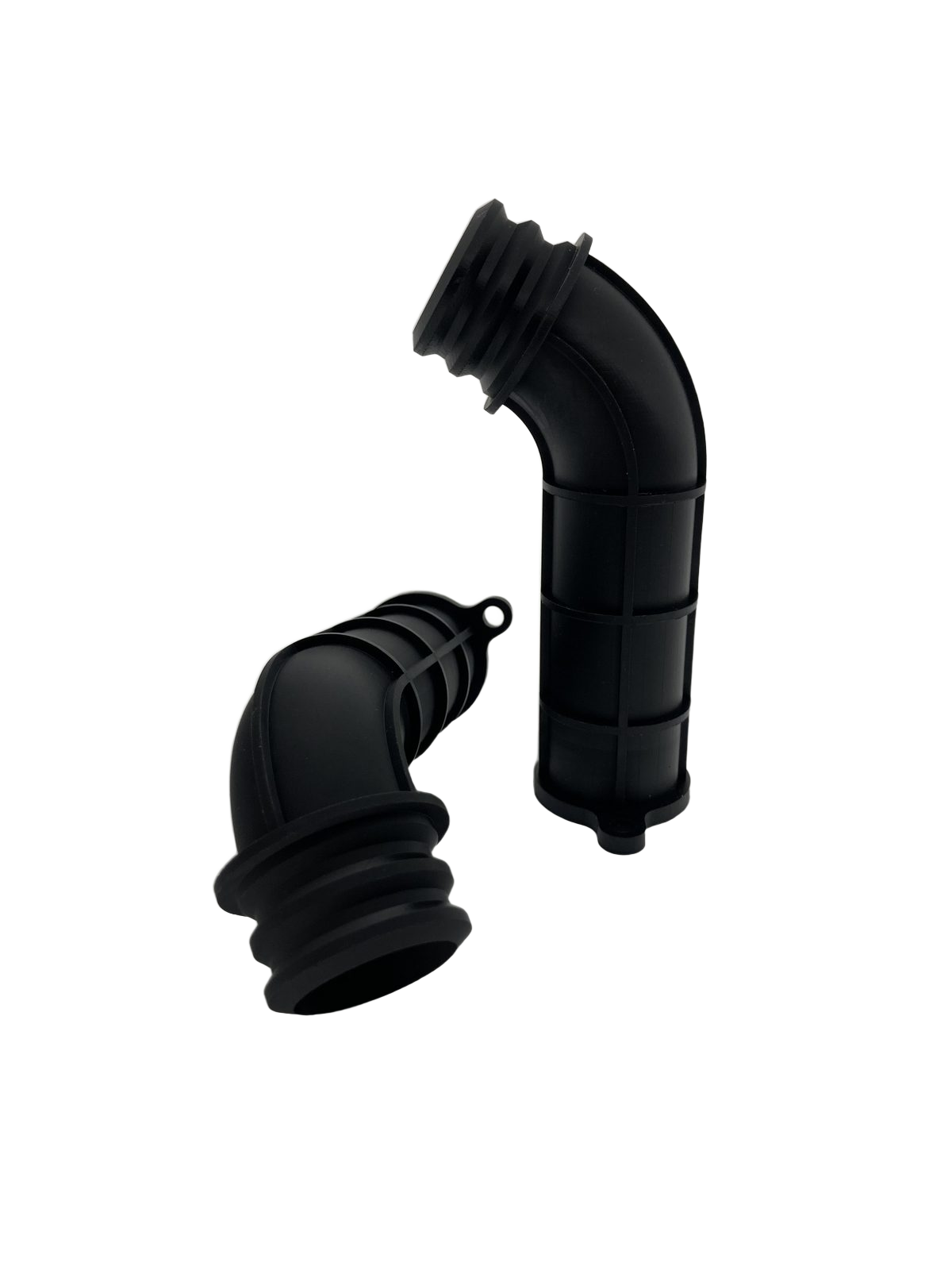

Typical applications
Functional parts that take a knock.
How you run it
Print → wash → UV post-cure.
LCD / DLP / mSLA at 385 or 405 nm. Highly reactive — short exposure times. Stir before use.
Wash
Cubic Ink Cleaner 400 or IPA; dry with compressed air.
Post-cure
UV post-cure (2×30 min at 80 °C) for full toughness and HDT.
| Size | 1 kg, 5 kg |
| Brand | ALTANA Cubic Ink |
We formulate and qualify. Custom variants on request.
Need a tuned resin, a filled or castable formulation, or a profile for a printer we don't list yet? Our materials team qualifies custom formulations and prints test specimens before you commit. Typical lead 2–4 weeks.
