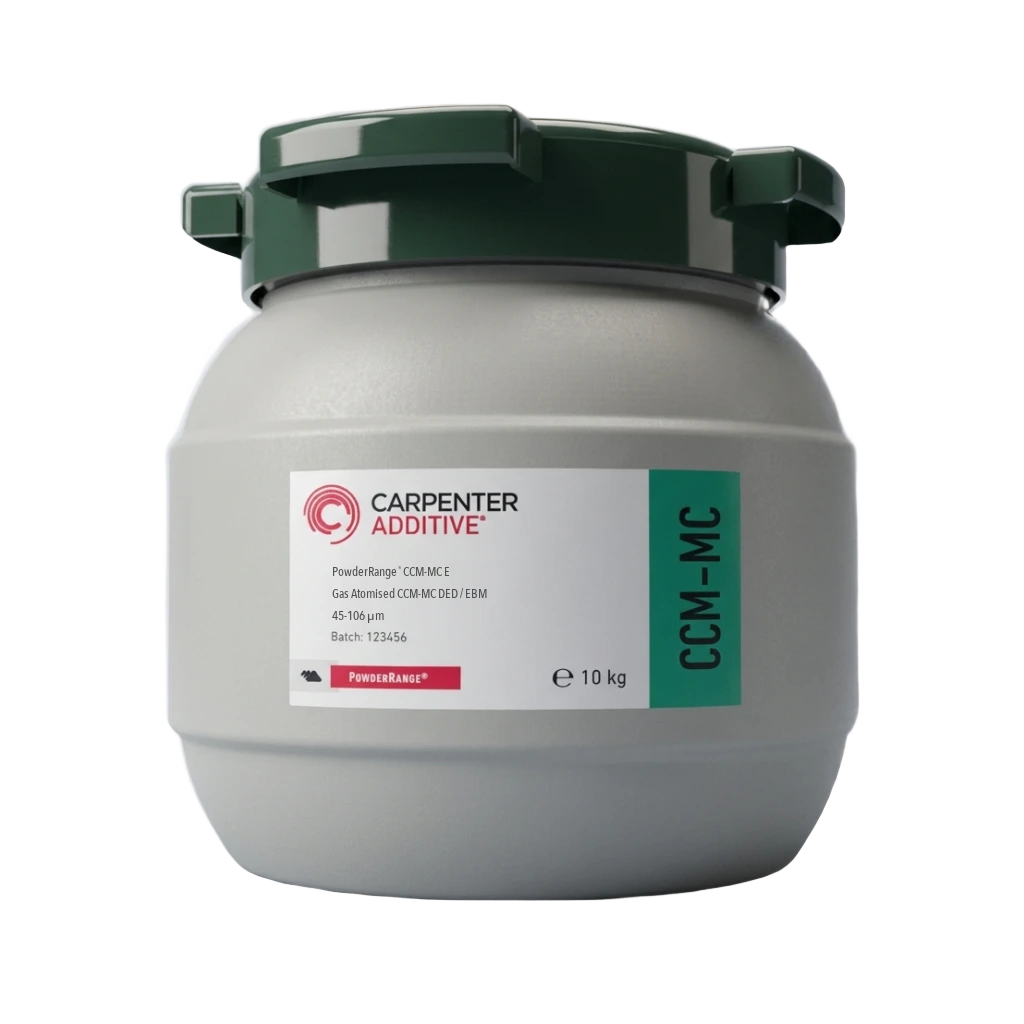

CoCrMo Cobalt-Chrome Powder CCM-MC for DED & EBM — 45–106 µm, 10 kg
CoCr MC powder price: $1,095 per 10 kg ($109.50/kg)
High-nitrogen, mid-carbon cobalt-chromium-molybdenum alloy in the coarse 45–106 µm cut for directed energy deposition and electron-beam systems. Non-magnetic; Carpenter rates it biocompatible when specified with nickel below 0.1%. Carpenter Additive (PowderRange CCM-MC).
Values from the Carpenter PowderRange CCM-MC datasheet.
Which cobalt-chrome is right for your build?
All of them are in our catalog at a published price. Pick by machine, timing and country of origin.
| Powder | Particle size | Origin | Availability | Good fit for | 10 kg | |
|---|---|---|---|---|---|---|
 Carpenter Additive CCM FFine cut | 15–45 µm · LPBF | Confirmed per lot | In stock | ASTM F75 chemistry, laser powder bed fusion | $2,360 | View |
 Carpenter Additive CCM ECoarse cut | 45–106 µm · DED, EBM | Confirmed per lot | In stock | ASTM F75 chemistry, DED and electron-beam systems | $1,110 | View |
 Carpenter Additive CCM-MC FFine cut | 15–45 µm · LPBF | Confirmed per lot | In stock | Higher as-built strength (ASTM F3213), LPBF | $1,980 | View |
 Carpenter Additive CCM-MC EThis page | 45–106 µm · DED, EBM | Confirmed per lot | In stock | CCM-MC for DED and electron-beam systems | $1,095 | Add to cart |
Need a specific country of origin for a government or defense program? Ask before ordering and we will confirm it in writing for your lot.
What is in the container
Specification from the manufacturer. The certificate for your lot is available on request.
Specification
Type analysis, PowderRange CCM-MC datasheet (Carpenter Additive). Single figures are nominal except where noted.
| Element | wt% |
|---|---|
| Cobalt (Co) | Balance |
| Chromium (Cr) | 27.00–30.00 |
| Molybdenum (Mo) | 5.00–7.00 |
| Manganese (Mn) | 1.00 |
| Silicon (Si) | 1.00 |
| Iron (Fe) | 0.75 |
| Nickel (Ni) | 0.50 |
| Nitrogen (N) | 0.25 |
| Tungsten (W) | 0.20 |
| Carbon (C) | 0.10–0.20 |
| Aluminum (Al) | 0.10 |
| Oxygen (O) | 0.10 |
| Titanium (Ti) | 0.10 |
| Phosphorus (P) | 0.020 |
| Boron (B) | 0.010 |
| Sulfur (S) | 0.010 |
| Powder property | Requirement |
|---|---|
| Above 106 µm | max 10 wt% (ASTM B214) |
| Below 45 µm | max 10 wt% (ASTM B214) |
| D10 / D50 / D90 | measured and reported on the lot certificate |
| Hall flow, apparent density | measured and reported (ASTM B213, B212) |
| Melting and atomization | Vacuum induction melted, nitrogen gas atomized |
What the particles look like
From the manufacturer datasheet
SEM image of typical PowderRange CCM-MC powder, from the Carpenter Additive datasheet; scale bar 100 µm.
Each order ships with the Carpenter Additive certificate of analysis for its lot: chemistry, particle size distribution (D10/D50/D90) and density. Ask us if you need to see a recent certificate before ordering.
How the printed metal performs
These are Carpenter laser powder bed fusion (F cut) values for PowderRange CCM-MC, shown for reference: DED and EBM parts have different properties. Average of at least 5 samples; not design data.
| Condition | Orientation | Yield, MPa | UTS, MPa | Elongation | Impact, J | HRC |
|---|---|---|---|---|---|---|
| As-built | X–Y | 1055 | 1383 | 8% | 18 | 38 |
| Z | 821 | 1276 | 17% | 22 | 38 | |
| Annealed | X–Y | 634 | 1083 | 14% | 15 | 32 |
| Z | 627 | 1076 | 15% | 12 | 32 | |
| HIP + anneal | X–Y | 648 | 1117 | 16% | 14 | 31 |
| Z | 641 | 1117 | 20% | 15 | 31 | |
| ASTM F3213 minimum | all | 450 | 655 | 8% | — | — |
Heat treatment
Carpenter datasheet, process guidance
- Anneal per ASTM F3213: 1215 °C (2219 °F) for 2 hours under inert gas, cool faster than 220 °C (396 °F) per minute to 540 °C (1004 °F), then air cool.
- HIP per ASTM F3213: at least 100 MPa (14.5 ksi) at about 1204 °C (2200 °F) for 240 minutes in argon.
- Hard to machine in any heat-treated condition: it work-hardens fast and conducts heat poorly. Plan rigid tooling and enough machine power.
Corrosion, comparative rating
From wrought-alloy experience; test your printed parts
| Humidity | Excellent | Nitric acid | Excellent |
| Acetic acid | Excellent | Salt spray | Excellent |
| Sulfuric acid | Good | Phosphoric acid | Good |
| Sea water | Good | Sodium hydroxide | Moderate |
Specifications, equivalent names and how CCM-MC (CoCrMo) compares
Specifications
From the manufacturer datasheet
| Applicable | ASTM F3213 |
| Associated | UNS R31537, UNS R30075, ASTM F75, ASTM F1537, ISO 5832-4, ISO 5832-12 |
Equivalent names on LPBF machines
“Similar materials” in the datasheet; for parameter selection only, not machine-maker approvals
| Generic | CCM, Cobalt Chrome Moly |
| 3D Systems | LaserForm CoCr |
| GE (Concept Laser) | CoCrMo |
| EOS | CobaltChrome MP1 |
| Renishaw | CoCr-0404 |
| SLM Solutions | CoCr28Mo6 |
How it compares
Published tensile data, X–Y direction unless noted, one representative condition per alloy. Conditions differ, so use this to shortlist, not to design.
| Alloy | Condition | Yield, MPa | UTS, MPa | Elongation | Choose it for | 10 kg |
|---|---|---|---|---|---|---|
| CCM-MC (CoCrMo) | Annealed (LPBF, F cut) | 634 | 1083 | 14% | Wear resistance; non-magnetic | $1,095 |
| 316L | As-built | 552 | 703 | 57% | Corrosion resistance; does not age-harden | $670 |
| Ti-6Al-4V Grade 23 | 800 °C, 2 h, vacuum (Z, Amaero) | 1054 | 1119 | 13.5% | Highest strength-to-weight; ELI chemistry | $2,405 |
Will it run on my printer?
The 45–106 µm E cut is made for electron-beam powder bed fusion and powder-fed directed energy deposition. For laser powder bed fusion, use the 15–45 µm F cut listed above. Check the particle-size range your machine maker specifies.
Store sealed
Keep the container closed, dry and at room temperature until you load the printer.
Sieve
Sieve before loading and every time you reuse powder recovered from a build.
ATO Sieve · quoteLoad
Fill the hopper or powder feeder and run your machine’s vacuum or inert-gas procedure.
Print and relieve
Stress-relieve on the plate, then remove parts and supports.
Recover
Collect unfused powder, sieve it and return it to a sealed container.
Delfin Mistral 451 BL D2 — ATEX metal powder vacuum · $7,175Wear a respirator, gloves and eye protection when handling metal powder. Read the safety data sheet before first use.
Printed on AO Metal
Real builds on the LPBF printers we sell, and what teams make from this alloy.
Parts printed on AO Metal printers, which we sell. Alloys, parameters and powder lots differ from part to part; these photos show the process, not parts made from this specific powder lot.
- Orthopedic and dental implants
- Medical fracture fixation devices
- Gas turbine nozzle and instrumentation devices
- Oil and gas tooling and instrumentation
Applications as listed by Carpenter Additive for PowderRange CCM-MC. Implant use depends on your own qualification and regulatory approval; Carpenter rates it biocompatible when specified with nickel below 0.1%.
Ordering, delivery and our promise
10 kg of 45–106 µm powder, sealed, traceable to its Carpenter lot certificate.
The ship date shows next to the Add to Cart button. Shipping cost is calculated at checkout.
Card or PayPal at checkout, an invoice, or a purchase order — choose how you buy next to Add to Cart.
100 kg and more: ask for a volume quote with your alloy, quantity and ship-to.
If the powder is not right, we make it right.
If your lot’s chemistry or particle size falls outside its certificate or this page, or it arrives damaged or wrong, tell us within 14 days of delivery. We replace it or refund you, and we pay for shipping both ways.
Complete the workflow
- ✓ 316L — stronger pitting and chemical resistance than 304 stainless
- ✓ Precision-ground flatness for consistent first-layer adhesion
- ✓ Made to order — choose your speed below: Express 2–3 wks, or Standard 6–8 wks (save ~45%)
- ✓ Conductive / antistatic build — no static build-up around ignition-sensitive powder
- ✓ For stainless, nickel & non-reactive AM powder — reactive metals need the inert unit
- ✓ In US stock · ships in 2 business days · genuine Delfin unit · ATEX docs on request
Automated 2-in-1 blasting cell that depowders and surface-finishes powder-bed 3D-printed parts in one enclosed, software-controlled cycle.
- ✓ Depowdering + surface finishing in one ATEX-compliant cell
- ✓ Polymer PBF (SLS, MJF, HSS, SAF) + de-powdered metal parts
- ✓ Lead time: 4–8 weeks — built to order · install + training included
Implant-grade. Biocompatible. Wear-resistant. Genuine Carpenter PowderRange® CCM cobalt-chrome (CoCrMo, ASTM F75) for LPBF, EBM & DED metal 3D printing.
- ✓ VIM-melted, nitrogen gas-atomized — COA on request
- ✓ Excellent biocompatibility & non-magnetic (MRI-safe)
- ✓ Sold in small, workable volumes · in US stock, ready to ship
Other alloys in US stock now
Premium-grade LPBF powders, COA on request — add to cart or request a formal quote.

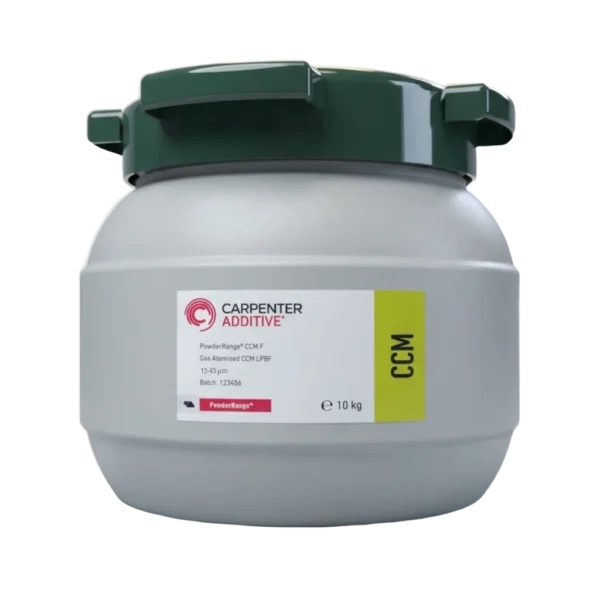

Carpenter Additive · Made in USAMedical-Grade Cobalt Chrome Alloy Powder for Metal 3D PrintingIn stock · ships in ~2 business days$2,360 / 10 kg · $236.00/kg
