In stock
- COA on request — PSD, sphericity, flow rate, chemistry
- Mutual NDA before any file or spec review

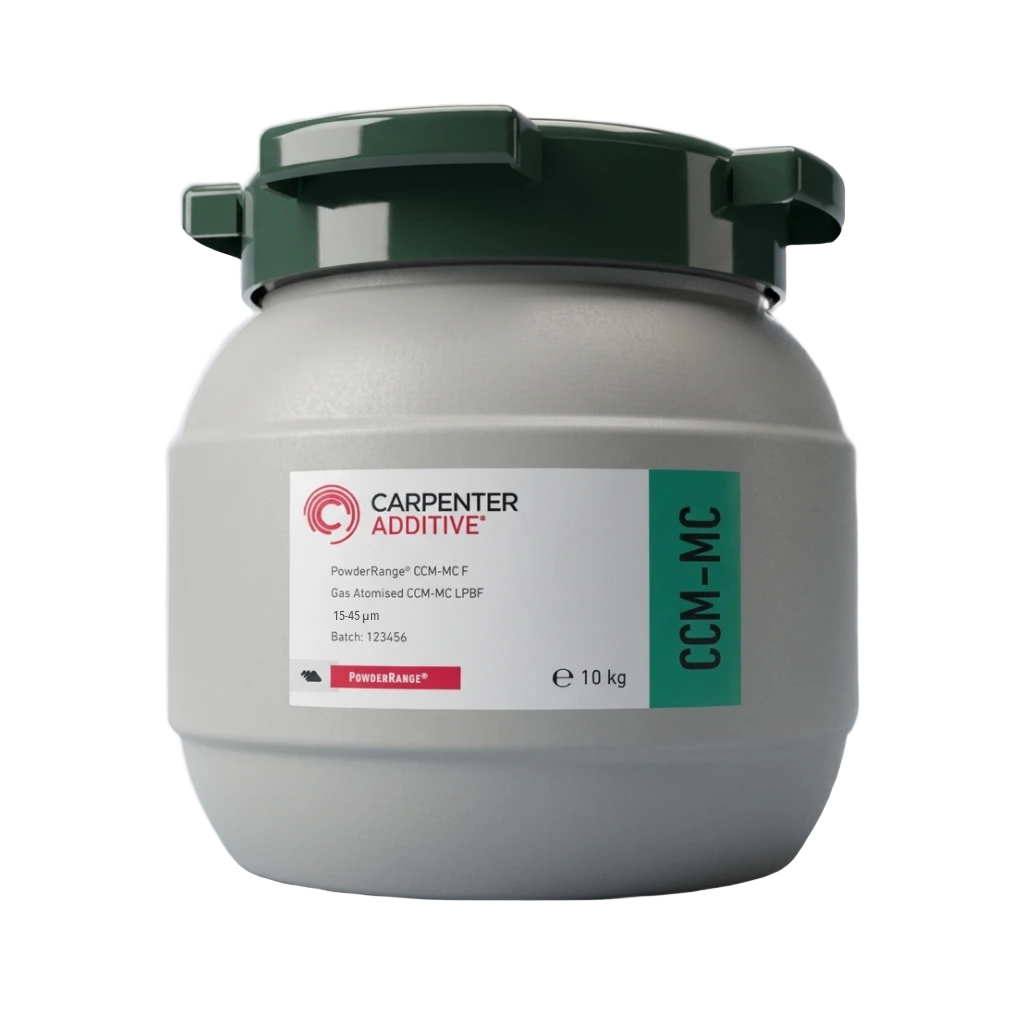

CoCrMo Cobalt-Chrome Powder CCM-MC (ASTM F3213) for LPBF — 15–45 µm, 10 kg
Carpenter CoCr MC Cobalt Chrome powder price: $1,980 per 10 kg ($198.00/kg)
High-nitrogen, mid-carbon cobalt-chromium-molybdenum alloy with high strength to 600 °C (1112 °F) and wear resistance; as-built tensile strength is about 1,380 MPa in Carpenter data. Non-magnetic; Carpenter rates it biocompatible when specified with nickel below 0.1%. VIM, nitrogen-atomized (PowderRange CCM-MC).
* Carpenter data with 20–60 µm layers and specific energy ≥ 55 J/mm³; tensile X–Y.
Which cobalt-chrome is right for your build?
All of them are in our catalog at a published price. Pick by machine, timing and country of origin.
| Powder | Particle size | Origin | Availability | Good fit for | 10 kg | |
|---|---|---|---|---|---|---|
 Carpenter Additive CCM FFine cut | 15–45 µm · LPBF | Confirmed per lot | In stock | ASTM F75 chemistry, laser powder bed fusion | $2,360 | View |

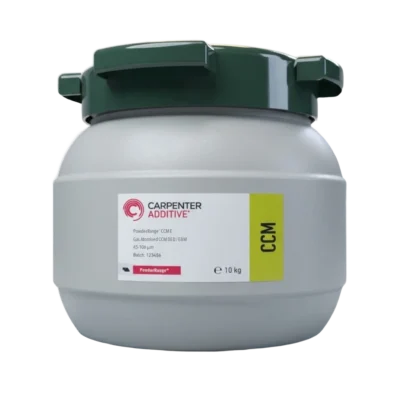

 Carpenter Additive CCM ECoarse cut | 45–106 µm · DED, EBM | Confirmed per lot | In stock | ASTM F75 chemistry, DED and electron-beam systems | $1,110 | View |
 Carpenter Additive CCM-MC FThis page | 15–45 µm · LPBF | Confirmed per lot | In stock | Higher as-built strength (ASTM F3213), LPBF | $1,980 | Add to cart |

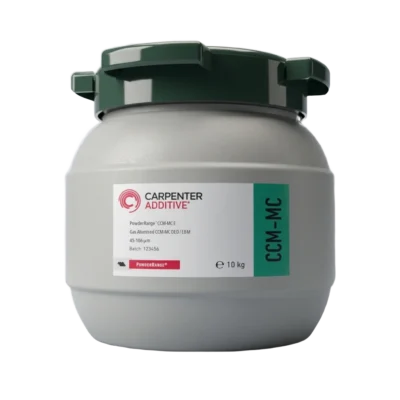

 Carpenter Additive CCM-MC ECoarse cut | 45–106 µm · DED, EBM | Confirmed per lot | In stock | CCM-MC for DED and electron-beam systems | $1,095 | View |
Need a specific country of origin for a government or defense program? Ask before ordering and we will confirm it in writing for your lot.
What is in the container
Specification from the manufacturer. The certificate for your lot is available on request.
Specification
Type analysis, PowderRange CCM-MC datasheet (Carpenter Additive). Single figures are nominal except where noted.
| Element | wt% |
|---|---|
| Cobalt (Co) | Balance |
| Chromium (Cr) | 27.00–30.00 |
| Molybdenum (Mo) | 5.00–7.00 |
| Manganese (Mn) | 1.00 |
| Silicon (Si) | 1.00 |
| Iron (Fe) | 0.75 |
| Nickel (Ni) | 0.50 |
| Nitrogen (N) | 0.25 |
| Tungsten (W) | 0.20 |
| Carbon (C) | 0.10–0.20 |
| Aluminum (Al) | 0.10 |
| Oxygen (O) | 0.10 |
| Titanium (Ti) | 0.10 |
| Phosphorus (P) | 0.020 |
| Boron (B) | 0.010 |
| Sulfur (S) | 0.010 |
| Powder property | Requirement |
|---|---|
| Above 53 µm | max 1 wt% (ASTM B214) |
| Below 15 µm | max 10 vol% (ASTM B822) |
| D10 / D50 / D90 | measured and reported on the lot certificate |
| Hall flow, apparent density | measured and reported (ASTM B213, B212) |
| Melting and atomization | Vacuum induction melted, nitrogen gas atomized |
What the particles look like
From the manufacturer datasheet
SEM image of typical PowderRange CCM-MC powder, from the Carpenter Additive datasheet; scale bar 100 µm.
Each order ships with the Carpenter Additive certificate of analysis for its lot: chemistry, particle size distribution (D10/D50/D90) and density. Ask us if you need to see a recent certificate before ordering.
How the printed metal performs
Room-temperature tensile data published by Carpenter Additive for PowderRange CCM-MC: average of at least 5 samples per orientation and condition. A guide for your own qualification, not design data.
| Condition | Orientation | Yield, MPa | UTS, MPa | Elongation | Impact, J | HRC |
|---|---|---|---|---|---|---|
| As-built | X–Y | 1055 | 1383 | 8% | 18 | 38 |
| Z | 821 | 1276 | 17% | 22 | 38 | |
| Annealed | X–Y | 634 | 1083 | 14% | 15 | 32 |
| Z | 627 | 1076 | 15% | 12 | 32 | |
| HIP + anneal | X–Y | 648 | 1117 | 16% | 14 | 31 |
| Z | 641 | 1117 | 20% | 15 | 31 | |
| ASTM F3213 minimum | all | 450 | 655 | 8% | — | — |
Heat treatment
Carpenter datasheet, process guidance
- Anneal per ASTM F3213: 1215 °C (2219 °F) for 2 hours under inert gas, cool faster than 220 °C (396 °F) per minute to 540 °C (1004 °F), then air cool.
- HIP per ASTM F3213: at least 100 MPa (14.5 ksi) at about 1204 °C (2200 °F) for 240 minutes in argon.
- Hard to machine in any heat-treated condition: it work-hardens fast and conducts heat poorly. Plan rigid tooling and enough machine power.
Corrosion, comparative rating
From wrought-alloy experience; test your printed parts
| Humidity | Excellent | Nitric acid | Excellent |
| Acetic acid | Excellent | Salt spray | Excellent |
| Sulfuric acid | Good | Phosphoric acid | Good |
| Sea water | Good | Sodium hydroxide | Moderate |
Specifications, equivalent names and how CCM-MC (CoCrMo) compares
Specifications
From the manufacturer datasheet
| Applicable | ASTM F3213 |
| Associated | UNS R31537, UNS R30075, ASTM F75, ASTM F1537, ISO 5832-4, ISO 5832-12 |
Equivalent names on LPBF machines
“Similar materials” in the datasheet; for parameter selection only, not machine-maker approvals
| Generic | CCM, Cobalt Chrome Moly |
| 3D Systems | LaserForm CoCr |
| GE (Concept Laser) | CoCrMo |
| EOS | CobaltChrome MP1 |
| Renishaw | CoCr-0404 |
| SLM Solutions | CoCr28Mo6 |
How it compares
Published tensile data, X–Y direction unless noted, one representative condition per alloy. Conditions differ, so use this to shortlist, not to design.
| Alloy | Condition | Yield, MPa | UTS, MPa | Elongation | Choose it for | 10 kg |
|---|---|---|---|---|---|---|
| CCM-MC (CoCrMo) | Annealed | 634 | 1083 | 14% | Wear resistance; non-magnetic | $1,980 |
| 316L | As-built | 552 | 703 | 57% | Corrosion resistance; does not age-harden | $670 |
| Ti-6Al-4V Grade 23 | 800 °C, 2 h, vacuum (Z, Amaero) | 1054 | 1119 | 13.5% | Highest strength-to-weight; ELI chemistry | $2,405 |
Will it run on my printer?
Carpenter states that PowderRange CCM-MC is compatible with all commercially available laser powder bed fusion equipment. The 15–45 µm F cut is the LPBF cut; for DED and EBM, use the 45–106 µm option above. Ask our materials engineer for starting parameters for your machine.
AO MetalA30 · A50 · A100Benchtop to production LPBF with open parameters. Ask our materials engineer for starting parameters.From $59,000 · A30See AO Metal printers →
FarsoonMetal LPBF lineOpen-platform LPBF from compact R&D frames to 16-laser production systems.FS121M · FS191M · FS200M · FS273M · FS301M · FS350M · FS422M · FS621M · FS721M · FS812M · FS1311M · FS1521MQuote on requestSee Farsoon metal printers →Machine names identify compatible equipment only. Additive Plus is not affiliated with these manufacturers, and the powder is not approved by them. Process parameters are tuned per machine.
Store sealed
Keep the container closed, dry and at room temperature until you load the printer.
Sieve
Sieve before loading and every time you reuse powder recovered from a build.
ATO Sieve · quoteLoad and purge
Fill the dispenser, close the chamber and purge with argon or nitrogen.
Print and relieve
Stress-relieve on the plate, then remove parts and supports.
Recover
Collect unfused powder, sieve it and return it to a sealed container.
Delfin Mistral 451 BL D2 — ATEX metal powder vacuum · $7,175Wear a respirator, gloves and eye protection when handling metal powder. Read the safety data sheet before first use.
Printed on AO Metal
Real builds on the LPBF printers we sell, and what teams make from this alloy.
Parts printed on AO Metal printers, which we sell. Alloys, parameters and powder lots differ from part to part; these photos show the process, not parts made from this specific powder lot.

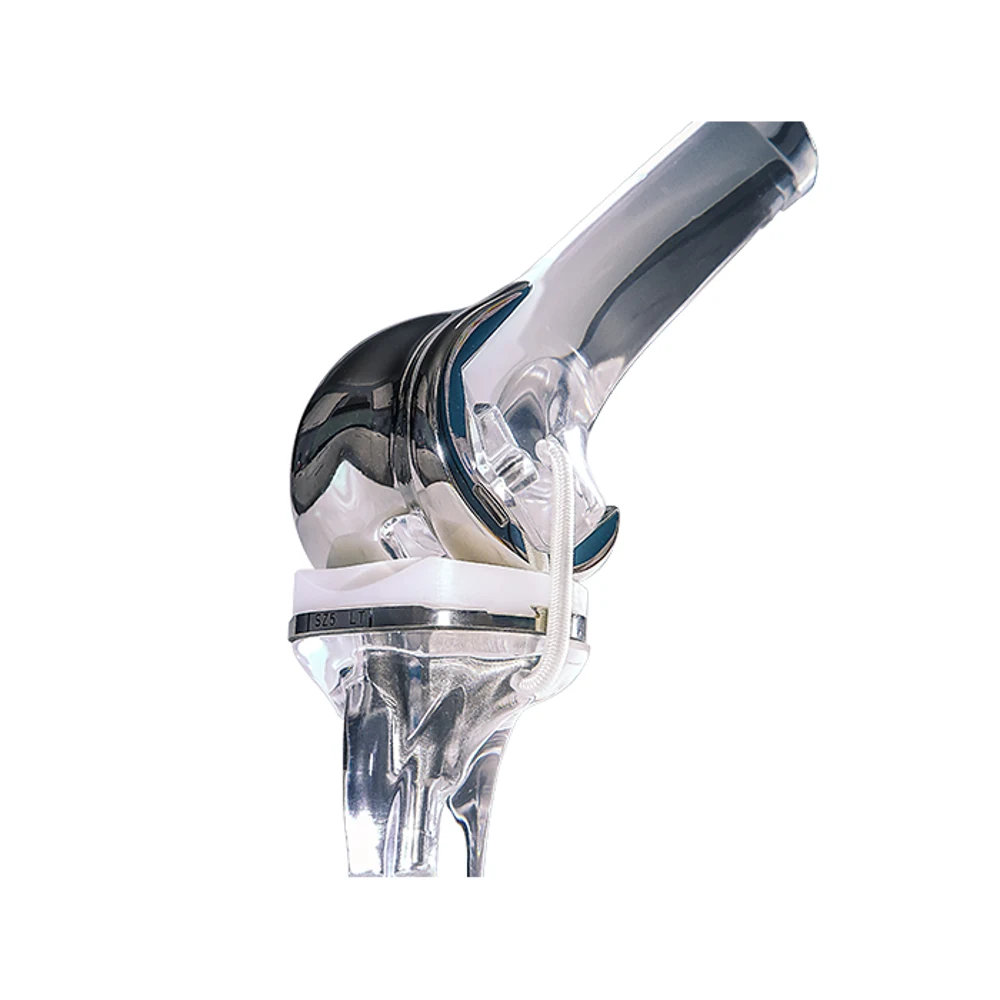

- Orthopedic and dental implants
- Medical fracture fixation devices
- Gas turbine nozzle and instrumentation devices
- Oil and gas tooling and instrumentation
Applications as listed by Carpenter Additive for PowderRange CCM-MC. Implant use depends on your own qualification and regulatory approval; Carpenter rates it biocompatible when specified with nickel below 0.1%.
Ordering, delivery and our promise
10 kg of 15–45 µm powder, sealed, traceable to its Carpenter lot certificate.
The ship date shows next to the Add to Cart button. Shipping cost is calculated at checkout.
Card or PayPal at checkout, an invoice, or a purchase order — choose how you buy next to Add to Cart.
100 kg and more: ask for a volume quote with your alloy, quantity and ship-to.
If the powder is not right, we make it right.
If your lot’s chemistry or particle size falls outside its certificate or this page, or it arrives damaged or wrong, tell us within 14 days of delivery. We replace it or refund you, and we pay for shipping both ways.
Complete the workflow
- ✓ 316L — stronger pitting and chemical resistance than 304 stainless
- ✓ Precision-ground flatness for consistent first-layer adhesion
- ✓ Made to order — choose your speed below: Express 2–3 wks, or Standard 6–8 wks (save ~45%)
- ✓ Conductive / antistatic build — no static build-up around ignition-sensitive powder
- ✓ For stainless, nickel & non-reactive AM powder — reactive metals need the inert unit
- ✓ In US stock · ships in 2 business days · genuine Delfin unit · ATEX docs on request
Automated 2-in-1 blasting cell that depowders and surface-finishes powder-bed 3D-printed parts in one enclosed, software-controlled cycle.
- ✓ Depowdering + surface finishing in one ATEX-compliant cell
- ✓ Polymer PBF (SLS, MJF, HSS, SAF) + de-powdered metal parts
- ✓ Lead time: 4–8 weeks — built to order · install + training included
Implant-grade. Biocompatible. Wear-resistant. Genuine Carpenter PowderRange® CCM cobalt-chrome (CoCrMo, ASTM F75) for LPBF, EBM & DED metal 3D printing.
- ✓ VIM-melted, nitrogen gas-atomized — COA on request
- ✓ Excellent biocompatibility & non-magnetic (MRI-safe)
- ✓ Sold in small, workable volumes · in US stock, ready to ship
Other alloys in US stock now
Premium-grade LPBF powders, COA on request — add to cart or request a formal quote.
Carpenter Additive · Made in USAMedical-Grade Cobalt Chrome Alloy Powder for Metal 3D PrintingIn stock · ships in ~2 business days$2,360 / 10 kg · $236.00/kg
Carpenter Additive · Made in AustriaAluminum Alloy Powder AlSi10MgIn stock · ships in ~2 business days$815 / 10 kg · $81.50/kg
Carpenter Additive · Made in USAM300 Maraging Steel Powder for Metal 3D PrintingIn stock · ships in ~2 business days$1,210 / 10 kg · $121.00/kg
Amaero · Made in USATi64 Grade 23 (ELI) Titanium Alloy Powder for Metal 3D PrintingIn stock · ships in ~2 business days$2,405 / 10 kg · $240.50/kgCommon questions
Don't see yours? Email [email protected] — NDA on request.
What is PowderRange CCM-MC cobalt-chrome powder (15–45 µm)?
What is the difference between CCM and CCM-MC?
Is CCM-MC cobalt-chrome biocompatible?
How is CCM-MC heat treated?
Does CCM-MC cobalt-chrome powder come with a certificate of analysis?
How fast does CCM-MC cobalt-chrome powder ship, and how can I pay?
Can I reuse unfused CCM-MC cobalt-chrome powder?
Place your order, or talk to an engineer first
Order Cobalt Chrome Alloy Powder for Metal 3D Printing CCM MC | LPBF Compatible - 10 kg / 22 lbs direct, or talk to materials engineer
