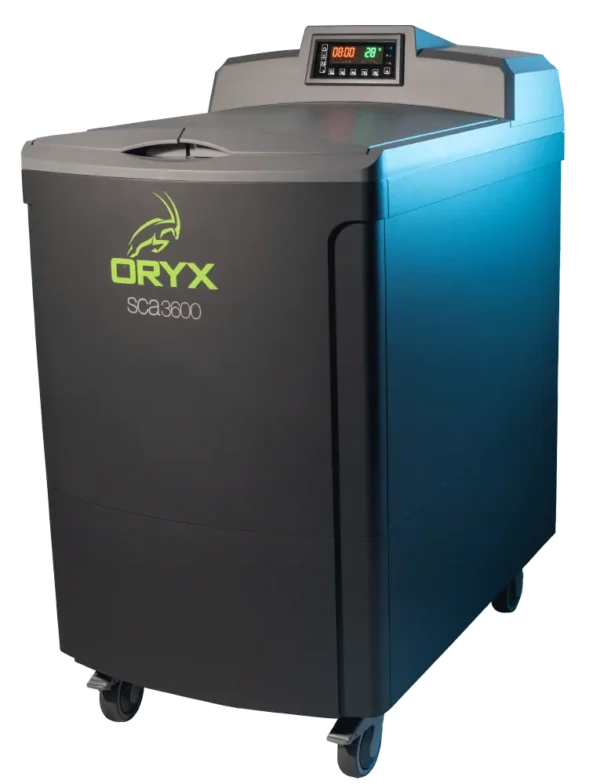

Oryx SCA3600 Industrial Post-Processing Wash Station (102L)

The sca3600 is a large industrial & high throughput solution for removal of soluble support materials on 3D printed parts. It provides demonstrated options to perform support removal on multiple materials such as ABS, ASA, PC, Nylon, PEEK, etc. In removing support for FDM/FFF and Mate- rial Jetting processes, such as Polyjet or Extrusion Technology, the sca product family provides a wide range of predefined machine settings and is fully compatible with all soluble support material concentrates, from water to caustics. It further provides the user with the appropriate level of agitation to balance the needs of heavy removal while maintaining critical dimensions on delicate or intricate part geometry. With additional features that include a simple electronic interface for pre-set temperature & time, easy part loading & unloading, and durable stainless-steel tank for caustic support removal operations, the sca3600 is your finishing solution!

Simple, Safe Operation

Simple, Safe Operation

Simple, Safe Operation

Oryx units are reliable, easy-to-use and quiet to operate. With customizable presets and built-in safety features such as temperature and water level monitoring, you can rest assured that demolding your parts is as simple as it gets.

A unique spray nozzle and pump configuration provides optimized flow for uniform demolding, and a flow reducer is included for delicate parts.

Manufactured for long-term reliability in highly caustic industrial environments, including a stainless steel tank and durable pumping system, xWASH FIM is designed for maximum productivity, limited maintenance, and simple servicing.

• Overall Size: 36.5L x 22.8 W x 42.8 H in. (92.7 L x 57.9 W x 108.7 H cm)
• 16 x 16 x 14 in. (40.6 x 40.6 x 35.6 cm) Stainless Steel Removable Parts Basket
• Capacity: 27 gallons (102 liters)
• Power Requirements: 230VAC +/- 10%, ~ 50/60 Hz – 15A – 3400W
• 4 x 4 x 4 in. (10 x 10 x 10 cm) Small Parts Basket included
• Stainless Steel Tank & Durable Pumping System compatible with water-soluble and caustic-soluble printed support materials
• Proven Support Removal from FFF/FDM parts including ABS, ASA, PC, Nylon, PEEK, and others
• Presets designed for 3D printed parts temperatures: 50°, 60°, 70° and 85° C
• “Heat Off” temp. selection for Material Jetting & Curing (MJ), such as Polyjet
• User-controlled Digital Timer
• Unique Spray Nozzle & Pump Configuration provides optimized & patented flow
• Flow Reducer is included for delicate parts
• Whisper-quiet Operation for in-office use or industrial setting
• Integral Hinged Lid to reduce water waste & maintain accurate temperature
• Built-in Safety Features such as Over Temperature & Water Level Alarms
• Field replaceable Sub-assemblies
• CE/ cTUVus/ RoHS/ WEEE/ RCM Regulatory Approvals
• 1 Year Warranty & US-based Technical/Customer Support with strong AM industry experience

Example Post Processed Parts

FAQs

The SCA support removal systems are compatible with any 3D printers utilizing Soluble Support Technology (SST) materials for supports. This includes soluble support materials that work with ABS, ASA, PC, and nylon filaments.

The SCA cleanses 3D printed parts by immersing them in heated water mixed with a mild cleaning solution, which effectively dissolves the soluble support material. The design of the SCA models optimizes the process to reduce the duration required for support material removal.

The SCA is filled with water and a small portion of either a sodium hydroxide-based solution (WaterWorks) or an eco-friendly option (EcoWorks). Standard tap water is sufficient for filling the SCA tank; there’s no need for distilled or filtered water. For quick support removal, WaterWorks Soluble Concentrate P400SC is recommended, while EcoWorks offers a gentler cleaning alternative.

Typically, the SCA-1200HT can handle 2.4 lbs. of support material before the solution needs changing, while the SCA-3600 can process up to 5 lbs. Look for these signs to know it’s time for a change:

– The tank appears cloudy or lacks clarity.
– White ABS parts may start to exhibit brown or yellow discoloration.
– Printed parts might develop a sticky residue or stick together due to excess dissolved solids.
– Functional components may not operate as intended.
– Support material remains after an extended cleaning cycle.
– The solution’s pH level decreases significantly.

For the SCA-1200HT, one bottle of WaterWorks or 6 EcoWorks packages is sufficient. Meanwhile, for the SCA-3600, it’s best to use 2 bottles of WaterWorks or 13 EcoWorks packages. If you’re using a different cleaning solution, refer to the manufacturer’s guidelines for the correct amount.

The duration for support removal can vary based on factors such as part geometry, size, the cleaning solution utilized, pH levels, and material types. Initially, plan for about four to five hours. You can check the progress during the cleaning cycle and remove parts as soon as the support material is dissolved.

Absolutely. All SCA systems have undergone testing for continuous operation at the recommended temperatures and are designed with safety features that facilitate unattended use.

Disposal guidelines differ based on location. To determine the appropriate disposal method, refer to the Material Safety Data Sheet provided with the cleaning concentrate or consult local regulations and authorities.
