Laser Handheld 3D Scanner, Metrology for quality control, 3D scanners
Shining 3D FreeScan Trak ProW Wireless Dynamic Tracking 3D Scanner – Large-Volume Metrology | 8.6 m
Wireless dynamic-tracking metrology system with an ultra-wide 206.7 m³ single-station volume and tracking up to 8.6 m — markerless video photogrammetry (VPG) measurement of very large parts at 0.023 mm single-point accuracy.
- ✓ 0.023 mm point accuracy · 0.044 + 0.012 mm/m with VPG · verified in ISO/IEC 17025 lab (VDI/VDE 2634 Part 3, ISO 10360)
- ✓ 8.6 m tracking range · 206.7 m³ single-station volume · 50 laser lines · 5,500,000 points/s
- ✓ Markerless VPG · wireless + fiber · FreeProbe-compatible · TE25W scanner 1.4 kg
- ✓ Lead time: 4–6 weeks — configured to order
Price held 7 days after order.
Install + training included
Tailored service plan
What your metrology engineer actually checks
What your metrology engineer actually checks
Traceable to the standard, at scale
0.023 mm single-point accuracy and 0.044 + 0.012 mm/m with VPG, tested to VDI/VDE 2634 Part 3 and ISO 10360 in an ISO/IEC 17025 accredited lab — held across a 206.7 m³ single-station volume, not just on a small artifact.
An applications engineer on the line
Sample measurement of your actual parts, large-volume tracking setup, and export into PolyWorks or Geomagic — from engineers who run these systems. Demo before you commit. Sub-4h reply, NDA standard.
About this product
The Shining 3D FreeScan Trak ProW is a wireless dynamic-tracking metrology system built for the largest parts. A single station covers a 206.7 m³ measuring volume with tracking up to 8.6 m, measuring markerless via patented video photogrammetry (VPG) at 0.023 mm single-point accuracy — verified in an ISO/IEC 17025 accredited lab.
Why metrology teams choose the FreeScan Trak ProW
Whole large assemblies measured from one station, markerless, to standard.
Ultra-wide single-station volume
A 206.7 m³ measuring volume and 8.6 m tracking range let you capture a full aircraft panel, wind blade section, or large tool from one setup — fewer station moves, fewer alignment errors.

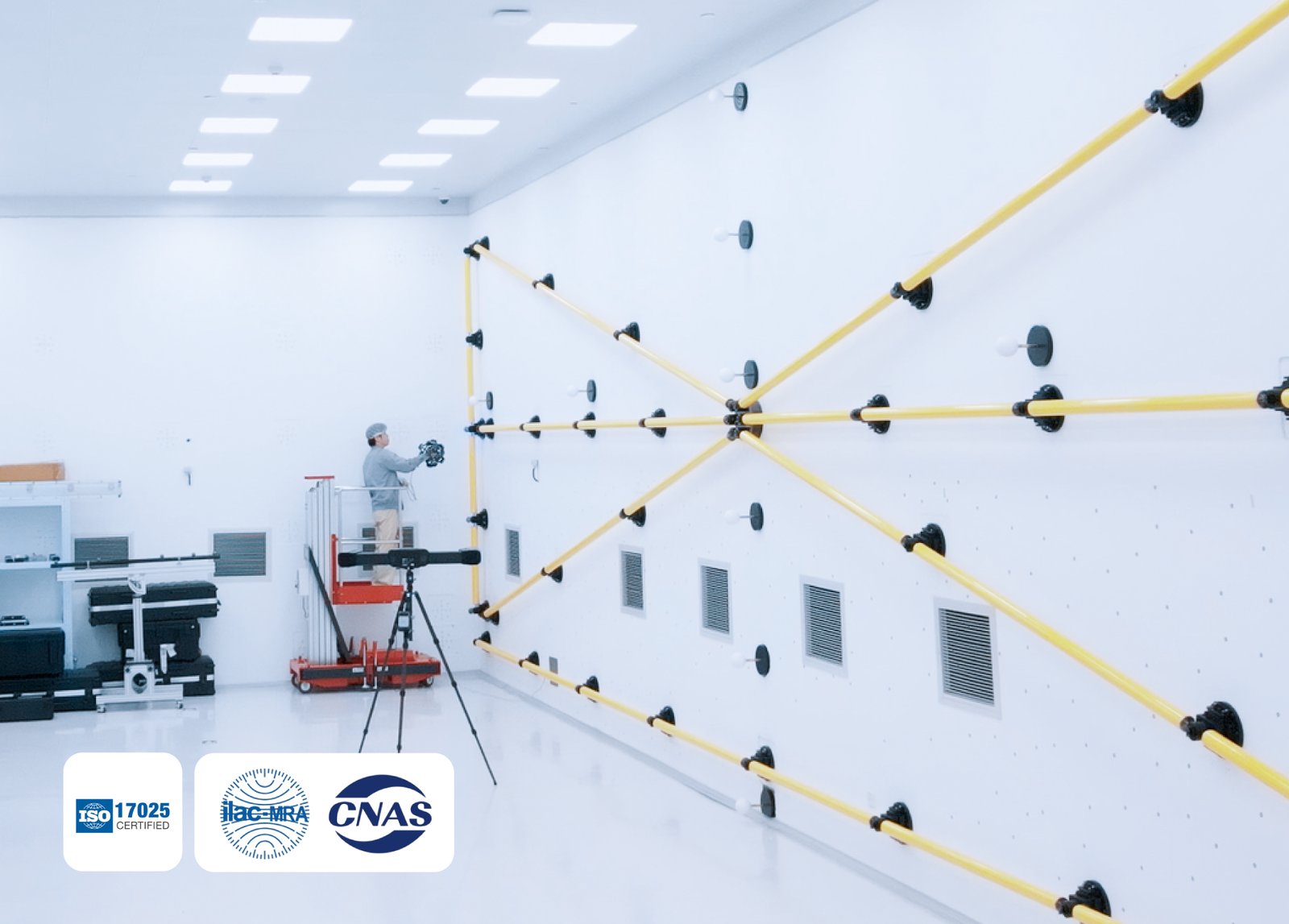

Certified, traceable accuracy
0.023 mm single-point accuracy and 0.044 + 0.012 mm/m with VPG, tested to VDI/VDE 2634 Part 3 and ISO 10360 in an ISO/IEC 17025 accredited lab — audit-ready numbers.

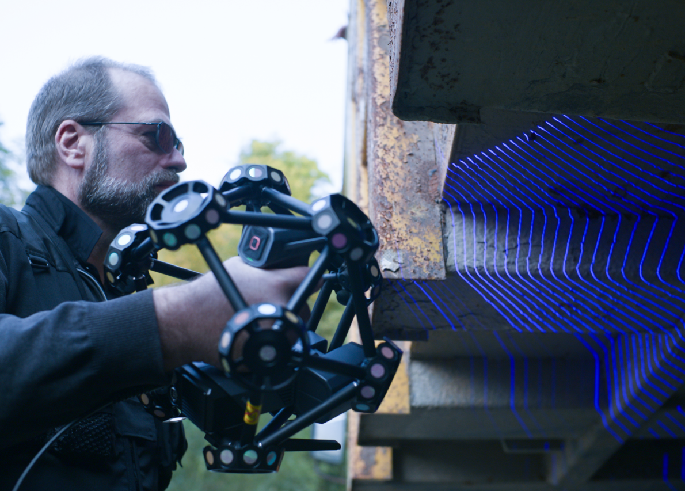

Markerless with VPG
Integrated video photogrammetry tracks the part without coded targets on the surface. Fifty laser lines run at 5,500,000 points/s; drop to 7 or 1 line for fine detail and deep pockets.
FreeProbe-ready, wireless
Add the optional FreeProbe for hard-to-reach reference points and hidden features. The system runs wireless, with a wired fiber-optic option and power-bank support for the field.
How Additive Plus delivers your Trak ProW
Verified, trained, and supported for large-part QC.
Step 01
Verify & certify
Each system is checked against its calibration artifacts and accuracy confirmed before shipment, so it meets its stated spec when it reaches your lab or floor.
Step 02
Install & train
Onboarding on tracking setup, large-volume strategy, and export into PolyWorks, Geomagic, or SHINING3D Inspect — your team is measuring big parts on the first job.
Step 03
Sample scan & support
Send us a representative part and we measure it first, so you see Trak ProW data on your geometry before you commit. Post-sale support with a sub-4h reply.
Metrology Performance
The FreeScan Trak ProW reaches 0.023 mm single-point accuracy and 0.044 + 0.012 mm/m volumetric accuracy with VPG, with resolution from 0.01 to 10 mm. Volumetric accuracy scales with volume — 0.046 mm at 15.6 m³ up to 0.127 mm at 128 m³ — and fifty crossed laser lines capture at 5,500,000 points/s. Accuracy is verified in an ISO/IEC 17025 accredited lab to VDI/VDE 2634 Part 3 and ISO 10360. See the full specification table below.

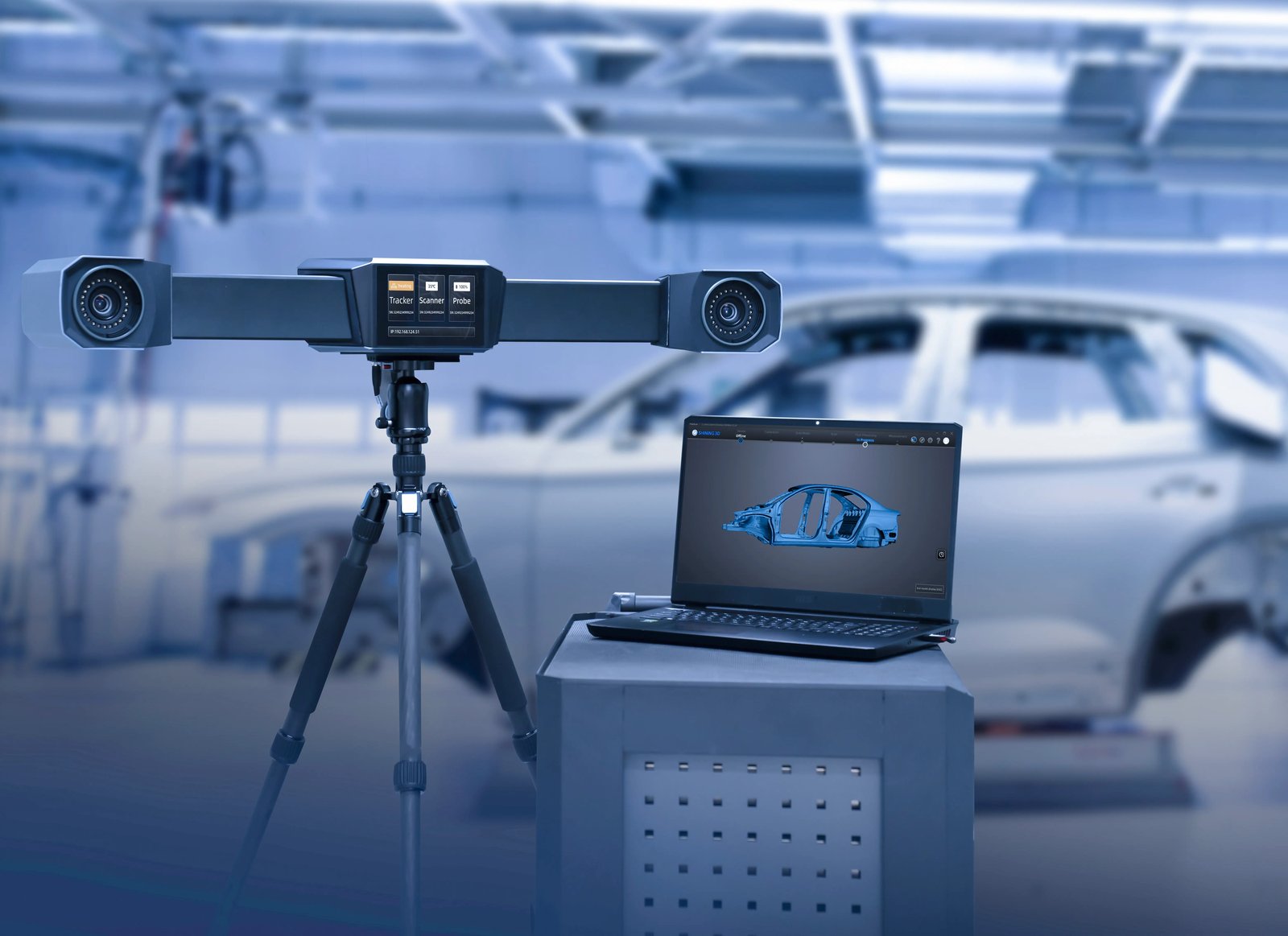

Ultra-Wide Tracking & Working Range
The FreeTrak W optical tracker follows the scanner across a 206.7 m³ single-station volume with dynamic tracking to 8.6 m — the widest in the FreeScan Trak line. That means fewer station relocations on very large parts and fewer accumulated alignment errors. The TE25W scanner head weighs 1.4 kg, the tracker unit 10.6 kg, and the whole system is wireless with a wired fiber-optic option for maximum data rate.
Software & Workflow
Data flows into SHINING3D Inspect, EXModel Pro, and BlueStar Mapping, and exports to established metrology packages including PolyWorks Inspector, Geomagic Control X, and Geomagic Design X. Output in STL, OBJ, PLY, and ASC supports deviation analysis, GD&T, and first-article reporting. The optional FreeProbe adds tactile measurement of reference points and features the scanner cannot see directly.
Typical applications
Large-structure inspection across heavy industry.
Aerospace structures
Fuselage panels, wings, jigs
Wind & energy
Blade sections and molds
Shipbuilding & rail
Hull, car body, structures
Large tooling & dies
Stamping dies, molds, fixtures
Automotive body
Full body-in-white inspection

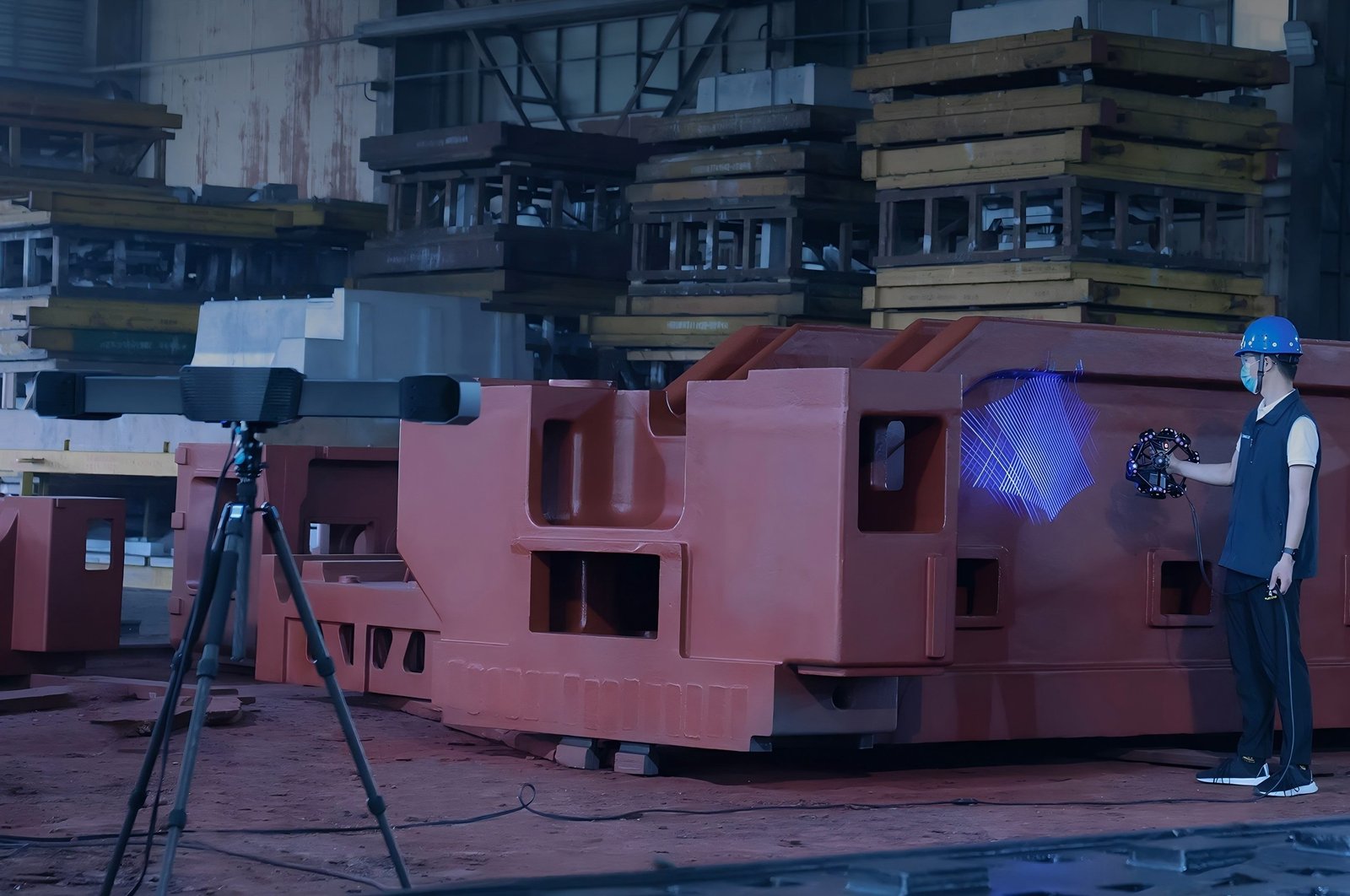

Heavy fabrication
Weldments and castings
Why Source the FreeScan Trak ProW Through Additive Plus
- Authorized reseller — sample measurement of your own parts and a demo before you commit
- Accuracy verified before shipment; installation and training included
- Application engineers who run these systems — tracking setup, large-volume strategy, and metrology-software export
- US-based support with a sub-4h response · 200+ scanning and AM systems delivered across 23 countries
Not sure the Trak ProW is the right system?
Compare it with the other metrology scanners we support.
Compact trackingFreeScan Trak NovaView system →
Handheld metrologyFreeScan ComboCompare scanner →
Stationary inspectionOptimScan-5M PlusView scanner →
Handheld metrologyFreeScan ComboCompare scanner →
Stationary inspectionOptimScan-5M PlusView scanner →
Tell us your part size, tolerance, and inspection standard — our applications engineer will confirm whether the Trak ProW or the lighter Trak Nova fits, and can measure a sample part first. Sub-4h reply, NDA standard.
| Brand | Shining 3D |
| Country of origin | China |
| System Type | Wireless dynamic tracking & scanning system (optical tracker + laser scanner + VPG) |
| Single Point Accuracy | 0.023 mm |
| Volumetric Accuracy | 0.046 mm @ 15.6 m³ · 0.063 mm @ 45 m³ · 0.088 mm @ 76 m³ · 0.127 mm @ 128 m³ With VPG: 0.044 + 0.012 mm/m |
| Scan Rate | 5,500,000 points/s |
| Laser Lines | 50 (high-speed), 7 (fine detail), 1 (deep pockets) |
| Resolution | 0.01 – 10 mm |
| Dynamic Tracking Range | Up to 8.6 m |
| Single-Station Tracking Volume | 206.7 m³ |
| Marker-Free Scanning | Yes — patented video photogrammetry (VPG) |
| FreeProbe Compatible | Yes (optional) |
| Standards | VDI/VDE 2634 Part 3, ISO 10360; tested in ISO/IEC 17025 accredited lab |
| Software | SHINING3D Inspect, EXModel Pro, BlueStar Mapping, PolyWorks Inspector, Geomagic Control X / Design X |
| Output Formats | STL, OBJ, PLY, ASC |
| Interface | Wireless (Wi-Fi) & wired (fiber optic); power bank supported |
| Weight | FreeTrak W: 23.4 lbs / 10.6 kg · TE25W scanner: 3.1 lbs / 1.4 kg |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
Product videos
Want a measurement report first?
Send us a representative large part and we'll measure it on the Trak ProW — review the deviation report before you commit.
Other products teams run alongside Shining 3D FreeScan Trak ProW Wireless Dynamic Tracking 3D Scanner – Large-Volume Metrology | 8.6 m
Laser Handheld 3D Scanner
Handheld FreeScan UE Pro 3D Scanner
The FreeScan UE Pro 3D Scanner is a handheld 3D scanner designed for metrology-grade 3D scanning, ideal for 3D CAD scanning, reverse design, and additive manufacturing. It excels in bore measurement and offers precise scans for small bore diameter applications. This 3D scanner for Bambu Labs and other industries ensures high-quality results in applications like 3D printing and small object scanning. With its 3D laser scanning and 3D room scanning capabilities, the FreeScan UE Pro provides reliable and accurate scanning solutions for a variety of fields.
.
On backorder
High-Precision 3D Inspection System
Shining 3D AutoScan Inspec2 Automatic Desktop 3D Inspection Scanner – Metrology | 0.01 mm
Automatic desktop blue-light 3D inspection scanner for small, intricate parts — 0.01 mm accuracy, a 3-axis turntable, and one-click automated scanning with AI-assisted software and a PTB-certified inspection module.
- ✓ 0.01 mm accuracy · 0.05 mm resolution · dual 5 MP cameras · full-color scanning
- ✓ Automatic 3-axis turntable · automatic calibration · one-click scanning
- ✓ PTB-certified inspection module · SHINING3D Inspect, PolyWorks, Geomagic · 5 kg desktop
- ✓ Lead time: 4–6 weeks — configured to order
On backorder
· Lead time: 4–6 weeks — configured to order
Laser Handheld 3D Scanner
Shining 3D FreeScan Trak Nova Wireless Dynamic Tracking 3D Scanner – Metrology | 0.046 mm/m
Wireless dynamic-tracking metrology system combining an optical tracker, a large-FOV blue-laser scanner, and patented video photogrammetry (VPG) — markerless measurement up to 0.046 + 0.012 mm/m volumetric accuracy across objects from 5 mm to 50 m³.
- ✓ 0.046 + 0.012 mm/m volumetric accuracy · verified in an ISO/IEC 17025 accredited lab (VDI/VDE 2634 Part 3, ISO 10360)
- ✓ 50 laser lines · 6,140,000 points/s · dynamic tracking up to 3.5 m · markerless VPG
- ✓ Fully wireless, separable tracker + scanner · TE Nova 1.2 kg / UE Nova 1.6 kg
- ✓ Lead time: 4–6 weeks — configured to order
On backorder
· Lead time: 4–6 weeks — configured to order
Laser Handheld 3D Scanner
Shining 3D FreeScan UE Pro2 Wireless Laser Handheld 3D Scanner – Metrology | 0.02 mm
Fully wireless, metrology-grade laser handheld 3D scanner — 0.02 mm single-point accuracy, 50 laser lines at 3,460,000 points/s, and markerless video photogrammetry (VPG), with an integrated inspection module for QC on the move.
- ✓ 0.02 mm accuracy · 0.02 + 0.015 mm/m with photogrammetry · ISO/IEC 17025 verified (VDI/VDE 2634 Part 3, ISO 10360)
- ✓ 50 laser lines · 3,460,000 points/s · up to 180 fps · markerless VPG
- ✓ Fully wireless · 950 g · indoors or outdoors · on-board inspection module
- ✓ Lead time: 4–6 weeks — configured to order
On backorder
· Lead time: 4–6 weeks — configured to order
Hybrid Light Source Handheld 3D Scanners
Handheld Shining 3D EinScan HX2
A handheld 3D body scanner that integrates blue LED and blue laser technologies.
On backorder
Multifunctional Handheld 3D Scanners
Handheld Shining 3D EinScan Pro HD
The Shining 3D EinScan Pro HD is a handheld 3D scanner designed for high-resolution 3D modeling, reverse engineering, and CAD applications. With enhanced accuracy and the ability to scan dark and reflective surfaces, including casting metal, this versatile scanner is perfect for a wide range of applications, from 3D printing to 3D scanning for CAD and 3D scanner for bore measurement. Its high-quality data capture makes it an excellent choice for industries requiring precision and detailed 3D scans.
On backorder
Desktop 3D Scanner
Shining 3D EinScan SP V2 Desktop 3D Scanner – Structured Light | 0.05 mm Accuracy
Structured-light desktop 3D scanner with ≤ 0.05 mm accuracy and dual fixed + turntable scanning — full-color capture of objects from 30 mm to 1.2 m for reverse engineering, design, and 3D printing.
- ✓ ≤ 0.05 mm accuracy · 0.17–0.2 mm point distance · 24-bit color texture
- ✓ Fixed + Auto turntable modes · objects 30 mm to 1200 mm · 5 kg turntable load
- ✓ < 1 s single scan · < 45 s full 360° turn · EXScan S software
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
Entry-level For Hobbyists
Affordable Handheld Shining 3D Einstar Scanner
The Shining 3D Einstar is an affordable handheld 3D scanner that offers high-quality 3D data for various applications, including body scanning, 3D printing, and CAD modeling. Designed for users who need a portable, easy-to-use scanner, it provides accurate, detailed results while being accessible to everyone. Ideal for scanning small objects, body scans, or other 3D scanning tasks, the Einstar delivers professional-level performance at an entry-level price. Perfect for both beginners and experienced users looking to bring their 3D modeling and printing projects to life.
From $959
Add to cart
On backorder
From large-part inspection teams running the FreeScan Trak ProW
Unedited feedback from large-part QC and metrology users.
★★★★★
Measured a full stamping die from one station instead of leapfrogging a tracker around it — cut a day off the job.
GN
Greg N. Metrology Lead · Automotive Tooling
★★★★★
Markerless on a wing panel means no hours applying and cleaning targets. The ISO 17025 numbers made sign-off easy.
SD
Sofia D. Quality Engineer · Aerospace
★★★★★
Wireless and power-bank ready — we inspected weldments in the fab shop without running cable.
HB
Henrik B. QA Manager · Heavy Fabrication
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
What accuracy does the FreeScan Trak ProW achieve, and is it certified?
The FreeScan Trak ProW reaches 0.023 mm single-point accuracy and 0.044 + 0.012 mm/m volumetric accuracy with VPG. Volumetric accuracy scales with the measured volume, from 0.046 mm at 15.6 m³ to 0.127 mm at 128 m³. Those figures are verified in an ISO/IEC 17025 accredited lab to VDI/VDE 2634 Part 3 and ISO 10360, so they stand up to QC sign-off and audit. We can measure a representative part for you before purchase.
How large a part can the Trak ProW measure in one setup?
The FreeScan Trak ProW covers a 206.7 m³ single-station measuring volume with dynamic tracking up to 8.6 m — the widest in the FreeScan Trak line. That lets you capture a full aircraft panel, wind-blade section, or large tool from one station, reducing relocations and the alignment errors they introduce. For very large structures you can still combine stations, and our engineers help plan the layout.

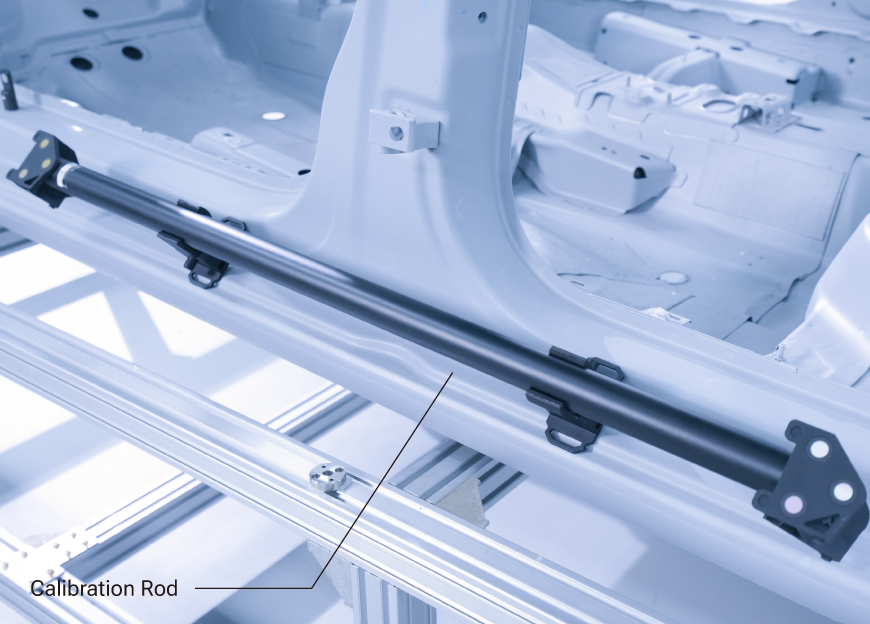

What is VPG, and do I need markers?
VPG is Shining 3D's patented video photogrammetry, which lets the FreeScan Trak ProW track a part dynamically without coded targets stuck to the surface. For most parts you scan markerless, which removes setup time and marker residue on large structures. Reference points can still be used where geometry is featureless, and our engineers help set the right strategy for your parts.
What is the difference between the Trak ProW and the Trak Nova?
Both are wireless dynamic-tracking systems using VPG. The FreeScan Trak ProW is the large-volume system — 206.7 m³ single-station volume, 8.6 m tracking, and 0.023 mm point accuracy — for aircraft, wind, ship, and large-tooling work. The lighter FreeScan Trak Nova covers up to 50 m³ with 3.5 m tracking and is more portable for smaller parts. We help you choose based on your typical part size and access.
What is FreeProbe, and do I need it?
FreeProbe is an optional tactile probe compatible with the FreeScan Trak ProW. It measures reference points, hidden features, and hard-to-reach geometry the scanner cannot see optically — for example deep bores or points behind flanges. Many large-part jobs are handled by the scanner alone; add FreeProbe when your inspection plan includes features that need a physical touch point. We can quote it with the system.
What metrology software does it work with?
The FreeScan Trak ProW runs SHINING3D Inspect, EXModel Pro, and BlueStar Mapping, and exports to established metrology packages including PolyWorks Inspector, Geomagic Control X, and Geomagic Design X. Output in STL, OBJ, PLY, and ASC supports deviation analysis, GD&T, and first-article reporting. We configure the export path into your existing inspection software during onboarding.
Is the Trak ProW wireless and usable in the field?
Yes. The FreeScan Trak ProW runs wireless, supports power-bank operation, and offers a wired fiber-optic connection when you need the highest data rate. That makes it practical on a shop floor, in a hangar, or at a large fabrication site, not just in a metrology room. The TE25W scanner head is 1.4 kg, so an operator can work comfortably while the tracker follows from a stand.
