High-Precision 3D Inspection System, Metrology for quality control, 3D scanners
Shining 3D OptimScan Q12 / Q9 High-Precision 3D Inspection Scanner – Blue Light | 0.005 mm
Blue-light structured-light 3D inspection scanner delivering up to 0.005 mm accuracy with four industrial cameras and switchable dual scan ranges — verified in an ISO/IEC 17025 accredited lab for production quality control.
- ✓ 0.005 mm (small range) / 0.015 mm (large range) accuracy · VDI/VDE 2634 Part 2, ISO 10360
- ✓ Q12: 4 × 12.3 MP · Q9: 4 × 9 MP · dual FOV 160 × 110 / 430 × 300 mm · < 1 s per shot
- ✓ Handheld, tripod, automatic turntable, or robot-integrated · 3.5 kg
- ✓ Lead time: 4–6 weeks — configured to order
Price held 7 days after order.
Install + training included
Tailored service plan
What your metrology engineer actually checks
What your metrology engineer actually checks
Five-micron accuracy, traceable

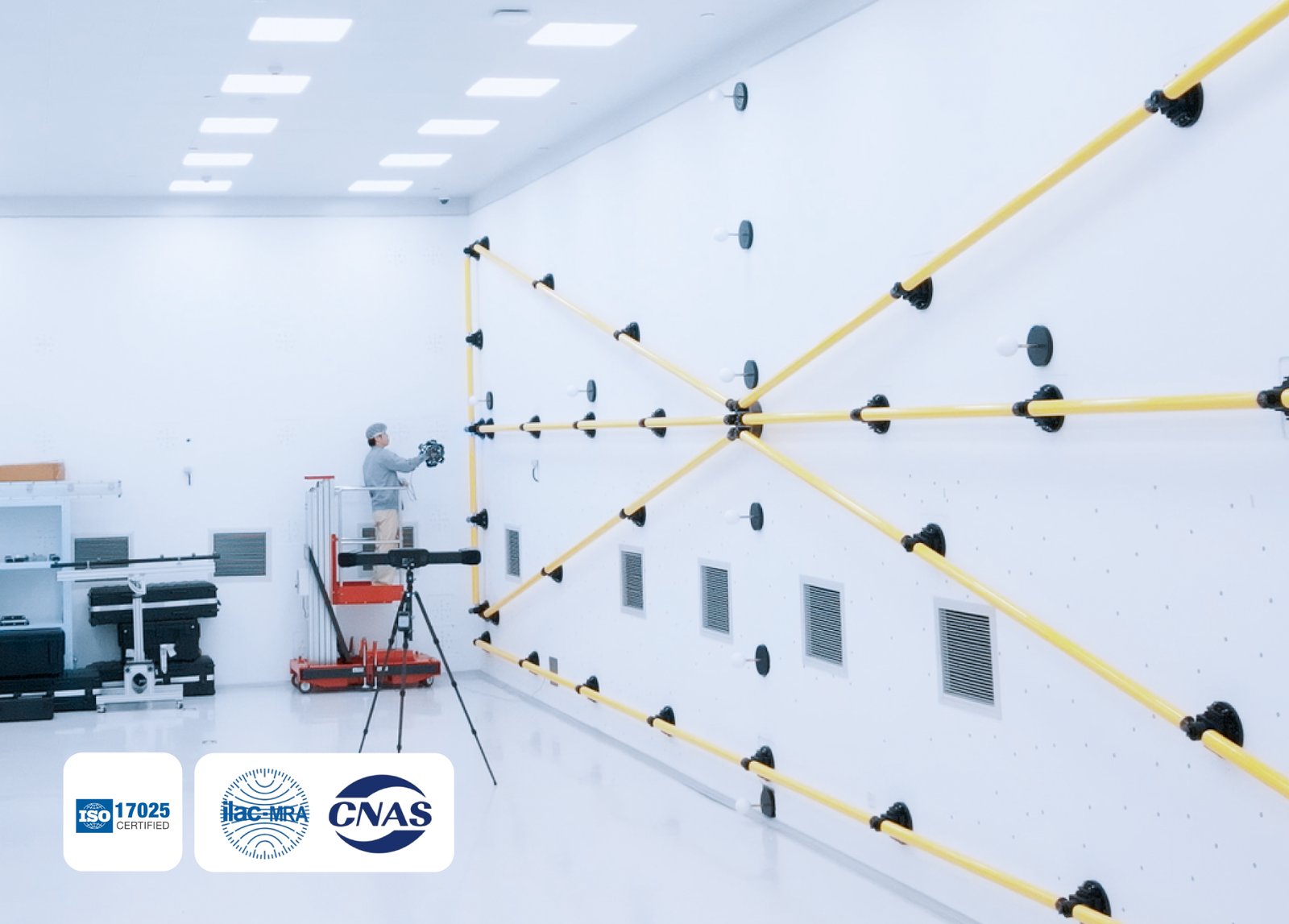

Up to 0.005 mm accuracy, tested to VDI/VDE 2634 Part 2 and ISO 10360 in an ISO/IEC 17025 accredited lab. These are the conformant numbers your auditor and AS9100 process check — not 'comparable to'.
An applications engineer on the line
Sample measurement of your actual parts, dual-range and automation setup, and export into PolyWorks or Geomagic — from engineers who run these systems. Demo before you commit. Sub-4h reply, NDA standard.
About this product
The Shining 3D OptimScan Q12 / Q9 is a blue-light structured-light 3D inspection scanner for production quality control. It reaches up to 0.005 mm accuracy with four industrial cameras and a one-click dual scan range, captures each shot in under a second, and is verified in an ISO/IEC 17025 accredited lab — usable handheld, on a turntable, or integrated with a robot.
Why quality teams choose the OptimScan Q12 / Q9
Five-micron accuracy with the flexibility to scale from bench to production line.
Down to 0.005 mm accuracy
Up to 0.005 mm in the small range and 0.015 mm in the large range, tested to VDI/VDE 2634 Part 2 and ISO 10360 in an ISO/IEC 17025 accredited lab — traceable numbers for QC sign-off.
One-click dual scan range
Switch between a 160 × 110 mm detail range and a 430 × 300 mm large range in one click — no changing aperture or focus. Data from both ranges fuses seamlessly in software.
Four industrial cameras
Q12 carries four 12.3 MP cameras and Q9 four 9 MP cameras, capturing a dense, high-resolution point set in under a second per shot — fast enough for production cadence.
Handheld to fully automated

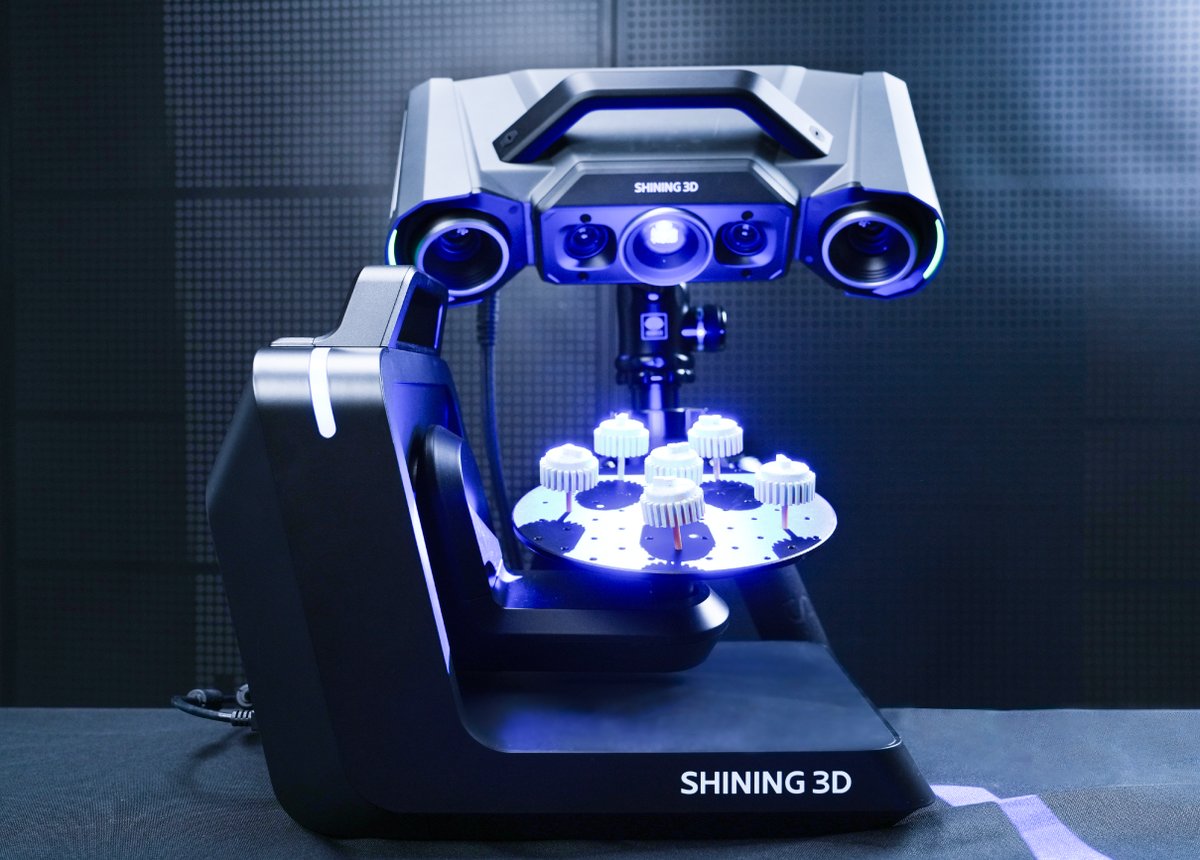

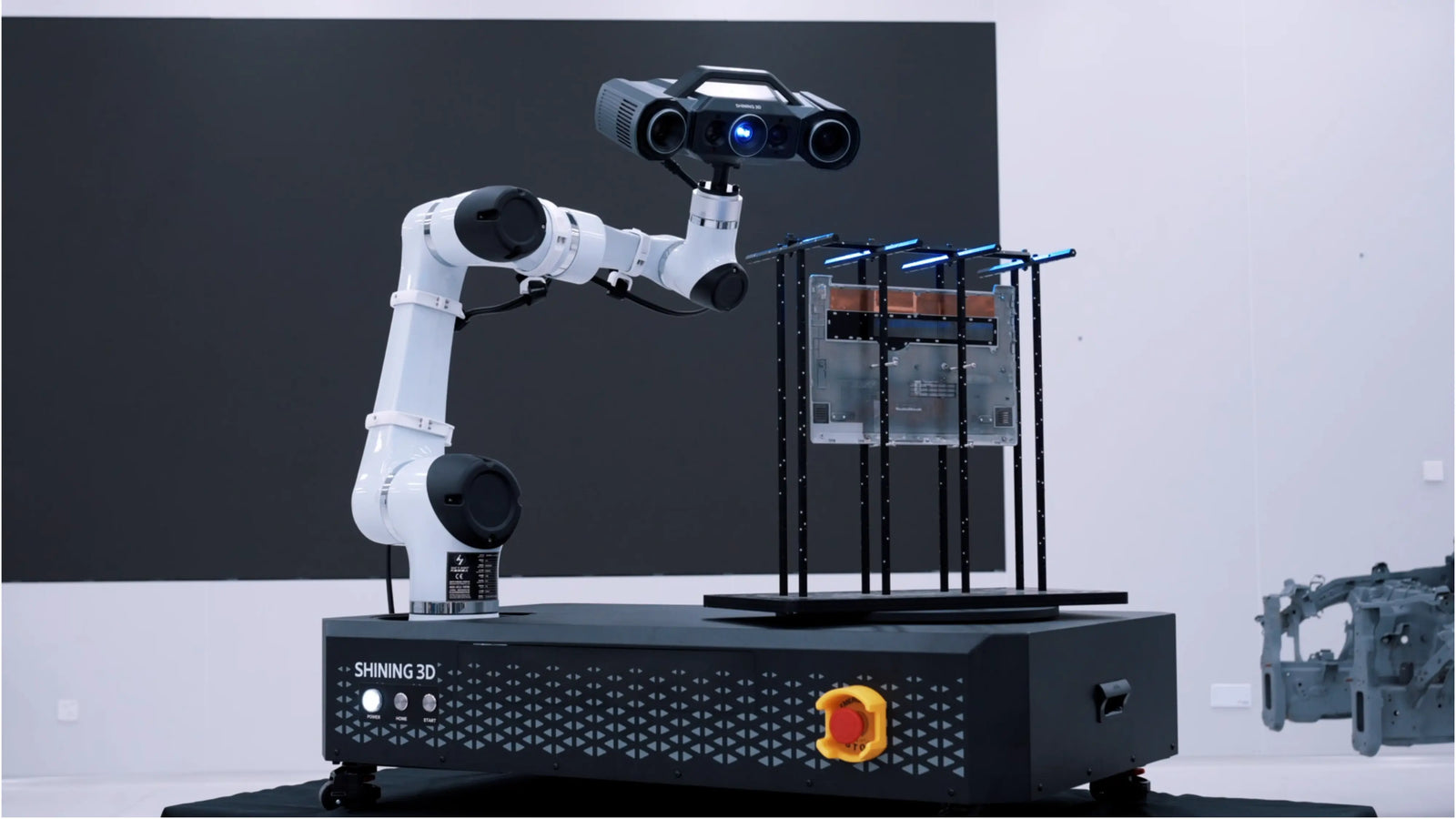

Use it in hand for flexibility, on a tripod with the automatic dual-axis turntable for semi-automated runs, or integrated with a robot for full-field, unattended inspection.
How Additive Plus delivers your OptimScan Q
Verified, trained, and supported for a QC workflow.
Step 01
Verify & certify
Each system is checked against its calibration artifacts and accuracy confirmed before shipment, so it meets its stated spec when it reaches your lab.
Step 02
Install & train
Onboarding on scan strategy, the dual scan range, turntable automation, and export into PolyWorks, Geomagic, or SHINING3D Inspect — your team is inspecting parts on the first job.
Step 03
Sample scan & support
Send us a representative part and we measure it first, so you see OptimScan Q data on your geometry before you commit. Post-sale support with a sub-4h reply.
Inspection Performance
The OptimScan Q12 / Q9 uses a blue-LED structured-light source and four industrial cameras to reach up to 0.005 mm accuracy in the small range and 0.015 mm in the large range. Point distance runs from 0.04 mm (Q12 small range) to 0.11 mm (Q9 large range), with each shot captured in under a second. Accuracy is verified in an ISO/IEC 17025 accredited lab to VDI/VDE 2634 Part 2 and ISO 10360. See the full specification table below.
Dual Scan Range & Modes
The one-click dual range switches between a 160 × 110 mm field for fine features and a 430 × 300 mm field for larger parts, fusing the data in software so you keep detail without multiple setups. The same head works handheld for flexibility, on a tripod with the turntable for repeatable batches, or mounted on a robot for fully automated, full-field inspection — one scanner across manual QC and production lines.
Software & Workflow
Data flows into SHINING3D Inspect for full-field inspection and exports to established metrology packages including PolyWorks Inspector, Geomagic Control X, Geomagic Design X, EXModel Pro, and BlueStar Mapping. Output in STL, OBJ, PLY, and ASC supports deviation analysis, GD&T, and first-article reporting. We configure the export path into your existing inspection software during onboarding.
Typical applications
High-precision inspection across production.
Precision part QC
Machined and molded parts
Electronics & connectors
Fine-feature dimensional checks
Tooling & molds
Die, mold, and insert inspection
Medical & dental devices
Small high-precision components
Aerospace small parts
Blades, brackets, fasteners
Automated production QC
Robot-integrated inline checks
Why Source the OptimScan Q12 / Q9 Through Additive Plus
- Authorized reseller — sample measurement of your own parts and a demo before you commit
- Accuracy verified before shipment; installation and training included
- Application engineers who run these systems — dual-range strategy, turntable and robot automation, metrology-software export
- US-based support with a sub-4h response · 200+ scanning and AM systems delivered across 23 countries
Not sure the OptimScan Q is the right system?
Compare it with the other inspection scanners we support.
Stationary inspectionOptimScan-5M PlusView scanner →
Portable metrologyFreeScan UE Pro2Compare scanner →
Dual-mode handheldFreeScan ComboView scanner →
Portable metrologyFreeScan UE Pro2Compare scanner →
Dual-mode handheldFreeScan ComboView scanner →
Tell us your part size, tolerance, and inspection standard — our applications engineer will confirm whether the OptimScan Q or a portable scanner fits, and can measure a sample part first. Sub-4h reply, NDA standard.
| Brand | Shining 3D |
| Country of origin | China |
| Scanner Type | Stationary blue-light structured-light high-precision inspection scanner |
| Accuracy | Small range: 0.005 mm Large range: 0.015 mm |
| Camera Resolution | OptimScan Q12: 4 × 12.3 MP OptimScan Q9: 4 × 9 MP |
| Field of View | Small range: 160 × 110 mm Large range: 430 × 300 mm |
| Point Distance | Q12: 0.04 mm (small) / 0.1 mm (large) Q9: 0.05 mm (small) / 0.11 mm (large) |
| Working Distance | Small range: 210 mm Large range: 590 mm |
| Depth of Field | Small range: 60 mm Large range: 300 mm |
| Light Source | Blue LED |
| Single Shot Time | < 1 second |
| Measurement Modes | Handheld, tripod, automatic dual-axis turntable (up to 3 kg), robot-integrated |
| Standards | VDI/VDE 2634 Part 2, ISO 10360; tested in ISO/IEC 17025 accredited lab |
| Software | SHINING3D Inspect, PolyWorks Inspector, Geomagic Control X / Design X, EXModel Pro, BlueStar Mapping |
| Output Formats | STL, OBJ, PLY, ASC |
| Dimensions | 14.4 × 6.4 × 5.2 in / 366 × 162 × 132 mm |
| Weight | 3.5 kg, 7.7 lbs |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
Product videos
Want a measurement report first?
Send us a representative part and we'll measure it on the OptimScan Q — review the deviation report before you commit.
Other products teams run alongside Shining 3D OptimScan Q12 / Q9 High-Precision 3D Inspection Scanner – Blue Light | 0.005 mm
Laser Handheld 3D Scanner
Shining 3D FreeScan Omni Standalone Inspection-Ready Wireless 3D Scanner – Metrology | 0.02 mm/m
Standalone, inspection-ready wireless laser 3D scanner with an on-board touchscreen and a built-in PTB-certified inspection module — scan and inspect on the shop floor at up to 0.02 + 0.015 mm/m volumetric accuracy, no PC required.
- ✓ 0.02 + 0.03 mm/m (0.02 + 0.015 mm/m with VPG) · verified in ISO/IEC 17025 lab (VDI/VDE 2634 Part 3, ISO 10360)
- ✓ 93 laser lines · 7,619,000 points/s · blue laser + IR VCSEL · markerless VPG
- ✓ On-board 5.5″ touchscreen + SHINING3D Inspect · fully wireless · ≤ 1.1 kg · Red Dot Award 2026
- ✓ Lead time: 4–6 weeks — configured to order
On backorder
· Lead time: 4–6 weeks — configured to order
Hybrid Light Source Handheld 3D Scanners
Handheld Shining 3D EinScan HX2
A handheld 3D body scanner that integrates blue LED and blue laser technologies.
On backorder
Laser Handheld 3D Scanner
Handheld FreeScan Trio 3D Scanner
The FreeScan Trio 3D Scanner is a marker-free 3D scanner featuring 98 laser lines and a triple 5MP camera system for efficient, high-precision scanning of parts, assemblies, and 3D CAD models. This handheld 3D scanner is perfect for bore measurement, 3D printing, and converting scanned data directly to CAD. It is also ideal for 3D scanning for small bore diameter, 3D room scanning, and 3D laser scanning applications, supporting industries like automotive, aerospace, and healthcare, as well as workflows like Bambu Labs.
On backorder
Entry-level For Hobbyists
Shining 3D EINSTAR Rockit Handheld 3D Scanner – Dual Blue Laser + IR | 0.05 mm
Pocket-sized, fully wireless handheld 3D scanner with dual light sources — 38 blue laser lines for detail and IR for speed — capturing objects from 5 mm to 5 m at up to 0.05 mm resolution, markerless, with full-color texture.
- ✓ Up to 0.05 mm resolution · 38 laser lines + 7 parallel · 2.8M–4.8M points/s
- ✓ Dual source: blue laser (detail) + IR (speed) · markerless in nearly every mode
- ✓ Wireless · replaceable battery ~3 h · 425 g · 5 MP color · scans in bright light
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
Entry-level For Hobbyists
Shining 3D EINSTAR 2 Wireless Handheld 3D Scanner – Blue Laser + IR | 0.05 mm
Wireless handheld 3D scanner and the upgrade to the original Einstar — 17 blue laser lines for detail plus an IR mode for large objects and people, capturing from 5 mm parts to 10 m scenes at up to 0.05 mm, a full body in about 60 seconds.
- ✓ Up to 0.05 mm accuracy · 17 parallel blue laser lines · 2.5M–4.8M points/s
- ✓ Dual mode: laser (small–medium detail) + IR (large objects, full body)
- ✓ Fully wireless · replaceable battery ~3 h · 420 g · full body in ~60 s
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
Metrology for quality control
Handheld FreeScan Trak Pro2 3D Scanner
The FreeScan Trak Pro2 is a 3D handheld scanner offering markerless optical 3D measurement with dynamic tracking for large workpieces. This 3D scanner for bore measurement, small bore diameter, and 3D printing delivers exceptional accuracy, with capabilities like 3D laser scanning and 3D room scanning. Ideal for industries such as automotive, aerospace, and ship maintenance, it also supports workflows like Bambu Labs and captures precise data for reverse engineering, quality control, and industrial applications.
On backorder
High-Precision 3D Inspection System
Shining 3D AutoScan Inspec2 Automatic Desktop 3D Inspection Scanner – Metrology | 0.01 mm
Automatic desktop blue-light 3D inspection scanner for small, intricate parts — 0.01 mm accuracy, a 3-axis turntable, and one-click automated scanning with AI-assisted software and a PTB-certified inspection module.
- ✓ 0.01 mm accuracy · 0.05 mm resolution · dual 5 MP cameras · full-color scanning
- ✓ Automatic 3-axis turntable · automatic calibration · one-click scanning
- ✓ PTB-certified inspection module · SHINING3D Inspect, PolyWorks, Geomagic · 5 kg desktop
- ✓ Lead time: 4–6 weeks — configured to order
On backorder
· Lead time: 4–6 weeks — configured to order
Desktop 3D Scanner
Shining EinScan-SE V2 3D Scanner
The EinScan-SE V2 Multifunctional 3D Scanner. Improves the Efficiency of High-quality 3D Modeling.
The EinScan-SE V2 3D Scanner captures 3D objects using structured light technology, creating digital models with ease, accuracy, and affordability.
It is used in design, archaeology, art, and education for objects of various sizes.
On backorder
From quality teams running the OptimScan Q12 / Q9
Unedited feedback from precision inspection users.
★★★★★
Five-micron accuracy on connector pins we could never nail with a laser scanner — the dual range is the trick.
IK
Ines K. Quality Engineer · Electronics
★★★★★
We moved it onto the turntable and then a robot as volume grew — same scanner, no re-buy.
PM
Paulo M. Metrology Manager · Automotive
★★★★★
The ISO 17025 numbers went straight into our first-article report with no argument from the auditor.
GL
Grace L. QA Lead · Medical Devices
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
What accuracy does the OptimScan Q12 / Q9 achieve, and is it certified?
The OptimScan Q12 / Q9 reaches up to 0.005 mm accuracy in its small scan range and 0.015 mm in the large range. Those figures are verified in an ISO/IEC 17025 accredited lab to VDI/VDE 2634 Part 2 and ISO 10360, so they stand up to QC sign-off and audit. We can measure a representative part for you so you see real deviation numbers on your own geometry before purchase.
What is the difference between the Q12, Q9, and HD versions?
All are blue-light inspection scanners. The OptimScan Q12 carries four 12.3 MP cameras and the Q9 four 9 MP cameras, so the Q12 resolves finer detail at a given field of view. The HD versions push accuracy further, to around 0.004 mm, for the most demanding fine-feature work. We help you choose based on your smallest feature and tightest tolerance.
What is the one-click dual scan range?
The OptimScan Q12 / Q9 switches between a 160 × 110 mm small range for fine detail and a 430 × 300 mm large range for bigger parts with a single click — no changing aperture or focal length. Data captured in both ranges fuses seamlessly in software, so you keep high detail on features while still covering the whole part without multiple setups.
Can the OptimScan Q be automated?
Yes. The OptimScan Q12 / Q9 works handheld for flexibility, on a tripod with an automatic dual-axis turntable (up to 3 kg load) for repeatable semi-automated batches, and integrated with a robot for fully automated, full-field inspection. That lets one scanner scale from manual bench QC to an inline production cell as your volume grows.
What software and file formats does it work with?
The OptimScan Q12 / Q9 integrates with the SHINING3D Inspect module for full-field inspection and exports to PolyWorks Inspector, Geomagic Control X, Geomagic Design X, EXModel Pro, and BlueStar Mapping. Output in STL, OBJ, PLY, and ASC supports deviation analysis, GD&T, and first-article reporting. We configure the export path into your existing inspection software during onboarding.
What surfaces can it scan — do I need spray?
The OptimScan Q12 / Q9 captures most machined, molded, and cast surfaces directly with its blue-LED light. Very shiny, transparent, or very dark surfaces reflect or absorb structured light and usually need a light coat of matting spray for complete data, as with any structured-light scanner. Tell us your typical materials and finishes and we will confirm what to expect before you buy.
What part sizes does it suit best?
The OptimScan Q12 / Q9 is a stationary inspection scanner optimized for small to medium precision parts — its large range covers a 430 × 300 mm field, and multiple scans stitch together for larger objects on the turntable. For very large parts scanned in place, a portable laser system such as the FreeScan UE Pro2 or a tracker-based Trak system is a better fit; we can advise on the right tool for your parts.
