Shining 3D FreeScan Omni Standalone Inspection-Ready Wireless 3D Scanner – Metrology | 0.02 mm
Standalone, inspection-ready wireless laser 3D scanner with an on-board touchscreen and built-in PTB-certified inspection software — scan and inspect on the shop floor with no PC, at 0.02 mm accuracy and 0.02 + 0.03 mm/m volumetric accuracy (0.02 + 0.015 mm/m with VPG).
- ✓ 0.02 mm accuracy · tested to VDI/VDE 2634 Part 3 and ISO 10360 in Shining 3D's ISO/IEC 17025 accredited lab
- ✓ 93 laser lines · 7,619,000 points/s · blue laser + IR VCSEL · VPG without coded markers
- ✓ On-board 5.5″ touchscreen + SHINING3D Inspect · fully wireless · ≤ 1.1 kg · Red Dot Award 2026
- ✓ 2-year standard warranty · authorized US reseller
- ✓ Ship date confirmed by email after you order
What your metrology engineer actually checks
Traceable accuracy, inspection on board
0.02 mm accuracy and 0.02 + 0.03 mm/m volumetric (0.02 + 0.015 mm/m with VPG), tested to VDI/VDE 2634 Part 3 and ISO 10360 in Shining 3D's ISO/IEC 17025 accredited lab — and the PTB-certified inspection software runs on the scanner itself.
Authorized US reseller
Additive Plus is an authorized Shining 3D reseller in the US. First-line support comes from our team in California, warranty repairs are handled by Shining 3D, and you get a formal quotation on our letterhead with US invoicing.
The Shining 3D FreeScan Omni is a standalone, inspection-ready wireless laser 3D scanner, which Shining 3D describes as the world’s first standalone inspection-ready metrology 3D scanner. An on-board 5.5-inch touchscreen and built-in PTB-certified inspection software let you scan a part and check it against CAD right on the shop floor, at 0.02 mm accuracy, no PC required.
Why quality teams choose the FreeScan Omni
The lab in your hand — metrology capture and inspection on one wireless device.
Scan and inspect on-device
A built-in SHINING3D Inspect module, PTB-certified and running on a 5.5-inch touchscreen, delivers a full scan-to-inspect workflow with no external PC — a pass/fail against CAD where the part is.

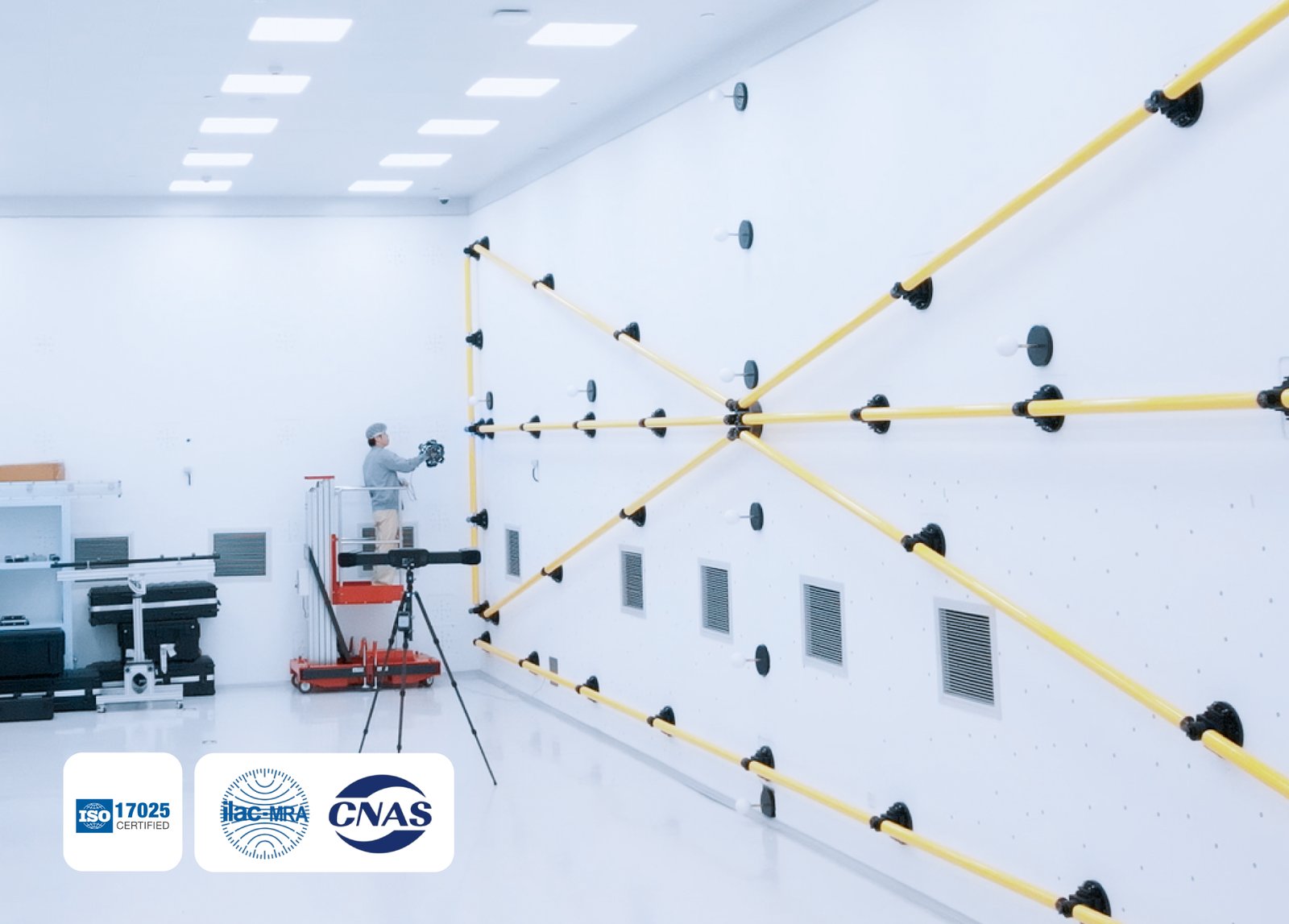

Certified, traceable accuracy
0.02 mm accuracy and 0.02 + 0.03 mm/m volumetric accuracy (0.02 + 0.015 mm/m extension with VPG), tested to VDI/VDE 2634 Part 3 and ISO 10360 in Shining 3D’s ISO/IEC 17025 accredited lab.

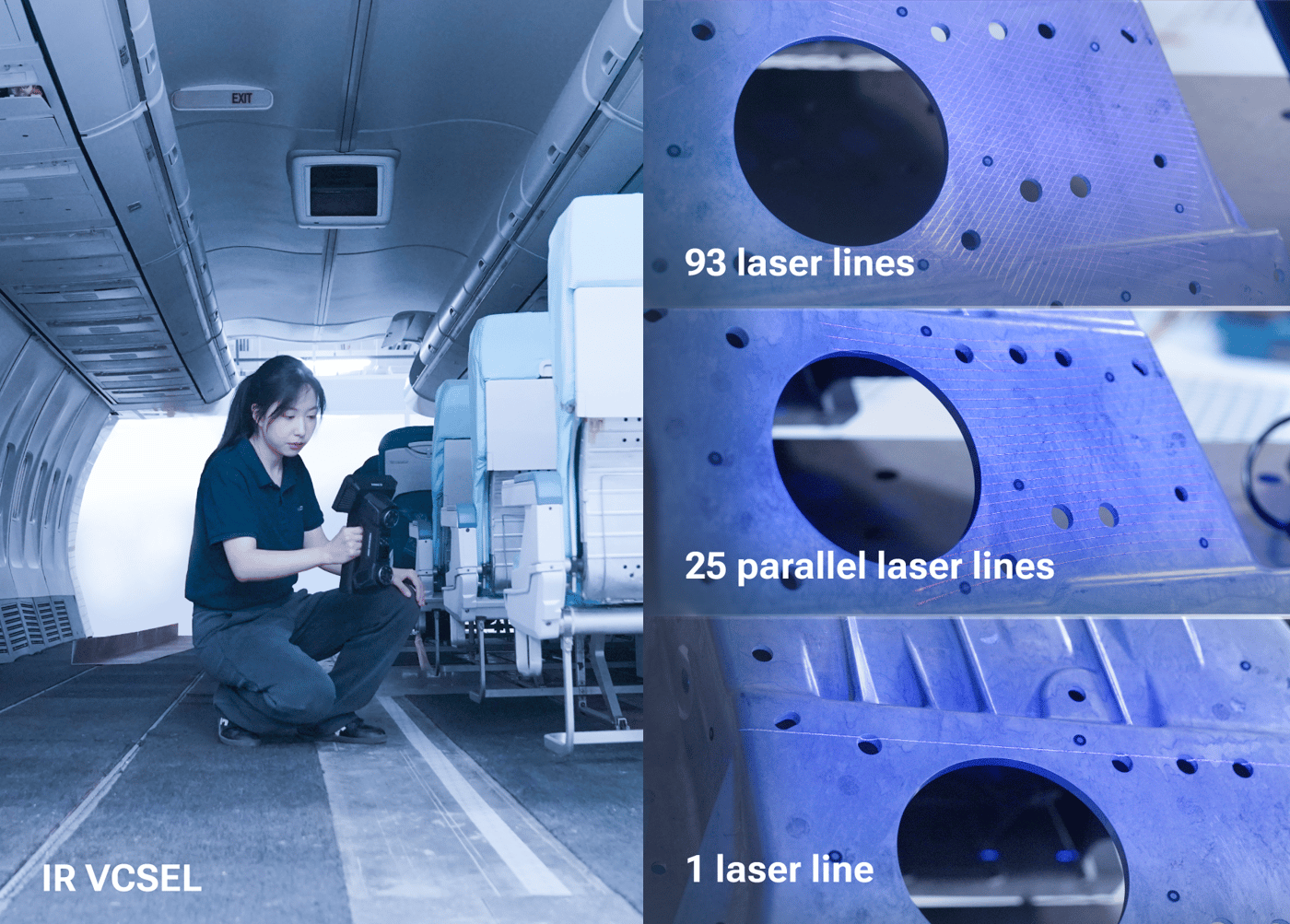

Dual light, 93 laser lines
Blue laser plus IR VCSEL, with 93 lines at 7,619,000 points/s for speed, 25 lines for detail, and a single line for deep pockets — one scanner for fine features and large surfaces.

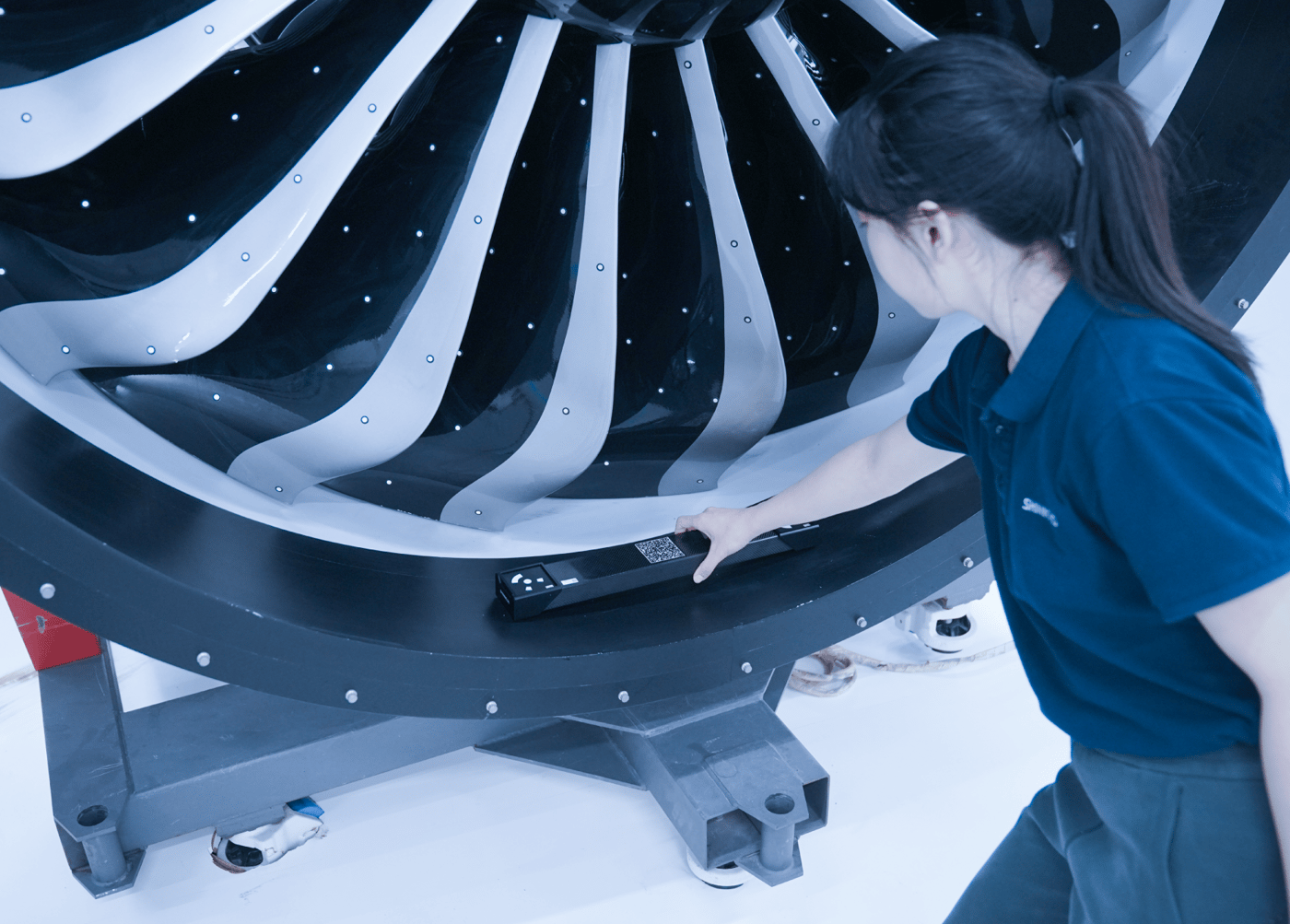

VPG + AI feature recognition
Shining 3D’s patented video photogrammetry, used with a calibration rod, removes the need for coded markers, and AI feature recognition picks out holes and slots automatically — less setup, faster from scan to report.
How you buy the FreeScan Omni from Additive Plus
From an authorized Shining 3D reseller in the US.
Warranty
2-year standard warranty.
Support
First-line support from our team in California; warranty repairs by Shining 3D.
Ordering
Formal quotation on our letterhead, US invoicing. Ship date confirmed by email after you order.
Metrology Performance
The FreeScan Omni is rated at 0.02 mm accuracy, with 0.02 + 0.03 mm/m volumetric accuracy, or 0.02 + 0.015 mm/m volumetric extension accuracy with video photogrammetry (VPG), at a resolution of 0.01 to 10 mm. Ninety-three blue-laser lines capture at 7,619,000 points/s, with a 25-line detail mode and a single line for deep pockets, while the IR VCSEL extends the field of view to 1205 × 1104 mm for large surfaces. Acceptance testing to VDI/VDE 2634 Part 3 and ISO 10360 is done in Shining 3D’s ISO/IEC 17025 accredited lab. See the full specification table below.

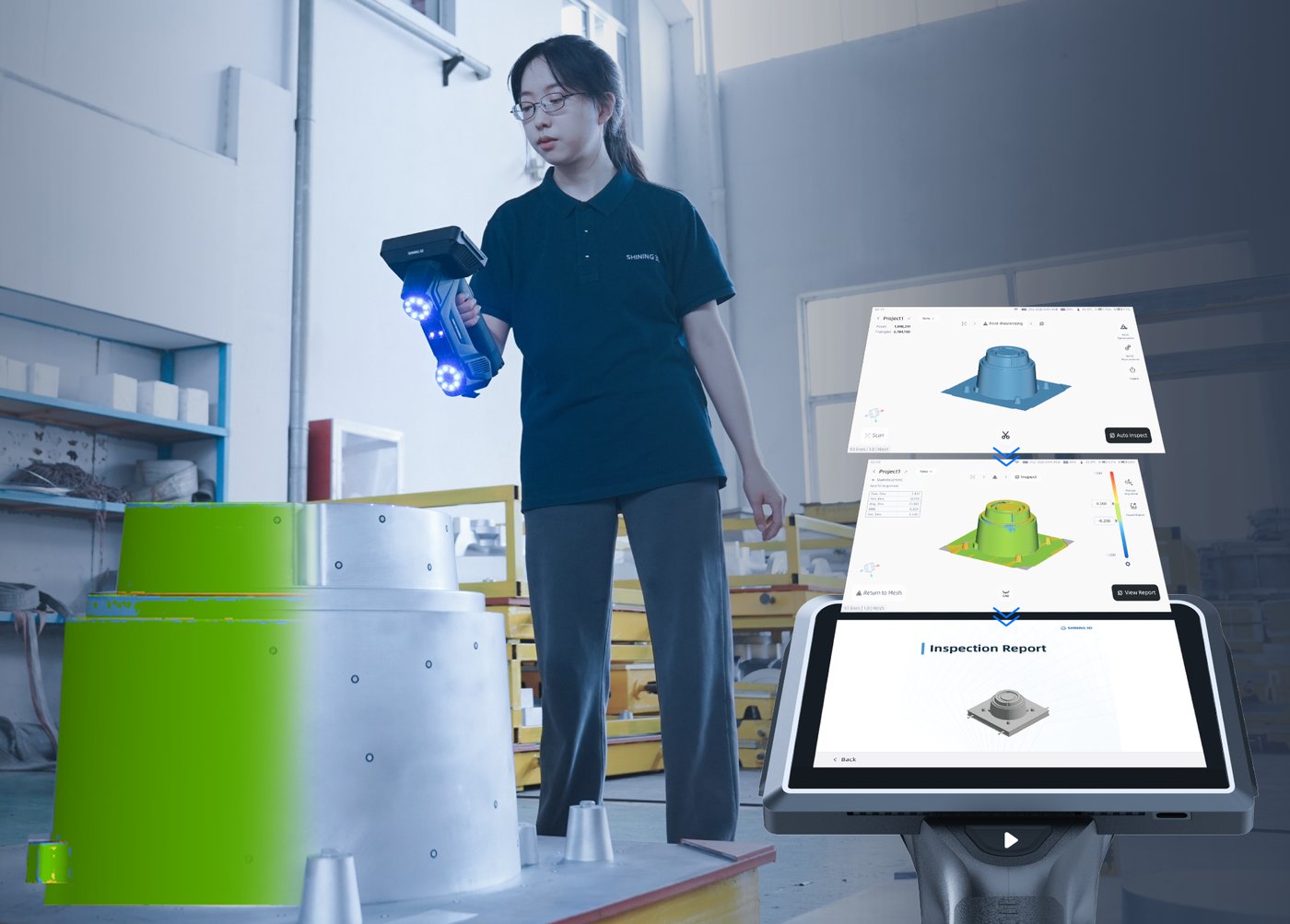

Standalone On-Scanner Inspection
Where most scanners stop at capture, the FreeScan Omni completes the loop on the device. Its edge computing module and 5.5-inch touchscreen run the SHINING3D Inspect module directly, so an operator scans a part and sees deviation against CAD without carrying data to a workstation. At no more than 1.1 kg and fully wireless, with hot-swappable batteries, it takes inspection to the part — on the production floor, in a hangar, or at a fabrication site.
Software & Workflow
On-device inspection runs through SHINING3D Inspect, and the scanner is compatible with PolyWorks, Geomagic Control X, Geomagic Design X, EXModel Pro for reverse engineering, and BlueStar Mapping for texture mapping. On-device reports support deviation analysis and first-article inspection. The FreeScan Omni Lite shares the same hardware and can be expanded later with modules such as on-device inspection, VPG, and AI feature recognition.
Typical applications
Shop-floor inspection and reverse engineering across industry.
Why Source the FreeScan Omni Through Additive Plus
- Authorized Shining 3D reseller in the US
- 2-year standard warranty
- First-line support from our team in California; warranty repairs by Shining 3D
- Formal quotation on our letterhead, US invoicing
Not sure the FreeScan Omni is the right scanner?
Compare it with the other metrology scanners we support.
Dual-mode handheldFreeScan ComboCompare scanner →
Dynamic trackingFreeScan Trak NovaView system →
| Brand | Shining 3D |
| Country of origin | China |
| Scanner Type | Standalone inspection-ready wireless laser metrology scanner (PC-free, all-in-one) |
| Accuracy | 0.02 mm |
| Volumetric Accuracy | 0.02 + 0.03 mm/m 0.02 + 0.015 mm/m (volumetric extension with VPG) |
| Scan Rate | 7,619,000 points/s |
| Laser Lines | 93 (high-speed), 25 (detailed), 1 (deep pockets) |
| Light Source | Blue laser + IR VCSEL |
| Resolution | 0.01 – 10 mm |
| Max Field of View | Laser: 580 × 650 mm IR: 1205 × 1104 mm |
| Depth of Field | 830 mm (170 – 1000 mm) |
| Markers | VPG removes the need for coded markers · IR rapid mode scans without markers · AI feature recognition |
| Onboard Inspection | Built-in SHINING3D Inspect — PTB-certified software, on-scanner |
| Display | 5.5″ touchscreen + edge computing module |
| Battery | Hot-swappable · 4 needed to operate, 8 included · up to 1 h per set |
| Standards | VDI/VDE 2634 Part 3, ISO 10360; tested in Shining 3D's ISO/IEC 17025 accredited lab |
| Warranty | 2-year standard warranty |
| Software | SHINING3D Inspect, PolyWorks, Geomagic Control X / Design X, EXModel Pro, BlueStar Mapping |
| Interface | Wireless (Wi-Fi) & wired |
| Weight | ≤ 1.1 kg, ≤ 2.4 lbs |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX · Red Dot Award 2026 |
