Particle Size & Shape Analysis

Instruments for particle size and shape analysis — laser diffraction and dynamic image analysis systems that characterize powders, suspensions, and emulsions. Accurate particle data supports powder qualification, process control, and R&D across additive manufacturing, ceramics, and materials science. Select the analyzer that fits your size range and sample type.

14 products

Showing 1–8 of 14 Particle Size & Shape Analysis

3D Lab, AO Metal, Microtrac, Verder Scientific · Ultrasonic atomization, Metal LPBF

AO Metal A100 + ATO Noble + CAMSIZER X2+: Jewelry Bundle

Make your own gold and silver powder, measure it, and print it — one closed loop from one supplier. The ATO Noble atomises gold, silver, platinum and palladium under argon with Zero Loss recovery, so karat and chemistry survive the process. The CAMSIZER X2+ measures particle size and shape. The AO Metal A100 prints with every laser parameter open. Configured to order; lead time on request. Installation and commissioning in the USA: facility and gas planning, start-up and operator training by our US service team.

Get quote

Made to order

· Lead time on request

3D Lab, AO Metal, Microtrac, Verder Scientific · Ultrasonic atomization, Metal LPBF

AO Metal A50 + ATO Lab + CAMSIZER X2+: R&D Bundle

Turn a new alloy into a printed part without leaving the lab. The ATO Lab atomises your own feedstock into spherical powder, the CAMSIZER X2+ measures its size and shape, and the AO Metal A50 prints it with every laser parameter open — no cartridges, no annual licence. Configured to order; lead time on request. Installation and commissioning in the USA: facility and gas planning, start-up and operator training by our US service team.

Get quote

Made to order

· Lead time on request

$Microtrac AEROTRAC II Spray Particle & Droplet Size Analyzer – Laser Diffraction | 0.5–2000 µm$

Microtrac

Microtrac AEROTRAC II Spray Particle & Droplet Size Analyzer – Laser Diffraction | 0.5–2000 µm

Laser-diffraction spray & droplet size analyzer — 0.5 to 2,000 µm across three lenses, capturing a spray in as little as 0.02 ms with multiple-scattering correction standard.

✔ Range 0.5–2,000 µm · F100 / F300 / F600 lenses · 32-segment ring detector
✔ Real-time spray capture from 0.02 ms · continuous mode to 600 s
✔ Multiple-scattering correction standard · wet, dry & auto-trigger
✔ Lead time: configured to order — request current timeline

Get quote

Made to order

· Lead time: configured to order — request current timeline

Microtrac

Microtrac BLUEWAVE Particle Size Analyzer

Tri-laser diffraction particle size analyzer — 0.01 to 2,800 µm, wet and dry on one bench, with sub-micron resolution from two true blue lasers and Modified Mie sizing for non-spherical powders.

✓ Range 0.01–2,800 µm · 151-segment fixed optics
✓ ISO 13320 · FDA 21 CFR Part 11 data integrity
✓ Install, training & method setup included — lead time confirmed at quote

Get quote

Made to order

· Configured to order — install, training and method setup included; lead time confirmed at quote.

Microtrac

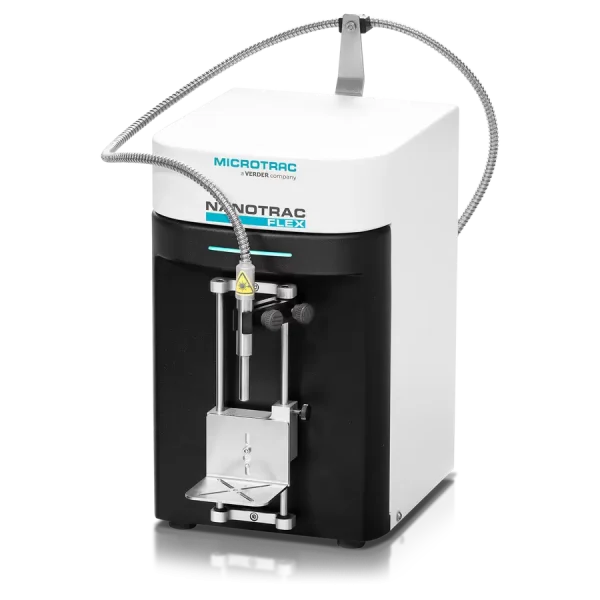

Microtrac NANOTRAC FLEX Nanoparticle Size Analyzer – Dip-Probe DLS | 0.3 nm–10 µm

Dynamic light scattering (DLS) nanoparticle analyzer with a dip-in external probe — 0.3 nm to 10 µm, measuring size, concentration and molecular weight without cuvettes or dilution.

✔ Range 0.3 nm–10 µm · 180° backscatter · FPS model (not PCS)
✔ Dip probe: any vessel, one droplet, no consumables
✔ Up to 40% concentration, no dilution · in-situ reaction monitoring
✔ Lead time: configured to order — request current timeline

Get quote

Made to order

· Lead time: configured to order — request current timeline

Microtrac

Microtrac NANOTRAC WAVE II Nanoparticle Size & Zeta Potential Analyzer – DLS | 0.3 nm–10 µm

All-in-one dynamic light scattering (DLS) analyzer — nanoparticle size, zeta potential, molecular weight and concentration from 0.3 nm to 10 µm in one compliant benchtop instrument.

✔ Size 0.3 nm–10 µm · zeta ±200 mV · MW & concentration
✔ 180° backscatter DLS · titration & temperature control
✔ ISO 22412 · 21 CFR Part 11 data-integrity features
✔ Lead time: configured to order — request current timeline

Get quote

Made to order

· Lead time: configured to order — request current timeline

Microtrac

Microtrac STABINO ZETA Zeta Potential & Charge Titration Analyzer – Streaming Potential | 0.3 nm–300 µm

Streaming-potential zeta and particle-charge analyzer with fast titration — five parameters at once (zeta, streaming potential, conductivity, pH, temperature) for particles 0.3 nm to 300 µm at up to 40 vol%.

✔ Charge range ±3000 mV · 0.3 nm–300 µm · up to 40 vol%
✔ pH / polyelectrolyte / salt titration in 5–15 min · isoelectric point
✔ Add NANOTRAC FLEX probe for simultaneous particle size
✔ Lead time: configured to order — request current timeline

Get quote

Made to order

· Lead time: configured to order — request current timeline

Microtrac

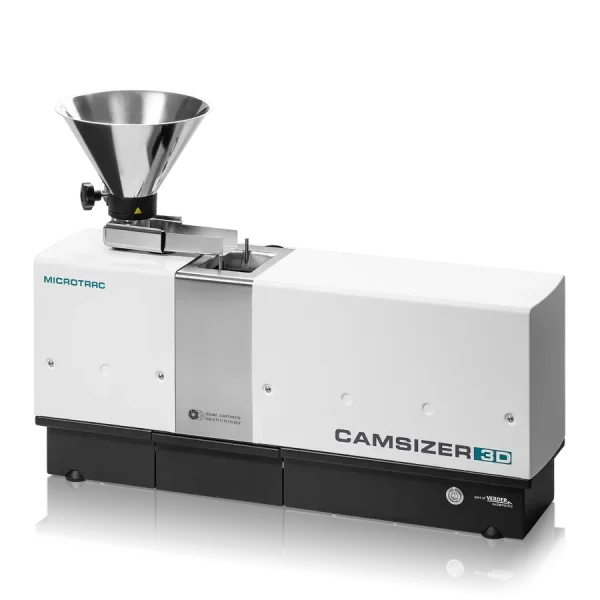

Microtrac CAMSIZER 3D Particle Size & Shape Analyzer – True 3D Image Analysis | 20 µm–30 mm

True three-dimensional dynamic image analysis — patented particle tracking captures up to 30 images of every particle, measuring real length, width and thickness from 20 µm to 30 mm.

✔ True 3D shape — up to 30 images per particle (length, width, thickness)
✔ Range 20 µm–30 mm · dual 9 MP + 5 MP cameras, 250 img/s
✔ Detects quality changes 2D analysis misses
✔ Lead time: configured to order — request current timeline

Get quote

Made to order

· Lead time: configured to order — request current timeline
