Microtrac STABINO ZETA Zeta Potential and Charge Titration Analyzer
Zeta potential and surface charge by streaming potential, with built-in titration — five parameters at every point, particles 0.3 nm to 300 µm, up to 40 % concentration.
- pH, polyelectrolyte and salt titration in 5–15 minutes
- Add a NANOTRAC FLEX probe for particle size in the same sample
- Installation and on-site training included · free test measurement
- Configured to order · lead time from 4 weeks
What your nano lab actually checks
Fast charge titration, 5 params at once
Every measuring point returns zeta potential, streaming potential, conductivity, pH and temperature. A pH, polyelectrolyte or salt titration to the isoelectric point runs in 5–15 minutes with hundreds of data points — on concentrated samples up to 40 vol%, no heavy dilution.
An applications engineer on the line
- STABINO ZETA base unit — PTFE measuring cup with oscillating piston, two electrodes, built-in titration with two titrant reservoirs
- Measuring cells: 10 mL (black), 1 mL and 3 mL with pestle
- Tempered measuring cell for 0–90 °C
- Piston set: 100, 200, 400, 1000, 1200, 1500 and 2000 µm, and conical
- NANOTRAC FLEX probe for size distribution in the same cell
- Installation and on-site operator training — included in every quotation
What the STABINO ZETA is

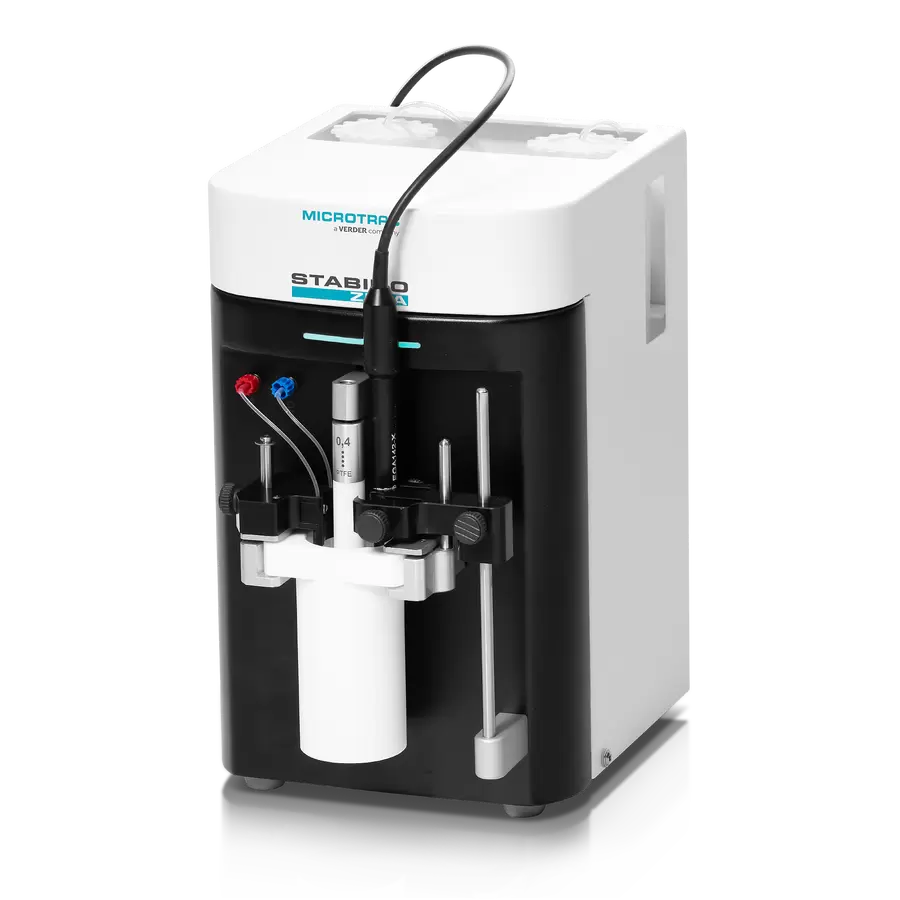

The STABINO ZETA is a zeta potential analyzer from Microtrac that works by streaming potential instead of electrophoresis. The sample goes into a cylindrical PTFE cup, where an oscillating piston moves the liquid while the particles stay immobilized at the cup wall. The flow displaces the ion cloud around the particles, and two electrodes measure the resulting charge separation; after calibration it is reported as streaming potential or zeta potential, together with conductivity, pH and temperature. Titrants are dosed by built-in pumps, and the constant mixing homogenizes each step quickly and keeps the sample from settling, so a full titration takes minutes rather than hours.
Specifications
| Method | zeta streaming potential |
| Calculation model | none, as calibrated |
| Measurement angle | none, mechanical measurement |
| Zeta range (charge) | −3000 to +3000 mV |
| Zeta range (size) | 0.3 nm – 300 µm |
| Electrophoretic mobility | max. 14 (µm/s)/(V/cm) |
| pH range | 1 – 14 |
| Conductivity range | up to 350 mS/cm |
| Temperature | 0 – 90 °C, ±0.1 °C, controlled |
| Titration | pH, polyelectrolyte, salt · endpoints pH, zeta potential, conductivity, volume and time |
| Reproducibility (zeta) | 2 % with standard dispersion |
| Sample cell | Teflon, 10 mL, 3 mL, 1 mL |
| Sample volume | 0.95 – 10 mL |
| Sample concentration | up to 40 % |
| Carrier fluids | water, polar organic solvents, acid and base |
| Size measurement | only in combination with the NANOTRAC FLEX |
| Humidity | 90 % non-condensing |
| Dimensions (W × H × D) | 180 × 300 × 260 mm (7.1 × 11.8 × 10.2 in) |
| Installation and training | on site, included in every quotation |
| Lead time | from 4 weeks, depending on configuration |
Download: STABINO ZETA datasheet (PDF) · Application notes: CBD nanoemulsions, flocculant optimization, carbon compounds (PDF)
What it tells you about surface charge
Zeta potential is the usual measure of the electrostatic repulsion that keeps particles apart. Titration shows how it changes:

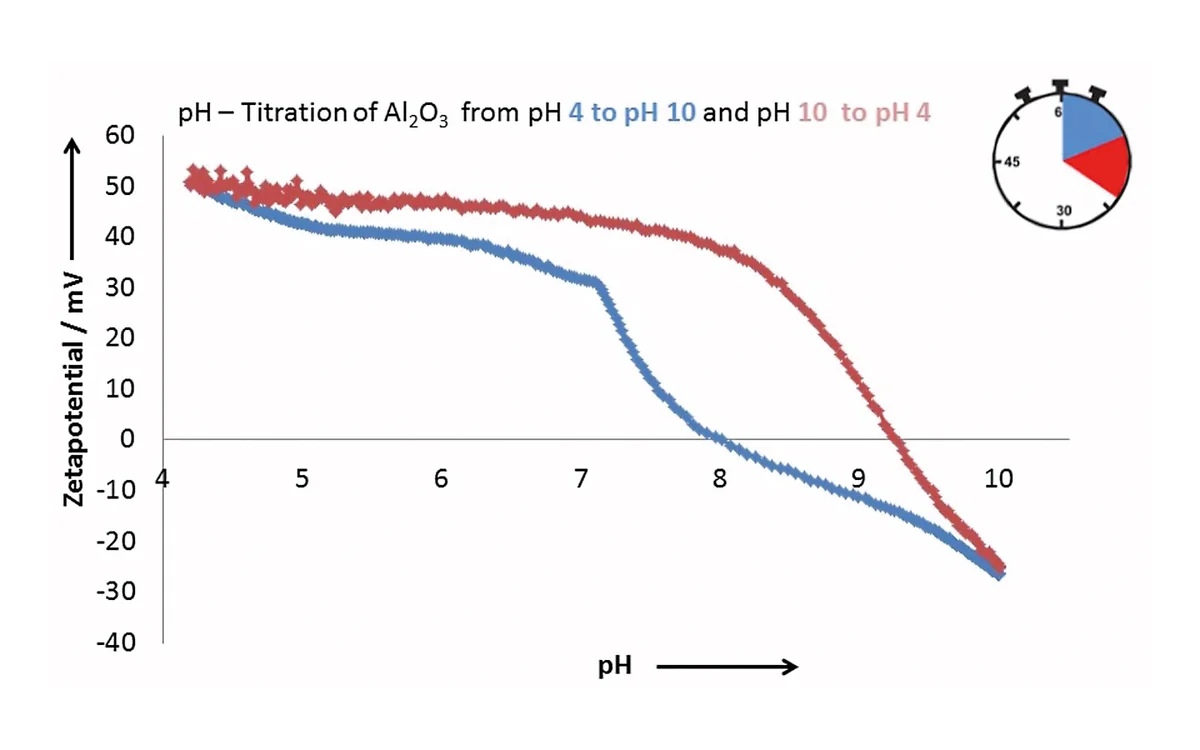

| pH titration | the isoelectric point and the stable pH ranges |

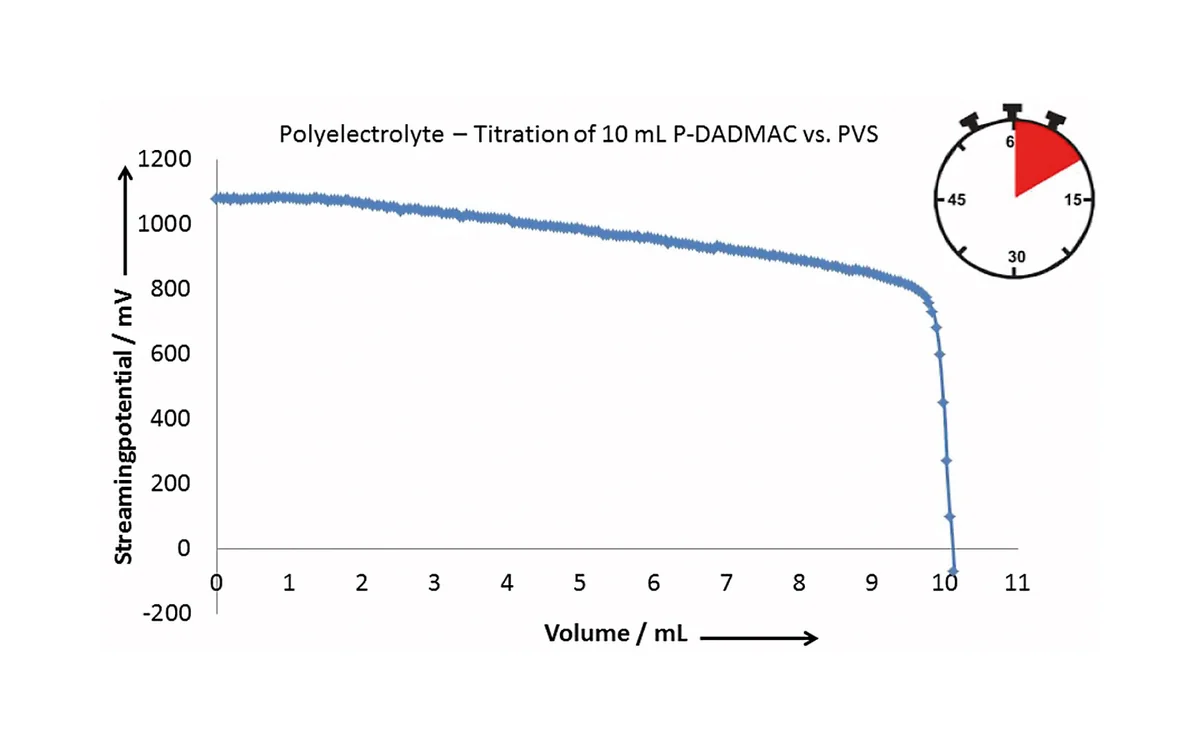

| Polyelectrolyte titration | charge density, zero point of charge and the right dose of dispersant |

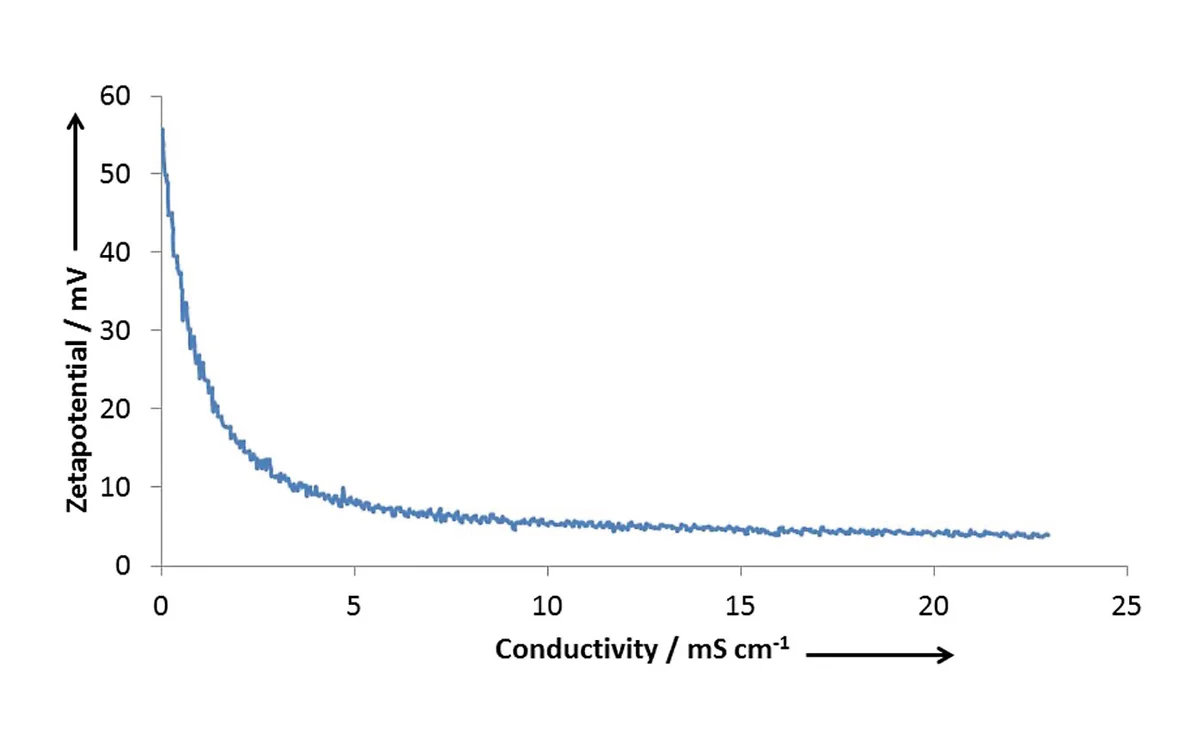

| Salt titration | zeta potential as a function of conductivity |
| With a NANOTRAC FLEX | particle size during the titration — the critical agglomeration point becomes visible |
Examples from Microtrac application notes: a five-pass CBD nanoemulsion measured −16.2 mV at pH 5.12 and reached its zero point of charge after 0.62 mL of 0.001 N P-DADMAC, with the FLEX showing the size rise at the same moment. In recycling the water of a magenta pigment suspension, charge titration showed that FeCl3 pre-treatment above 30–40 % was not effective, and two-thirds of the FeCl3 could have been saved. On carbon black, polyelectrolyte titration separated non-, mildly and strongly oxidized samples by their surface charge.
Three things that make the titration fast
Where the STABINO ZETA stops — and what to take instead
The STABINO ZETA measures charge, not size: a particle size distribution needs the NANOTRAC FLEX probe in its cell. Streaming potential relies on the ion cloud particles form in polar liquids, and the listed carrier fluids are water, polar organic solvents, acids and bases — non-polar solvents are not among them. For zeta potential and DLS size in one benchtop instrument, from 150 µL of sample, the NANOTRAC WAVE II is the alternative. And to follow how a formulation separates over time, the TURBISCAN LAB measures physical stability directly.
In pictures
Availability, payment and delivery
Why buy it through Additive Plus
What usually stops people — and the honest answer
Ready when you are
| Brand | Microtrac |
| Country of origin | Germany |
| Method | Zeta streaming potential |
| Calculation model | none, as calibrated |
| Measurement angle | none, as mechanical measurement |
| Size measurement | yes (only in combination with NANOTRAC FLEX) |
| Sample cell | Teflon (10 ml, 3 ml, 1 ml) |
| Zeta potential analysis | yes |
| Zeta streaming potential analysis | yes |
| Zeta measurement range (charge) | -3000 mV - +3000 mV |
| Zeta measurement range (size) | 0.3 nm - 300 µm |
| Electrophoretic mobility | Max. 14 (µm/s) / (V/cm) |
| pH measurement | yes |
| pH measurement range | 1 to 14 |
| Conductivity measurement | yes |
| Conductivity range | Up to 350 mS cm^-1 |
| Temperature range | 0°C - 90°C |
| Temperature accuracy | ± 0.1°C |
| Temperature control | yes |
| Titration | yes |
| Titration endpoints | pH, zeta potential, conductivity, volume and time |
| Reproducibility (size) | Refer to NANOTRAC FLEX |
| Reproducibility (zeta) | 2% with standard dispersion |
| Sample volume zeta measurement | 0.95 ml - 10 ml |
| Sample concentration | Up to 40 % |
| Carrier fluids | Water, polar organic solvents, acid and base |
| Humidity | 90 % non-condensing |
| Dimensions (W x H x D) | 7×11.8×10.2 in / 180×300×260 mm |
Download Microtrac STABINO ZETA Zeta Potential Analyzer Product Info brochure
Download Microtrac STABINO ZETA Zeta Potential Analyzer Application Note 1 brochure
Download Microtrac STABINO ZETA Zeta Potential Analyzer Application Note 2 brochure
Download Microtrac STABINO ZETA Zeta Potential Analyzer Application Note 3 brochure
We run this lab daily. Send a sample.
Send us a powder sample and we'll run PSD and morphology on the actual instrument, then share the data and method — so you see repeatability before you buy. We can also run analysis as a service while you evaluate.
