AO Metal A100 + ATO Noble + CAMSIZER X2+: Jewelry Bundle
Make your own gold and silver powder, measure it, and print it — one closed loop from one supplier. The ATO Noble atomises gold, silver, platinum and palladium under argon with Zero Loss recovery, so karat and chemistry survive the process. The CAMSIZER X2+ measures particle size and shape. The AO Metal A100 prints with every laser parameter open. Configured to order; lead time on request. Installation and commissioning in the USA: facility and gas planning, start-up and operator training by our US service team.
What your materials engineer actually checks
Precious metal, near-zero loss
The bundle pairs the ATO Noble precious-metal atomizer with the AO Metal A100 LPBF printer, so gold, silver and platinum go from bar to printed part in-house — with the near-zero powder loss that matters when the feedstock is precious.
Powder you can prove
The CAMSIZER X2+ verifies particle size and shape on every batch, so the powder you print with is characterised, not assumed — closed-loop control from atomization to print to QC.
A materials engineer on the line
We run precious-metal atomization and LPBF in-house through ATO Lab and AO Metal. Karat targets, PSD and print parameters — factory-trained engineers, sub-4h reply, NDA standard.

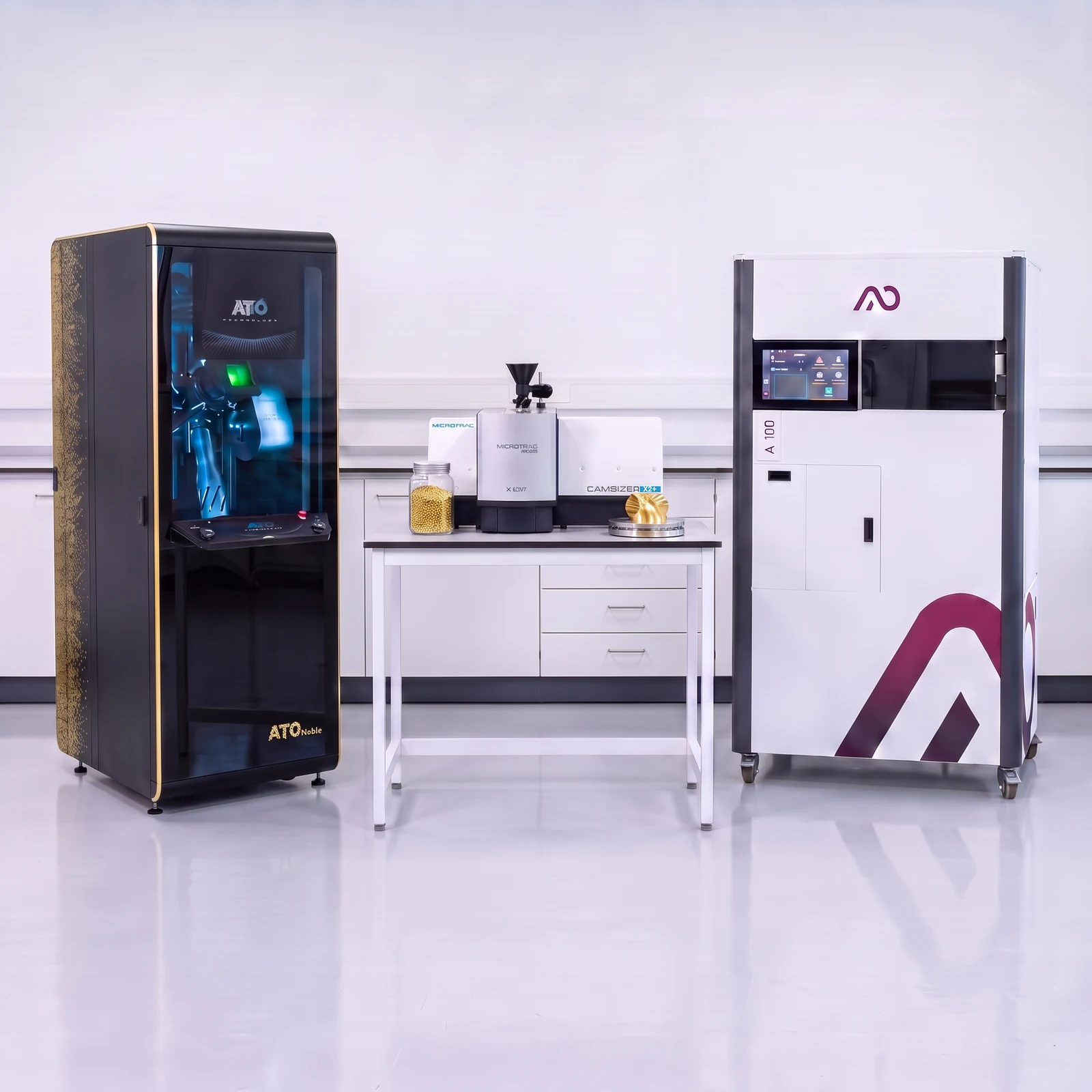

The Jewelry Bundle puts three machines in one precious-metal development cell — the ATO Noble atomizer with Zero-Loss recovery, the CAMSIZER X2+ particle size & shape analyzer, and the AO Metal A100 LPBF printer. Atomize gold, silver or platinum, verify the powder, and print fine parts in-house — with almost no precious material lost.
What’s in the bundle
Three tools that close the precious-metal powder-to-part loop.
Why jewelers buy the cell, not the parts
When the material is gold or platinum, controlling the whole loop pays for itself.
Zero-loss precious powder
ATO Noble’s special filtration and closed-loop gas circulation recover valuable metal for reuse — at a single click.
Powder ready to print
Every batch is characterized on the CAMSIZER X2+, so the A100 prints on verified feedstock — not a datasheet.
No minimum load
Atomize small, high-value charges economically and switch metals easily — a few grams of gold or platinum, without waste.
Compact studio footprint
All three units are sized for a jewelry studio or small lab — the A100 fits through a standard door.
How the loop runs
From raw precious metal to a printed piece, in one cell.
Atomize
The ATO Noble turns gold, silver or platinum into fine powder, recovering valuable material with Zero-Loss Technology.
Analyze
The CAMSIZER X2+ measures size and shape from 0.9 µm to 8 mm, confirming the powder is on spec in minutes.
The AO Metal A100 prints fine detail from the verified powder — ideal for jewelry and small precision parts.
Key specs at a glance
Headline figures for each machine in the cell.
| Machine | Role | Key figures |
|---|---|---|
| ATO Noble | Precious-metal atomizer | Gold, silver, platinum & more; Zero-Loss Technology (special filtration + closed gas loop, single-click recovery); no minimum load; reactive & non-reactive; compact |
| CAMSIZER X2+ | Particle size & shape analyzer | 0.9 µm – 8 mm; Dynamic Image Analysis (ISO 13322-2); dual cameras >420 fps; result in 1–3 min; modular X-change dispersion |
| AO Metal A100 | Metal LPBF 3D printer | Ø100×100 mm build; fiber laser (optional multi-laser to 1000 W + 250 W blue 445 nm for fine detail); robust modular design |
Configurations vary — final specs are confirmed on quotation.
Where the cell earns its place
Any workshop or lab working in precious metals.
Other configurations
The standard-metal cell, or a single machine on its own.
| Printing Materials | Metal Powders |
| Technology | Ultrasonic atomization, Metal LPBF |
| Brand | 3D Lab, AO Metal, Microtrac, Verder Scientific |
Product videos
Send feedstock We atomizePowder + full data
Not ready to commit to the full bundle? Send us your target alloy and our in-house ATO Lab and AO Metal cell runs a paid trial atomization — spherical powder plus PSD, chemistry and flow data — so you qualify the process first.
Other products teams run alongside AO Metal A100 + ATO Noble + CAMSIZER X2+: Jewelry Bundle
Streaming-potential zeta and particle-charge analyzer with fast titration — five parameters at once (zeta, streaming potential, conductivity, pH, temperature) for particles 0.3 nm to 300 µm at up to 40 vol%.
- ✔ Charge range ±3000 mV · 0.3 nm–300 µm · up to 40 vol%
- ✔ pH / polyelectrolyte / salt titration in 5–15 min · isoelectric point
- ✔ Add NANOTRAC FLEX probe for simultaneous particle size
- ✔ Lead time: configured to order — request current timeline
Made to order
· Lead time: configured to order — request current timeline
Vipra AM is Caracol’s turnkey robotic WAAM platform for metal production parts — a 9-axis cell running CMT (Cold Metal Transfer) deposition at up to 13.2 lb/h / 6.0 kg/h inside an 8.2 × 6.6 × 6.6 ft / 2.5 × 2.0 × 2.0 m envelope, across 11 qualified alloys from ER70S-6 steel to Inconel 625. CE marked. Priced by configuration.
- ✓ 9-axis architecture — robot, external manipulator and linear track, 1,650 lb / 750 kg positioner payload
- ✓ Closed-loop monitoring — pyrometer, layer geometry and gas flow correct parameters in-build
- ✓ Lead time: approx. 16 weeks — configured to order
Made to order
· Approx. 16 weeks

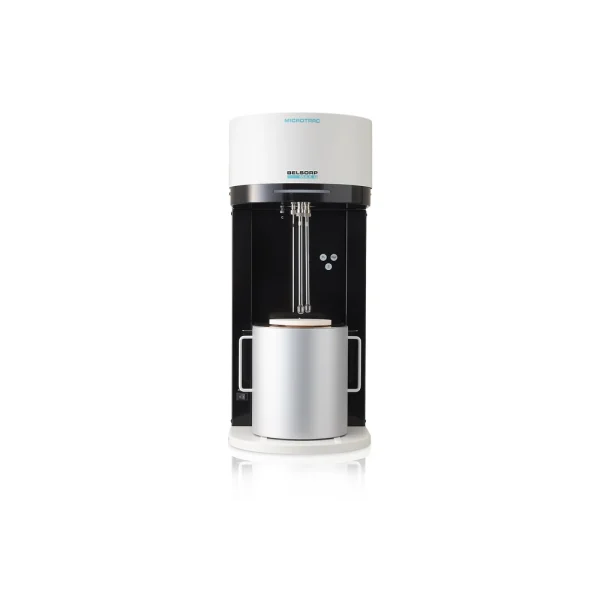

Dedicated volumetric gas adsorption analyzer for BET surface area and micro-to-mesopore distribution — ultra-low pressure to P/P₀ 10⁻⁸, from 0.0005 m²/g with krypton.
