Made to order
- Install, operator training, and validated print profiles
- Tailored warranty with same-week dispatch on critical issues
A100 Metal 3D Printer — AO Metal
The same open platform as the A50, with four times the build area — Ø100 × 100 mm (3.9 × 3.9 in). Optional 445 nm blue laser and 900 °C platform for copper, gold, silver and refractory alloys; sixteen alloys proven to date, with validated parameters supplied for the standard alloys. Floor-standing LPBF, 300–1000 W, every parameter yours. Designed and built in the USA. From $99,000 · 8–14 weeks. Installation and commissioning in the USA: facility and gas planning, start-up and operator training by our US service team.
$99,000
What your process engineering lead actually checks
Supported by the team that runs it
We run AO Metal and partner systems daily for our own print services, so install, training, and first builds are handled by engineers who actually operate the machine. When you call support, you reach the team that qualified it.
An applications engineer on the line
Questions on build volume, laser config, throughput, or material compatibility? A named applications engineer scopes it directly — not a sales rep. Most replies in under 4 hours, NDA on request.
- The AO Metal A100 printer, Ø100 × 100 mm (3.9 × 3.9 in) build envelope
- AO Build Studio software and slicer — no annual licence
- Spare-parts kit and warranty
- Training for your team, on your own material
- The print programs we have already validated for your alloys, handed over to you
- Powder supply and a named engineer after delivery

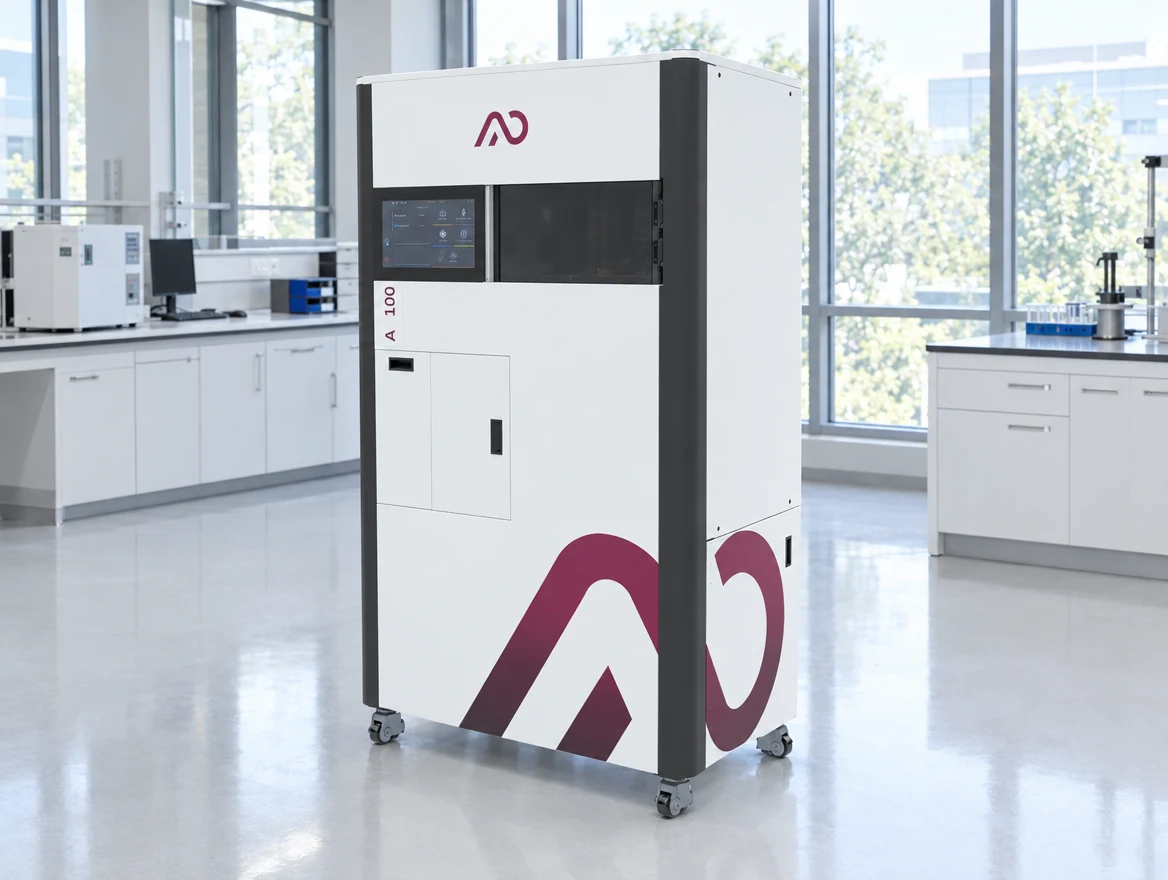

What the A100 is
The A100 is the largest machine in the AO Metal line: a floor-standing LPBF printer with a Ø100 × 100 mm (3.9 × 3.9 in) build envelope, for parts that no longer fit a research machine and for short production runs. A fiber laser melts metal powder directly into fully dense parts in one step; the optional 445 nm blue laser opens up copper, gold and silver, and the optional 900 °C platform takes on materials that crack when printed cold. The system is fully open: sixteen alloys proven to date with the list still open, all process parameters in your hands, and the validated print programs handed over with the machine.
Configurations and pricing
| Model | Laser | Power supply | 900 °C platform | Price |
| A100-300 | 300 W | 120 V · 1-phase | — (250 °C) | Base · $99,000 |
| A100-500 | 500 W | 120/240 V · split-phase | optional | on quotation |
| A100-1000 | 1000 W | 120/240 V · split-phase | optional | on quotation |
Blue laser 445 nm and the 900 °C heated platform are available on this machine and quoted with the configuration. Tell us the alloys and we will price one configuration rather than a menu.
Specifications
| Build envelope | Ø100 × 100 mm (3.9 × 3.9 in) |
| Laser | 1064 nm fiber · 300–1000 W · 445 nm blue 250 W optional |
| Layer thickness | 15–100 µm |
| Accuracy | ±0.1% |
| Build platform | 250 °C, or 900 °C optional |
| Power | 120 V 1-phase (300 W) or 120/240 V split-phase (500/1000 W), 60 Hz · dedicated 50 A circuit |
| Power use | max 3 / 5 / 8 kW (6 kW with the blue laser on 500 W) |
| Inert gas | argon, under 2 L/min |
| Material change | about 3 hours |
| Dimensions | 1150 × 730 × 2050 mm (45.3 × 28.7 × 80.7 in) |
| Weight | 350 / 400 / 450 kg (772 / 882 / 992 lb) for 300 / 500 / 1000 W |
| Software | AO Build Studio + slicer · STL |
| Lead time | 8–14 weeks |
| Warranty | 12 months on laser, scanner, blower, motors and electrical systems |
Fully open — and we mean the parameters
- Laser power, scan speed and strategy
- Hatch spacing and layer thickness
- Contour and infill exposure — per zone
- Your own parameter sets, stored in AO Build Studio
- No cartridges and no chipped powder
- No approved-material list
- No annual software subscription
- No permission needed to run a powder you bought or developed yourself
Powder to start a build
A set of test parts 10 mm tall takes 527 g of 316L. An experiment costs a few hundred grams of powder, not a full dispenser.
| Build | 316L steel | Ti-6Al-4V | AlSi10Mg |
| Test parts, 10 mm tall | 527 g | 304 g | 185 g |
| Parts 20 mm tall | 1.05 kg | 608 g | 371 g |
| Dispenser filled to full height | 10.53 kg | 6.08 kg | 3.71 kg |
What you will also need. A wet vacuum cleaner (explosion-proof for reactive metals) and a sieving machine. Recommended: a heat-treatment furnace, a bandsaw or small lathe and a polishing tool. Filters, seals, hoses and recoater blades are ordinary components you can source locally.
Compare the three AO Metal machines
| A30$59,000 / $64,000 | A50from $89,000 | A100from $99,000 | |
| Build envelope | Ø30 × 60 mm (1.2 × 2.4 in) | Ø50 × 100 mm (2.0 × 3.9 in) | Ø100 × 100 mm (3.9 × 3.9 in) |
| Format | Benchtop · ~100 kg (220 lb) | Floor-standing · ~350 kg (772 lb) | Floor-standing · ~350 kg (772 lb) |
| Laser | 200 W or 300 W | 300–1000 W | 300–1000 W |
| 445 nm blue laser | — | optional | optional |
| 900 °C heated platform | — | optional | optional |
| Best for | Alloy development, coupons, teaching | Larger specimens, copper and precious metals | Small production, larger parts |
| See the A30 | See the A50 | See the A100 |
Availability, payment and delivery
What you will buy with it
Files to download
Download: A100 brochure · the whole line — A30, A50, A100 · R&D solution · AO Metal 2026 presentation
Ready when you are
| Brand | AO Metal |
| Technology | Metal LPBF |
| Build Volume | Ø100 x 100 mm (3.94" x 3.94") |
| Laser Type | Fiber laser, 1×300W, Fiber Laser, 1×500W, Fiber laser, 1×1000W |
| Scan System | Galvo scan head + F-theta lens |
| Blue Laser | Optional 445 nm, 250 W |
| Build Plate Heating | Optional Up to 900°C (1652°F), Up to 250°C (482°F) |
| Layer thickness | 15–100 µm |
| Inert Gas Protection | Argon |
| Average Inert Gas Consumption in Process | <2 L/min |
| Software | AO Build Studio + AO Build Slicer |
| Data File Format | STL |
| Power supply | 120 V, 1-phase (300 W), 120/240 V split-phase (500 W, 1000 W) |
| Power Consumption | max 3 kW (300 W), max 5 kW (500 W), max 8 kW (1000 W) |
| Dimensions | 45.3" x 28.7" x 80.7" (1150 x 730 x 2050 mm) |
| Net Weight | Approx.350 kg (771.6 lbs) |
| Operating system | 64 bit Windows 10 |
| Operating Ambient Temperature | 22-28°C (71.6-82.4℉) |
| Material | 316L, 420, AlSi10Mg, Maraging Steel Grade 300, ST1 |
| Printing Materials | Metal Powders |
| Max Part Size | Ø3.9х3.9 in |
We build our own. Custom configs on request.
