In stock
- Validated FDM profile + datasheet for the printers we sell
- Mutual NDA before any file or spec review
Creatbot Wax Filament - 1kg
Castable wax filament for FDM 3D printing — prints burn-out-ready patterns with low ash and a smooth surface for investment casting in jewelry, dental, and small-metal-part production.
- ✓ ±0.02mm diameter tolerance — consistent extrusion, low jam risk
- ✓ Validated CreatBot F430 print profile + datasheet included
- ✓ In stock — request a quote for volume and lead time
What your process engineer actually checks
Tight diameter, dry, jam-free
Every spool ships with a datasheet covering diameter tolerance, moisture, and a validated print profile for the systems we sell, so feeds stay consistent and parts hold dimension. Load the profile and print.
A materials engineer on the line
Questions on diameter tolerance, moisture, layer adhesion, or warping? A materials engineer answers directly — not a contact-form bot. Most replies in under 4 hours, NDA standard.
Why teams choose Creatbot Wax Filament
Four things a caster checks before switching to a printed pattern.
Clean, low-ash burnout
Formulated to burn out cleanly from investment plaster, leaving low residue and a clean cavity for a faithful metal cast — the core requirement for a castable pattern.
Smooth, detailed surface

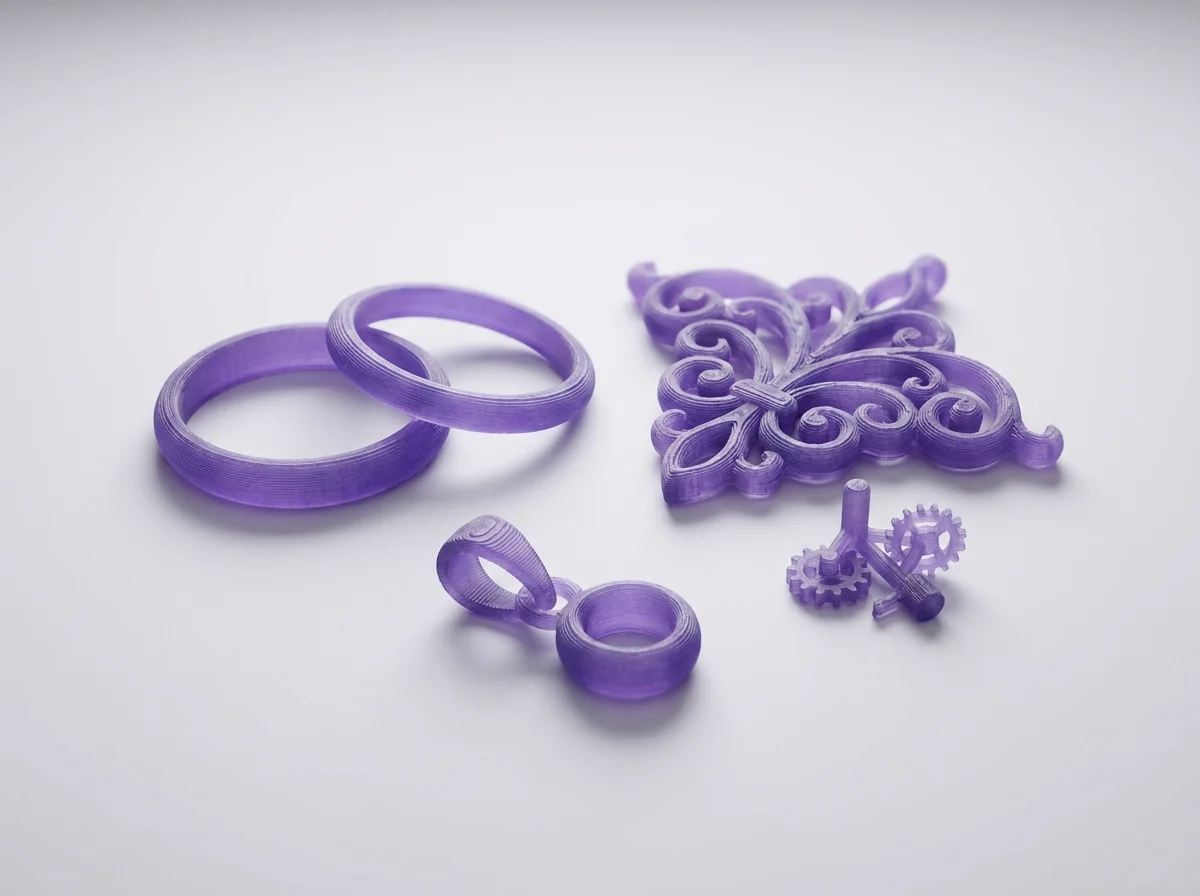

Prints a smooth surface that carries fine detail into the mold — for jewelry and dental patterns where surface quality shows in the final piece.
Prints at low temperature
Runs at a low 160°C nozzle temperature on a standard FDM printer — no specialized hardware, and a direct alternative to castable resin without a separate resin workflow.
±0.02mm diameter tolerance
Tight, consistent diameter means steady extrusion — important for the low, precise temperatures a wax pattern is printed at.
How we ship it
Every spool of Creatbot Wax Filament leaves Gardena, CA the same way.
Print profile confirmed
Nozzle and bed temperatures verified on a CreatBot F430 before the spool is listed — not copied from a generic castable spec sheet.
Sealed and protected
Vacuum-bagged and boxed so the soft pattern material arrives undamaged and dimensionally true.
Ships from L.A. stock
Held at our Gardena facility — 1–2 business day dispatch, datasheet included in the box.
Print compatibility
Runs on a standard FDM/FFF printer at a low nozzle temperature (around 160°C) with a heated bed to 45°C — no enclosure needed. Handle finished patterns gently; the material is soft by design. Full property values are listed in the Specifications tab below.
Recommended print settings
| Parameter | Recommended value |
|---|---|
| Nozzle temperature | 150°C – 170°C |
| Build plate temperature | 40°C – 50°C |
| Chamber temperature | Not required |
| Print speed | 20 – 40 mm/s |
| Cooling fan | On (low to medium) |
| Nozzle type | Standard brass |
Typical applications
Where casting and production teams run Creatbot Wax Filament.
Storage & handling
Store Creatbot Wax Filament in a cool, dry place inside its original sealed bag. Keep spools and printed patterns away from heat and direct sun — the material softens with warmth by design, so avoid hot storage (a warm car, a sunny window) that can distort a spool or a finished pattern.
Not casting — need a durable printed part?
Wax prints patterns for metal casting. For end-use printed parts, pick one of these instead.
Need functional strengthCreatBot ABS FilamentView filament →
Need a tough all-rounderCreatbot PETG FilamentView filament →
Why source through Additive Plus
- Validated print profile — nozzle and bed temperatures confirmed on a CreatBot F430, not copied from a generic spec sheet.
- Held at our Gardena, CA facility — request a quote for volume pricing and lead time; datasheet in every box.
- A materials engineer on the line for burnout, casting, or compatibility questions — sub-4h reply, NDA standard.
- Custom variants on request — castable grades qualified for your casting process.
| Brand | CreatBot |
| Printing Materials | Plastic Filaments |
| Solid Density g/cm3 | 0.9 |
| Tensile Strength | 15 |
| Flexural Strength (MPA) | 20 |
| Deflection Temperature | 56 |
| Printer | CreatBot F430 |
| Nozzle Temperature | 160℃ |
| Bed Temperature | 45℃ |
| Printing Speed | 40mm/s |
| Infill | 100%，+/- 45° |
| Nozzle size | 0.4mm |
| Layer thickness | 0.2mm |
| Plastic Class | Technical |
| Reinforcement | Unfilled |
| Application | Engineering, Jigs & Fixtures, Manufacturing |
We source and qualify. Custom variants on request.
Need a filled, flame-retardant, or color-matched filament, or a profile for a printer we don't list yet? Our materials team qualifies the spool and prints test specimens before you commit. Typical lead 2–4 weeks.
