In stock
- COA on request — PSD, sphericity, flow rate, chemistry
- Mutual NDA before any file or spec review

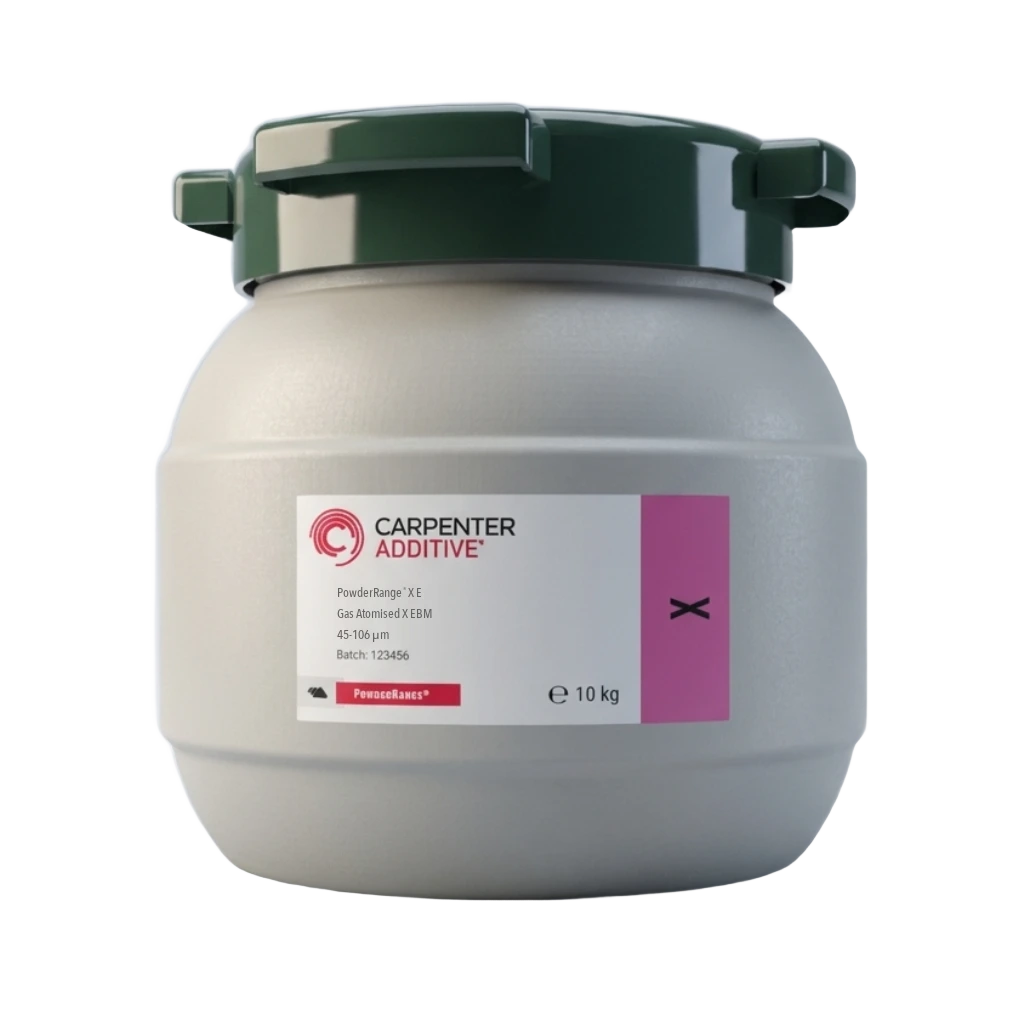

Hastelloy X Nickel Alloy Powder for EBM — 45–106 µm, 10 kg
Hastelloy X powder price: $515 per 10 kg ($51.50/kg)
Solid-solution nickel-chromium-iron-molybdenum superalloy with strength and oxidation resistance to 1204 °C (2200 °F), in the coarse 45–106 µm cut for electron-beam powder bed systems. Vacuum-induction-melted and argon-atomized by Carpenter Additive (PowderRange X).
Values from the Carpenter PowderRange X datasheet.
Which high-temperature nickel alloy is right for your build?
All of them are in our catalog at a published price. Pick by machine, timing and country of origin.
| Powder | Particle size | Origin | Availability | Good fit for | 10 kg | |
|---|---|---|---|---|---|---|
 Carpenter Additive 939WIN939 for AM | 15–45 µm · LPBF | Confirmed per lot | In stock | Hot-gas-path turbine parts; precipitation-hardenable | $1,745 | View |
 Carpenter Additive X (Hastelloy X) FFine cut | 15–45 µm · LPBF | Confirmed per lot | In stock | Oxidation resistance to 1204 °C (2200 °F), LPBF | $1,105 | View |
 Carpenter Additive X (Hastelloy X) EThis page | 45–106 µm · EBM | Confirmed per lot | In stock | Hastelloy X for electron-beam systems | $515 | Add to cart |
 Carpenter Additive GRX-810NASA ODS alloy | 15–45 µm · LPBF | Confirmed per lot | In stock | NASA ODS alloy: oxidation resistance to 1316 °C (2400 °F) | $4,955 | View |
Need a specific country of origin for a government or defense program? Ask before ordering and we will confirm it in writing for your lot.
What is in the container
Specification from the manufacturer. The certificate for your lot is available on request.
Specification
Type analysis, PowderRange X datasheet (Carpenter Additive). Single figures are nominal except where noted.
| Element | wt% |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.5–23.0 |
| Iron (Fe) | 17.0–20.0 |
| Molybdenum (Mo) | 8.0–10.0 |
| Cobalt (Co) | 1.00–2.50 |
| Tungsten (W) | 0.20–1.00 |
| Aluminum (Al) | 0.50 |
| Copper (Cu) | 0.50 |
| Manganese (Mn) | 0.50 |
| Silicon (Si) | 0.20 |
| Titanium (Ti) | 0.150 |
| Carbon (C) | 0.10 |
| Oxygen (O) | 0.10 |
| Phosphorus (P) | 0.040 |
| Nitrogen (N) | 0.030 |
| Sulfur (S) | 0.030 |
| Boron (B) | 0.010 |
| Hydrogen (H) | 0.005 |
| Powder property | Requirement |
|---|---|
| Particle size | 45–106 µm cut; the datasheet lists only the 15–45 µm F cut, so limits for this cut are on the lot certificate |
| D10 / D50 / D90 | measured and reported on the lot certificate |
| Melting and atomization | Vacuum induction melted, argon gas atomized |
What the particles look like
From the manufacturer datasheet
SEM image of typical PowderRange X powder, from the Carpenter Additive datasheet; scale bar 100 µm.
Each order ships with the Carpenter Additive certificate of analysis for its lot: chemistry, particle size distribution (D10/D50/D90) and density. Ask us if you need to see a recent certificate before ordering.
How the printed metal performs
These are Carpenter laser powder bed fusion (F cut) values for PowderRange X, shown for reference: DED and EBM parts have different properties. Average of at least 5 samples; not design data.
| Condition | Orientation | Yield, MPa | UTS, MPa | Elongation | Impact, J | HRB |
|---|---|---|---|---|---|---|
| As-built | X–Y | 663 | 876 | 34% | 81 | 100 |
| Z | 577 | 780 | 43% | 99 | 99 | |
| Solution + age | X–Y | 393 | 816 | 41% | 82 | 92 |
| Z | 382 | 786 | 44% | 90 | 93 | |
| HIP + solution + age | X–Y | 379 | 811 | 44% | 95 | 92 |
| Z | 375 | 786 | 46% | 102 | 92 | |
| ASTM spec. minimum, per Carpenter | all | 240 | 655 | 35% | — | — |
Heat treatment
Carpenter datasheet, process guidance
- Solution anneal: 1177 °C (2150 °F) for 1 hour, then cool below 540 °C (1000 °F) fast enough to avoid precipitation; rapid air cool for thin parts, oil or water quench for heavy sections.
- Age is usually not needed; if used: 760 °C (1400 °F) for 3 hours, air cool, then 595 °C (1100 °F) for 3 hours, air cool.
- HIP to close porosity: at least 100 MPa (14.5 ksi) at about 1260 °C (2300 °F) for 240 minutes or more under inert gas, then solution treat.
- Not precipitation-hardenable. Machine with single-point carbide tools and a sulfur-base cutting fluid, removed before heat treatment.
Corrosion, comparative rating
From wrought-alloy experience; test your printed parts
| Humidity | Excellent | Sea water | Excellent |
| Salt spray | Excellent | Acetic acid | Excellent |
| Nitric acid | Good | Sulfuric acid | Good |
| Phosphoric acid | Good | Sodium hydroxide | Good |
| Sour oil/gas | Good |
Specifications, equivalent names and how Hastelloy X compares
Specifications
From the manufacturer datasheet
| Applicable | AMS7008 |
| Associated | UNS N06002, AMS5536, AMS5754, AMS5798, ASTM B572 |
Equivalent names on LPBF machines
“Similar materials” in the datasheet; for parameter selection only, not machine-maker approvals
| Generic | Hast X, Alloy X |
| EOS | NickelAlloy HX |
| SLM Solutions | HX |
How it compares
Published tensile data, X–Y direction unless noted, one representative condition per alloy. Conditions differ, so use this to shortlist, not to design.
| Alloy | Condition | Yield, MPa | UTS, MPa | Elongation | Choose it for | 10 kg |
|---|---|---|---|---|---|---|
| Hastelloy X | Solution + age (LPBF, F cut) | 393 | 816 | 41% | Oxidation resistance to 1204 °C (2200 °F) | $515 |
| Inconel 625 | Stress relieved | 648 | 1007 | 41% | Corrosion resistance; cryogenic to 1093 °C (2000 °F) | $1,145 |
| Inconel 718 | Solution + age | 1086 | 1425 | 13% | Strength up to 704 °C (1300 °F) | $985 |
Will it run on my printer?
The 45–106 µm E cut is made for electron-beam powder bed fusion and powder-fed directed energy deposition. For laser powder bed fusion, use the 15–45 µm F cut listed above. Check the particle-size range your machine maker specifies.
Store sealed
Keep the container closed, dry and at room temperature until you load the printer.
Sieve
Sieve before loading and every time you reuse powder recovered from a build.
ATO Sieve · quoteLoad
Fill the hopper or powder feeder and run your machine’s vacuum or inert-gas procedure.
Print and relieve
Stress-relieve on the plate, then remove parts and supports.
Recover
Collect unfused powder, sieve it and return it to a sealed container.
Delfin Mistral 451 BL D2 — ATEX metal powder vacuum · $7,175Wear a respirator, gloves and eye protection when handling metal powder. Read the safety data sheet before first use.
Printed on AO Metal
Real builds on the LPBF printers we sell, and what teams make from this alloy.
Parts printed on AO Metal printers, which we sell. Alloys, parameters and powder lots differ from part to part; these photos show the process, not parts made from this specific powder lot.
- Turbine rotors
- Shafts
- Buckets
- Bolts
- Afterburner components
- Furnace hardware
Applications as listed by Carpenter Additive for PowderRange X.
Ordering, delivery and our promise
10 kg of 45–106 µm powder, sealed, traceable to its Carpenter lot certificate.
The ship date shows next to the Add to Cart button. Shipping cost is calculated at checkout.
Card or PayPal at checkout, an invoice, or a purchase order — choose how you buy next to Add to Cart.
100 kg and more: ask for a volume quote with your alloy, quantity and ship-to.
If the powder is not right, we make it right.
If your lot’s chemistry or particle size falls outside its certificate or this page, or it arrives damaged or wrong, tell us within 14 days of delivery. We replace it or refund you, and we pay for shipping both ways.
Complete the workflow
- ✓ 316L — stronger pitting and chemical resistance than 304 stainless
- ✓ Precision-ground flatness for consistent first-layer adhesion
- ✓ Made to order — choose your speed below: Express 2–3 wks, or Standard 6–8 wks (save ~45%)
- ✓ Conductive / antistatic build — no static build-up around ignition-sensitive powder
- ✓ For stainless, nickel & non-reactive AM powder — reactive metals need the inert unit
- ✓ In US stock · ships in 2 business days · genuine Delfin unit · ATEX docs on request
Automated 2-in-1 blasting cell that depowders and surface-finishes powder-bed 3D-printed parts in one enclosed, software-controlled cycle.
- ✓ Depowdering + surface finishing in one ATEX-compliant cell
- ✓ Polymer PBF (SLS, MJF, HSS, SAF) + de-powdered metal parts
- ✓ Lead time: 4–8 weeks — built to order · install + training included

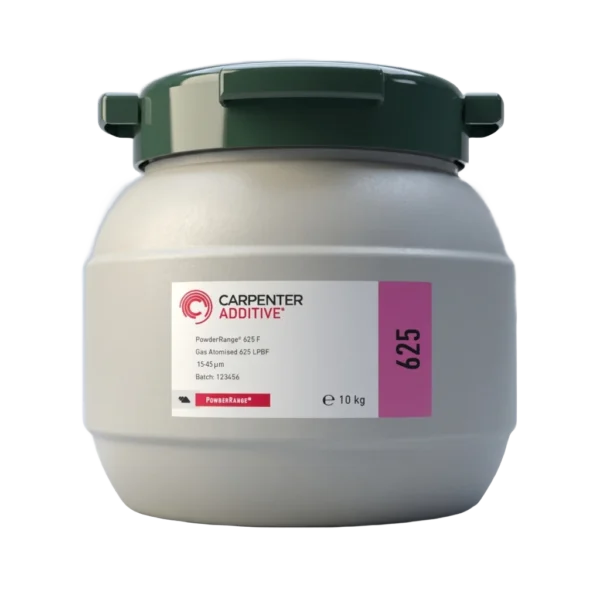

High-temp. Corrosion-proof. Non-magnetic. Genuine Carpenter PowderRange® 625 (Inconel® 625) nickel superalloy for LPBF, EBM & DED metal 3D printing.
