FAN CONVECTION LABORATORY OVEN - PF
The laboratory oven models are ideal for general laboratory work and routine heat applications
Price held 7 days after order.
Install + training included
Tailored service plan
Built for production teams
What your process engineer actually checks
Repeatable, validated thermal cycles
We sinter and heat-treat our own printed parts, so install includes validated debind and sinter profiles for your material — not a generic ramp. Every cycle is documented and repeatable, with atmosphere and temperature uniformity you can trust.
An applications engineer on the line
Questions on debind schedules, atmosphere control, sinter shrinkage, or HIP partners? A named applications engineer answers directly. Most replies in under 4 hours, NDA standard.
About this product
STANDARD FEATURES
• 300°C (PF 30 to PF 200) or 250°C (PF 400, PF 800) maximum operating temperatures
• 28 to 910 litre chamber volumes
• Equipped with the R38 digital PID temperature controller (PF 30 to PF 200)
• Carbolite Gero 301 controller, with single ramp to set-point & process timer (PF 400 & PF 800)
• Fan convection for rapid heating & recovery & excellent uniformity
• Chemically resistant stainless steel liner
• Two nickel-chrome plated wire shelves (The PF 400 is supplied with 3 wire shelves, the PF 800 with 3 perforated stainless steel shelves)
• Lever latch door & airtight silicone seal
• Compliant with safety standard BS EN 61010-2-010:2003
OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers
• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• Access port for independent thermocouple
• Accessory shelves & runners
• Heavy duty reinforced base and shelves
• Cable entry ports
• Variable speed fan control
• Stoving & curing options for extraction of small volumes of volatile solvents (not compatible with viewing window option)
• Viewing window (not compatible with stoving & curing option)
• Interior light (not compatible with stoving & curing option)

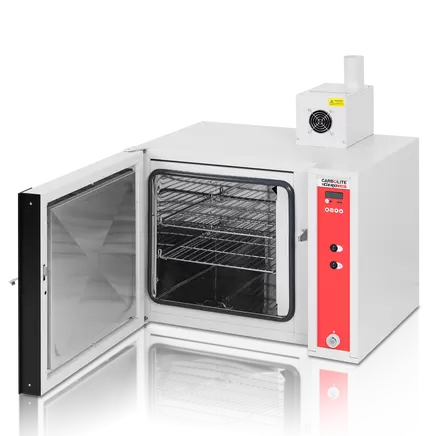

• Air exhaust fan
• Moisture extraction option (comprising sealed seams and air exhaust fan)
• Stacking frame to enable units to be stacked one upon another
• Lockable door
• Door switch to isolate elements and fan
• Fixed or castor mounted floor stands
• Low voltage options for use below 220 V
• Routine spares kit
STANDARD FEATURES
• 300°C (PF 30 to PF 200) or 250°C (PF 400, PF 800) maximum operating temperatures
• 28 to 910 litre chamber volumes
• Equipped with the R38 digital PID temperature controller (PF 30 to PF 200)
• Carbolite Gero 301 controller, with single ramp to set-point & process timer (PF 400 & PF 800)
• Fan convection for rapid heating & recovery & excellent uniformity
• Chemically resistant stainless steel liner
• Two nickel-chrome plated wire shelves (The PF 400 is supplied with 3 wire shelves, the PF 800 with 3 perforated stainless steel shelves)
• Lever latch door & airtight silicone seal
• Compliant with safety standard BS EN 61010-2-010:2003
OPTIONS (SPECIFY THESE AT TIME OF ORDER)
• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers
• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• Access port for independent thermocouple
• Accessory shelves & runners
• Heavy duty reinforced base and shelves
• Cable entry ports
• Variable speed fan control
• Stoving & curing options for extraction of small volumes of volatile solvents (not compatible with viewing window option)
• Viewing window (not compatible with stoving & curing option)
• Interior light (not compatible with stoving & curing option)
• Air exhaust fan
• Moisture extraction option (comprising sealed seams and air exhaust fan)
• Stacking frame to enable units to be stacked one upon another
• Lockable door
• Door switch to isolate elements and fan
• Fixed or castor mounted floor stands
• Low voltage options for use below 220 V
• Routine spares kit
PF30
| Max temp (°C) | 300 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 28 |
PF60
| Max temp (°C) | 300 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 66 |
PF120
| Max temp (°C) | 300 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 127 |
PF30
| Max temp (°C) | 300 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 28 |
PF60
| Max temp (°C) | 300 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 66 |
PF120
| Max temp (°C) | 300 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 127 |
PF200
| Max temp (°C) | 300 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 230 |
PF400
| Max temp (°C) | 250 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 460 |
PF800
| Max temp (°C) | 250 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 910 |
PF200
| Max temp (°C) | 300 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 230 |
PF400
| Max temp (°C) | 250 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 460 |
PF800
| Max temp (°C) | 250 |
| Min temp (°C) | Ambient +30 |
| Volume (litres) | 910 |
| Brand | Carbolite Gero |
| Model | PF200 |
| Max temp | 300°C |
| Min temp | Ambient +30°C |
| Volume (litres) | 230 |
| Temp uniformity (°C) | ±5.0 @ 300°C |
| Recovery time (mins) | 5 |
| Dimensions: Internal H x W x D | 750 x 590 x 520 mm / 29.53 x 23.23 x 20.47 in |
| Dimensions: External H x W x D | 920 x 965 x 670 mm / 36.22 x 37.99 x 26.38 in |
| Shelves fitted / accepted | 2 / 16 |
| Shelf loading each / total (kg) | 10 / 50 |
| Max power (W) | 2700 |
| Weight (kg) | 96 |
Full documentation — TDS, SDS, batch COA, and parameter sets for the major LPBF platforms. Everything you need for qualification under AS9100 / ISO 13485 workflows.
