STANDARD FEATURES • 300°C maximum operating temperature • Carbolite Gero 301 controller, with single ramp to set-point & process timer • Powerful vertical (A) or horizontal (B) airflow for optimum uniformity • Built to withstand the rigours of a production environment • Long lasting, polished 430 grade ferritic stainless steel internal case • Robust external construction from steel section & zinc coated mild steel panels • Mineral insulated metal sheathed heating elements • Low thermal mass insulation for high energy efficiency • Adjustable chamber ventilation
OPTIONS (SPECIFY THESE AT TIME OF ORDER) • A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers • Over-temperature protection (recommended to protect valuable contents & for unattended operation) • Access port for independent thermocouple • Cable entry ports • Bespoke specifications are available for AMS2750F (Nadcap) compliant applications • Additional shelves • Heavy duty reinforced base and shelves • Optional floor stand • Stoving & curing option for extraction of small volumes of volatile solvents
STANDARD FEATURES • 300°C maximum operating temperature • Carbolite Gero 301 controller, with single ramp to set-point & process timer • Powerful vertical (A) or horizontal (B) airflow for optimum uniformity • Built to withstand the rigours of a production environment • Long lasting, polished 430 grade ferritic stainless steel internal case • Robust external construction from steel section & zinc coated mild steel panels • Mineral insulated metal sheathed heating elements • Low thermal mass insulation for high energy efficiency • Adjustable chamber ventilation
OPTIONS (SPECIFY THESE AT TIME OF ORDER) • A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available – more information about controllers • Over-temperature protection (recommended to protect valuable contents & for unattended operation) • Access port for independent thermocouple • Cable entry ports • Bespoke specifications are available for AMS2750F (Nadcap) compliant applications • Additional shelves • Heavy duty reinforced base and shelves • Optional floor stand • Stoving & curing option for extraction of small volumes of volatile solvents
GP330BGP450AGP330BGP450A
GP220A
Max temp (°C)
300
Volume (litres)
220
GP330A
Max temp (°C)
300
Volume (litres)
330

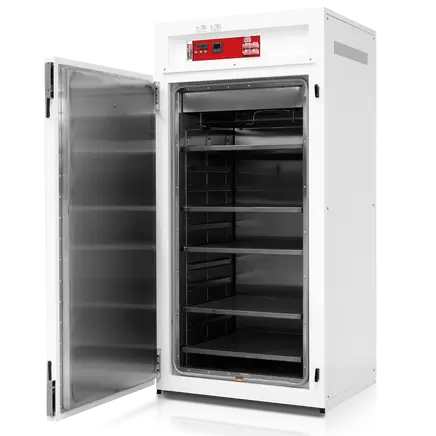

GP450A
Max temp (°C)
300
Volume (litres)
450
GP220A
Max temp (°C)
300
Volume (litres)
220
GP330A
Max temp (°C)
300
Volume (litres)
330
GP450A
Max temp (°C)
300
Volume (litres)
450
GP220B
Max temp (°C)
300
Volume (litres)
220

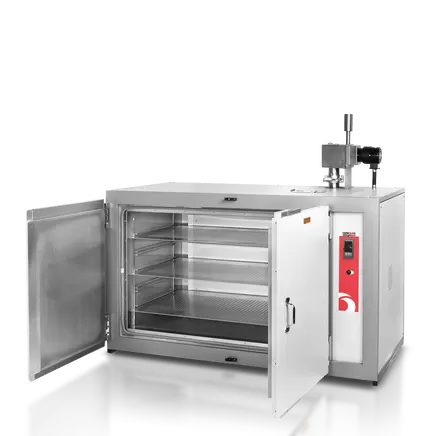

GP330B
Max temp (°C)
300
Volume (litres)
330
GP450B
Max temp (°C)
300
Volume (litres)
450
GP220B
Max temp (°C)
300
Volume (litres)
220
GP330B
Max temp (°C)
300
Volume (litres)
330
GP450B
Max temp (°C)
300
Volume (litres)
450
Brand
Carbolite Gero
Model
GP 220A
Max temp
300°C
Volume (litres)
220
Temp uniformity (°C)
±5.0 @ 300°C
Recovery time (mins)
24
Dimensions: Internal H x W x D
610 x 610 x 610 mm / 24.02 x 24.02 x 24.02 in
Dimensions: External H x W x D
1240 x 862 x 850 mm / 48.82 x 33.94 x 33.46 in
