Farsoon FS200M-2 LPBF Metal 3D Printer – Dual-Laser Series Production | 16.7×9.1×11.8 in / 425×230×300 mm

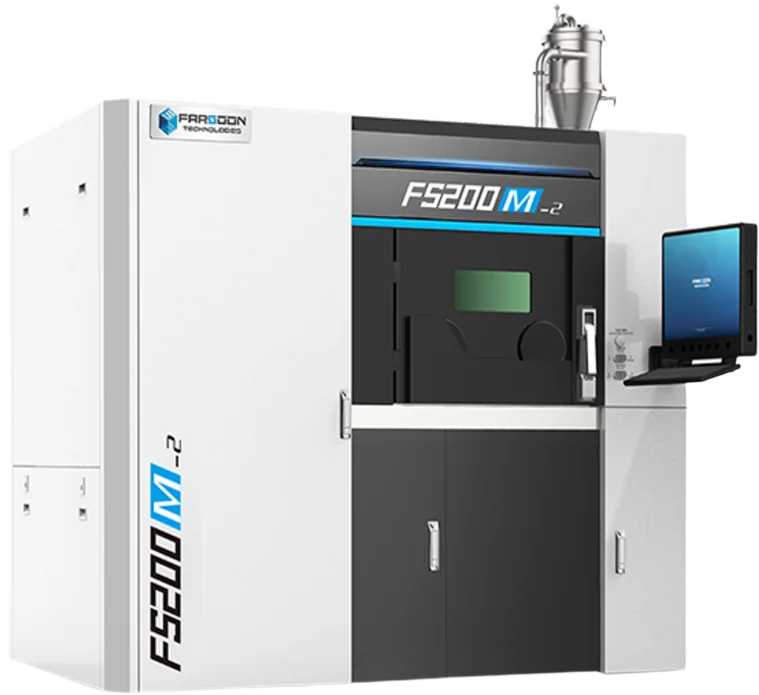

The Farsoon FS200M-2 is a metal LPBF 3D printer with a 16.7×9.1×11.8 in / 425×230×300 mm build envelope, running two 500 W fiber lasers.
- ✓ 2×500 W — dual fiber lasers
- ✓ 16.7×9.1×11.8 in / 425×230×300 mm build envelope
- ✓ Open platform — full access to process parameters, qualify your own alloy
- ✓ Lead time: built to order — confirmed at quote
Installation and commissioning in the USA: facility and gas planning, start-up and operator training by our US service team.
What your process engineer actually checks
Throughput per square foot
Two 500 W lasers over a 425 mm long envelope on a 37.5 sq ft / 3.48 m² footprint. In an additive factory the number that matters is parts per square foot per year, and this frame is built around it.
An applications engineer on the line
Not a ticket queue — engineers who run LPBF in production in-house at AO Metal. Alloy qualification, parameter development, troubleshooting. Sub-4h reply, NDA on request.
The Farsoon FS200M-2 is a dual-laser LPBF system built for series production in molds, tooling and automotive. A long 16.7×9.1×11.8 in / 425×230×300 mm envelope, two 500 W lasers and a 37.5 sq ft / 3.48 m² footprint — the format for parts that repeat, not one-offs.
Why engineers choose the FS200M-2
Four things your process engineer will check first.

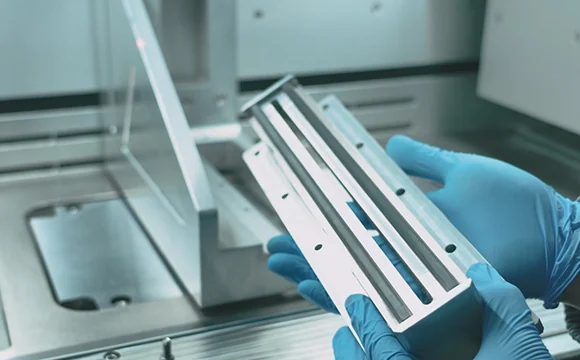

A long envelope, not a square one
425×230×300 mm suits parts that are long rather than bulky — sole molds, rails, manifolds. You nest more of them per plate than a square frame of the same volume would allow.
Dual-laser scanning with a robust recoater
Two 500 W lasers at up to 32.8 ft/s / 10 m/s, paired with industry-leading communication speed and a recoater built for continuous running. Faster production without giving up surface quality.
Top-feed powder, no build interruption
A high-efficiency top-feed system and a separate powder delivery unit handle material without disturbing the build in progress.
Two-stage filtration, 3.48 m² footprint
An integrated two-stage filter module stretches operating time between filter changes, and the compact floor plan lets you pack more machines per square foot of factory.
How we deliver and support it
What happens between the purchase order and your first qualified part.
Scope the cell
We size the configuration against your part mix, then plan power, argon or nitrogen supply and extraction with your facilities team. Machine envelope is 91.3×59.1×78.7 in / 2320×1500×2000 mm; EUR/China: 400V±10%, 3~/N/PE, 50Hz, 25A. The US transformer ships with the machine.
Install and train in the USA
Commissioning and operator training by our US service team. First builds are run together, so your operators hand over parts rather than a checklist.
Parameters, spares, engineer
Validated parameter sets for your alloy, US-held spares, and an applications engineer who has run LPBF in production in-house at AO Metal. Sub-4h reply, NDA on request.
What the FS200M-2 is built for
Dual-Laser Metal LPBF for Series Production. The FS200M-2 runs two 500 W fiber lasers over a 16.7×9.1×11.8 in / 425×230×300 mm build envelope. Full specifications are in the Specifications tab below.

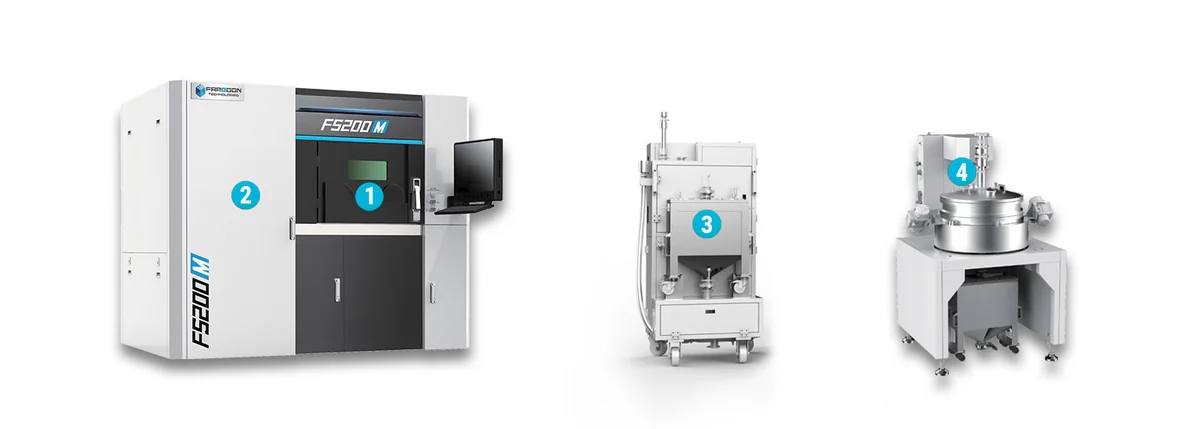

Powder handling and workflow
Qualified materials
Farsoon lists 316L and AlSi10Mg, with ST1, Maraging Steel Grade 300 and 420 in process development for the FS200M-2. Because the platform is open, a grade outside that list is a parameter development project rather than a dead end, and one we can run with you. The alloys we stock are lot-certified and held in the USA.
Typical applications
Where FS200M-2 systems are actually running.
A production case, in numbers

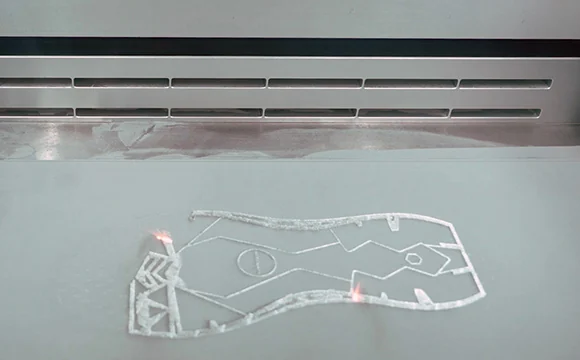

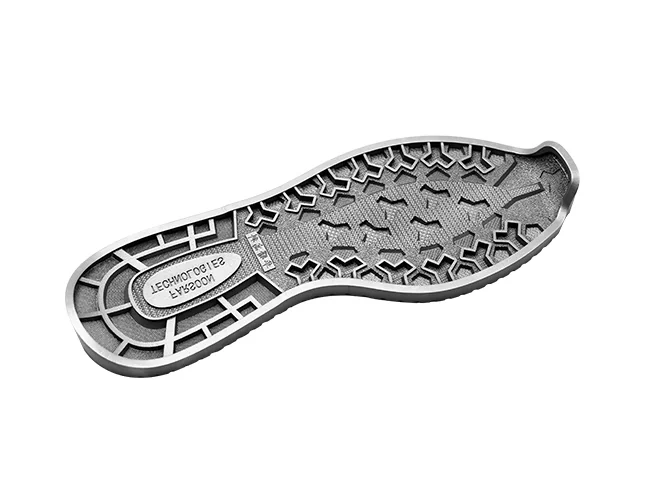

| Metal shoe sole mold, 316L | Figure |
|---|---|
| Machine | FS200M-2, dual laser |
| Material | 316L |
| Build time | 17 hours |
| Envelope used | 16.7×9.1×11.8 in / 425×230×300 mm |
Case as published by Farsoon. Your build time depends on geometry, nesting and parameter set.

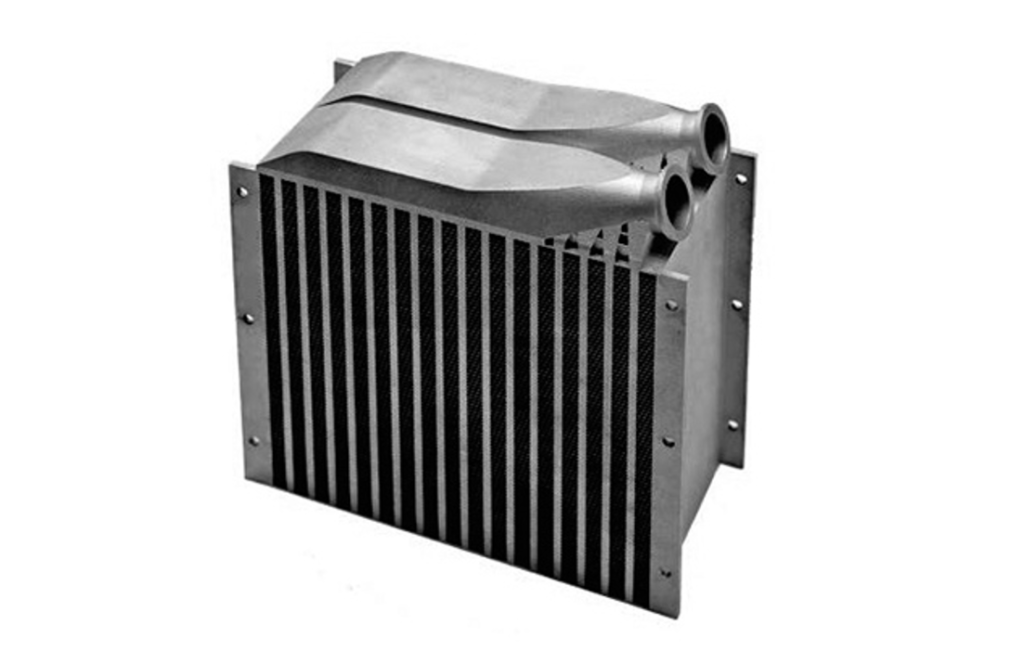

An aluminium heat exchanger with 0.2 mm walls
Farsoon publishes an automotive heat exchanger built on the FS200M-2 with partner SAPW: internal channels and a minimum wall thickness of 0.2 mm, in aluminium. Against machining and welding it removes the joints entirely, which is usually where this class of part fails.
Not sure the FS200M-2 is the right frame size?
Three Farsoon LPBF platforms either side of it.
Taller partsFarsoon FS301MView printer →
More lasersFarsoon FS350MView printer →
Why source the FS200M-2 through Additive Plus
- US sales, installation, commissioning and operator training by our own service team.
- Applications engineering from a team that runs LPBF in production in-house at AO Metal — parameter development, not a ticket queue.
- Lot-certified metal powders stocked in the USA for the alloys this machine runs.
- Leasing and financing available on capital equipment.
- Print a paid benchmark part in California before you commit to a system.
- Response under 24 hours · 200+ AM systems delivered across 23 countries.
| Brand | Farsoon Technologies |
| External Dimensions (L×W×H) | 91.3×59.1×78.7 in / 2320×1500×2000 mm |
| Build Volume | 425×230×300 mm (16.7×9.1×11.8 in) |
| Net Weight | Approx. 4409 lb / 2000 kg |
| Layer thickness | 0.0008–0.0039 in / 0.02–0.1 mm |
| Scanning Speed | Max. 32.8 ft/s / 10 m/s |
| Laser Type | Dual fiber lasers, 2×500W |
| Scanner | F theta lenses |
| Inert Gas Protection | Argon/Nitrogen |
| Average Inert Gas Consumption in Process | 3-5 L / min |
| Operating system | 64 bit Windows 10 |
| Software | BuildStar, MakeStar® |
| Data File Format | STL |
| Key Software Features | Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions |
| Power Supply | EUR/China: 400V±10%, 3~/N/PE, 50Hz, 25A · US: transformer supplied with the machine |
| Operating Ambient Temperature | 71.6-82.4 °F / 22-28 °C |
| Material | 316L, 420, AlSi10Mg, ST1, 18Ni300 |
| Technology | Metal LPBF |
| Printing Materials | Metal Powders |
Send your STL and we print a paid benchmark part on a Farsoon metal LPBF system in California, with the parameter set and the cost per part written up.
