In stock
- Solids loading + debind/sinter guidance in every order
- Mutual NDA before any file or spec review

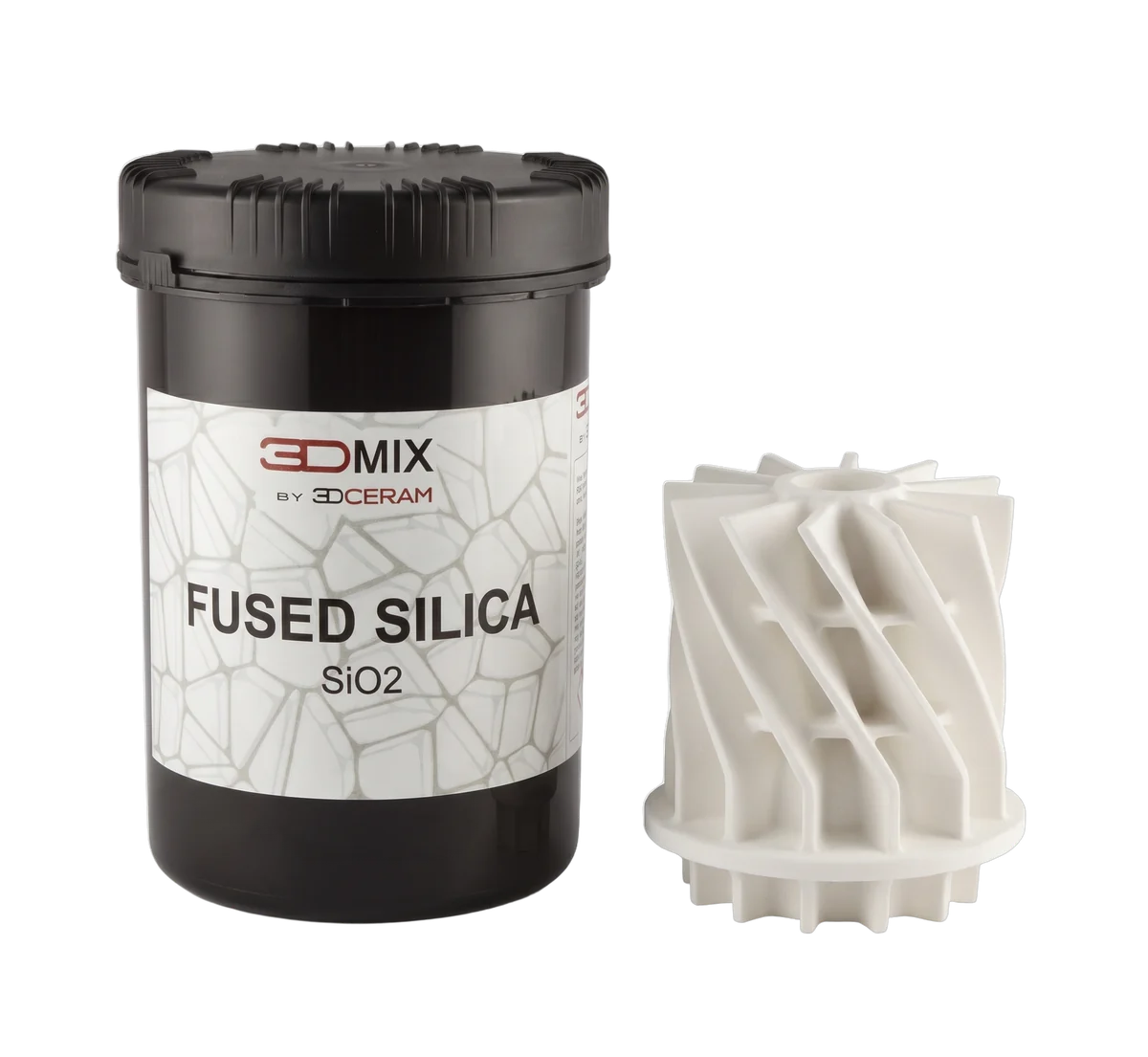

Fused Silica 3D Printing Paste
Print leachable fused-silica investment-casting cores on 3DCeram's Ceramaker laser-SLA platform for complex internal casting geometries.
- ✓ 40% porosity, excellent leachability — cleanly removed after casting
- ✓ Very low expansion (0.07% max dilatation to 1500 °C) holds core dimension through the pour
- ✓ Ceramic SLA paste for the 3DCeram Ceramaker platform — quote-based, mutual NDA before spec review
What your foundry engineer actually checks
Core-specific data
40% porosity, 0.07% maximum dilatation to 1500 °C and controlled shrinkage — the numbers that decide whether a core survives the pour and leaches out cleanly. We ship the datasheet.
The full ceramic workflow
Every order ships with the firing and handling parameters. Shrinkage is compensated in build prep so printed cores land on dimension and leach out predictably.
A materials engineer on the line
Core printing, firing and leaching are where casting jobs fail. Talk to an engineer who runs this paste — sub-4h reply, NDA standard.
Fused Silica 3D Printing Paste is a 3DCeram fused-silica paste for the Ceramaker laser-SLA platform — a porous, easily-leachable silica ceramic developed for investment-casting cores.
Why engineers choose this paste
Built for foundry cores: printable, leachable and dimensionally stable at casting temperature.
Excellent leachability
Porous silica core dissolves out cleanly after casting — even from complex internal passages.
Very low expansion
Maximum dilatation 0.07% up to 1500 °C — holds core dimension through the pour.
Complex core geometry
Print internal cooling passages and cores that cannot be made by conventional coremaking.
High-temperature stable
Low cristobalite content keeps the core stable to casting temperature.
Print → debind → sinter
Ceramic stereolithography on the 3DCeram Ceramaker platform. The green part is larger than the finished part — shrinkage is compensated in build preparation.
Laser SLA print
The ceramic-loaded paste is cured layer-by-layer on a 3DCeram Ceramaker laser-SLA machine into a green part.
Debinding
The organic binder is removed in a controlled thermal cycle, leaving a fragile ceramic-only brown part.
Sintering
Fired to a porous silica core (1.36 g/cc, 40% porosity) with shrinkage below 5% and excellent leachability.
Typical applications
Investment-casting cores for complex internal geometries.
Fused Silica — physical & general properties
Representative post-sinter values from the 3DCeram material datasheet. Final numbers depend on part geometry and your qualified sinter cycle.
| Property | Value |
|---|---|
| Porosity | 40% |
| Density | 1.36 g/cm³ |
| Cristobalite content | 2% |
| Roughness (Ra) | 1.3 µm |
| Max dilatation (RT–1500 °C) | 0.07% |
| Shrinkage before 1500 °C | 4.61% |
| Shrinkage at 1500 °C | 0.11% |
| Brand | 3DCeram |
| Country of origin | France |
| Printing Materials | Ceramic Pastes |
| Technology | CERAMIC SLA |
| Material | Fused Silica (SiO2) |
| Application | Composite Tooling, Engineering, Jigs & Fixtures, Manufacturing |
We formulate and qualify. Custom variants on request.
Need a specific ceramic chemistry, solids loading, or a tuned binder for your process? Our materials team formulates and verifies rheology and sinter behavior before you commit. Typical lead 3–4 weeks.
Complete the workflow
- ✓ 11+ ceramic materials — Al₂O₃, ZrO₂, Si₃N₄, TCP, HA, AlN, cordierite and more
- ✓ Top-down SLA — support-free complex internal geometries in dense ceramic
- ✓ SAM option — 100 mL minimum batch for R&D economy with expensive compositions
Automated cleaning system that removes excess ceramic paste from freshly printed green parts, leaving them ready to debind — replacing slow, hands-on solvent cleaning in the ceramic AM workflow.
- ✓ Gentle, low-mechanical-stress cleaning of fragile green parts
- ✓ Batch time cut dramatically vs manual (e.g. 60 min → 5 min on 70 alumina parts)
- ✓ Solvent longevity + recycling · no manual solvent contact
Print robust, leachable Silicore foundry cores on 3DCeram's Ceramaker laser-SLA platform for complex, demanding castings.
- ✓ Higher-strength silica core formulation — survives handling and assembly
- ✓ Good leachability and low shrinkage (0.20% max to 1500 °C); all alloys except cobalt
- ✓ Ceramic SLA paste for the 3DCeram Ceramaker platform — quote-based, mutual NDA before spec review
Other products teams run alongside Fused Silica 3D Printing Paste
In stock
· In stock — ships in 1–2 business days from our Los Angeles warehouse.
Zetasinter 4L is a tubular furnace for sintering printed metal parts under controlled atmosphere.
- ✔ Sinters under argon or argon and hydrogen — the atmosphere metal parts need
- ✔ Sized for prototyping and small production runs, not for a service bureau queue
- ✔ Runs on 220 V, 6 kW — no plant-level power supply required
Freight and installation requirements confirmed with you before the order is placed.
Made to order
· Ships from California · timeline confirmed at quotation
Print a mold, cast your part, dissolve the mold in water. ALTANA Cubic Ink Mold 400 VP is a water-breakable liquid photopolymer resin for Freeform Injection Molding — 3D-print a sacrificial mold on an open DLP/LCD/mSLA printer, cast or inject your production material (even PEEK, PPS or glass-filled), then break the mold away in plain water.
- ✓ Open platform — parameters for Nexa XiP, Formlabs, Asiga, Prusa, Phrozen
- ✓ Water-breakable demolding — no solvent bath
- ✓ Handles real process heat & pressure — up to 380 °C / 1200 bar
Sold in 1 kg and 5 kg bottles · invoiced per kg · in stock.
In stock
· Ships in ~2 business days
Fast, general-purpose LSPc resin — the BASF Forward AM Ultracur3D ST 45 formulation — for tough, dimensionally stable models and functional prototypes at draft speeds above 15 cm/hr, in a clear Natural finish.
- ✓ 52 MPa tensile · 12% elongation · Shore D 85 · HDT 120 °C
- ✓ 1.5 kg bottle sized for the Nexa3D XiP (LSPc) — validated print profile included
- ✓ Ships in 1–2 business days from US stock
In stock
· Ships in 1–2 business days from US stock.
Cost-effective ABS pellets qualified for large-format additive manufacturing (LFAM) — stiff, impact-tough parts and tooling at pellet cost, unreinforced or glass-fiber reinforced.
- ✓ Stiff and impact-tough — machines, sands, and paints cleanly for masters and tooling
- ✓ Ships dry with a lot datasheet + drying and extrusion parameters
- ✓ Lead time: 1–2 business days from L.A. stock — volume & PO on request
In stock
· 1–2 Business Days

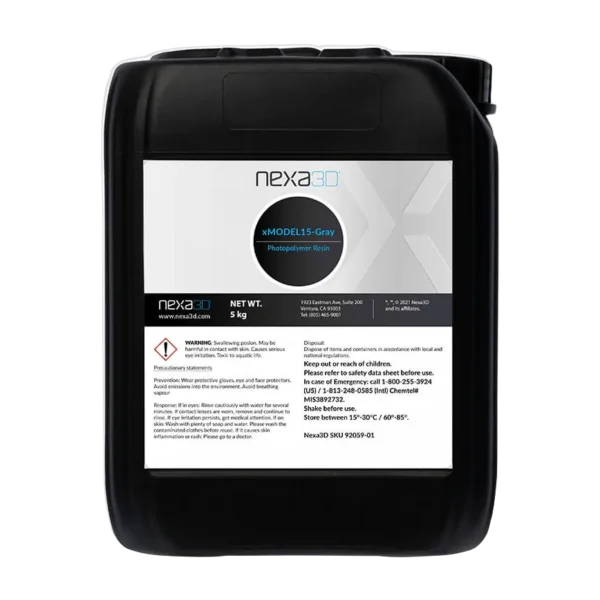

Nexa3D xMODEL15-Gray is an economical 405 nm LSPc photopolymer for fast, high-detail concept and appearance models — 55 MPa tensile, 78–80 Shore D, with a neutral gray finish that reads surface detail in design reviews.
- ✓ High detail and a paintable, plate-ready finish
- ✓ Runs on Nexa3D XiP, XiP Pro and NXE 400 / NXE 400 Pro — 405 nm LSPc
- ✓ In US stock — ships in 2 business days, lot-matched for repeatable prints
In stock
· 2 Business Days
Light-curing filled composite for permanent crowns, inlays, onlays, veneers and denture teeth — shade A2, validated on Nexa3D LSPc.
- ✓ Permanent indication: flexural strength > 130 MPa (ISO 4049), E-modulus > 4000 MPa
- ✓ One-phase esthetics — pre-matched A2 opacity, no layering; biocompatible after UV post-cure
- ✓ 0.5 kg ready-to-use bottle, zero pre-mixing · ships in 1–2 business days
In stock
· 1–2 Business Days
Currently not in stock. Leave a request and we will confirm availability, price and lead time.

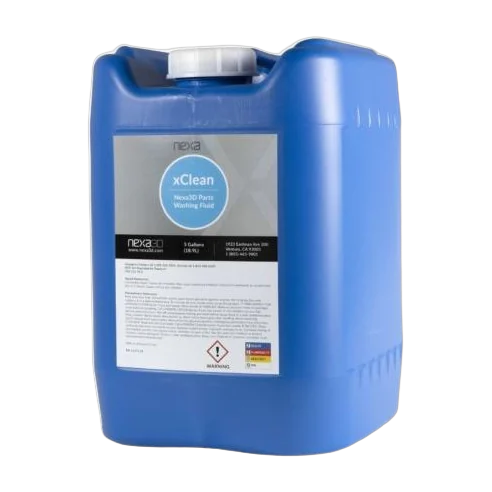

Bulk washing solvent for rinsing uncured resin off SLA and LSPc 3D-printed parts — holds around 3× the dissolved resin of IPA and has a higher flash point, in a 5-gallon pack that lowers cost per litre for production.
- ✓ ~3× the resin capacity of IPA — fewer changeouts, less waste
- ✓ Higher flash point than IPA · leaves no greasy residue · water-rinse after
- ✓ 5 gallon (18.9 L) · US-made · available on request (not in stock)
Out of stock
· Not in stock — available on requestCommon questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
What is Fused Silica paste used for?
Why print a core instead of making it conventionally?
How well does the core leach out?
How much does the core shrink during firing?
How does Fused Silica differ from Silicore?
Which printer runs this paste, and can I trial it?
Place your order, or talk to an engineer first
Order Fused Silica 3D Printing Paste direct, or talk to materials engineer
