3DCeram AUTO CERAKLEANER — Automated Cleaning for Ceramic 3D-Printed Green Parts
Automated cleaning system that removes excess ceramic paste from freshly printed green parts, leaving them ready to debind — replacing slow, hands-on solvent cleaning in the ceramic AM workflow.
- ✓ Gentle, low-mechanical-stress cleaning of fragile green parts
- ✓ Batch time cut dramatically vs manual (e.g. 60 min → 5 min on 70 alumina parts)
- ✓ Solvent longevity + recycling · no manual solvent contact
Price held 7 days after order.
Install + training included
Tailored service plan
What your process engineer actually checks
What your process engineer actually checks
Gentle on green parts, fast on batches
Ceramic green parts are fragile before debinding, so the AUTO CERAKLEANER cleans with low mechanical stress using tailor-made fixtures — removing excess paste without breaking parts. It also collapses batch time: a vendor comparison shows 70 alumina parts cleaned in about 5 minutes versus 60 minutes by hand.
An applications engineer on the line
Not a ticket queue. We run ceramic AM in-house across print, clean, debind and sinter, so solvent, fixture and cycle advice comes from the floor. Sub-4h reply, NDA standard.
Green-part cleaning
Ceramic AM post-print
60 → 5 min
70 alumina parts (vs manual)
Low stress
Gentle on fragile green parts
Recycled solvent
Longevity + active recycling
France
3DCeram Sinto
About this product

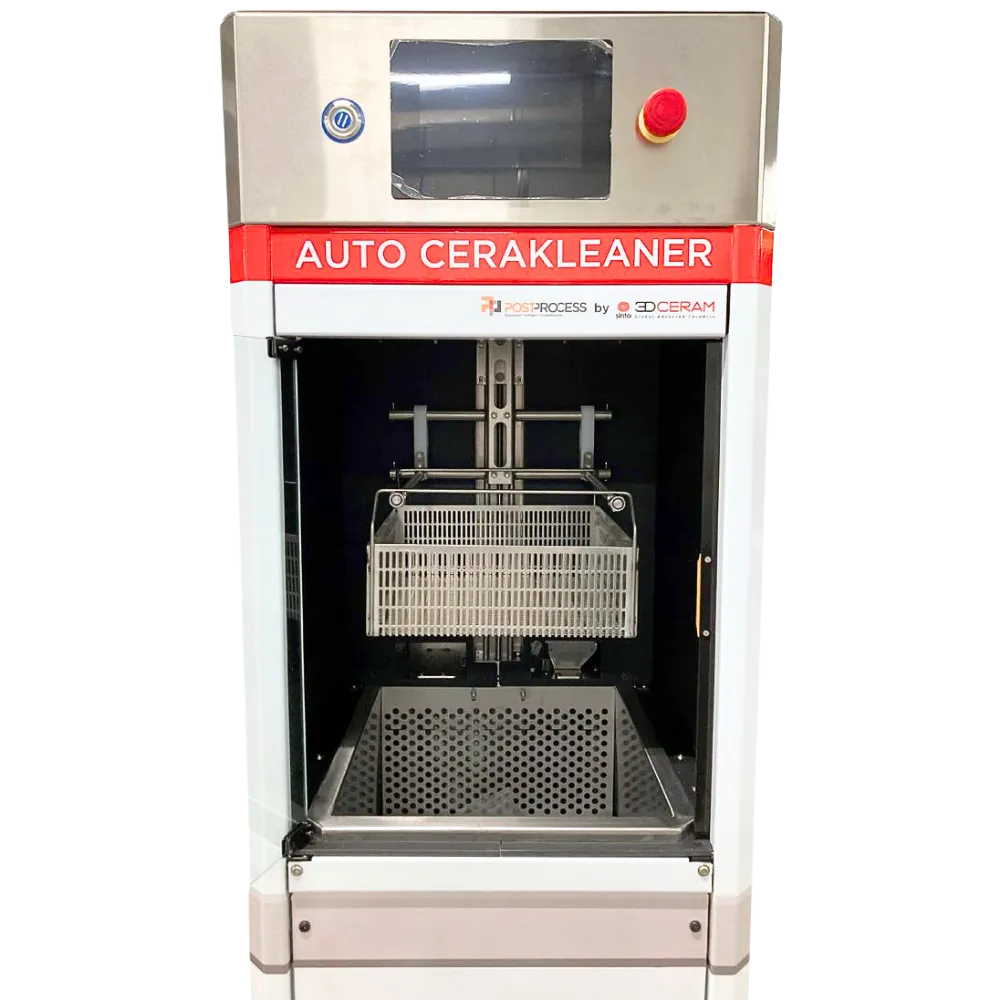

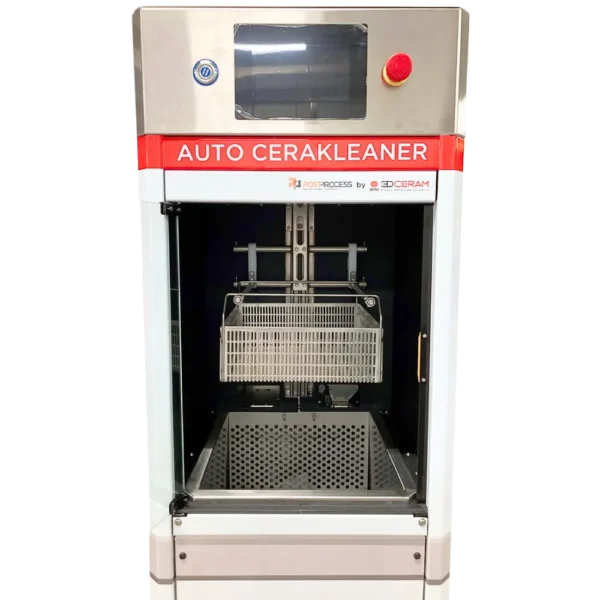

The 3DCeram AUTO CERAKLEANER is an automated station that cleans freshly printed ceramic green parts, removing excess ceramic paste so they are ready to debind. It replaces slow, hands-on solvent cleaning in the ceramic AM workflow — gentle on fragile parts, and far faster per batch.
Why ceramic shops run the AUTO CERAKLEANER
Gentle on green parts, fast on batches, lower solvent cost.
Gentle on fragile green parts
Ceramic green parts have very little strength before debinding. The AUTO CERAKLEANER cleans with low mechanical stress and holds parts in tailor-made fixtures, so thin walls and fine features survive the cycle.
Batch time cut sharply
Automated cleaning collapses the slow manual step: a vendor comparison shows a batch of 70 alumina parts cleaned in about 5 minutes versus 60 minutes by hand — freeing operators and speeding the whole workflow.
Solvent longevity + recycling
A dedicated solvent with active recycling runs many cleaning cycles before it needs renewing, cutting solvent consumption, waste and disposal cost compared with frequent manual solvent changes.
Safer, consistent, ready-to-debind
The automated cycle takes operators out of manual solvent contact and delivers repeatable, ready-to-debind parts — the same clean result every batch, regardless of who runs it.
Where it sits in the ceramic workflow
Print → clean → debind → sinter — the AUTO CERAKLEANER is the clean step.
Step 01
Print the green part
A 3DCeram stereolithography printer builds the ceramic green part from paste, leaving excess slurry on the surface and in features.
Step 02
Automated cleaning
Load parts in tailor-made fixtures; the AUTO CERAKLEANER runs a gentle, automated solvent cycle to remove excess paste — ready-to-debind, hands-off.
Step 03
Debind & sinter
The cleaned part is debound and sintered to full density. Additive Plus can supply and support the furnaces for these steps too.
Ceramics it cleans
Across the 3DCeram technical-ceramic range.
Alumina & ATZ
Structural technical ceramics
Zirconia 3Y / 8Y
Dental & engineering
Silicon & aluminium nitride
Thermal / electronic ceramics
Hydroxyapatite / TCP
Medical & bioceramics
Cordierite & fused silica
Casting cores, thermal parts

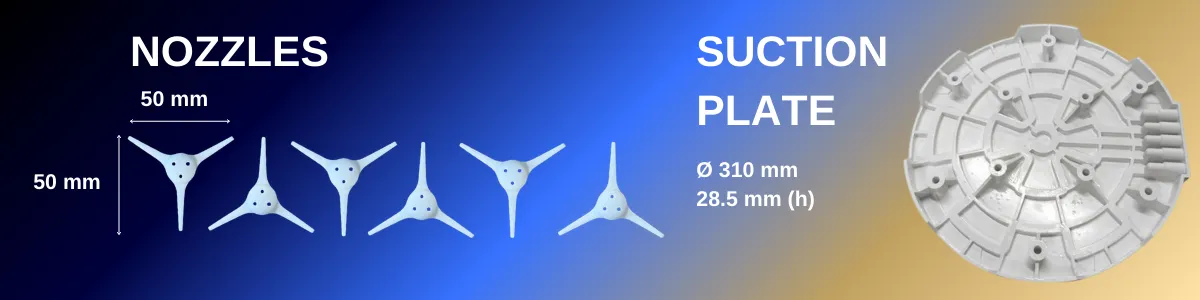

Semiconductor parts
e.g. suction plates, nozzles
Key specifications
- Function: automated cleaning of ceramic 3D-printed green parts — removes excess paste, ready-to-debind
- Process: gentle, low-mechanical-stress solvent cleaning with tailor-made part fixtures
- Solvent: dedicated 3DCeram cleaning solvent with longevity + active recycling
- Materials: alumina, ATZ, zirconia 3Y/8Y, silicon nitride, aluminium nitride, hydroxyapatite, tricalcium phosphate, cordierite, fused silica
- Throughput example: ~70 alumina parts in about 5 min (vs ~60 min manual)
- Origin: 3DCeram Sinto (France) · utilities and footprint confirmed at quote
Machine dimensions and utilities are confirmed at quote as part of installation planning.
Build the full ceramic workflow
The steps that sit around the AUTO CERAKLEANER.
Send us your part geometry and ceramic material — an applications engineer will estimate the batch-time and solvent savings for your production and scope the full clean-debind-sinter chain. We run ceramic AM in-house. Sub-4h reply, NDA standard.
Why source the AUTO CERAKLEANER through Additive Plus
- Authorized 3DCeram Sinto partner — US sales, install and service
- Solvent supply and process guidance across print → clean → debind → sinter
- Application support from a team that runs ceramic AM in-house
- <24h response · 200+ AM systems delivered across 23 countries
| Brand | 3DCeram |
| Country of origin | France |
| Technology | Cleaning, CERAMIC SLA |
| Printing Materials | Ceramic Pastes |
| Material | Alumina, Alumina Toughened Zirconia, Aluminium Nitride, Cordierite, Fused Silica, Hydroxyapatite, Silicone Nitride, Silicore, Tricalcium Phosphate, Zirconia 3Y, Zirconia 8Y |
Product videos
Cleaning ceramic green parts by hand?
Send us your part geometry and ceramic material — an applications engineer will estimate the batch-time and solvent savings the AUTO CERAKLEANER delivers for your production, and scope the full clean-debind-sinter chain.
