QATM Qpix Control2 Hardness Testing Software – CHD/Weld Analysis, Edge Recognition & Reporting
Advanced PC software for QATM Qness hardness testers — machine control, automated indentation evaluation and audit-ready reporting, with CHD/SHD/NHD case-depth analysis, weld and HAZ mapping, edge recognition and panorama imaging.
- ✓ Automated case-hardening-depth and weld evaluation, standard-referenced (ISO 6507 / 6506 / 6508)
- ✓ Edge recognition, template and test-block management, Qness Calibration Manager
- ✓ Licensed, installed and set up with your Qness system — configured to order
Price held 7 days after order.
Install + training included
Tailored service plan
What your metrology engineer actually checks
What your metrology engineer actually checks
Standard-referenced evaluation
Qpix Control2 evaluates Vickers, Knoop, Brinell and Rockwell to ISO 6507 / 6506 / 6508 and runs CHD/SHD/NHD per ISO 2639. The Calibration Manager keeps verification on schedule and tracks trends — the audit trail your AS9100 assessor checks, so results are conformant, not just comparable.
An applications engineer on the line
Template building, report layout and method support from engineers who run metallography and AM materials in-house. Sub-4h reply, NDA standard.
CHD · SHD · NHD
Case-depth evaluation
Weld · HAZ
Test-point tooling
PDF · XLSX · CSV · XML
Export formats
Qness testers
Compatibility
About this product
QATM Qpix Control2 is the advanced PC software for QATM Qness hardness testers — it drives the machine, evaluates indentations and turns a test series into an audit-ready report, with automated case-hardening-depth analysis, weld and HAZ mapping, edge recognition and panorama imaging.
Why metrology labs choose Qpix Control2
Automated evaluation, weld tooling and reporting built around QATM Qness hardness testers.

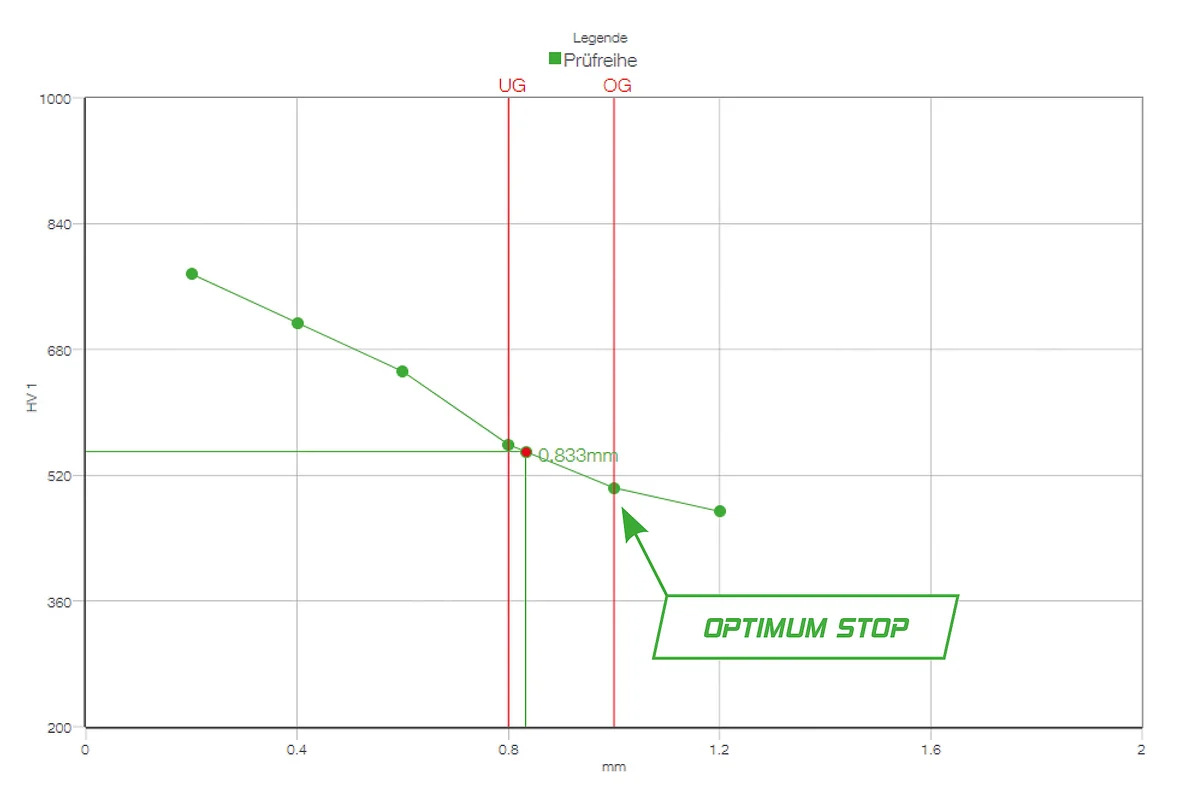

Automated CHD / SHD / NHD
Case-, surface- and nitriding-hardening-depth evaluation with an Optimum Stop mode that ends a series once the hardness limit is undercut — no wasted indentations.

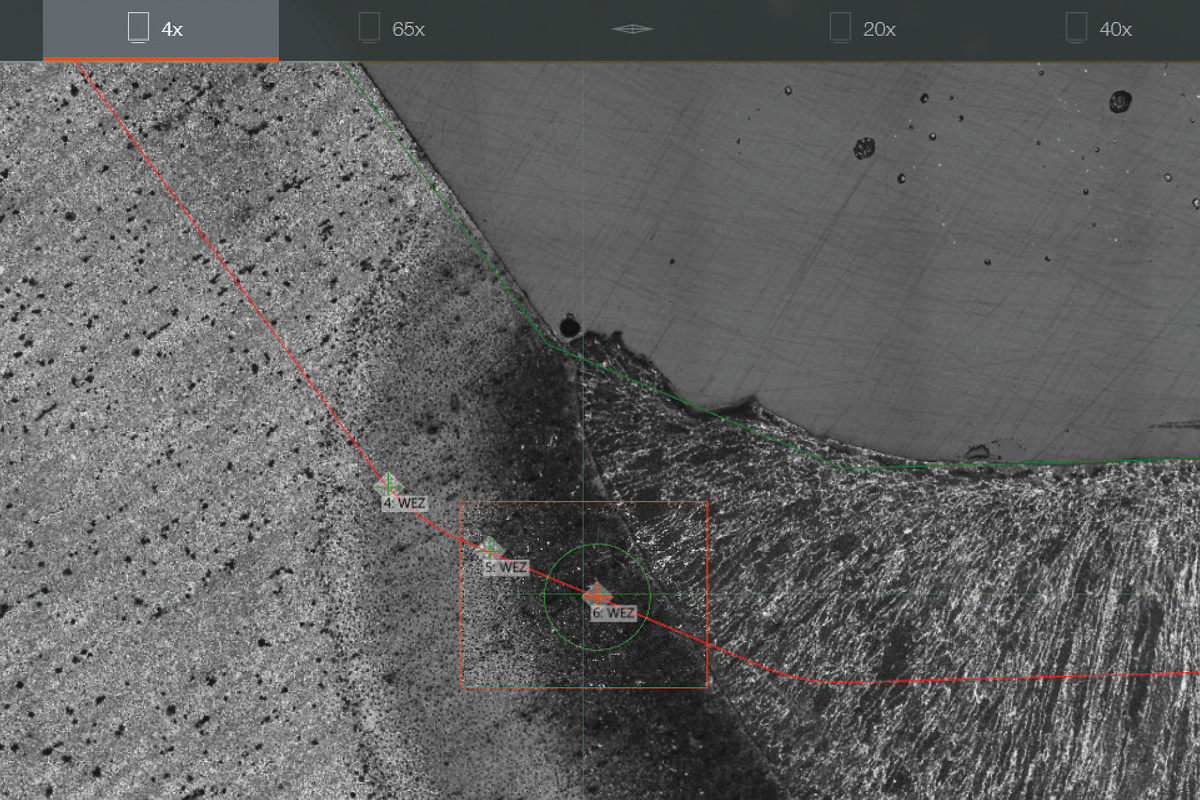

Weld & HAZ toolset
Place test points along or parallel to a polygon line, with marking and guide circles for exact positioning across the weld and heat-affected zone.

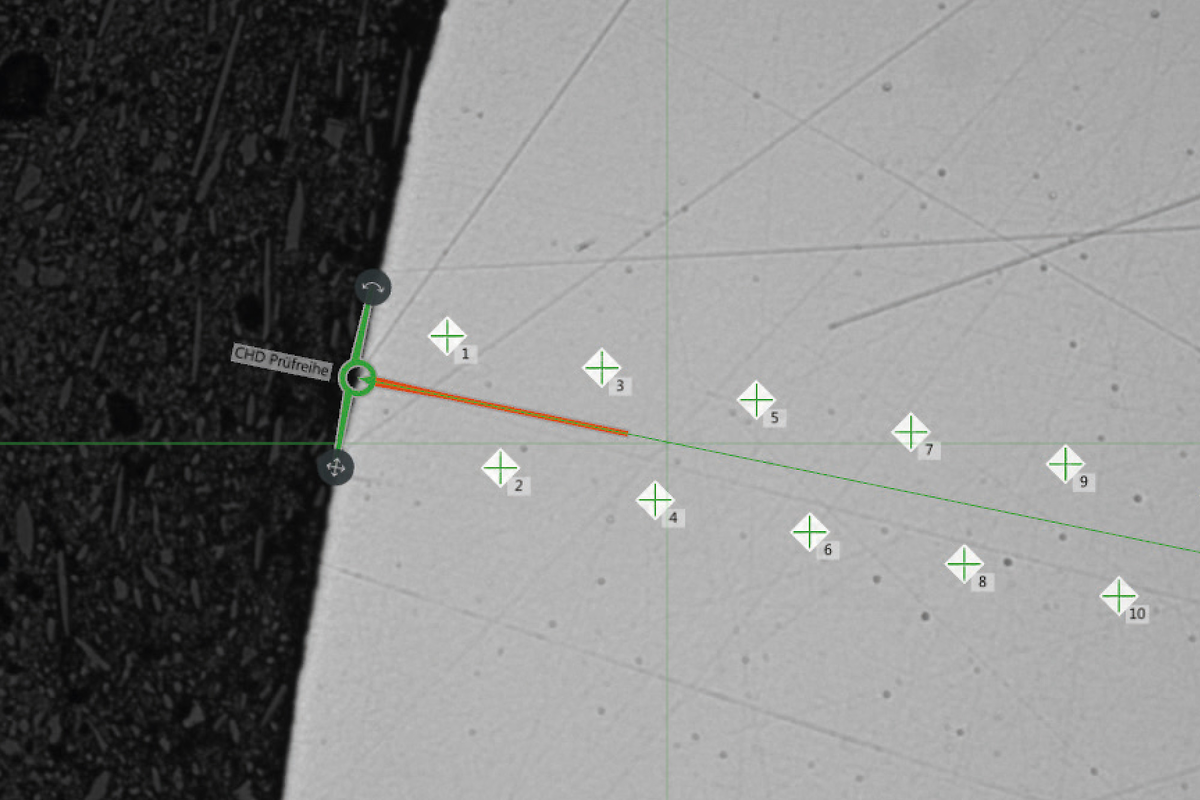

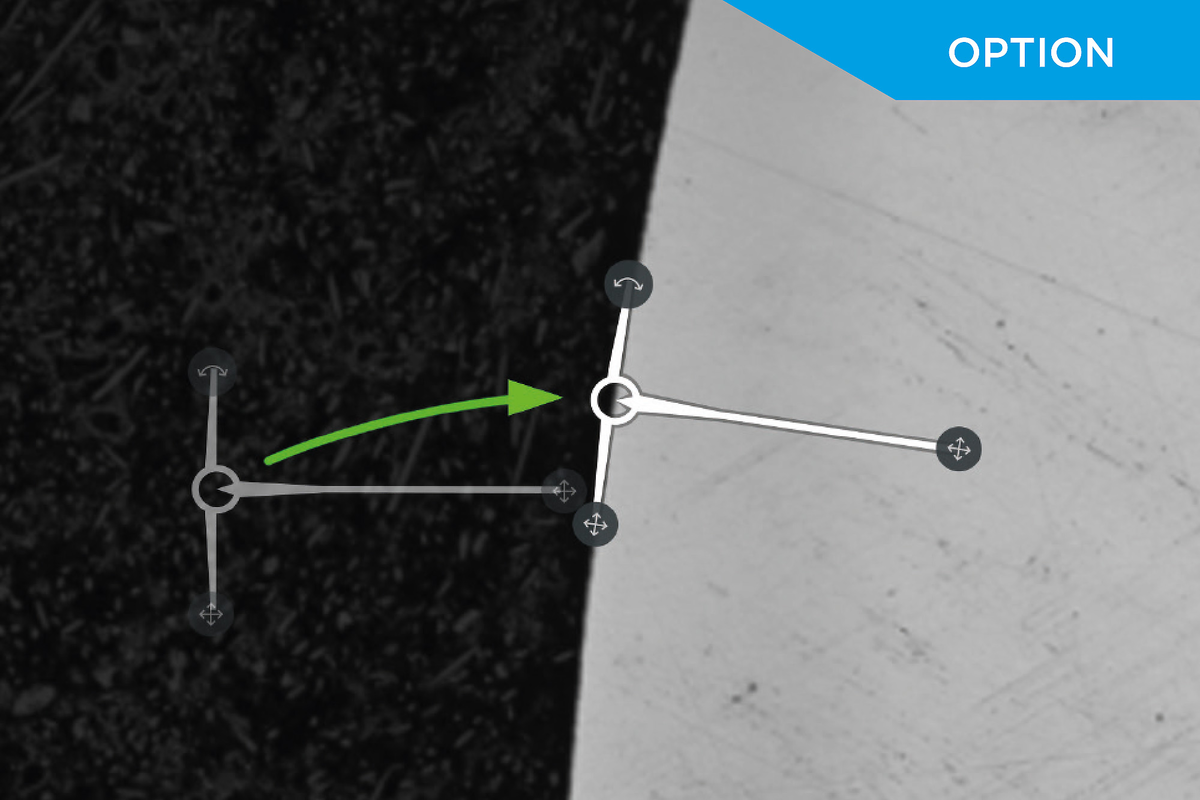

Edge recognition + predictive points
The software moves to programmed start points and corrects their position before testing, shows the expected indentation size, and warns when points fall below the normed minimum spacing.

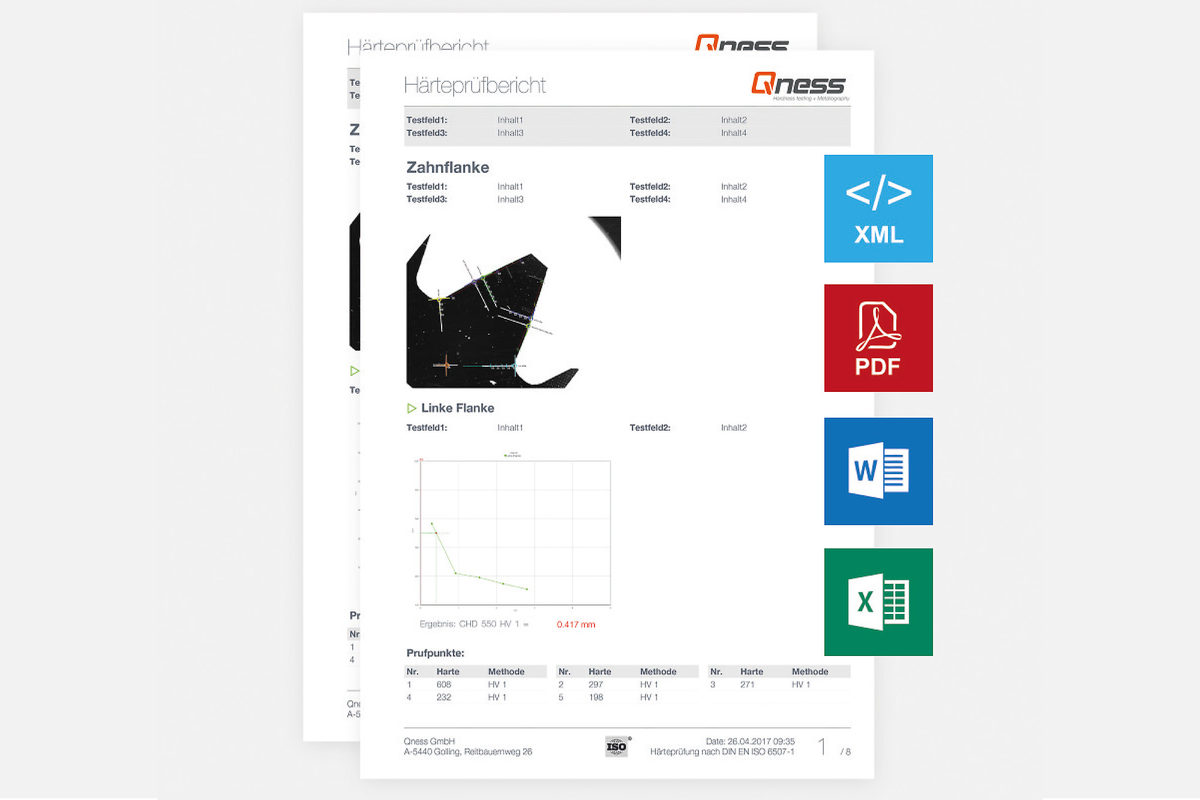

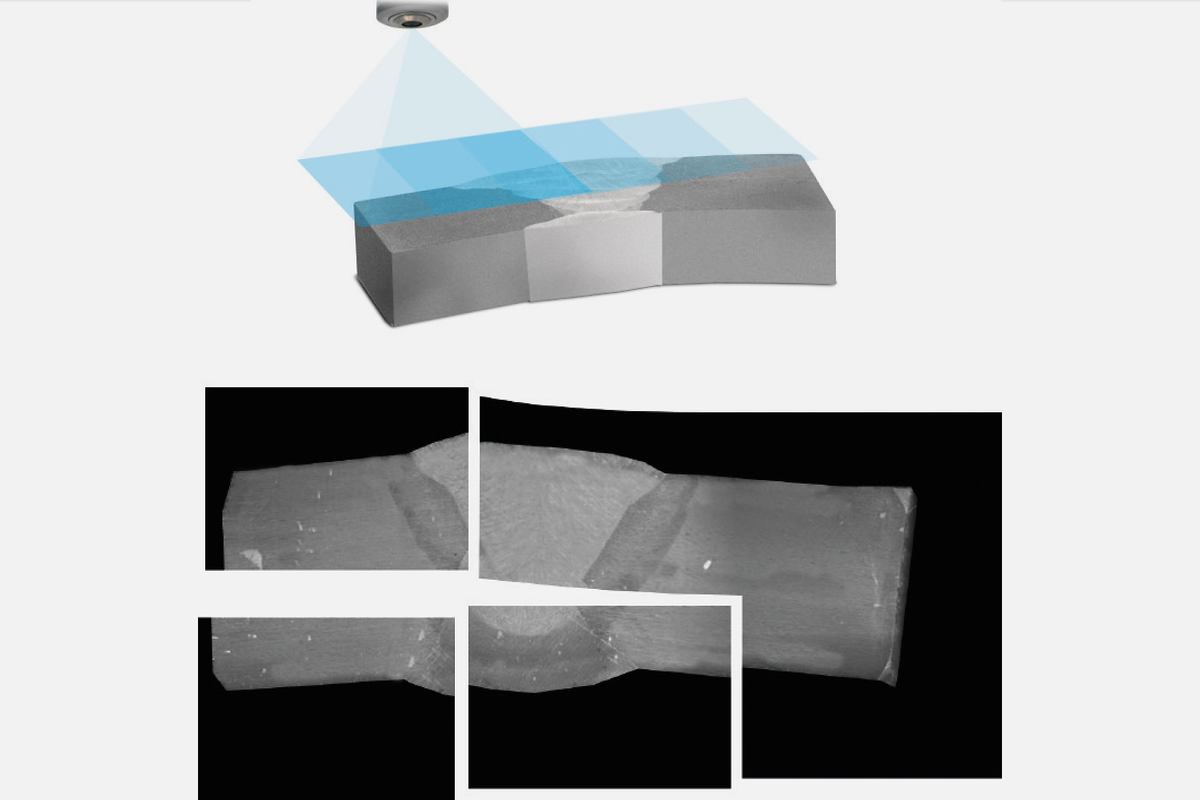

Panorama imaging + reporting
Sample- and measurement-camera imaging from tiny to very large items, configurable protocols and export files, plus the Qness Calibration Manager with reminders and trend tracking.
How Additive Plus delivers it
Licensed with your system, set up to your standards and reports, supported by engineers who run metallography daily.
Step 01
License & scope
We match the Qpix Control2 module set — CHD/weld/sinter tools, edge recognition, cameras — to your Qness tester and the standards you report to.
Step 02
Install & train
Factory-trained engineers install the software, build your templates and report layouts, and train operators on programming, evaluation and export.
Step 03
Validated & supported
The Calibration Manager keeps verification on schedule; you get method support and a sub-24h engineer response for programming and reporting questions.
Where Qpix Control2 earns its place
The evaluation and reporting layer for QC labs and metallography.
Case-hardening depth
Automated CHD / SHD / NHD with Optimum Stop
Weld qualification
HV maps and guide circles across the HAZ

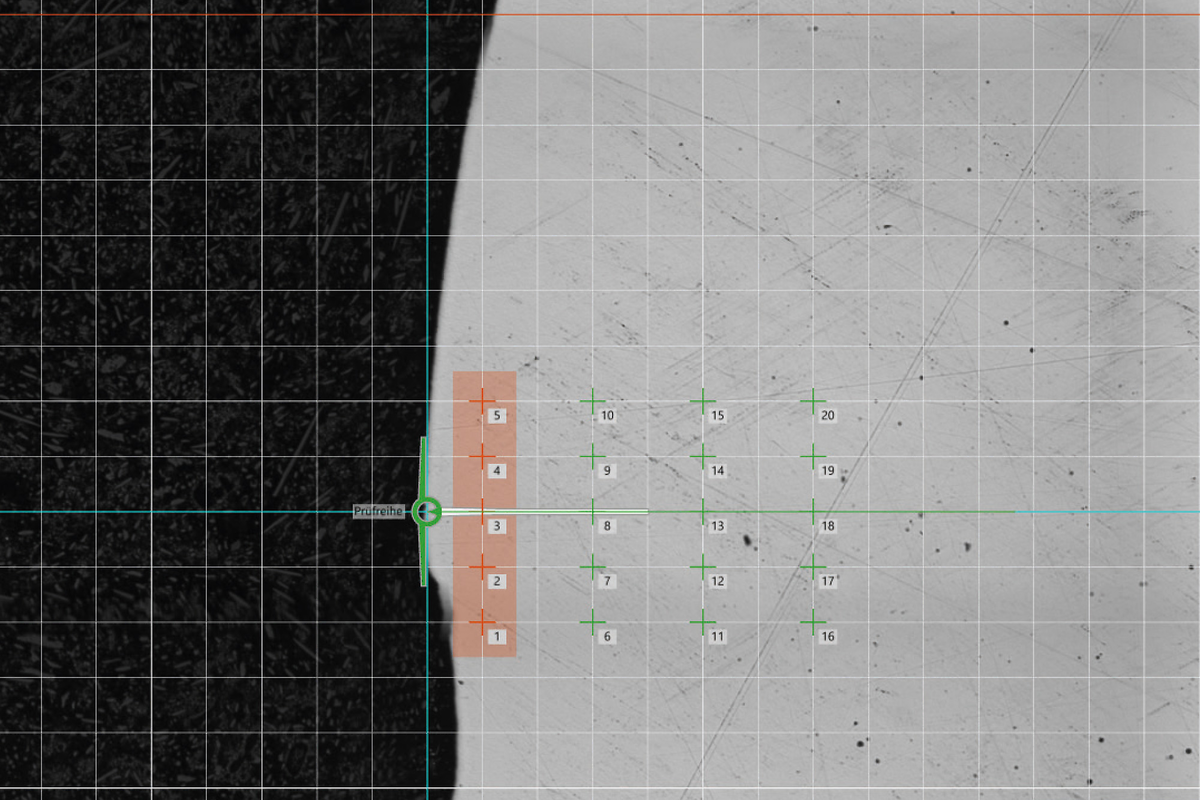

Sinter & PM analysis
Dedicated sinter functions for PM parts

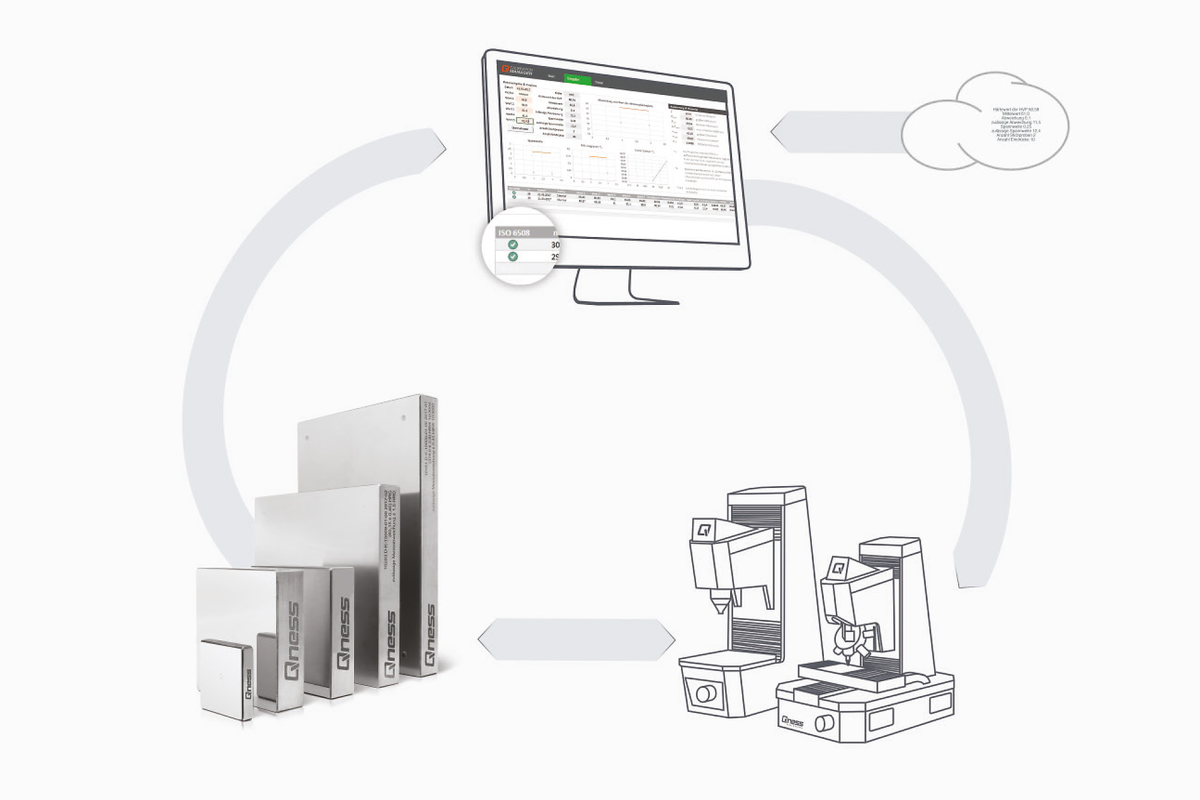

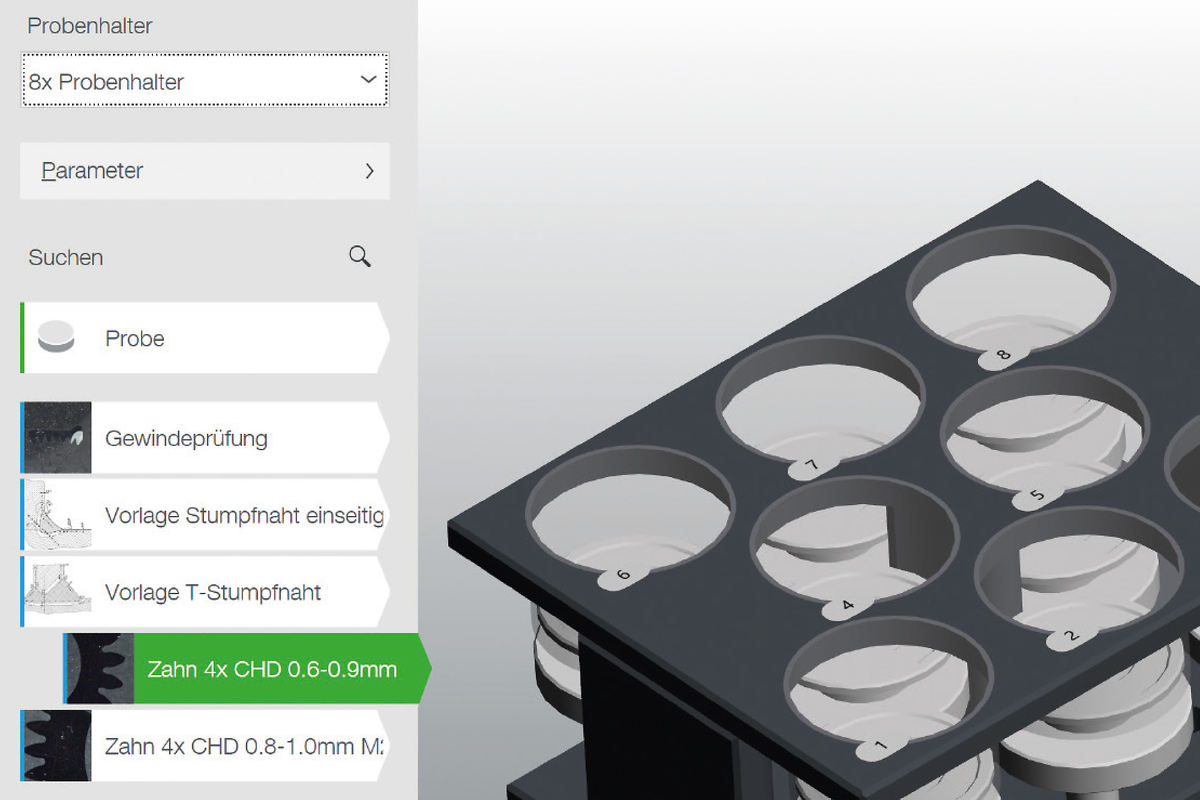

Template-driven QC
Structured template and test-block management

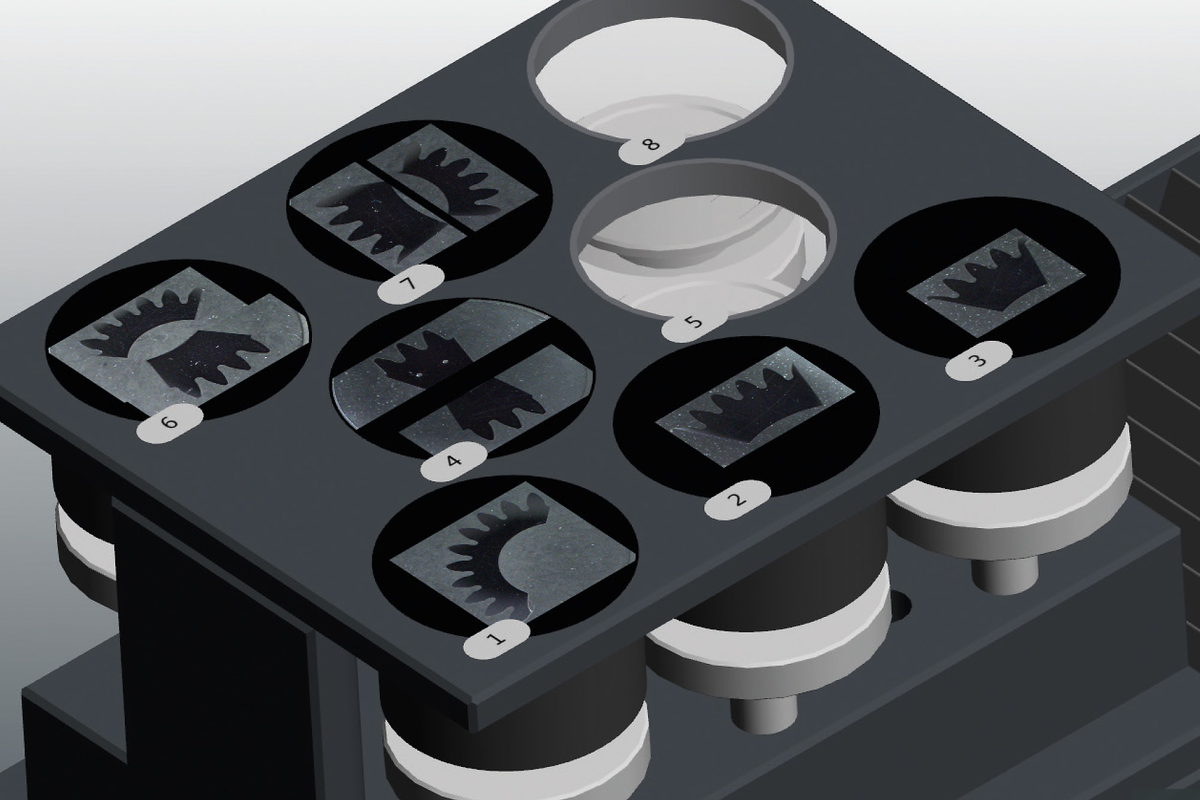

Multi-sample moulds
Several sample types in one mould at once
Audit-ready reporting
Configurable protocols and calibration tracking
Not sure which Qpix software fits?
Compare Qpix Control2 with the other QATM options we supply.
Tell us which Qness tester you run and the standards you report to — an applications engineer will scope the Qpix Control2 modules, build your templates and confirm the reporting before you buy. Sub-4h reply, NDA standard.
Why source Qpix Control2 through Additive Plus
- Configured to your Qness tester, standards and report layouts — not a generic install.
- Factory-trained software install, template setup and operator training included.
- Calibration Manager, method development and reporting support from an in-house metallography team.
- Sub-24h engineer response across 23 countries.
Want proof before you commit?
Send us a sample series and we'll run the evaluation in Qpix Control2, then share the report and recommended templates before you buy.
Other products teams run alongside QATM Qpix Control2 Hardness Testing Software – CHD/Weld Analysis, Edge Recognition & Reporting
Hardness Testers
QATM Qness 250/750/3000 A+ EVO Macro Hardness Tester – Vickers/Brinell/Rockwell | 0.3–3000 kgf
Fully automated macro and universal hardness tester in three force classes — 250, 750 and 3000 kgf — running Vickers, Brinell and Rockwell from 0.3 up to 3000 kgf, with a motorized XY stage, full-table sample-image camera and automatic test-head height for unmanned cycles.
- ✓ Three macro methods on one automated frame, conformant to ISO 6506 / 6507 / 6508
- ✓ Qpix Control2 software, XLED Brinell lenses and DAkkS-certified indenters
- ✓ Install, calibration and operator training included · lead time 6–10 weeks, configured to order
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
Hardness testing portal
The QATM hardness testing portal is a family of portal- and gantry-based automated hardness testing systems — fixed or moveable — bringing Brinell, Vickers and Rockwell testing to large, heavy parts such as rings, wheels, tyres and pipes, with automatic test-point preparation.
- ✓ Fixed or moveable portal — the tester travels to the part
- ✓ Rings Ø 600–1400 mm, workpieces up to 3 × 3 × 12 m
- ✓ Automatic test-point prep, portal feeding, optional mix-up test & marking
- ✓ Lead time: 4–8 months — engineered and built to order
On backorder
· Lead time: 4–8 months — engineered and built to order
Hardness Testers
QATM Qness 150 R Rockwell Hardness Tester – Regular & Superficial Rockwell | 1–250 kgf
The Qness 150 R incorporates the best of all proven concepts and practices
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
Clamping fixtures
QATM clamping fixtures hold a workpiece securely and repeatably in a hardness tester so the indentation lands exactly where the specification requires — custom-designed to your part geometry and matched to your QATM or QNESS tester.
- ✓ Secure, repeatable positioning — no movement under test load
- ✓ Custom-designed for round, tubular, irregular and small parts
- ✓ Matched to QATM / QNESS bench testers and automated plants
- ✓ Lead time: 3–6 weeks — made to order
On backorder
· Lead time: 3–6 weeks — made to order
Hardness Testers
QATM Qness 10 / 60 A+ Micro Hardness Tester – Vickers/Knoop/Brinell/Rockwell | 20 gf–62.5 kgf
hardness tester series Qness 10 / 60 takes micro hardness testing to a whole new level
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qness 150 CSA+ Universal Hardness Tester – Rockwell/Vickers/Brinell | 1–250 kgf
Automatic C-frame universal hardness tester — Rockwell, Vickers and Brinell from 1–250 kgf, with a motorized three-axis stage, direct HEIDENHAIN depth gauge and 5-megapixel sample-image camera. Configured, installed and calibrated by Additive Plus.
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
Hardness testing plant with test point preparation
An automated QATM hardness testing plant with integrated test-point preparation — a milling unit machines a clean test surface, then the QNESS 750 universal unit runs a standardized Vickers, Brinell or Rockwell test in one cycle.
- ✓ Integrated milling prep — machines scaled/forged surfaces to a defined test point
- ✓ Universal testing (Vickers / Brinell / Rockwell) up to 750 kgf
- ✓ Prepare, indent and record automatically with QPIX data management
- ✓ Lead time: 4–8 months — engineered and built to order
On backorder
· Lead time: 4–8 months — engineered and built to order
Hardness Testers
QATM Qpix Control2 M/R Hardness Testing Software – Manual & Rockwell Editions
The Qpix Control2 software platform for manual, semi-automatic and Rockwell QATM Qness hardness testers — the same environment across the whole Qness range, so a mixed fleet runs one workflow with no extra operator training.
- ✓ Control2 M for manual and semi-automatic testers; Control2 R for Rockwell (ISO 6508 / ASTM E18)
- ✓ Clearly structured batch management and reusable test-project templates
- ✓ Licensed, installed and set up across your Qness fleet — configured to order
On backorder
· Licensed with your Qness systems — request configuration and lead timeFrom labs running Qpix Control2
Unedited feedback from metrology and QC teams.
★★★★★
Optimum Stop and automated CHD cut our case-depth reporting time dramatically — the software stops the series exactly where it should.
DR
Daniel R. Metallurgical Lab Manager · Aerospace fasteners
★★★★★
The weld toolset and guide circles make HAZ surveys repeatable, and the Calibration Manager keeps us audit-ready without spreadsheets.
PN
Priya N. Quality Engineer · Medical devices
★★★★★
Edge recognition removed the fiddly fine-positioning step. Panorama images in the report finally show the whole weld at once.
ML
Markus L. R&D Metallurgist · Energy components
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
What is Qpix Control2 and what does it do?
Qpix Control2 is QATM's advanced PC software for Qness hardness testers. It controls the machine, evaluates Vickers, Knoop, Brinell and Rockwell indentations, and turns a test series into an audit-ready report. Core modules cover automated case-hardening-depth (CHD/SHD/NHD), weld and heat-affected-zone mapping, edge recognition, predictive test-point placement, panorama imaging and the Qness Calibration Manager. Additive Plus scopes the module set to your tester and standards.
Which hardness testers does Qpix Control2 run on?
Qpix Control2 runs the QATM Qness family of micro and macro hardness testers — for example the Qness 60 A+ EVO micro tester and the Qness 250/750/3000 A+ EVO macro range — driving automated stages, cameras and turrets where fitted. On manually operated frames it still handles evaluation and reporting. Tell us which Qness model you run and we will confirm the compatible configuration and modules.
What case-hardening-depth and weld analysis does it provide?
Qpix Control2 runs automated CHD, SHD and NHD hardness traverses with an Optimum Stop mode that ends the series once the hardness limit is undercut. For welds it places test points along or parallel to a polygon line, with marking and guide circles for exact positioning across the weld and HAZ. Points can be grouped for averages and anomalies removed from the profile. Evaluation follows ISO 2639 and the relevant ISO hardness methods.
What export and reporting formats does it support?
Qpix Control2 offers configurable protocols and data presentation with structured storage of test-item data. Reports and data export in common office and data formats (such as PDF, XLSX, CSV and XML), and content is adaptable so the export matches your QC template. Panorama and automatic before/after imaging can be attached to the report. This suits both one-off analysis and repeatable, template-driven QC.
How does it manage calibration and audits?
The Qness Calibration Manager in Qpix Control2 reminds users of due checks at chosen intervals and adds each result to an ongoing statistical profile at the push of a button. It shows permitted tolerance values and long-term trends for every device and test block, and Qness test-block data can be called up online without re-entering plate details. That gives simple, traceable protocol access for audits.
How does Qpix Control2 differ from Qpix T2?
Qpix T2 is the on-device software for straightforward row tests, protocols and data export — ideal for serial testing and in-line integration. Qpix Control2 is the advanced PC package that adds automated CHD/weld/sinter tooling, edge recognition, predictive test-point placement, panorama imaging and richer data management. Choose T2 for simple test-and-report workflows; choose Control2 when you need automated evaluation and detailed analysis.
What is included, and what is the lead time?
Qpix Control2 is licensed and configured with your Qness system. Delivery through Additive Plus includes software installation, template and report-layout setup, and operator training on programming, evaluation and export, plus Calibration Manager configuration. It is typically supplied alongside a new tester or as a software upgrade to an existing Qness machine — request a quote for licensing, modules and a confirmed schedule.
