Made to order
- Validated cure profile + datasheet for the printers we sell
- Mutual NDA before any file or spec review

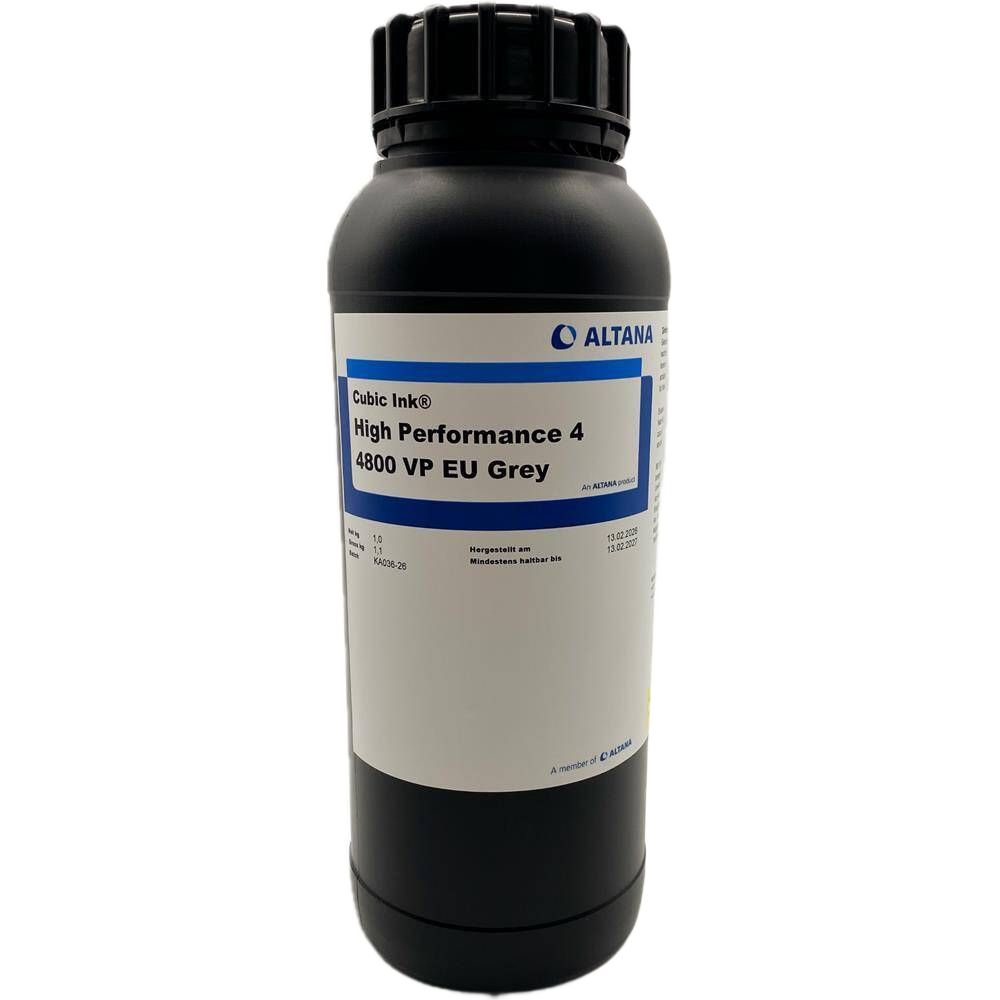

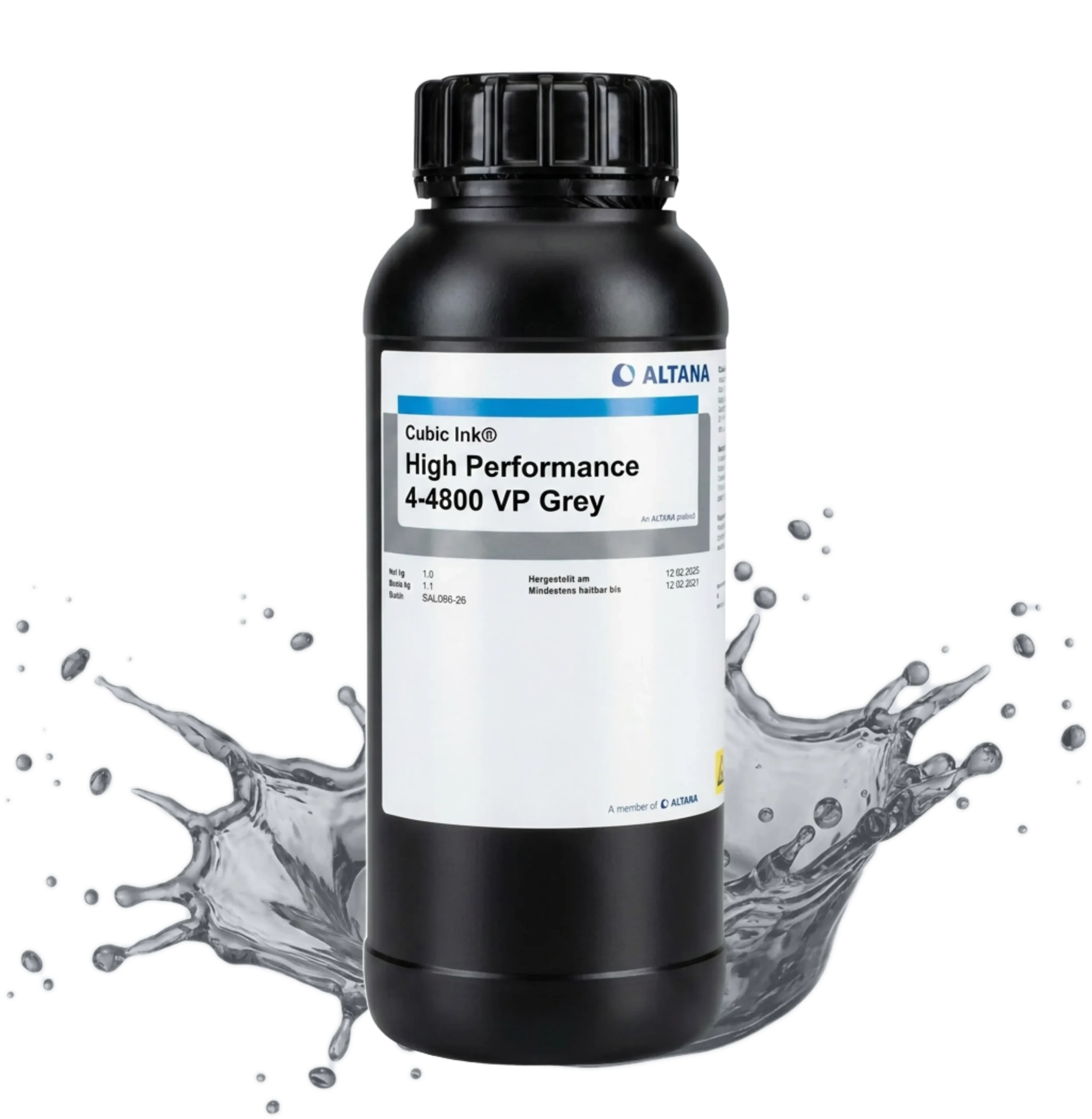

ALTANA Cubic Ink HP 4-4800 VP – Impact-Resistant Final-Part Resin (DLP/LCD/mSLA)
Highly impact-resistant, flexible final-part resin with good toughness, scratch resistance and heat resistance (HDT-B 90 °C), plus a clean regulatory profile.
- ✓ 44 J/m notched · 350 J/m unnotched Izod · 16% elongation — durable end-use parts
- ✓ HDT-B 90 °C, UV-stable, low water uptake, cytotoxicity passed (ISO 10993)
- ✓ Scratch-resistant; uncolored, black, blue, pink, grey
- ✓ A similar option to Loctite IND406 / 3843 for final-part production
What your process engineer actually checks
Durability we can validate
The 44 J/m notched Izod, HDT-B 90 °C and passed cytotoxicity come straight from the ALTANA TDS. We help set exposure and post-cure so parts reach full impact strength.
A materials engineer on the line
Factory-trained support. We help you choose between HP 4-4800 and the Loctite IND406 / 3843 grades we also stock. Sub-24h reply, NDA standard.
ALTANA Cubic Ink High Performance 4-4800 VP is a highly impact-resistant, flexible resin with good toughness, scratch resistance and heat resistance (HDT-B 90 °C) — engineered for durable final-part production with a clean regulatory profile.
Why engineers choose HP 4-4800 VP
Impact resistance and durability for real end-use parts.
Built for final parts
44 J/m notched, 350 J/m unnotched Izod, 16% elongation and >10% deflection at fracture — impact-resistant, flexible end-use parts.
Heat & scratch resistant
HDT-B 90 °C and a hard, scratch-resistant surface (78 Shore D) keep parts looking new in service.
Clean regulatory profile
In-vitro cytotoxicity passed (ISO 10993-5/-12), minimized water uptake, plus UV and thermal stability.
Colorful production
Available uncolored, black, blue, pink and grey; more colors on request.
Technical properties
Measured on uncolored resin (TDS v3, 09 Jan 2026). Post-cured 2×30 min UV @ 80 °C.
| Property | Value | Method |
|---|---|---|
| Viscosity (25 °C) | 540 mPa·s | DIN EN ISO 3219 |
| Density | 1.14 g/mL | DIN EN ISO 15212-1 |
| Ultimate tensile strength | 43 MPa | DIN EN ISO 527-5A |
| Tensile modulus | 1700 MPa | DIN EN ISO 527-5A |
| Elongation at break | 16 % | DIN EN ISO 527-5A |
| Flexural strength / modulus | 55 / 1300 MPa | DIN EN ISO 178 |
| Izod, notched / unnotched | 44 / 350 J/m | DIN EN ISO 180 |
| Shore hardness | 78 D | DIN EN ISO 7619 |
| Tg (TMA) | 96 °C | TMA |
| HDT-A / HDT-B | 62 / 90 °C | DIN EN ISO 75 |
| Dielectric strength | 28 kV/mm | IEC 60243-1 |
| Water uptake (24 h) | 2.9 % | Internal |
| In-vitro cytotoxicity | Passed | DIN EN ISO 10993-5/-12 |
| Flammability | UL 94 HB @ 3.2 mm | UL 94 |
| Colors | Uncolored, black, blue, pink, grey | — |
A similar option to Loctite 3843 HDT60 / IND406
Same final-part class. Additive Plus stocks and supports both.
| Property | Loctite 3843 HDT60 | Cubic Ink HP 4-4800 VP |
|---|---|---|
| Ultimate tensile strength | 49 MPa | 43 MPa |
| Tensile modulus | 1700 MPa | 1700 MPa |
| Elongation at break | 48 % | 16 % |
| Notched Izod | 58 J/m | 44 J/m |
| HDT (0.45 MPa) | 60 °C | 90 °C |
| Shore hardness | 76 D | 78 D |
| Price (1 kg) | $220 | $299 |
HP 4-4800 adds notably higher heat resistance (HDT-B 90 vs 60 °C), scratch resistance and a passed cytotoxicity profile; 3843 is more flexible. Additive Plus stocks and supports both, so you can choose by priority.
Typical applications
Durable, good-looking end-use parts.
How you run it
Print → wash → UV post-cure.
LCD / DLP / mSLA at 385 or 405 nm. Stir before use; store away from light.
Wash
Cubic Ink Cleaner 400; dry with compressed air.
Post-cure
UV post-cure (2×30 min at 80 °C) for full impact strength and HDT.
| Size | 1 kg, 5 kg |
| Brand | ALTANA Cubic Ink |
We formulate and qualify. Custom variants on request.
Need a tuned resin, a filled or castable formulation, or a profile for a printer we don't list yet? Our materials team qualifies custom formulations and prints test specimens before you commit. Typical lead 2–4 weeks.
