CHS‑580A

CHS-580A is the ideal elemental analyzer for simultaneous determination of carbon, hydrogen and sulfur in organic samples

Price held 7 days after order.

About this product

BENEFITS CS‑580A

• Fast & simultaneous elemental analysis of C, H, S, TOC and TIC
• Configurable for single element (C or S) or multi-element (C/S or C/H/S) analysis
• Wide concentration range from 0.005 – 100 %
• High weights possible for elemental analysis of heterogeneous samples
• Optional autoloader with 36 or 130 positions (acid-resistant version available)

OPERATION AND ANALYSIS PROCESS

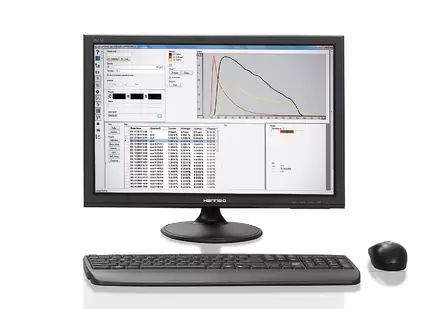

Operation of the CHS-580 A elemental analyzer is simple, fast and convenient. The samples are weighed and registered in the software as manual analysis or analysis via autoloader. Typical sample weights are between 50 and 500 mg. After starting the analysis, the sample is introduced into the furnace and the combustion gases CO2 and SO2 are measured in up to four infrared measuring cells. The results of the elemental analysis can be exported via LIMS, report or text file.

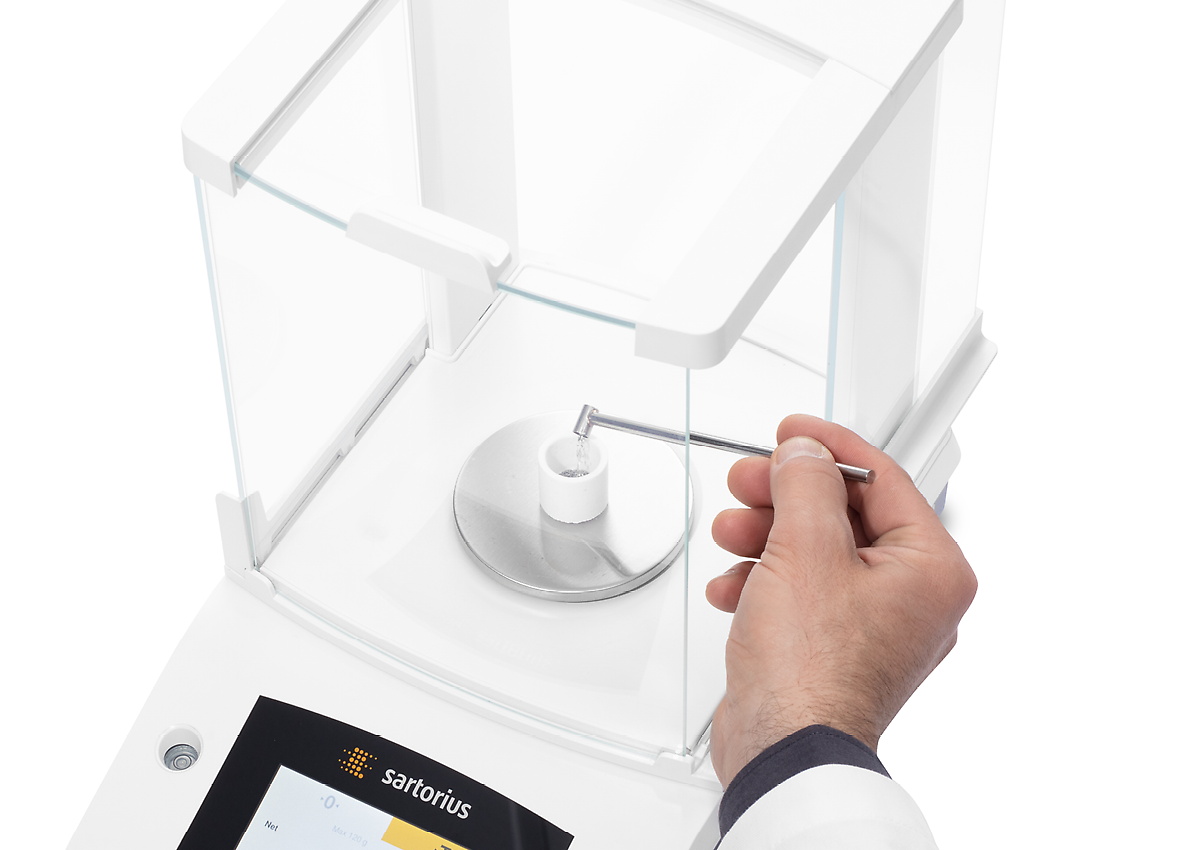

1200x850px-cs580a-balance — Logging the sample into the software and weighing

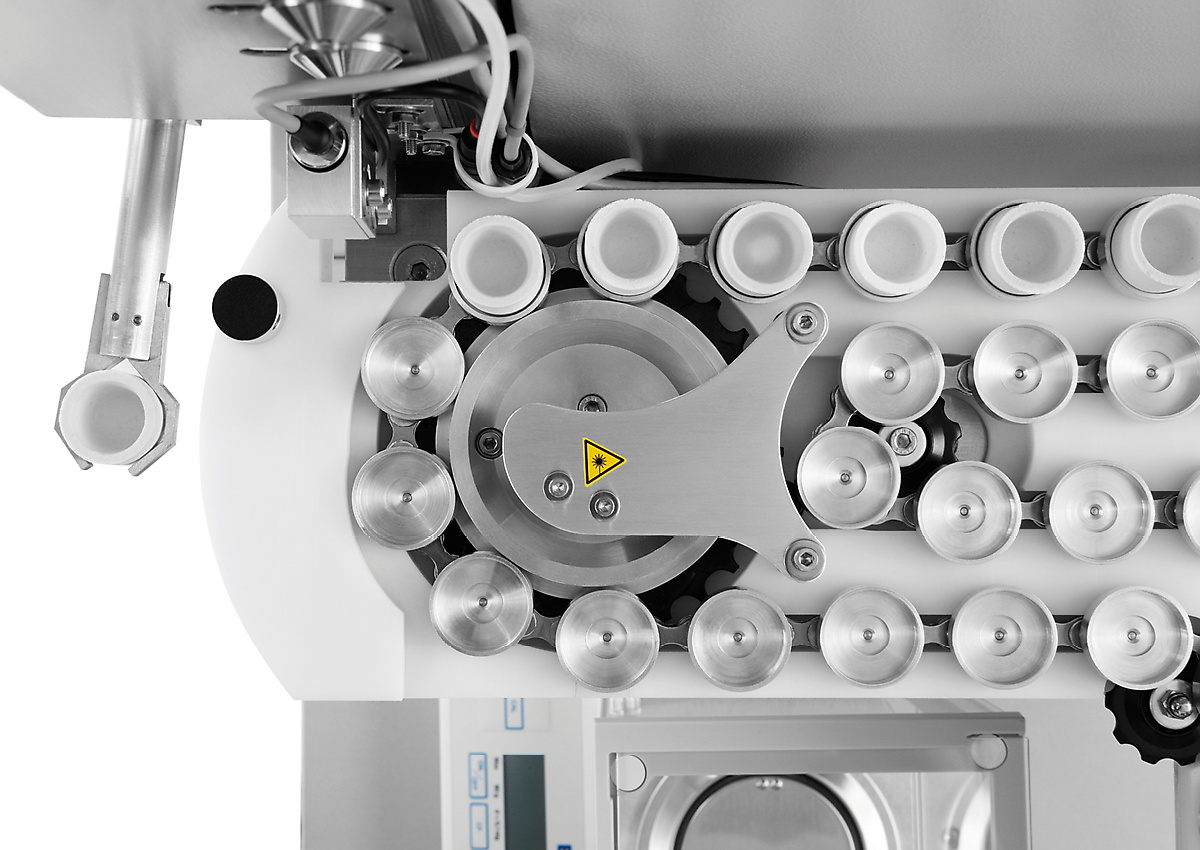

Placing sample in autoloader and analysis

CONFIGURATIONS AND OPTIONS

ELTRA CHS-580 A analyzers can be configured to meet a wide range of customer requirements. C, H, S and C/H/S configurations are available with up to 2 infrared cells for each element to cover a wide working range. Robust measuring cells for the reliable determination of sulfur in very high concentrations are also available.

The CHS-580 A series is perfectly equipped for TOC analysis according to DIN EN 15936 with optional acid-resistant autosamplers, as well as the optional TIC module.

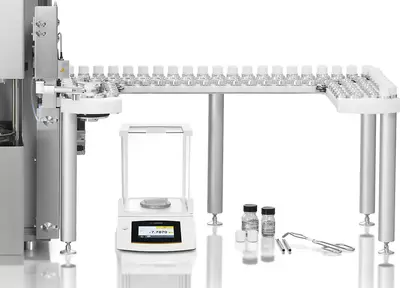

An optional autoloader with 130 crucible positions is available for analyses with high sample throughput.

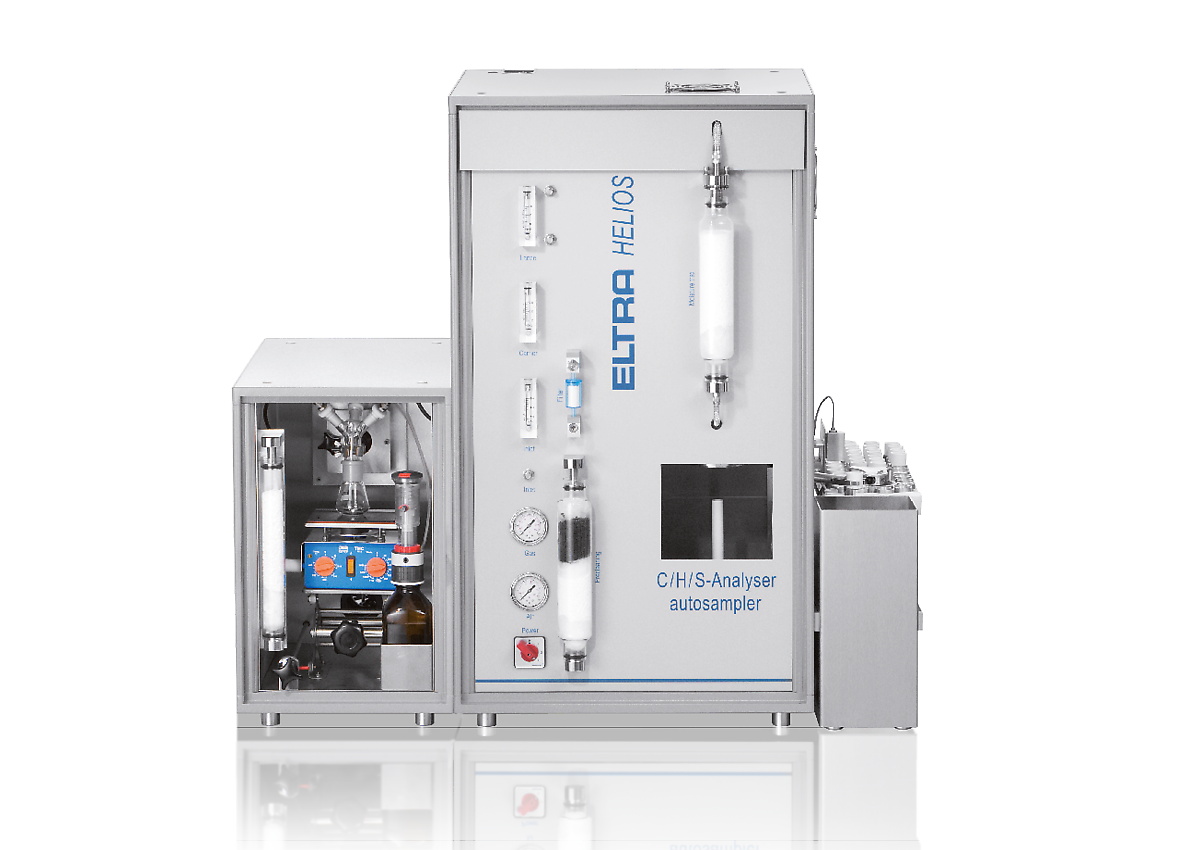

1200x850px-cs580a-tic — Analyzer with optional TIC module

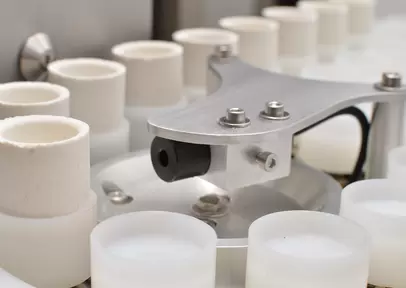

Autoloader with acid-resistant plastic crucible holders

TYPICAL SAMPLE MATERIALS

The CHS-580 A elemental analyzer is perfectly suited for measuring carbon and sulfur concentrations in matrices such as ashes, building materials, coal, coke, gypsum, limestone, oil, plant materials, rubber, sand, soil, soot, tobacco, waste

FUNCTIONAL PRINCIPLE

In the CHS-580A analyzers the sample is burnt in an oxygen atmosphere at temperatures of up to 1,550 °C. The furnace temperature can be freely selected in steps of 1 °C. The combustion gasses (CO2, H2O, SO2) coming from the furnace pass through a dust filter. After the water vapor is chemically absorbed, the dried CO2 and SO2 gas is detected in the additional infrared cells. Depending on the configuration, it is possible to combine up to four infrared cells with different sensitivities.

Brand	ELTRA
Model	CHS‑580A
Measured elements	carbon, hydrogen, sulfur
Samples	organic
Furnace alignment	vertical
Sample carrier	ceramic crucibles
Field of application	agriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals
Furnace	resistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C)
Detection method	solid state infrared absorption
Number of IR cells	1 - 3
Material of IR path	gold
Typical analysis time	60 - 180 s
Chemicals required	magnesium perchlorate, sodium hydroxide
Gas required	oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi) compressed air (4 - 6 bar / 60 - 90 psi)
Power requirements	230 V, 50/60 Hz max. heat up current 2000 W
Dimensions (W x H x D)	550 x 1000 x 600 mm / 21.65 x 39.37 x 23.62 in (analyzer) 850 x 350 x 450 mm / 33.46 x 13.78 x 17.72 in(Autoloader for 130 crucibles)
Weight	~ 90 kg (analyzer) ~ 15 kg (Autoloader for 130 crucibles)
Required equipment	PC, monitor, balance (resolution 0.0001g)
Optional accessories	TIC module, voltage stabilizer 5 KVA
