ELTRA TGA Thermostep ML Thermogravimetric Analyzer – Manual-Lid Moisture, Ash & Volatiles | 19 Samples

With every system

Installation & training gas & exhaust connection and operator onboarding
Method + validation an SOP validated against your standard

Thermogravimetric Analyzers, Analysis equipment, Elemental Analyzers

ELTRA TGA Thermostep ML Thermogravimetric Analyzer – Manual-Lid Moisture, Ash & Volatiles | 19 Samples

Manual-lid thermogravimetric analyzer — programmable furnace plus integrated balance measures moisture, ash and volatiles in up to 19 samples per run, 50–1,000 °C. A more economical route to standard-compliant TGA.

✔ 19 samples + 1 reference · 500 mg–5 g · moisture/ash/volatiles in one run
✔ Ceramic furnace 50–1,000 °C · N₂/O₂/air per stage · manual crucible lids
✔ Encapsulated balance 0.1 mg · ASTM D 7582 compliant
✔ Lead time: configured to order — request current timeline

Prices follow supplier cost and stock availability and are updated regularly. The price you see is today's price — once you order, it's held for 7 days.

Install + training included Tailored service plan

19+1 samples per run

50–1000 °C furnace

0.1 mg balance resolution

ASTM D 7582 compliant

Built for QC and analysis labs

What your QC lab actually checks

Automated TGA, manual crucible lids

The TGA Thermostep ML runs the same automated moisture/ash/volatiles cycle on up to 19 samples plus a reference, 50–1,000 °C, with an encapsulated 0.1 mg balance. Crucible lids are handled manually rather than automatically — a lower-cost route to ASTM D 7582-compliant coal and coke analysis and LOI on many materials.

An applications engineer on the line

SOP setup, standard validation and throughput-workflow development from engineers who run materials characterization in-house. Sub-4h reply, NDA standard.

19+1

Samples/run

50–1000 °C

Furnace

Manual lids

Crucible covers

0.1 mg

Balance res.

ASTM D 7582

Standard

About this product

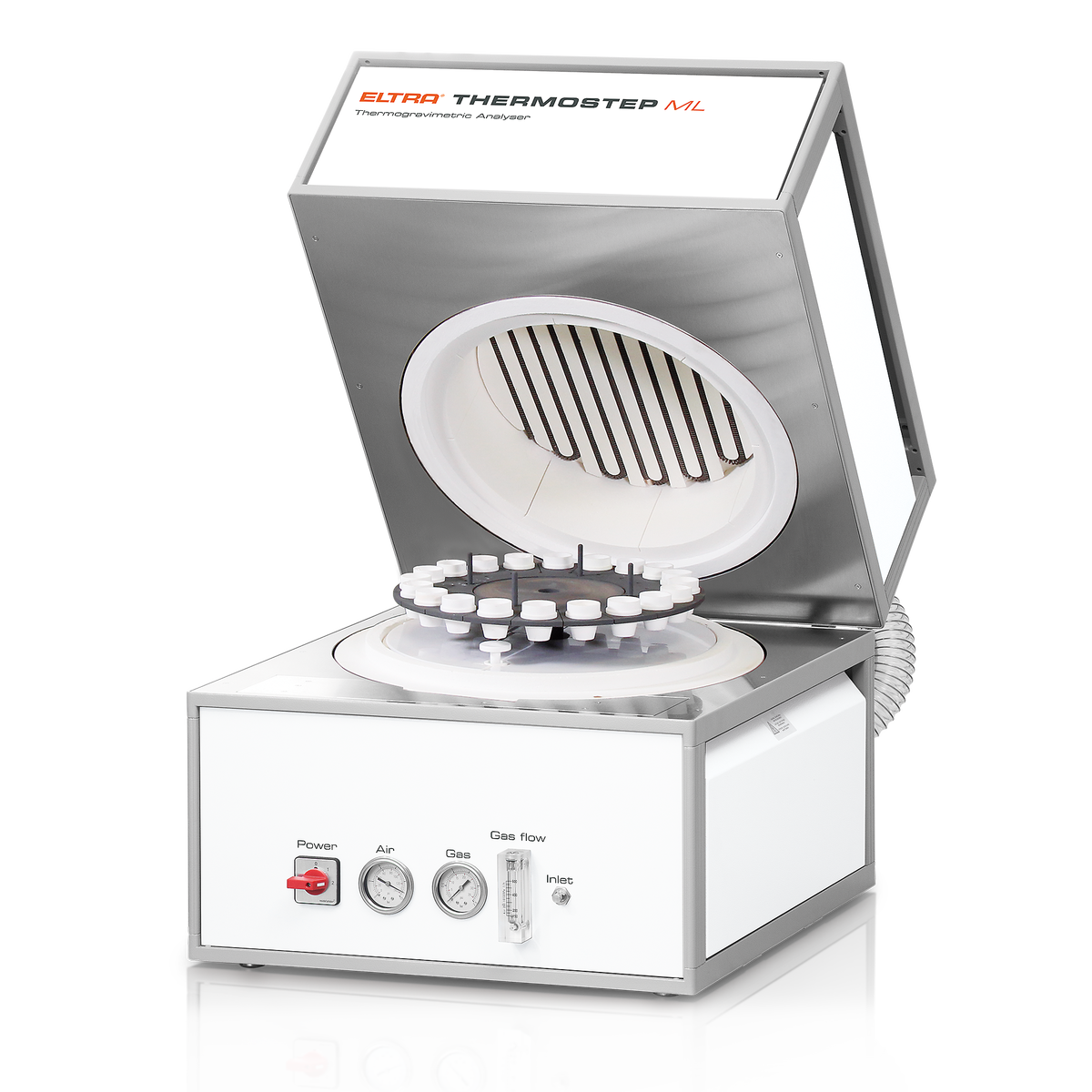

The ELTRA TGA Thermostep ML is the manual-lid version of the Thermostep thermogravimetric analyzer. It combines a programmable furnace with an integrated balance to measure moisture, ash and volatiles in one automated run, on up to 19 samples plus a reference, at 50–1,000 °C. Crucible lids are placed and removed by hand during the analysis — a more economical route to standard-compliant coal and coke analysis with the same precise weighing.

Why QC labs choose the TGA Thermostep ML

The same automated thermogravimetry, with manual crucible lids for a lower-cost route.

19 samples in one run

A carousel takes up to 19 crucibles plus a reference (500 mg–5 g each). Weigh in place or load a pre-weighed carousel — high throughput without manual oven-and-balance cycling.

Moisture, ash & volatiles together

A programmable ceramic furnace (50–1,000 °C in 1 °C steps) determines all three in one cycle. Crucible lids are applied and removed manually for ASTM D 7582-compliant coal and coke volatiles.

Selectable atmospheres

Choose nitrogen, oxygen or ambient air at each stage of the analysis to oxidize or protect the sample exactly when the method requires it.

Precise, reference-corrected weighing

An encapsulated weighing cell (0.1 mg resolution) with a dedicated reference crucible that compensates crucible weight loss at high temperature — stable, accurate results.

How Additive Plus supports it

A configured, installed analyzer with your TGA methods ready to run.

Step 01

Configure to your samples

We set up the SOPs — temperatures, atmospheres and heating stages — for your material and standard before it ships.

Step 02

Install & train

Factory-trained engineers install, connect the gases and exhaust, and train your team on weighing, lid handling and results.

Step 03

Method & QC support

We help validate the method against your standard — ASTM D 7582, LOI or dry-mass/ash — for a repeatable workflow.

What the TGA Thermostep ML measures

Full technical specifications are in the Specifications tab. Key measurement capability:

Parameter	TGA Thermostep ML
Measures	Moisture, ash, volatiles (loss on ignition)
Samples per run	19 crucibles + 1 reference · 500 mg – 5 g each

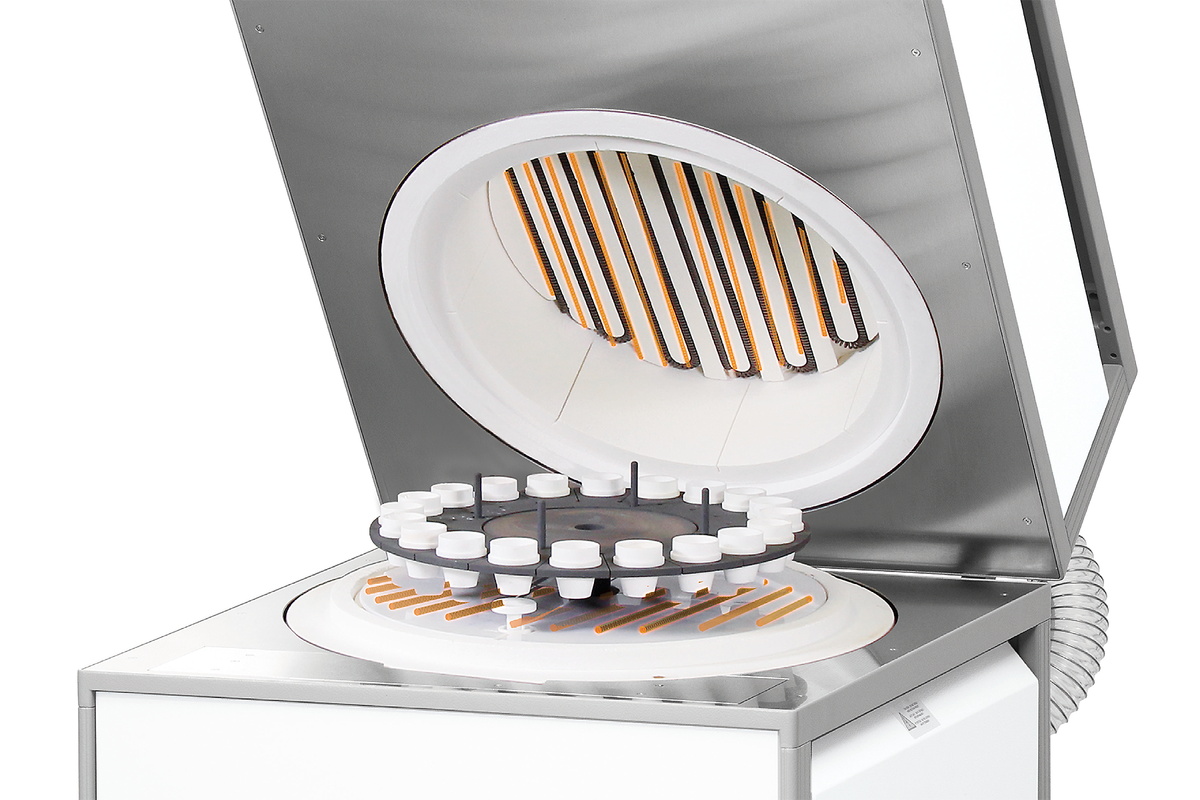

Furnace	Resistance-heated ceramic, 50–1,000 °C in 1 °C steps
Crucible lids	Placed and removed manually during analysis
Balance	Encapsulated cell, 0.1 mg resolution
Standards	ASTM D 7582 (coal / coke volatiles) · LOI methods

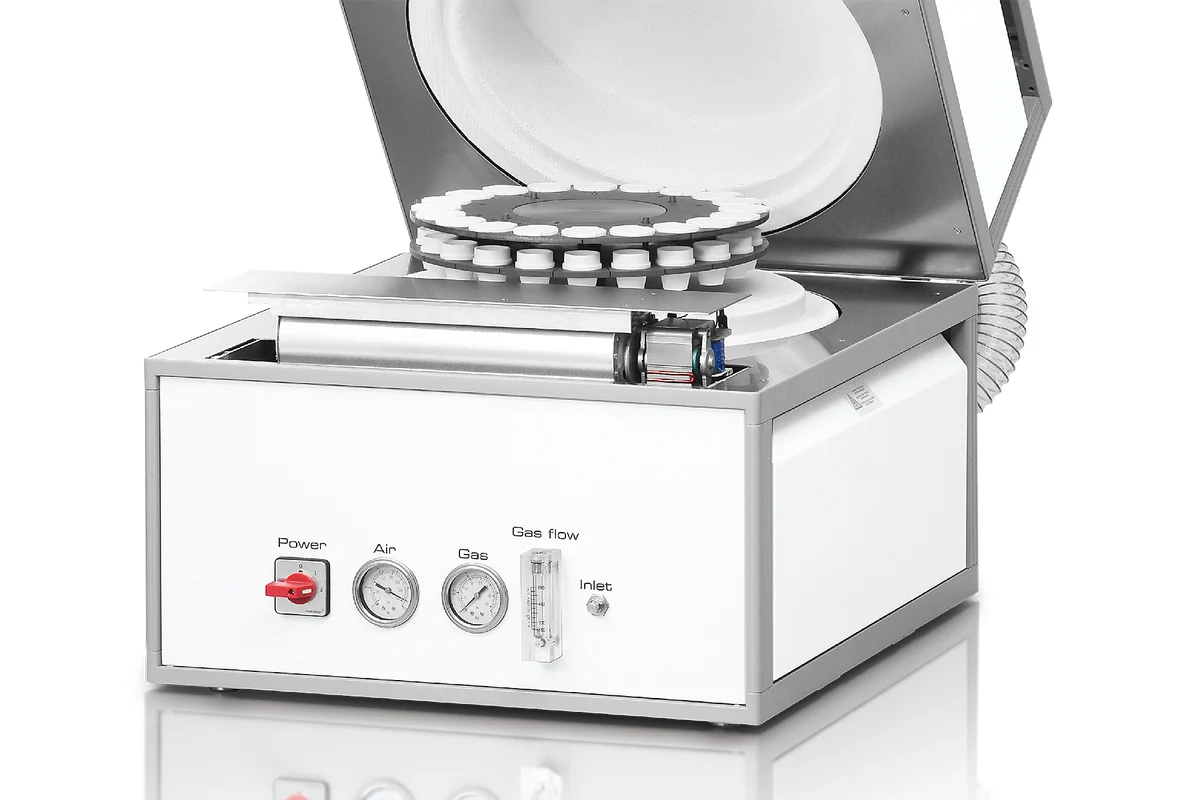

ELTRA TGA Thermostep ML thermogravimetric analyzer detail — The TGA Thermostep ML — automated multi-sample thermogravimetry with manually handled crucible lids.

Typical applications

Moisture, ash and volatiles across many industries.

Coal & coke

Proximate analysis, ASTM D 7582

Building materials

Loss on ignition (LOI)

Food & feed

Dry mass & ash content

Plastics & polymers

Filler & volatile content

Glass & ceramics

Binder burnout, residue

Environment & recycling

Organic & ash fractions

Not sure the TGA Thermostep ML is the right fit?

Automatic crucible lids, or a different elemental measurement.

Automatic lidsTGA ThermostepAutomatic crucible-lid handling.Compare analyzer →
Surface carbonELTRA SurfaceC-800Combustion + IR surface-carbon analyzer.Compare analyzer →
Fit out the labQATM Lab FurnitureModular cabinets & workbenches.View system →

Tell us the material and parameters you need — moisture, ash, volatiles or LOI — and the standard you work to, and our applications engineer will confirm whether the manual-lid ML or the automatic-lid Thermostep is the right fit, and can run your own sample first. Sub-4h reply, NDA standard.

Why source the TGA Thermostep ML through Additive Plus

Authorized channel for ELTRA / Verder Scientific lab equipment — sales, installation, training and service in one place.
Full materials-QC line — thermogravimetry, carbon analysis, sample prep and optical inspection from one partner.
Method development on your samples — SOPs, standard validation and a repeatable throughput workflow.
<24h response from engineers who run materials characterization in-house. NDA standard.

Brand	ELTRA
Model	TGA Thermostep ML
Measured elements	ash content, moisture, volatiles
Samples	inorganic, organic, synthetic
Field of application	agriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, food, geology / mining, glass / ceramics, medicine / pharmaceuticals
Furnace	resistance heated ceramic furnace, programmable in 1 °C steps from 50 °C up to 1000 °C
Detection method	balance
Max. number of samples	19 crucibles + 1 reference crucible
Balance resolution	0.0001 g
Gas required	depends on application: oxygen 99.9 % pure (2 - 4 bar) and,or nitrogen 99.9 % pure (2 - 4 bar) and air 99.5 % (5 - 6 bar)
Power requirements	230 V, 50/60 Hz, max. 32 A
Dimensions (W x H x D)	550 x 520 x 620 mm / 21.65 x 20.47 x 24.41 in
Weight	~ 65 kg
Required equipment	PC, monitor, external exhaust (exhaust diameter: 100 mm / blower with 4m-3/min)

Download

↗

Common questions

Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.

How is the TGA Thermostep ML different from the TGA Thermostep?

They share the same thermogravimetric platform — a programmable furnace, integrated balance, up to 19 samples, 50–1,000 °C and the same measured parameters. The difference is the crucible lids: on the TGA Thermostep ML they are placed and removed manually during the analysis, whereas the standard TGA Thermostep handles them automatically. The ML is therefore a more economical option where an operator can manage the lids.

What does the TGA Thermostep ML measure?

It determines moisture, ash and volatiles — and loss on ignition — by heating samples in a programmable furnace while continuously weighing them on an integrated balance. Because heating and weighing are combined in one instrument, all these parameters come from a single automated run, replacing manual work with laboratory ovens and muffle furnaces on inorganic, organic and synthetic samples.

How many samples can it run at once?

Up to 19 samples plus one reference crucible per cycle, at typical weights of 500 mg to 5 g. Position 20 is reserved for the reference crucible, which compensates for crucible weight loss at high temperature and prevents that physical effect from biasing results. You can weigh each sample in place or load a carousel weighed externally; a full analysis takes about four hours, unattended.

Is it compliant for coal and coke analysis?

Yes. With the crucible lids applied and removed manually at the correct stages, the TGA Thermostep ML performs standard-compliant determination of volatiles in coal and coke to ASTM D 7582, along with moisture and ash. The programmable furnace and selectable nitrogen, oxygen or air atmospheres let you build the exact heating and gas profile the method requires.

Which materials and standards is it used for?

The TGA Thermostep ML handles samples across agriculture, chemistry and plastics, coal and power, construction materials, environment and recycling, food, geology and mining, glass and ceramics, and pharmaceuticals. It is ASTM D 7582 compliant for coal proximate analysis and widely used for loss on ignition on building materials and dry-mass and ash content on food and feed.

What does it need to run?

The TGA Thermostep ML needs a PC and monitor, an external exhaust (100 mm, blower ~4 m³/min), and the gases your method uses — oxygen and/or nitrogen at 99.9% (2–4 bar) and air at 99.5% (5–6 bar). It runs on 230 V (max 32 A). The encapsulated weighing cell (0.1 mg resolution) is isolated from the ambient atmosphere for stable, precise results.

What is the lead time, and can Additive Plus set it up?

The TGA Thermostep ML is configured to order; request a quote for the current lead time. Additive Plus is an authorized ELTRA / Verder Scientific channel and handles installation, gas and exhaust connection, and operator training, then validates the SOP against your standard — ASTM D 7582, LOI or ash. You can also send samples for a paid measurement first. Sub-4h reply, NDA standard.
