O-N-H Analyzers, Analysis equipment, Elemental Analyzers

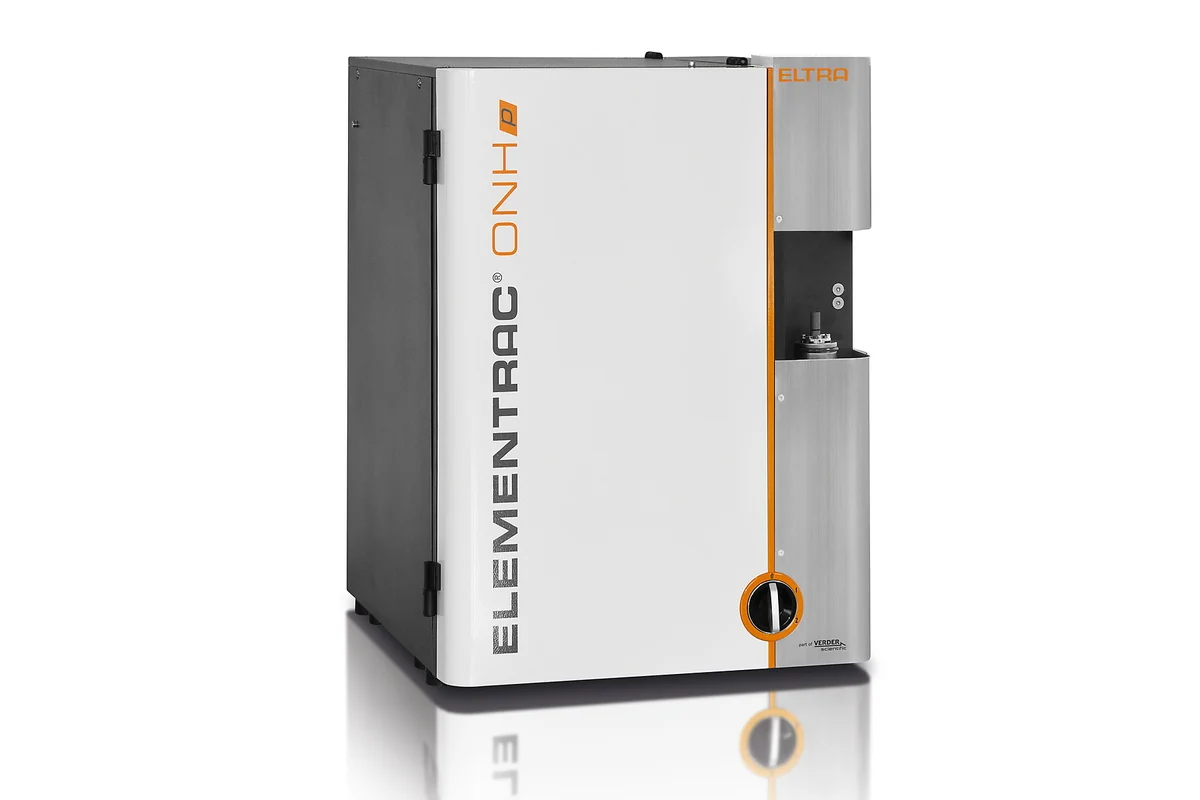

ELTRA ELEMENTRAC ONH-p 2 Oxygen/Nitrogen/Hydrogen Analyzer – Inert Gas Fusion | Steel, Metals & Titanium
Inert-gas-fusion analyzer for oxygen, nitrogen and hydrogen in metals — the sample melts in a graphite crucible in an 8.5 kW impulse furnace above 3,000 °C, with IR detection of oxygen and thermal conductivity for nitrogen and hydrogen.
- ✔ O / N / H by fusion · single or ON / OH / NH / ONH · inorganic samples
- ✔ 8.5 kW impulse furnace > 3,000 °C · closed gas system · low detection limits
- ✔ Up to 2000 mg · 32-position autoloader · Autocleaner · argon possible
- ✔ Lead time: configured to order — request current timeline
Price held 7 days after order.
Install + training included
Tailored service plan
Built for metallurgy and AM QC teams
What your QC lab actually checks
O/N/H in metals by fusion
An 8.5 kW electrode impulse furnace melts the sample in a graphite crucible above 3,000 °C; oxygen is measured as CO₂ by infrared and nitrogen and hydrogen by a high-sensitivity thermal conductivity cell. A closed gas system feeds 100 % of the sample gas to the detectors for low detection limits — the oxygen and nitrogen numbers that decide quality in steel, titanium and metal AM powders. Single-element or ON, OH, NH and ONH modes cover the full range.
An applications engineer on the line
Mode and carrier-gas selection, gas calibration, crucible outgassing and blank control from engineers who run metal additive manufacturing in-house (AO Metal). Sub-4h reply, NDA standard.
About this product
The ELTRA ELEMENTRAC ONH-p 2 determines oxygen, nitrogen and hydrogen in metals and inorganic materials by inert gas fusion. The sample melts in a graphite crucible in a powerful 8.5 kW electrode impulse furnace at temperatures in excess of 3,000 °C; oxygen is measured as CO₂ in up to two infrared cells, while nitrogen and hydrogen are detected in their elemental form in a high-sensitivity thermal conductivity cell. A closed gas system feeds 100 % of the sample gas to the detectors for low detection limits — essential for O/N control in steel, titanium and metal AM powders.
Why metallurgy and AM labs choose the ONH-p 2
Oxygen, nitrogen and hydrogen in metals — the fusion numbers that govern quality.
O/N/H by inert gas fusion
An 8.5 kW electrode impulse furnace melts the sample in a graphite crucible above 3,000 °C — oxygen is measured as CO₂ by IR, nitrogen and hydrogen by thermal conductivity. Single-element or ON, OH, NH and ONH modes.
Closed gas system, low limits
A closed gas system under overpressure feeds 100 % of the released sample gas to the detectors, guaranteeing low detection limits and good reproducibility — with inexpensive argon possible as carrier gas.
Innovative sample port, up to 2000 mg
Solid pieces, granules or powder in capsules load up to 2,000 mg and are freed of atmosphere by pulsed carrier-gas flushing before dropping into the preheated crucible — robust against dust, no capsule closing required.
Powerful catalyst + Autocleaner
A copper-oxide catalyst fully oxidizes CO to CO₂ for reliable oxygen even on oxides; the optional Autocleaner removes furnace deposits for precise, high-throughput analysis, with a 32-position autoloader available.
How Additive Plus supports it
A configured, installed analyzer with an O/N/H method dialed in on your metals.
Step 01
Configure to your samples
We spec the ON/OH/ONH mode, carrier gas, autoloader and Autocleaner to your alloy or powder and detection range before it ships.
Step 02
Install & train
Factory-trained engineers install the analyzer, connect the three-phase power, gases and PC/balance, and train your team on the ELEMENTS software.
Step 03
Method & QC support
We help build the SOP — gas calibration, crucible outgassing, blank control and a repeatable O/N/H baseline for your material.
What the ONH-p 2 measures
Full technical specifications are in the Specifications tab. Key measurement capability:
| Parameter | ELEMENTRAC ONH-p 2 |
|---|---|
| Measured elements | Oxygen, nitrogen, hydrogen (single or ON / OH / NH / ONH) |
| Principle | Inert gas fusion — electrode impulse furnace > 3,000 °C (8.5 kW) |
| Detection | IR for oxygen (as CO₂) · thermal conductivity for nitrogen and hydrogen |
| Sample weight | Up to 2,000 mg · pins, granules or powder in capsules |
| Analysis time | ~120–180 seconds |
| Carrier gas | Helium (or argon) for ON · nitrogen for OH |
Typical sample materials
Oxygen, nitrogen and hydrogen in metals and inorganic materials.
Steel & cast iron
Oxygen and nitrogen QC
Titanium & AM powders
O/N pickup control
Non-ferrous metals
Copper, aluminum, alloys
Ceramics
Oxygen content
Slags & ores
Metallurgy
Refractory metals
Incoming inspection
Not sure the ONH-p 2 is the right analyzer?
Compare with single-purpose O/N/H analyzers in our catalog.
Oxygen + nitrogenELEMENTRAC ON-p 2View analyzer →
Oxygen + hydrogenELEMENTRAC OH-p 2View analyzer →
Diffusible hydrogenELTRA H-500View analyzer →
Oxygen + hydrogenELEMENTRAC OH-p 2View analyzer →
Diffusible hydrogenELTRA H-500View analyzer →
Tell us your alloy or powder and whether you need oxygen, nitrogen, hydrogen or all three — our applications engineer will confirm whether the full ONH-p 2 or a single-purpose ON/OH analyzer fits, and the carrier-gas mode. Sub-4h reply, NDA standard.
Why source the ONH-p 2 through Additive Plus
- Authorized channel for ELTRA / Verder Scientific lab equipment — sales, installation, training and service in one place.
- Configured to your samples — ON/OH/ONH mode, carrier gas, autoloader and Autocleaner specified before shipping.
- Method development on your metals — gas calibration, crucible outgassing and a repeatable O/N/H SOP; relevant to metal AM powder QC.
- <24h response from engineers who run metal additive manufacturing in-house (AO Metal). NDA standard.
| Brand | ELTRA |
| Model | ELEMENTRAC ONH-p 2 |
| Measured elements | hydrogen, nitrogen, oxygen |
| Samples | inorganic |
| Furnace alignment | vertical |
| Sample carrier | graphite crucibles |
| Field of application | ceramics, engineering / electronics, steel / metallurgy |
| Furnace | electrode impulse furnace (max. 8,5 KW*), temperatures in excess of 3,000 °C |
| Detection method | solid state infrared absorption for oxygen thermal conductivity for nitrogen and hydrogen |
| Typical analysis time | 120 - 180 s |
| Chemicals required | Schuetze reagents, copper oxide, magnesium perchlorate, sodium hydroxide |
| Gas required | compressed air, helium 99.995 % pure, nitrogen 99.995% pure, argon 99.995% pure (if required), all gases with (2 - 4 bar / 30 - 60 psi) |
| Power requirements | 3~ 400 V, 50/60 Hz, max. 8,500 W |
| Dimensions (W x H x D) | 560 x 780 x 640 mm / 22.05 x 30.71 x 25.2 in |
| Weight | ~ 165 kg |
| Required equipment | PC, monitor, balance (resolution 0.0001g) |
| Optional accessories | carrier gas purification, external chiller, gas calibration unit |
Product videos
Other products teams run alongside ELTRA ELEMENTRAC ONH-p 2 Oxygen/Nitrogen/Hydrogen Analyzer – Inert Gas Fusion | Steel, Metals & Titanium
Analysis equipment

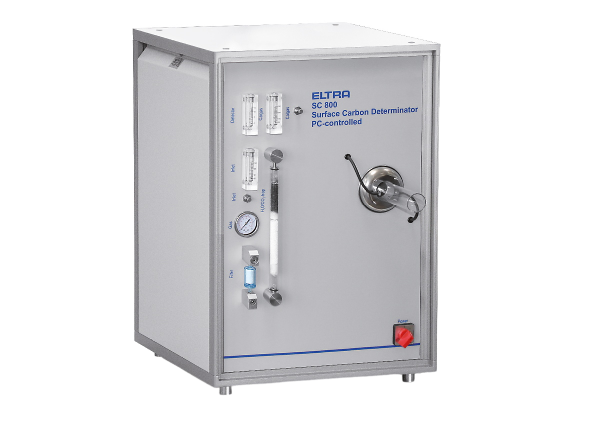

ELTRA SurfaceC-800 Surface Carbon Analyzer – Combustion + IR | Steel, Aluminum & Ceramics
