CreatBot Ultra PA CF – Carbon Fiber Nylon Filament – 1kg

$100

High Temperature Polyamide Carbon Fiber Reinforced filament for extreme strength, stiffness & heat resistance in demanding applications.



  • Type:

    Plastic Filaments

  • In stock

$100

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

PA CF (High Temperature Polyamide Carbon Fiber Reinforced) filament represents the pinnacle of engineering materials for industrial 3D printing. This advanced Carbon Fiber Nylon Filament combines high-temperature polyamide with 15% carbon fiber reinforcement, creating a composite material that delivers exceptional mechanical properties and thermal performance for the most demanding applications.

Key Features & Benefits

  • Extreme Strength & Stiffness: PA CF reinforcement provides ultra-high tensile strength (125 MPa) and exceptional rigidity (8512 MPa flexural modulus)

  • Superior Heat Resistance: Outstanding heat deflection temperature (113°C) ensures reliable performance in high-temperature environments

  • Excellent Dimensional Stability: This High Temperature Polyamide Carbon Fiber Reinforced material minimizes warping and ensures consistent printing results

  • Enhanced Wear Resistance: Carbon fiber content delivers superior abrasion resistance for long-lasting industrial parts

  • Low Moisture Absorption: PA CF maintains mechanical properties better than standard nylons in humid conditions

Recommended Print Settings

Parameter Recommended Value
Nozzle Temperature 300°C – 320°C
Build Plate Temperature 70°C – 90°C
Print Speed 30 – 60 mm/s
Cooling Fan OFF or Low
Nozzle Type Hardened Steel Nozzle (0.6mm recommended)
Drying Instructions 100°C for 6-8 hours before printing

Critical Printing Guidelines

  • Moisture Control: Store PA CF filament in dry environment (<15% humidity) and dry thoroughly before printing

  • Nozzle Requirement: Hardened steel nozzle mandatory to withstand abrasive carbon fibers in this Carbon Fiber Nylon Filament

  • Filament Handling: Handle High Temperature Polyamide Carbon Fiber Reinforced spools carefully to prevent breaking

  • Annealing Option: Can be annealed at 80-100°C for 4-8 hours to enhance mechanical properties

Performance Highlights

  • Mechanical Strength: Exceptional (125 MPa tensile strength)

  • Stiffness: Ultra-High (8512 MPa flexural modulus)

  • Heat Resistance: Outstanding (113°C HDT)

  • Dimensional Stability: Excellent – Minimal warping during printing

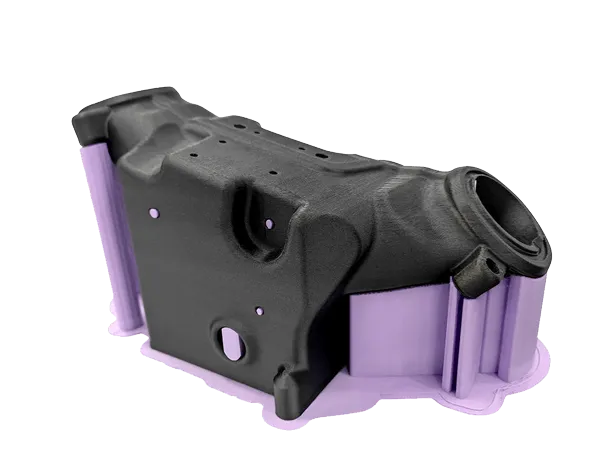

Typical Applications

  • High-Performance Automotive Components

  • Aerospace Structural Parts

  • Industrial Jigs, Fixtures and Tooling

  • Robotics and Drone Components

  • High-Strength Functional Prototypes

  • End-Use Production Parts

Storage & Handling

Store Creatbot Creatbot Ultra PA CF (Carbon Fiber Nylon Filament) in a cool, dry place inside its original sealed bag with desiccant. For long-term storage or in humid environments, use a dry box to prevent moisture absorption, which can lead to printing issues and reduced mechanical properties.

  • Brand CreatBot
  • Printing Materials Plastic Filaments
  • Solid Density g/cm3 1.15
  • Tensile Strength 125
  • Tensile Modulus (MPa) 7808
  • Flexural Strength (MPA) 192
  • Flexural Modulus (MPa) 8512
  • Deflection Temperature 113
  • Glass Transition Temperature 188
  • Printer CreatBot F430
  • Nozzle Temperature 300°C
  • Bed Temperature 80°C
  • Printing Speed 40mm/s, 45mm/s
  • Infill 100%，+/- 45°
  • Nozzle size 0.4mm
  • Layer thickness 0.2mm
