CreatBot Ultra PA Filament – High-Temperature Nylon – 1kg
$65
High-temperature nylon filament offers superior strength, toughness, and thermal resistance for demanding industrial and functional applications.
-
Type:
Plastic Filaments
In stock
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
PA Filament (High-Temperature Polyamide) represents a premium category of nylon filament engineered for superior performance in demanding conditions. This advanced PA HT material combines exceptional mechanical strength with excellent thermal stability and wear resistance, making it ideal for functional prototypes and end-use parts that must withstand rigorous operational environments.
Key Features & Benefits
-
Exceptional Mechanical Strength: High tensile (86 MPa) and flexural (133 MPa) strength for demanding applications
-
Excellent Toughness & Durability: Withstands repeated stress and impact without failure
-
Good Heat Resistance: Suitable for applications requiring thermal stability under load
-
Low Moisture Absorption: Maintains dimensional stability better than standard nylons
-
Outstanding Wear Resistance: Ideal for moving parts, gears, and bearing surfaces
Recommended Print Settings
| Parameter | Recommended Value |
|---|---|
| Nozzle Temperature | 280°C – 300°C |
| Build Plate Temperature | 70°C – 80°C |
| Drying Instructions | 100°C for 10 hours (critical before printing) |
| Print Speed | 30 – 90 mm/s |
| Cooling Fan | OFF or Low |
| Chamber Temperature | Not required, but 50°C recommended |
Performance Highlights
-
Mechanical Strength: Excellent (86 MPa tensile strength)
-
Durability: Outstanding – High wear and impact resistance
-
Heat Resistance: Very Good (79°C HDT)
-
Stiffness: High (3513 MPa flexural modulus)
Typical Applications
-

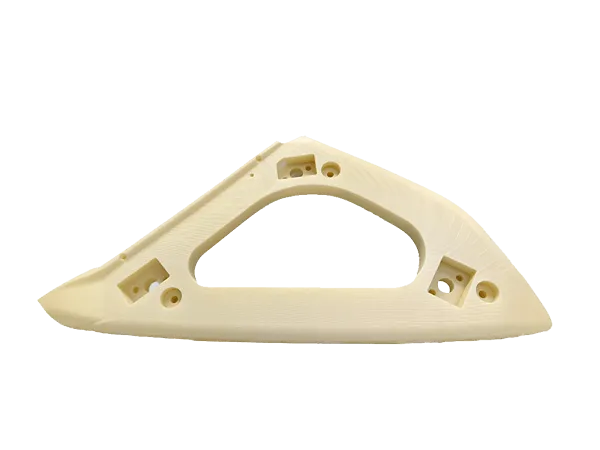

Functional Prototypes & End-Use Parts
-
Gears, Bearings & Mechanical Components
-
Jigs, Fixtures & Industrial Tooling
-
Automotive Under-Hood Components
-
Consumer Electronics Housings
-
Aerospace and Robotics Components
Storage & Handling
Store Creatbot Creatbot Ultra PA HT (High-Temperature Nylon) in a cool, dry place inside its original sealed bag with desiccant. For long-term storage or in humid environments, use a dry box to prevent moisture absorption, which can lead to printing issues and reduced mechanical properties.
- Brand CreatBot
- Printing Materials Plastic Filaments
- Solid Density g/cm3 1.21
- Tensile Strength 86
- Tensile Modulus (MPa) 3172
- Flexural Strength (MPA) 133
- Flexural Modulus (MPa) 3513
- Deflection Temperature 79
- Glass Transition Temperature 84
- Printer CreatBot F430
- Nozzle Temperature 300°C
- Bed Temperature 80°C
- Printing Speed 40mm/s
- Infill 100%，+/- 45°
- Nozzle size 0.4mm
- Layer thickness 0.2mm
