InssTek MX-Med
Porous coating system.
-
Technology:
DED, DMT
-
Materials:
Metal Powders
Need an official request?
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Introducing MX-Lab System. Alloy & Metallurgy Research DED machine. Metallurgical Research system, fabricating your New Alloys.
- Titanium porous structure application
- Developed to apply for orthopedic implant surface coating
- Used for artificial hip joint(FDA approved) & knee coating
Creating Innovative Solutions
for Challenges in Medical Industries
- Porous coating
- Special Optic Module
- Coating AM CAM
- 5-Axis Control
IDEAL POROSITY: Surface roughness ensured with porosity higher than 60% and ideal porosity(Pore size : 100~400um) that strengthens interfacial bonding between coating layer and substrate as well as biological fixation with bones.
SUPERIOR CUSTOMIZATION: Entirely customizable for cups, knees, shoulders, ankles and more as needed.
USER FRIENDLY INTERFACE: Simple coating procedure with easy step and easy controllable pore shape, thickness, roughness.
ECONOMICAL ADVANTAGE: Cost effective compared with the conventional method and rapid fabrication.
OPTIMIZED PRINTING HEAD: Minimized printing head to avoid the interference with the objects and optimized coating parameters.
COMPLEX PARTS PRODUCTION: Simultaneous 5-axis motion for porous coating.
dmt technology
The most precise DED Technology.

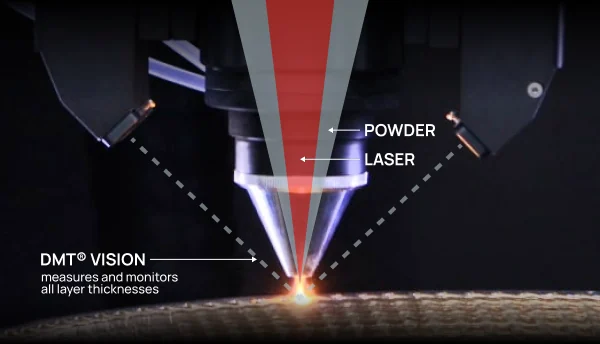

DMT® is Direct Metal Tooling, developed by InssTek and categorized as Direct Energy Disposition(DED) technology according to ASTM standards. Using 2 vision cameras, DMT technology analyzes and controls the height of the meltpool in real-time.
Artificial joint coating
InssTek’s MPC technology is able to coat pure titanium on various metals.
In case of artificial joint, Hip system is made with Ti-6AI-4V and knee systems are made with CoCr. InsTek successfully made Ti porous layer on both Ti-6AI-4V and CoCr products.
Strong Interfacial Bonding between
Coating & Base

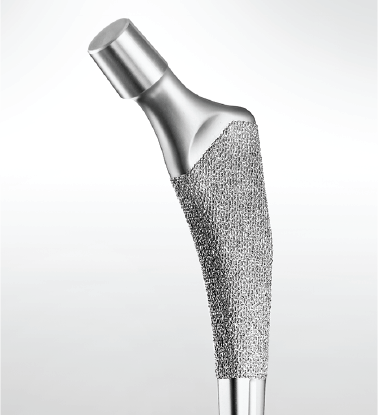

Stem Component Hip System
Base Material: Ti-6Al-4V
Coating Material: Pure Ti

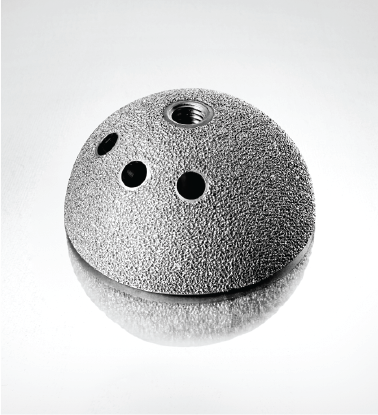

Cup Component Hip System
Base Material: Ti-6Al-4V
Coating Material: Pure Ti

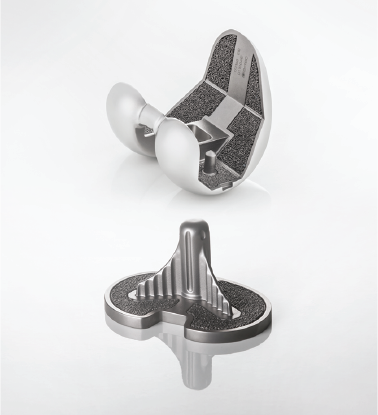

Tibial Component Knee System
Base Material: CoCr
Coating Material: Pure Ti
Femoral Component Knee System
Base Material: CoCr
Coating Material: Pure Ti
Applicable Material for DMT
The table shows just the metals already printed with our technology so far. Almost every week a new metal is added to our experience.
Fe-based Alloys
P20, P21, H13, SS304L, SS316L, SS420, 2507
Ti-based Alloys
Ti(Grade 2), Ti6-Al-4V(Grade5, Grade23)
Ni-based Alloys
Inconel600, 625, 690, 713, 718, Hastelloy22, 276, Nimonic75, Invar36
Co-based Alloys
CoCr, Stellite6, Stellite21, Stellite25
Cu-based Alloys
Al-Bronze, Cu-Sn
- Brand Insstek
- Country of origin Korea
- External Dimensions (L×W×H） 2150×1800×2550mm ( 84.65×70.87×100.39 in )
- Software MX-OS for MX-Lab / Material Designer & MiXO DMT® Closed Loop Feedback Control system
- Data File Format STL
- Power Supply EUR/China: 220V±10%, 1~/N/PE, 50Hz, 14A US: transformer sold with machine
- Technology DED, DMT
- Printing Materials Metal Powders
- Build Volume 11.81 x 11.81 x 9.06 in, 300 x 300 x 230 mm
