Microtrac CAMSIZER XL Particle Size and Shape Analyzer
Size and shape of coarse, dry particles from 160 µm to 135 mm — more than 40 parameters from one run of more than 2 kg, in about one to five minutes.
- 15 size, 13 shape and 3 surface-roughness parameters, plus density, transparency and 3D
- High-speed camera, more than 100 images per second, no contact with the sample
- Installation and on-site training included · free test measurement
- Configured to order · lead time from 4 weeks
What your bulk QC lab actually checks
Representative coarse statistics
A wide free-fall stream and 2 kg samples give statistically sound size and shape on aggregates and granules — sieve-comparable, without the time and error of a sieve stack.
An applications engineer on the line
Feed setup, sieve-correlation and shape method development from engineers who run particle characterization in-house.
- CAMSIZER XL measuring unit — high-speed, high-resolution camera (2560 × 2048 pixels) and stroboscopic light source, more than 100 images per second
- Sample introduction customized to your material and sample amount
- Enclosed optical system with a self-cleaning mechanism
- 2D size and shape evaluation plus the patented 3D measurement
- Installation and on-site operator training — included in every quotation

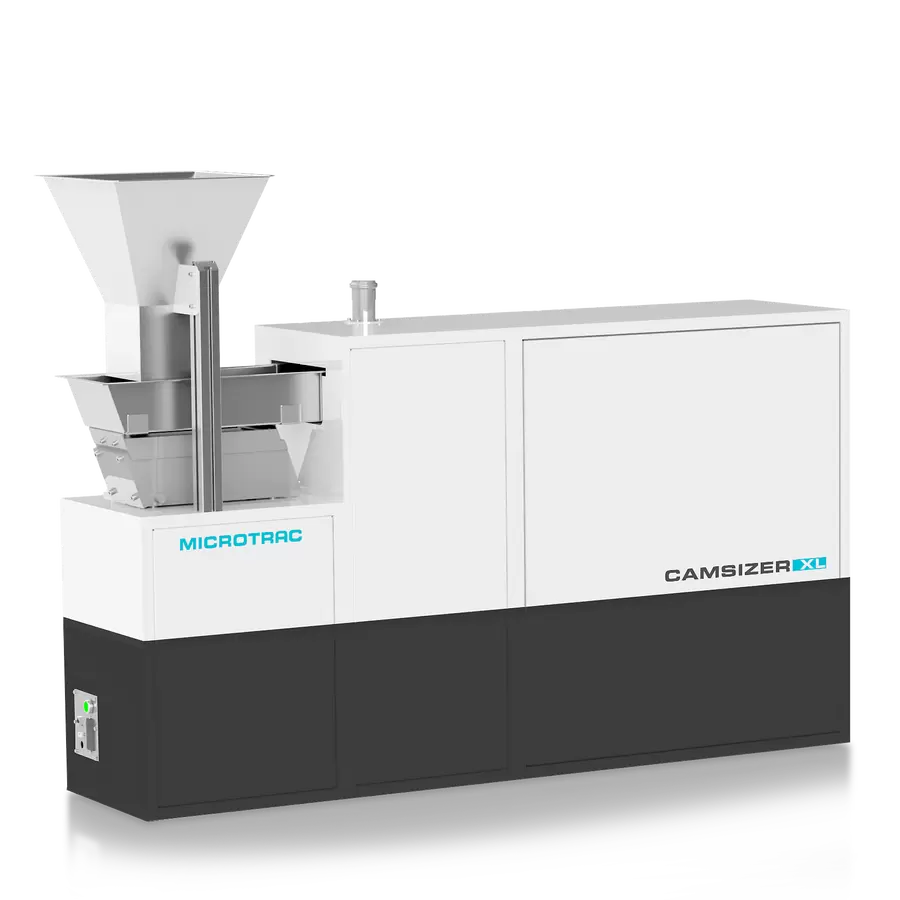

What the CAMSIZER XL is
The CAMSIZER XL is a dynamic image analyzer from Microtrac for coarse, dry particles from 160 µm to 135 mm. The sample is fed through a measuring zone lit by a stroboscopic light source, and a high-speed, high-resolution camera records more than 100 images per second. Every particle in those images is measured without contact, and one analysis reports more than 40 parameters: size, shape, surface roughness, density, transparency and 3D. Because a run can take more than 2 kg of material, coarse bulk samples are measured in quantities large enough to mean something, in about one to five minutes.
Specifications
| Measuring principle | Dynamic image analysis (ISO 13322-2 and ISO 9276-6) |
| Measuring range | 160 µm – 135 mm, dry |
| Measurement parameters | 15 size, 13 shape/form, 3 surface roughness, density, transparency, 3D |
| 3D measurement | patented, follows ISO 13322-2 |
| Camera | 2560 × 2048 pixels, 62 fps at maximum resolution |
| Measurement rate | more than 100 images/s |
| Light source | stroboscopic |
| Sample amount | more than 2 kg, depending on application |
| Measuring time | approx. 1–5 minutes, depending on application |
| Electrical | 110–230 V, 50–60 Hz |
| Power consumption | approx. under 100 W |
| Construction | aluminum and stainless steel |
| Dimensions (W × H × D) | 400 × 1229 × 1693 mm (15.7 × 48.4 × 66.7 in) |
| Weight | approx. 70 kg (154 lb) |
| Installation and training | on site, included in every quotation |
| Lead time | from 4 weeks, depending on configuration |
Download: CAMSIZER XL datasheet (PDF)
What it tells you about coarse bulk material
For granules, aggregates and chips, a size cut alone rarely explains why one lot behaves differently from the next. One CAMSIZER XL analysis reports all of this together:
| Size | 15 size definitions over the full 160 µm – 135 mm range |
| Shape and form | 13 shape and form parameters for each particle |
| Surface roughness | 3 roughness parameters, reported with size and shape |
| Density and transparency | from the same measurement, no second test |
| 3D | the patented 3D measurement, following ISO 13322-2 |

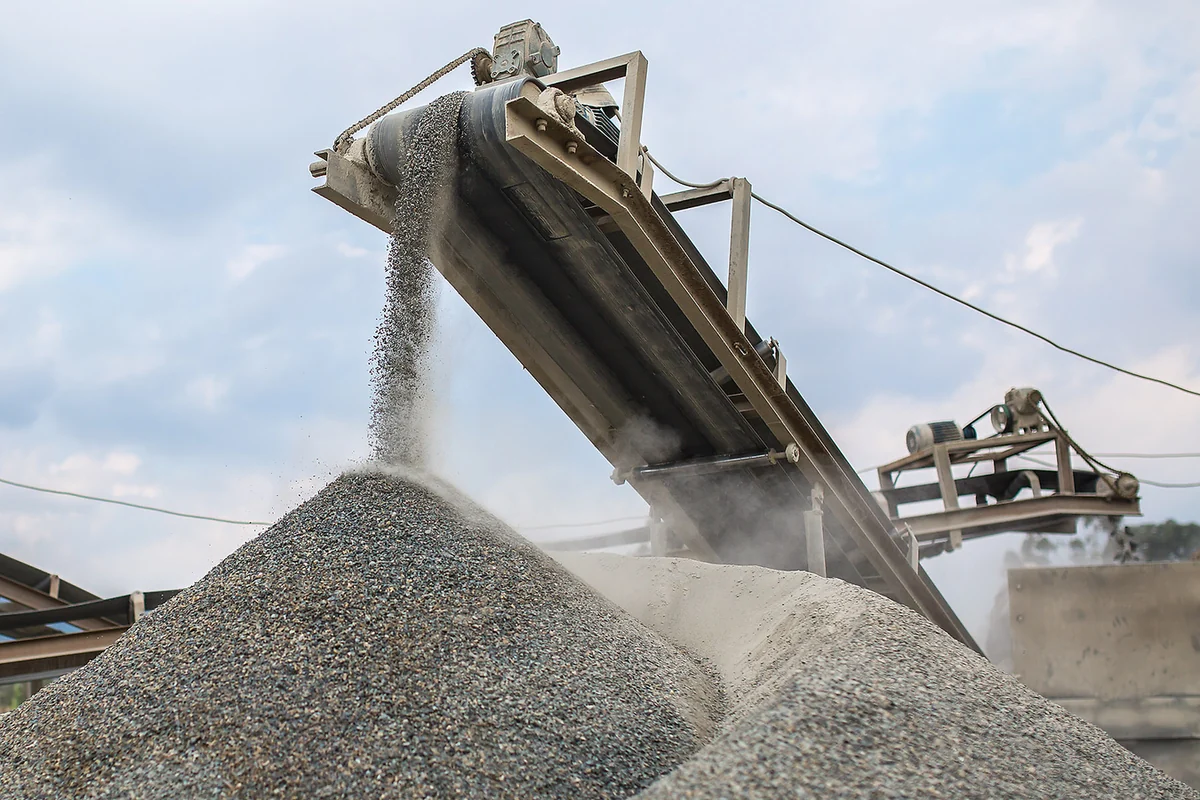

Microtrac names these typical fields: aggregates, building materials and cement, fertilizers, food, geology and mining, glass beads and wood chips.
Built for coarse material in a working lab
Where the XL stops — and what to take instead
The CAMSIZER XL starts at 160 µm. Fine powders — metal AM feedstock among them — belong on the CAMSIZER X2+, which measures from 0.9 µm to 8 mm with air, gravity or wet dispersion. For dry, free-flowing material from 20 µm to 30 mm where you need length, width and thickness of each particle from up to 30 images, there is the CAMSIZER 3D. And if the measurement has to sit in the production line rather than in the lab, look at the CAMSIZER ONLINE XL.
In pictures
Availability, payment and delivery
Why buy it through Additive Plus
What usually stops people — and the honest answer
Turning measurements into reports? URIQA, an AI research workspace built by materials scientists, keeps analyzer exports, certificates and papers in one project and drafts reports where every number cites its source.
Ready when you are
| Brand | Microtrac |
| Country of origin | Germany |
| Measurement range | 160 µm - 135 mm |
| Measurement principle | Dynamic Image Analysis (ISO 13322-2 & 9276-6) |
| Measuring time | ~ 1 - 5 minutes (depending on application) |
| Measurement rate | > 100 images/s |
| Sample amount | > 2kg (depending on application) |
| Physical specifications | Aluminum and stainless steel |
| Scale factor (µm/pixel) | 160 µm / pixels |
| Camera pixel layout | 2560 x 2048 pixels, 62 fps at max resolution |
| Light source | Stroboscopic light |
| Electrical | 110-230 V / 50-60 Hz |
| Power consumption | Approx. < 100 Watt |
| Dimensions (H x W x D) | 15.74×48.38×64.52 in / 400×1229×1693 mm |
| Weight | approx. 154 lbs / 70 kg |
Send us a representative sample. The test measurement in Microtrac's US application lab is free, and we go through the results with you.
