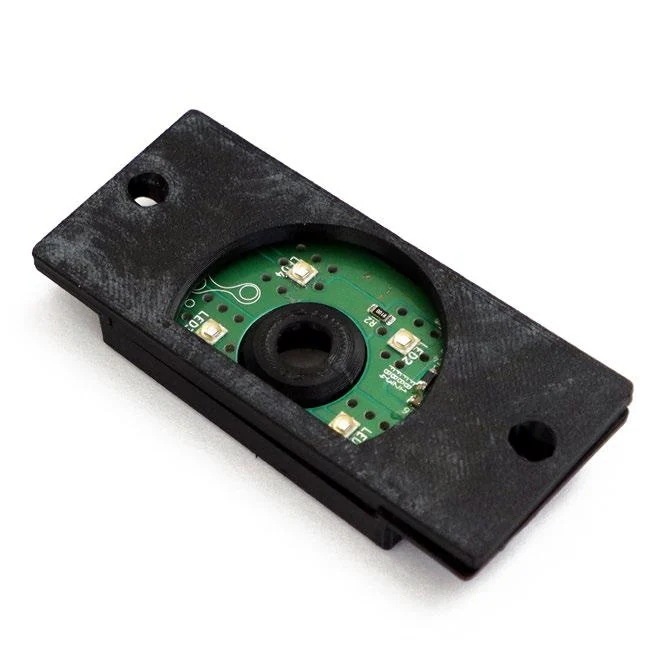

Sygnis UV Module for F-NIS 23151 – 365/405 nm, Version A to B
Add UV curing to your Sygnis F-NIS 23151: the UV Module with 365 nm and 405 nm diodes turns a Version A into a Version B, fitted by you.
- 365 nm and 405 nm UV, switched by the F-NIS post-processor
- Upgrades F-NIS Version A to Version B — self-installed
- 12-month Sygnis warranty · online setup support
- Ships in 2–3 weeks
$1,150
Genuine parts, no overseas wait
Dual-wavelength UV, self-upgrade
The UV Module pairs 365 nm and 405 nm diodes under post-processor control, so you can upgrade an F-NIS from version A to version B in the field and unlock the newer curing behavior without a service visit.
An applications engineer on the line
- Adds the UV module with 365 nm and 405 nm diodes to an F-NIS Version A
- Turns Version A into Version B — you fit it yourself
- The F-NIS post-processor writes the UV on/off commands into your G-code
- Online support from the Additive Plus team and Sygnis while you fit it
What it is and what it fits
The UV Module is the Sygnis upgrade that adds UV light to a Sygnis F-NIS 23151 DIW printer. It is the difference between Version A and Version B: the module mounts on the printhead and irradiates the printed layers with 365 nm or 405 nm light. Sygnis designed it so the owner can upgrade the machine without a service visit.
With UV on board you can cure light-sensitive pastes between layers and irradiate the bed. The F-NIS post-processor inserts the UV commands into G-code from any supported slicer — Cura, PrusaSlicer, Simplify3D, Slic3r or FlashPrint — so you set when the light runs, not wire it by hand.
Specifications
| Product | UV Module for Sygnis F-NIS 23151 |
| Wavelengths | 365 nm and 405 nm |
| Light source | UV LEDs, post-processor controlled |
| Installation | Self-installed; online support |
| Warranty | 12 months, Sygnis; UV diodes covered for the first 300 hours of printing |
| Price | $1,150 |
| Lead time | 2–3 weeks |
Which F-NIS it fits
| Version A | Yes — this module makes it a Version B |
| Version B and C | Already fitted |
| Version D and E | Already fitted (Version E shares one UV module between both heads) |
The next step up from Version B is the Heat Module ($1,535), which adds the heated 10 ml cartridge head of Version C. Stock up on syringe barrels and stainless dispensing tips at the same time.
Availability, payment and delivery
What usually stops people — and the honest answer
| Brand | Sygnis |
| Technology | DIW |
| Wavelength | 405 nm, 365 nm |
More from the Sygnis line
A hybrid Direct Ink Writing printer that prints one- and two-component pastes with thermoplastic supports and cures them with UV and IR during the print — for R&D…
One desktop machine for 3D printing, two-material printing, CNC milling and paste extrusion — four toolheads, swapped in about a minute.Single and Dual FFF printing, 235 × 250…
Print temperature-sensitive pastes on your Sygnis F-NIS 23151: the Heat Module warms a 10 ml cartridge to 60 °C and turns a Version B into a Version C.Heated…
Turn the F-NIS 23151 already in your lab into Version D: a cooled build platform from −15 °C to ambient.Cooled platform, −15 °C to ambientVersion D also carries…
Turn the F-NIS 23151 already in your lab into Version E: a second printhead, so two materials print in one job.Two pneumatic heads, independent pressure for each cartridgeIndependent…
Transparent luer-lock syringe barrels for the Sygnis F-NIS 23151 silicone & paste 3D printer — the material cartridges you fill, lock in the printhead and print from. Pack…
General-purpose pistons for Sygnis F-NIS syringe barrels: the tapered face spreads the air pressure evenly and the wiper keeps the barrel wall clean.Pack of 20 · $55 (10…
Electropolished stainless dispensing tips for the Sygnis F-NIS 23151 — six color-coded diameters from 0.20 to 1.50 mm, luer-lock, free of silicones and chlorides.Pack of 20 of one…
Teflon-lined 0.25 mm dispensing tips for the Sygnis F-NIS 23151 — the PTFE lining resists clogging with filled and multi-phase pastes.Pack of 20 · $1200.25 mm bore, PTFE-lined…
What our customers say
“Harry and team were professional, effective communicators as we set up the order, then they executed quickly and produced an amazing product for us at a very competitive price. Am looking forward to our next print w Additive Plus!”
“Great 3D printing service and the resin parts look super smooth and clean. Really happy with how everything turned out!”
“Harry was very professional and helped me out with my 3D printing needs and explained what options I have in terms of filaments such as PEEK. Highly recommended.”
“I needed a 3D enclosure printed urgently in a specific time period, they did great!”
Common questions
Don't see yours? Email [email protected] — NDA on request, typical reply within 4 hours.
Which printer is the UV Module for?
What wavelengths does it use?
Can I install the UV Module myself?
How much does the UV Module cost?
How long does delivery take, and what is the warranty?
How do I know it fits my machine?
What is the next upgrade after Version B?
Can I order with a purchase order?
Place your order, or talk to an engineer first
Order Sygnis UV Module for F-NIS 23151 – 365/405 nm, Version A to B direct, or talk to materials engineer
