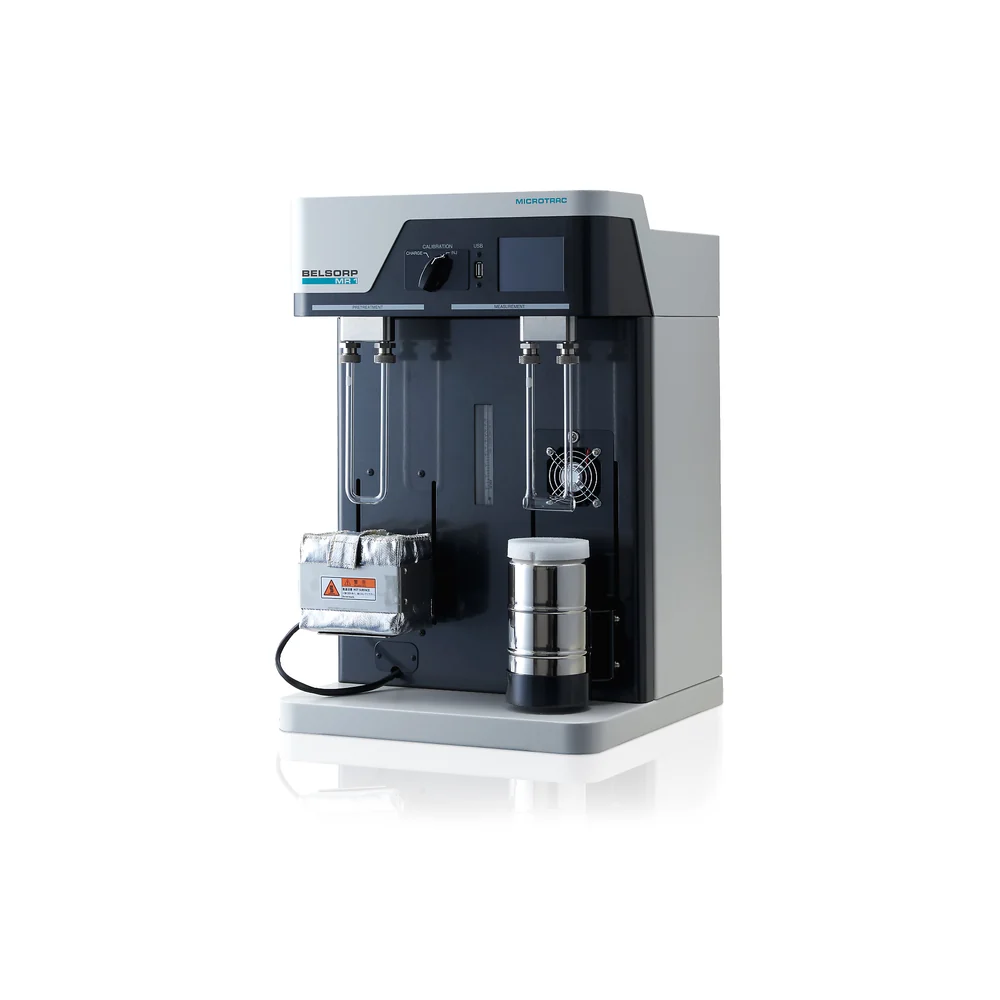

Microtrac BELSORP MR 1 Single-Point BET Surface Area Analyzer
Single-point BET surface area in about 15 minutes — dynamic flow method, from 0.01 m²/g, repeatability within ±1.0 %.
- Pretreatment up to 400 °C at the same time as the measurement
- Touch panel, automatic Dewar, results to USB without manual calculation
- Installation and on-site training included · free test analysis of your sample
- Configured to order · lead time from 4 weeks
What your QC lab actually checks
BET as a walk-up check
Single-point BET in about 15 minutes with simultaneous pretreatment and automatic Dewar handling turns surface area into a quick QC step — results straight to USB, no manual calculation.
A materials engineer on the line
Single- versus multi-point BET guidance and setup from engineers who run surface-area analysis in-house at Additive Plus.
- BELSORP MR 1 with thermal conductivity detector, automatic Dewar movement and touch panel
- Adsorbate N2 or Kr with helium carrier gas
- Pretreatment up to 400 °C, run at the same time as a measurement

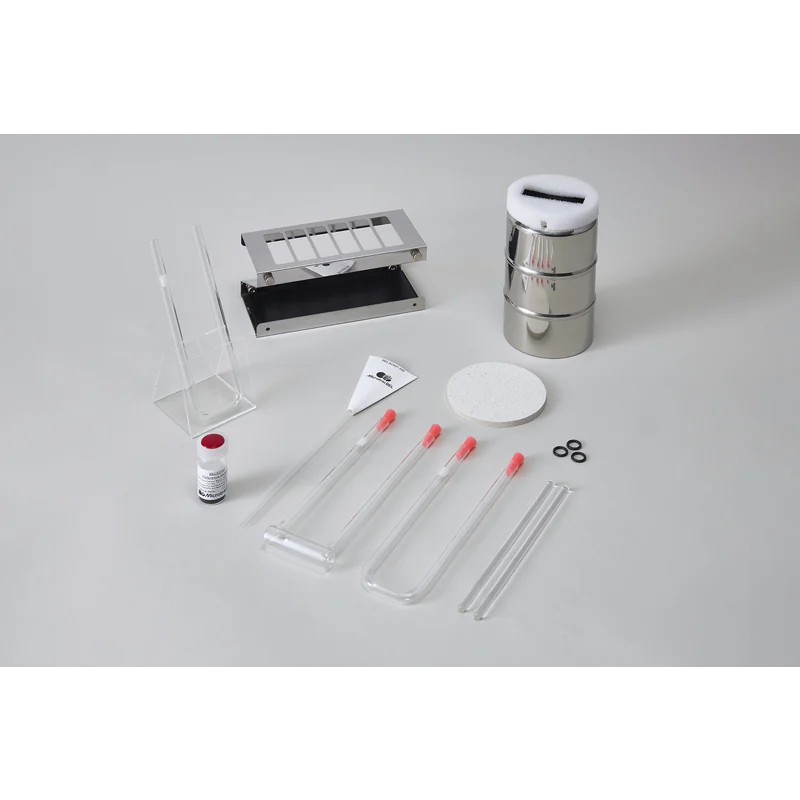

- Standard consumables: sample cells, filler rods, filters, liquid bottle, O-rings, caps, weighing platforms
- Results to USB as text, Excel or a printed report
- Installation and on-site operator training — included in every quotation
What the BELSORP MR 1 is
The BELSORP MR 1 is a compact, stand-alone analyzer for specific surface area by the dynamic single-point BET method. A gas mixture of known concentration — for example 30 % nitrogen in helium — flows over the sample while it is cooled with liquid nitrogen. A thermal conductivity detector records how much nitrogen the sample takes up and then releases again when the Dewar moves down; the sharper desorption peak is integrated to calculate the surface area.
Pretreatment of one sample and measurement of another run at the same time. The Dewar moves automatically, a calibration function is built in, and the instrument is operated from a touch panel. The surface area is displayed as soon as the measurement ends, without manual calculation, and results can be saved to a USB stick.
Specifications
| Measuring principle | Dynamic flow gas method (single-point BET) |
| Detector | thermal conductivity detector (TCD) |
| Adsorption gas | N2 or Kr |
| Carrier gas | He |
| Samples measured | 1 |
| Pretreatment temperature | up to 400 °C |
| Measuring range | 0.01 m²/g and above |
| Repeatability | within ±1.0 % |
| Measuring time | approx. 15 minutes, including calibration, excluding pretreatment |
| Operation | touch panel, automatic Dewar movement |
| Data output | USB storage: text file, Excel, rich-text report |
| Dimensions (W × H × D) | 350 × 553 × 368 mm (13.8 × 21.8 × 14.5 in) |
| Weight | 30 kg (66 lb), main body |
| Power | AC 100 – 120 V or AC 200 – 240 V, 400 W, 50/60 Hz |
| Standards | CE |
| Installation and training | on site, included in every quotation |
| Lead time | from 4 weeks, depending on configuration |
Download: BELSORP MR 1 datasheet (PDF)
What it tells you about a powder — and what it does not
The MR 1 answers one question quickly: what is the BET surface area of this sample? The datasheet names catalysts, battery materials, zeolites, ceramics, carbon, cement, silica, pigments, toners and pharmaceuticals among its fields.
| BET specific surface area | single-point value from 0.01 m²/g, repeatability within ±1.0 % |
| Lot comparison | the same method and number for every lot, displayed without manual calculation |
| Throughput | approx. 15 minutes per measurement while the next sample is pretreated |
| Low-area samples | krypton as adsorbate instead of nitrogen |
| Not reported | adsorption isotherm, pore size distribution, pore volume — these need a volumetric analyzer |

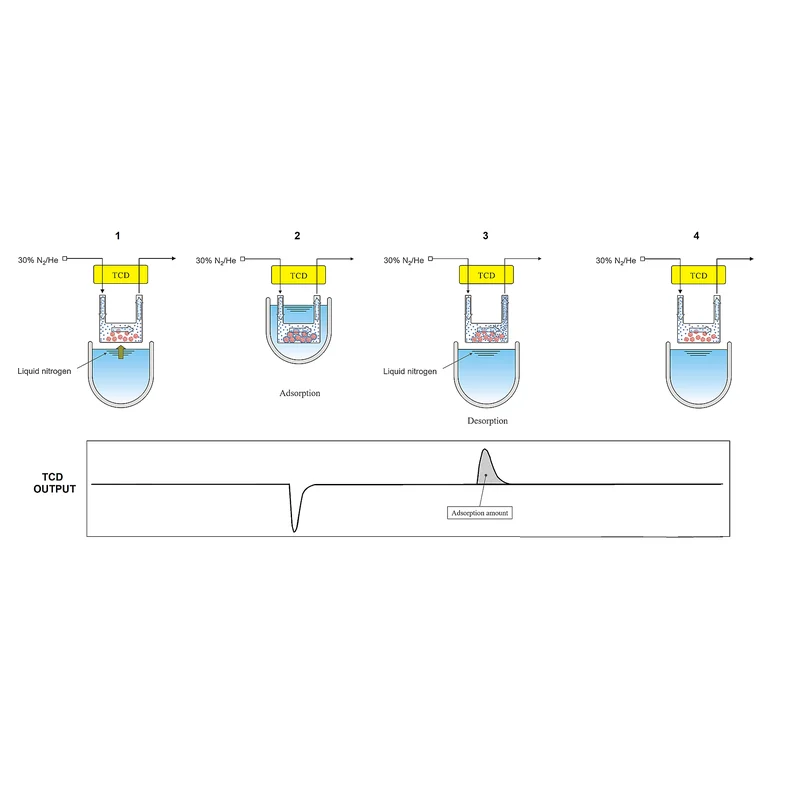

How a dynamic-flow measurement works
Where the MR 1 stops — and what to take instead
The MR 1 measures single-point BET surface area of one sample at a time — nothing more. It does not record an adsorption isotherm, so it gives no pore size distribution or pore volume, and single-point BET is not the method for microporous materials. For multi-point BET and mesopores on up to four samples, take the BELSORP MINI X. For micropores and krypton BET down to 0.0005 m²/g, the BELSORP MAX G or the BELSORP MAX X. Pores above 500 nm need mercury porosimetry on the BELPORE, and true density the BELPYCNO gas pycnometer.
In pictures
Availability, payment and delivery
Why buy it through Additive Plus
What usually stops people — and the honest answer
Ready when you are
| Brand | Microtrac |
| Technology | Dynamic flow gas adsorption (single-point BET) |
| Certification | CE |
| Weight | 66 lb / 30 kg |
Send us a representative sample. The test measurement in Microtrac's US application lab is free, and we go through the results with you.
