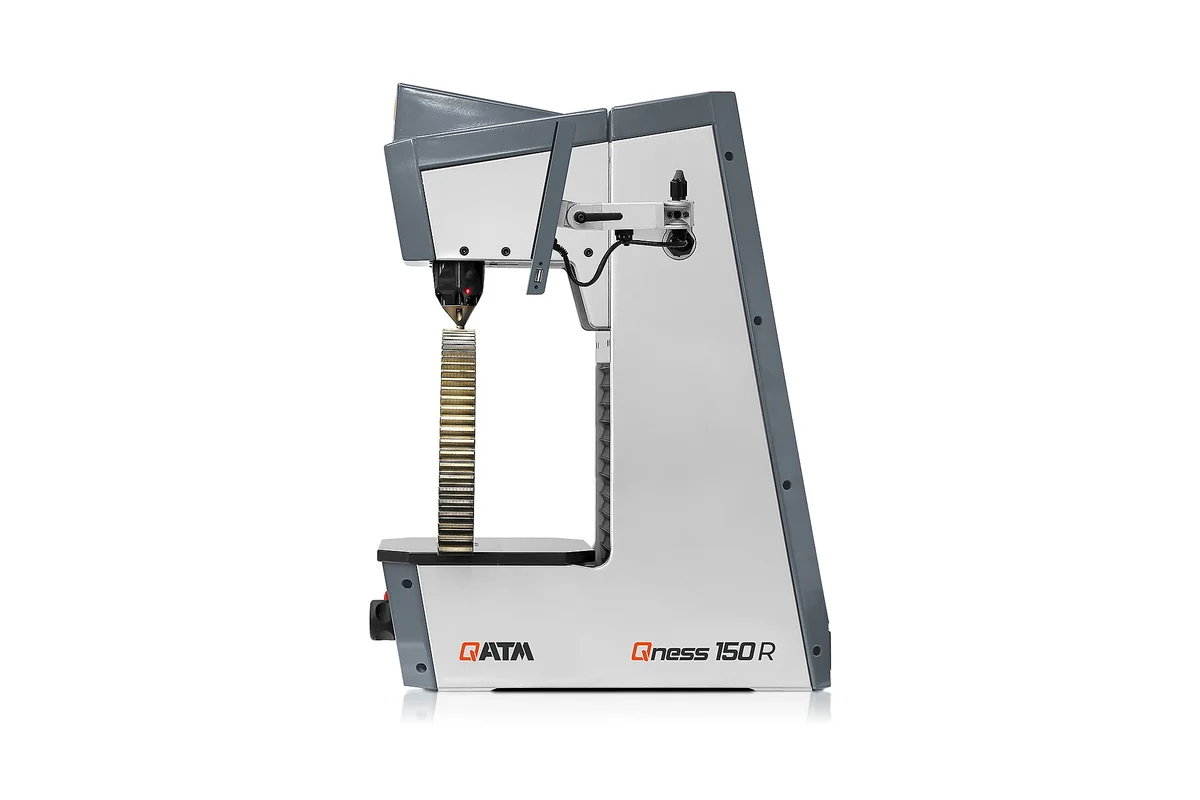

QATM Qness 150 R Rockwell Hardness Tester – Regular & Superficial Rockwell | 1–250 kgf
The Qness 150 R incorporates the best of all proven concepts and practices
Price held 7 days after order.
1–250 kgf
Test force range (electronic)
Regular & superficial Rockwell
Methods / scales
180 mm / 260 mm
Throat depth / test height
Fully automated
Force application
About this product
The QATM Qness 150 R is a fully automated Rockwell hardness tester that runs regular and superficial Rockwell across a 1–250 kgf (9.81–2450 N) electronic test-force range, applying every load under closed-loop electronic control — no dead weights — on parts up to 100 kg with a 180 mm throat and 260 mm test height.
Why QC labs choose the Qness 150 R
Regular and superficial Rockwell under closed-loop electronic force, on a frame built for large production parts.
Wide closed-loop force range
1–250 kgf (9.81–2450 N) applied under closed-loop electronic control. Regular Rockwell (60/100/150 kgf) and superficial Rockwell (15/30/45 kgf) on one frame, with no dead weights to hang or swap.
Regular & superficial Rockwell
Regular scales (HRA, HRB, HRC) and superficial scales (HR15N/30N/45N, HR15T/30T/45T) to ISO 6508 / ASTM E18, with hardened diamond-cone and ball indenters. Conformant, not comparable.
Built for large parts

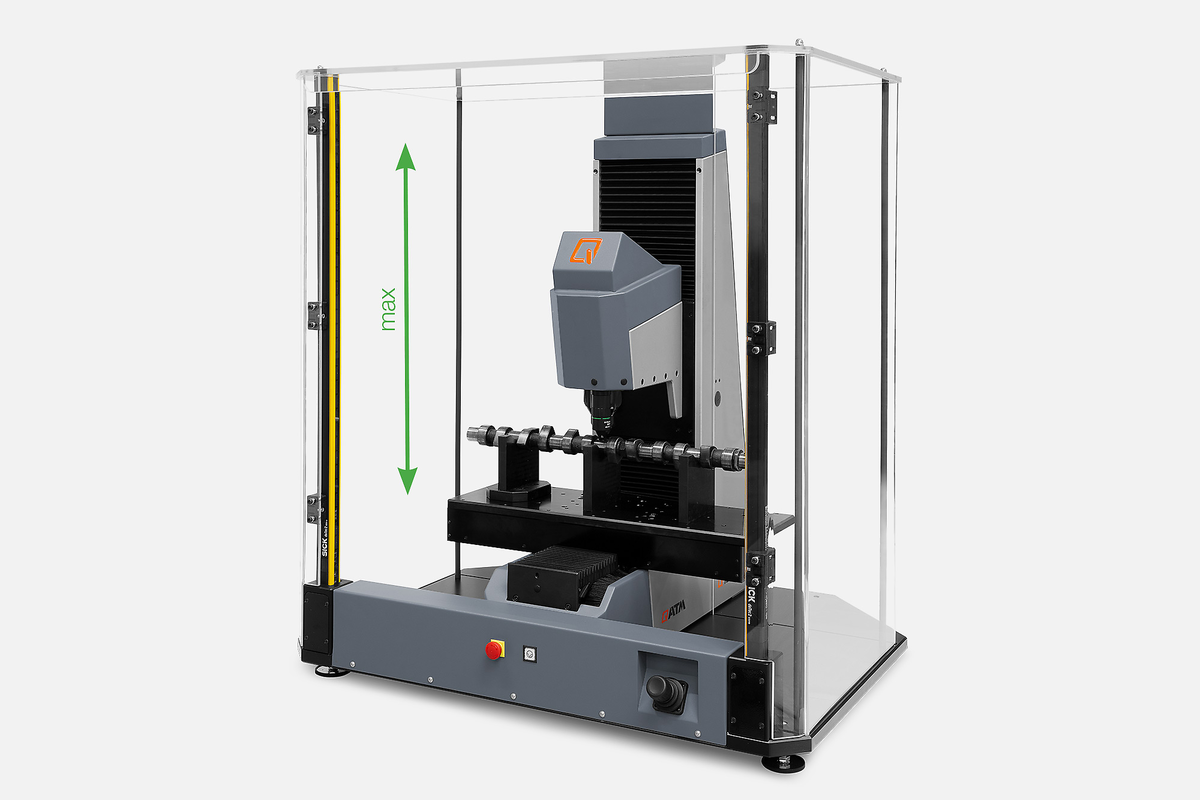

180 mm throat depth, 260 mm test height (450 mm option), a 250×260 mm anvil and up to 100 kg workpiece weight — test heavy production parts without sectioning.
Automated positioning & reporting

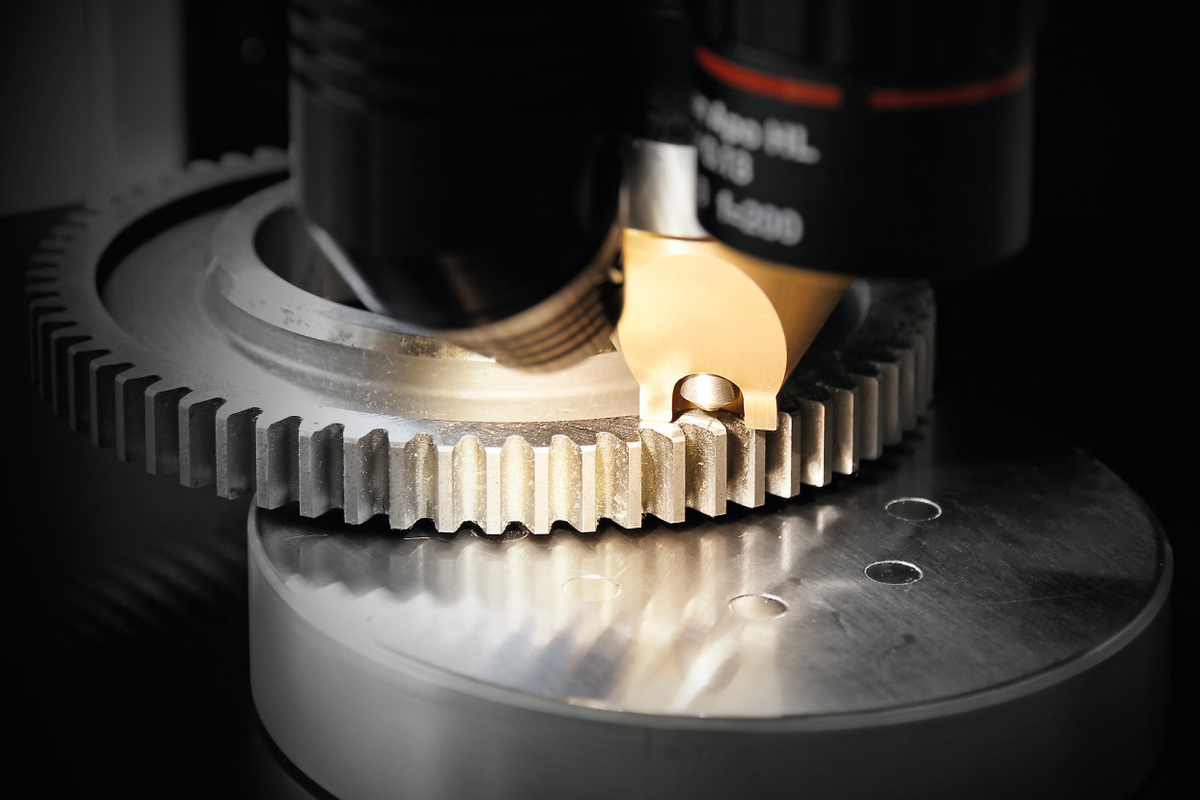

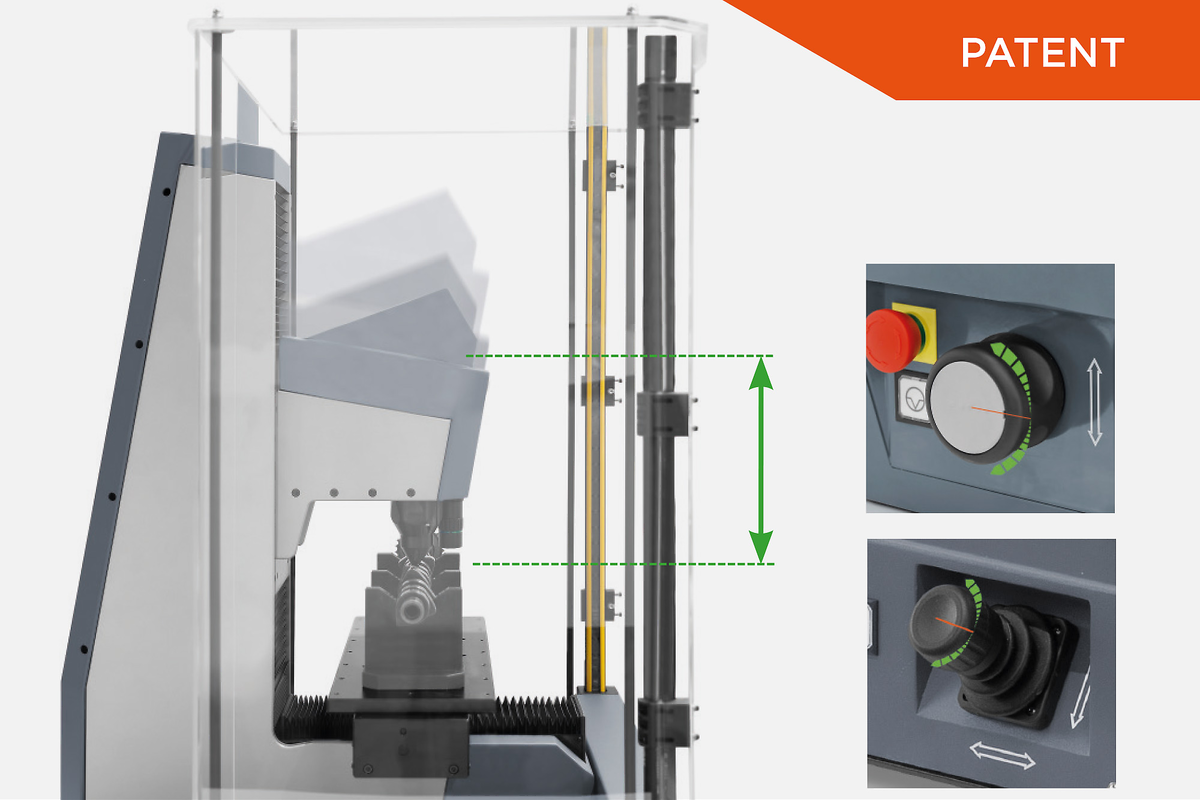

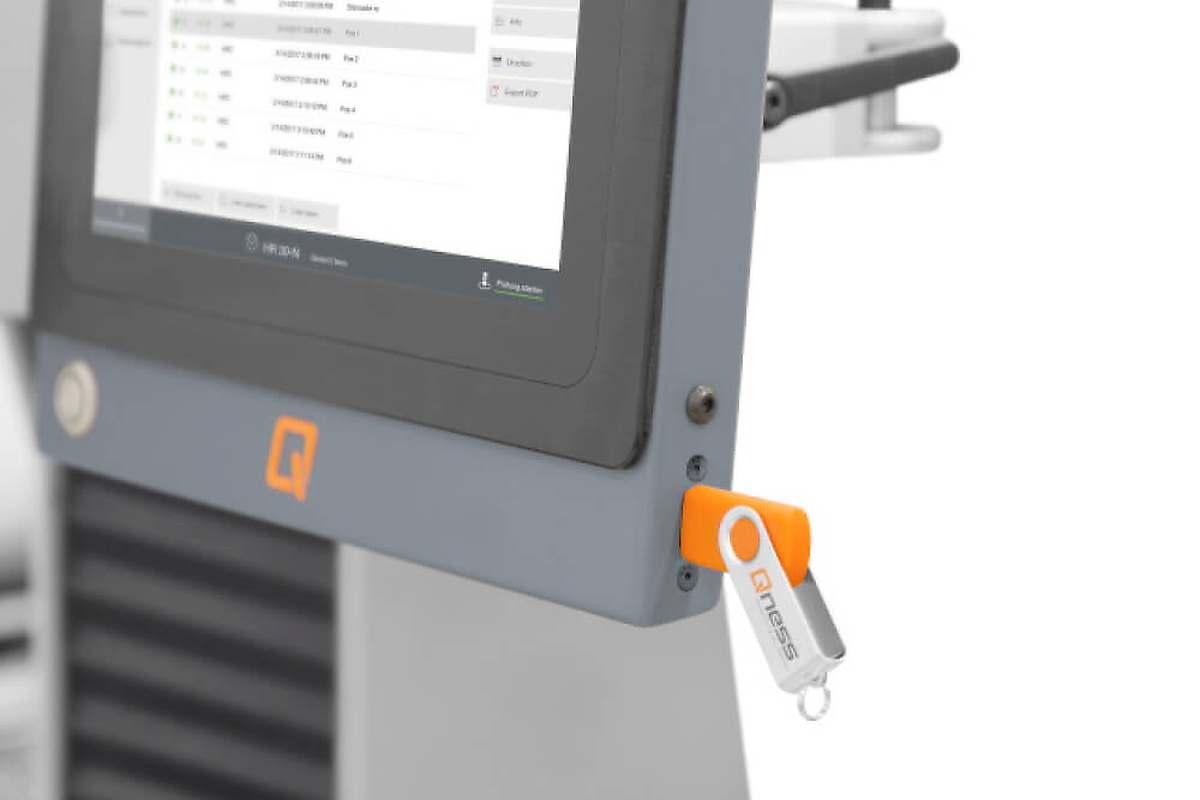

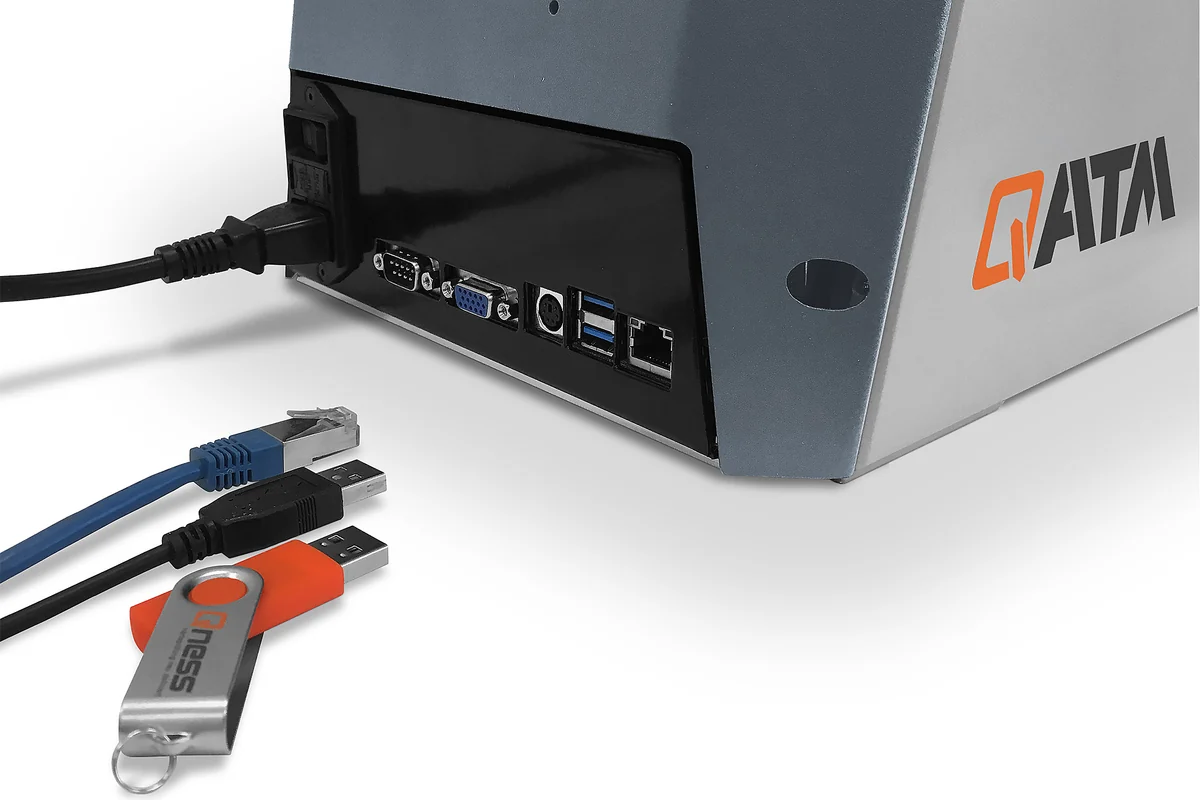

Dynamic motorized height adjustment with collision-proof electronic movement control, integrated working-room lighting, and an onboard Windows PC/SSD running Qpix T2R for statistics and A4 PDF protocols.
How Additive Plus delivers it
Configured to your scales, installed and calibrated on-site, supported by engineers who run metallography daily.
Step 01
Configure to your lab
We spec the indenter set — diamond cone and ball indenters — anvils, sample holders, the 450 mm height extension and the Qpix T2R license around the parts and Rockwell scales you test.
Step 02
Install & train on-site
Factory-trained engineers install the system, verify calibration against certified Rockwell reference blocks per ISO 6508 / ASTM E18, and train your operators on Qpix T2R.
Step 03
Validated & supported
You leave with a tester that reproduces reference blocks in spec, DAkkS-traceable indenters in the box, and method support with a sub-24h engineer response.
Where the Qness 150 R earns its place
Regular and superficial Rockwell for QC labs, heat treatment, metallography and AM materials work.
Case-hardening & surface QC
HRC / HRA on hardened and case-hardened steels
Weld & HAZ hardness
Regular Rockwell across welds and heat-affected zones
Coatings & thin parts
Superficial Rockwell (HR15N / HR30T) on plated and thin sections
AM & powder metallurgy
Rockwell on LPBF / DED builds and sintered parts
Incoming QC & production

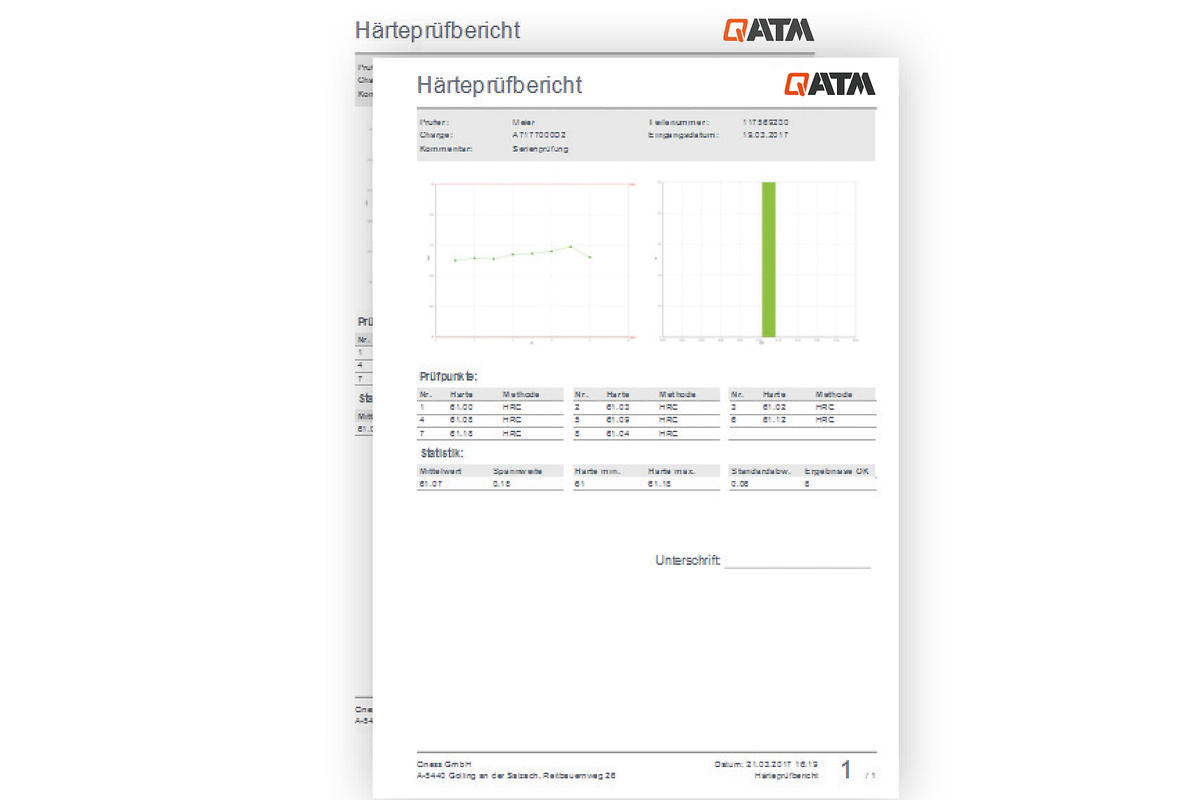

Automated Rockwell series with Qpix T2R reporting
Large & heavy components
180 mm throat and 100 kg capacity for big parts
Specifications
The Qness 150 R combines a 1–250 kgf (9.81–2450 N) electronic test-force range, fully automated closed-loop force application, a 180 mm throat with 260 mm test height (450 mm option), a 250×260 mm anvil, 100 kg maximum workpiece weight and Qpix T2R software. See the full specification table in the Specifications tab below for height adjustment, interfaces, power supply and dimensions.
Not sure the Qness 150 R is the right frame?
Compare it with the other Qness testers we supply.
Tell us the scales you test to and the largest part you need to reach — an applications engineer will confirm indenters, anvils and the height extension before you buy, so the machine matches your parts on day one. Sub-4h reply, NDA standard.
Why source the Qness 150 R through Additive Plus
- Standards-first setup — calibrated to ISO 6508 / ASTM E18 for regular and superficial Rockwell, with DAkkS-traceable indenters.
- Factory-trained install, calibration and operator training included with every system.
- Method development and application support from a team that runs metallography and AM materials work in-house.
- Tailored service and calibration plans; sub-24h engineer response across 23 countries.

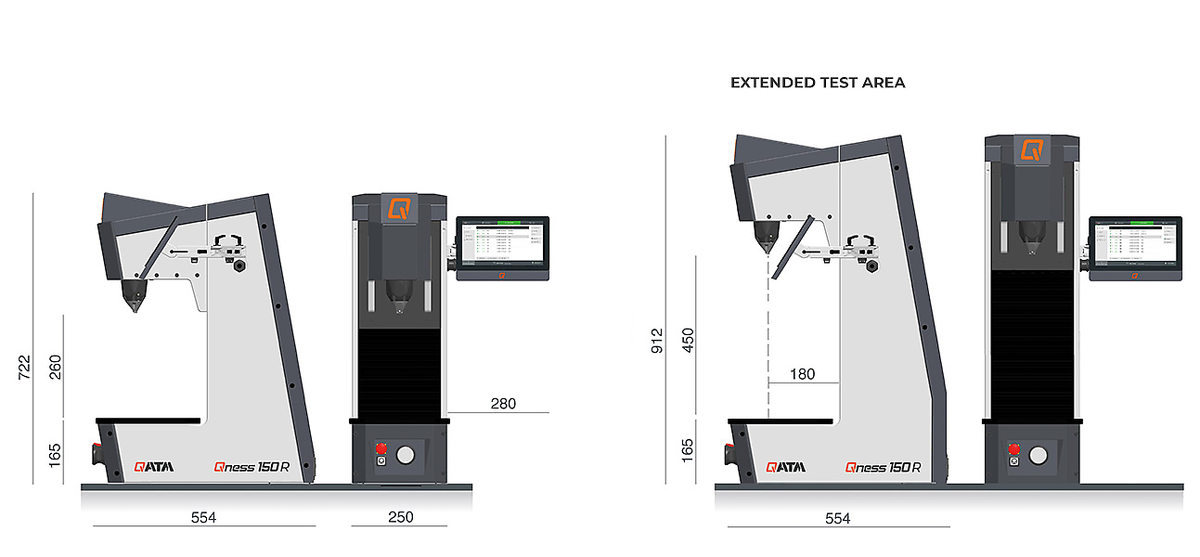

| Brand | QATM |
| Test force range | 1 - 250 kg (9.81 - 2450 N) |
| Test height / Throat depth | 260 mm / 180 mm |
| Test height extension (option) | 450 mm |
| Height adjustment | 180 x 200 mm |
| Test anvil / Cross slide | 250 x 260 mm |
| Weight of basic device | 95 kg |
| Test sequence | fully automated / electronic force application |
| Software | Qpix T2R |

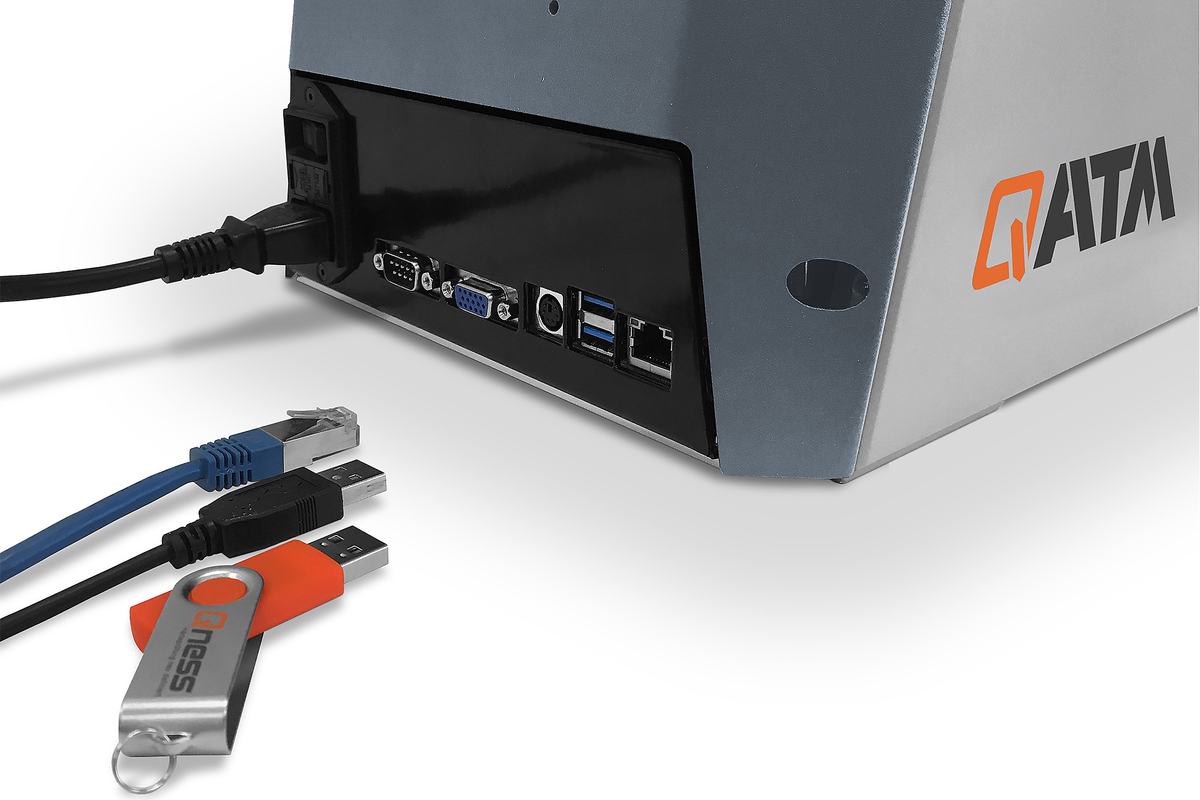

| Interfaces | 3x USB, 1x Ethernet, 1x RS232 |
| Max. work piece weight | 100 kg |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power consumption | ~ 240 W |
Product videos
Want proof before you commit?
Send us your samples and we'll run a benchmark Rockwell measurement in our lab, then share the report and recommended scale before you buy.
Other products teams run alongside QATM Qness 150 R Rockwell Hardness Tester – Regular & Superficial Rockwell | 1–250 kgf
Hardness Testers
QATM Qness 150 CS Rockwell Hardness Tester – Rockwell/Brinell/Vickers | 1–250 kg
Automatic C-frame Rockwell hardness tester with a direct depth-gauge on the indenter axis. Runs regular and superficial Rockwell, plus load-controlled Brinell and Vickers, from 1 to 250 kg with electronic force application and Qpix TE software.
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qness 250/750/3000 E EVO Macro Hardness Tester – Vickers/Brinell/Rockwell/Knoop | 0.3–3000 kgf
Economical universal macro hardness tester — Vickers, Brinell, Rockwell and Knoop across three force classes (250, 750 and 3000 kgf), from 0.3 up to 3000 kgf under electronic force control, with motorized dynamic height adjustment and XLED optics.
- ✓ Four macro methods on one universal frame, conformant to ISO 6506 / 6507 / 6508
- ✓ Qpix T2 software (Qpix Control2 M optional), XLED Brinell lenses and DAkkS-certified indenters
- ✓ Install, calibration and operator training included · lead time 6–10 weeks, configured to order
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qness 150 CSA+ Universal Hardness Tester – Rockwell/Vickers/Brinell | 1–250 kgf
Automatic C-frame universal hardness tester — Rockwell, Vickers and Brinell from 1–250 kgf, with a motorized three-axis stage, direct HEIDENHAIN depth gauge and 5-megapixel sample-image camera. Configured, installed and calibrated by Additive Plus.
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qpix T2 Hardness Testing Software – Row Tests, Reporting & Data Export
On-device software for QATM Qness hardness testers — programmed row tests, one-button protocols and data export, built for serial testing and in-line integration.
- ✓ Predefined row-test programs with manual slide, micrometre spindle and position feedback
- ✓ Export to PDF / XLSX / DOCX / XML / CSV and result release over RS232 or Ethernet
- ✓ Dynamic height with the Qness E frames and a Calibration Manager for audit-ready records
On backorder
· Licensed with your Qness system — request configuration and lead time
Hardness Testers
QATM Rockwell Hardness Testing Portal – Custom Automated Rockwell Testing System
A customized, automated Rockwell hardness testing solution — a portal-frame system engineered around your components so large, heavy or numerous parts are tested in place, to ISO 6508 / ASTM E18, without lifting them into a bench-top frame.
- ✓ Portal (gantry) frame with motorized positioning for large-part Rockwell testing
- ✓ Engineered to your part sizes, throughput and floor — made to order, not off-the-shelf
- ✓ QATM Qpix software with reporting and calibration; install, calibration and training included
On backorder
· Engineered to order — request feasibility, configuration and lead time
Hardness Testers
QATM Qness 60 A+ EVO Micro Hardness Tester – Vickers/Knoop/Brinell/Rockwell | 0.25 gf–62.5 kgf
Fully automated micro and low-macro hardness tester — Vickers, Knoop, Brinell and Rockwell across 0.25 gf – 62.5 kgf, with an 8-position motorized turret, microscope-grade optics and glass-scale positioning to ±0.2 µm.
- ✓ Four methods on one automated frame, conformant to ISO 6507 / ASTM E384
- ✓ Qpix Control2 software, DAkkS-certified Vickers indenter and HQ 5×/20×/50× lenses included
- ✓ Install, calibration and operator training included · lead time 6–10 weeks, configured to order
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
Hardness testing plant with test point preparation
An automated QATM hardness testing plant with integrated test-point preparation — a milling unit machines a clean test surface, then the QNESS 750 universal unit runs a standardized Vickers, Brinell or Rockwell test in one cycle.
- ✓ Integrated milling prep — machines scaled/forged surfaces to a defined test point
- ✓ Universal testing (Vickers / Brinell / Rockwell) up to 750 kgf
- ✓ Prepare, indent and record automatically with QPIX data management
- ✓ Lead time: 4–8 months — engineered and built to order
On backorder
· Lead time: 4–8 months — engineered and built to order
Hardness Testers
QATM Qpix Control2 Hardness Testing Software – CHD/Weld Analysis, Edge Recognition & Reporting
Advanced PC software for QATM Qness hardness testers — machine control, automated indentation evaluation and audit-ready reporting, with CHD/SHD/NHD case-depth analysis, weld and HAZ mapping, edge recognition and panorama imaging.
- ✓ Automated case-hardening-depth and weld evaluation, standard-referenced (ISO 6507 / 6506 / 6508)
- ✓ Edge recognition, template and test-block management, Qness Calibration Manager
- ✓ Licensed, installed and set up with your Qness system — configured to order
On backorder
· Licensed with your Qness system — request configuration and lead timeCommon questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
Which Rockwell scales does the Qness 150 R run?
The Qness 150 R covers both regular Rockwell (scales such as HRA, HRB and HRC) and superficial Rockwell (HR15N/30N/45N and HR15T/30T/45T) to ISO 6508 and ASTM E18. Total test forces run from 15 kgf for superficial scales up to 150 kgf for regular scales, all within the tester's 1–250 kgf electronic force range, using hardened diamond-cone and ball indenters. Tell us the scales and materials you work with and we configure the indenter set accordingly.
What standards and calibration does it meet?
The tester is built and calibrated for regular and superficial Rockwell to ISO 6508 and ASTM E18. Every system is verified on site against certified Rockwell reference blocks, and ships with DAkkS-traceable indenters. As with any hardness method, Rockwell results are conformant to the standard, not directly comparable across methods or machines, so we set up calibration and reference blocks to match how your lab reports.
What is the maximum test force and how is it applied?
Test force ranges from 1 to 250 kgf (9.81–2450 N), which covers every regular (60/100/150 kgf) and superficial (15/30/45 kgf) Rockwell load. Force is applied fully automatically under closed-loop electronic control — there are no dead weights to hang or swap — so preliminary and total forces are held precisely and the whole test sequence runs without operator intervention.
How does the Qness 150 R compare with the Qness 150 RCS?
The 150 R is a dedicated Rockwell tester — regular and superficial Rockwell only, with automated electronic force. The 150 RCS adds an optical C-frame so the same machine can also read Vickers and Brinell indents optically alongside Rockwell. If your work is purely Rockwell on production parts, the 150 R is the leaner choice; if you need optical methods on one frame, step up to the 150 RCS or a 150 CS universal tester.
Can it handle large parts and automated Rockwell series?
Yes. A 180 mm throat depth, 260 mm test height (450 mm as an option) and a 250×260 mm anvil take workpieces up to 100 kg, so many finished production parts can be tested without sectioning. Dynamic motorized height adjustment with collision-proof electronic movement control positions the head, and Qpix T2R runs automated Rockwell series with statistics, bar graphs and A4 PDF protocols for your QC records.
What is the lead time and what does installation include?
Lead time is typically 6–10 weeks, configured to order. Installation is handled on site by factory-trained engineers: we set up the tester, verify calibration against certified Rockwell reference blocks per ISO 6508 / ASTM E18, and train your operators on Qpix T2R. DAkkS-traceable indenters are included, and you have a sub-24h engineer response and tailored service and calibration plans afterwards.
Can I test additively manufactured or powder-metallurgy samples?
Yes. The Qness 150 R measures Rockwell hardness on hardened and case-hardened steels, cast irons, non-ferrous alloys, hard coatings, and additively manufactured (LPBF/DED) or sintered PM parts. For AM materials our applications team can recommend the right scale and indenter, and run a benchmark Rockwell measurement on your samples in our lab before you commit to a configuration.
