Hardness Testers, Customized Solutions
QATM Rockwell Hardness Testing Portal – Custom Automated Rockwell Testing System
A customized, automated Rockwell hardness testing solution — a portal-frame system engineered around your components so large, heavy or numerous parts are tested in place, to ISO 6508 / ASTM E18, without lifting them into a bench-top frame.
- ✓ Portal (gantry) frame with motorized positioning for large-part Rockwell testing
- ✓ Engineered to your part sizes, throughput and floor — made to order, not off-the-shelf
- ✓ QATM Qpix software with reporting and calibration; install, calibration and training included
Price held 7 days after order.
Engineered to order
Install + training included
What your metrology engineer actually checks
What your metrology engineer actually checks
Engineered to your parts, to standard
The portal is built around your components, but the measurement is standard: Rockwell to ISO 6508 / ASTM E18, verified against certified reference blocks with Qpix calibration management. That gives you a solution sized to your parts without giving up the conformity your AS9100 auditor checks — conformant, not just comparable.
An applications engineer on the line
Feasibility, portal sizing, fixturing and automation scoped by engineers who run metallography and AM materials in-house. Sub-4h reply, NDA standard.
Portal frame
Large-part testing
Rockwell
Method (ISO 6508)
Automated
Motorized positioning
Made to order
Engineered to your parts
About this product
The QATM Rockwell Hardness Testing Portal is a customized, automated Rockwell testing solution — a portal-frame system engineered around your components so large, heavy or numerous parts are tested in place, to standard, without lifting them into a bench-top frame.
Why choose a Rockwell testing portal
A customized solution for parts that a standard bench-top hardness tester cannot practically handle.

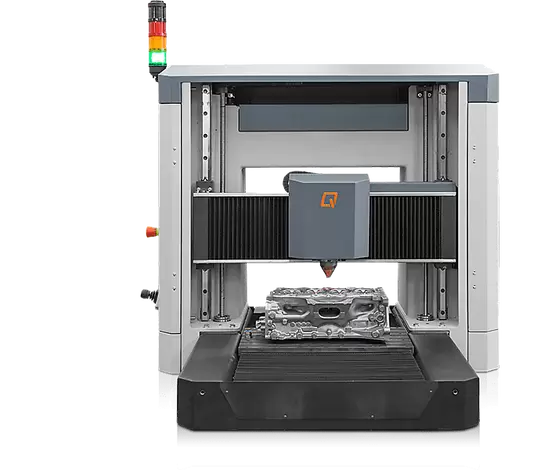

Portal frame for large parts

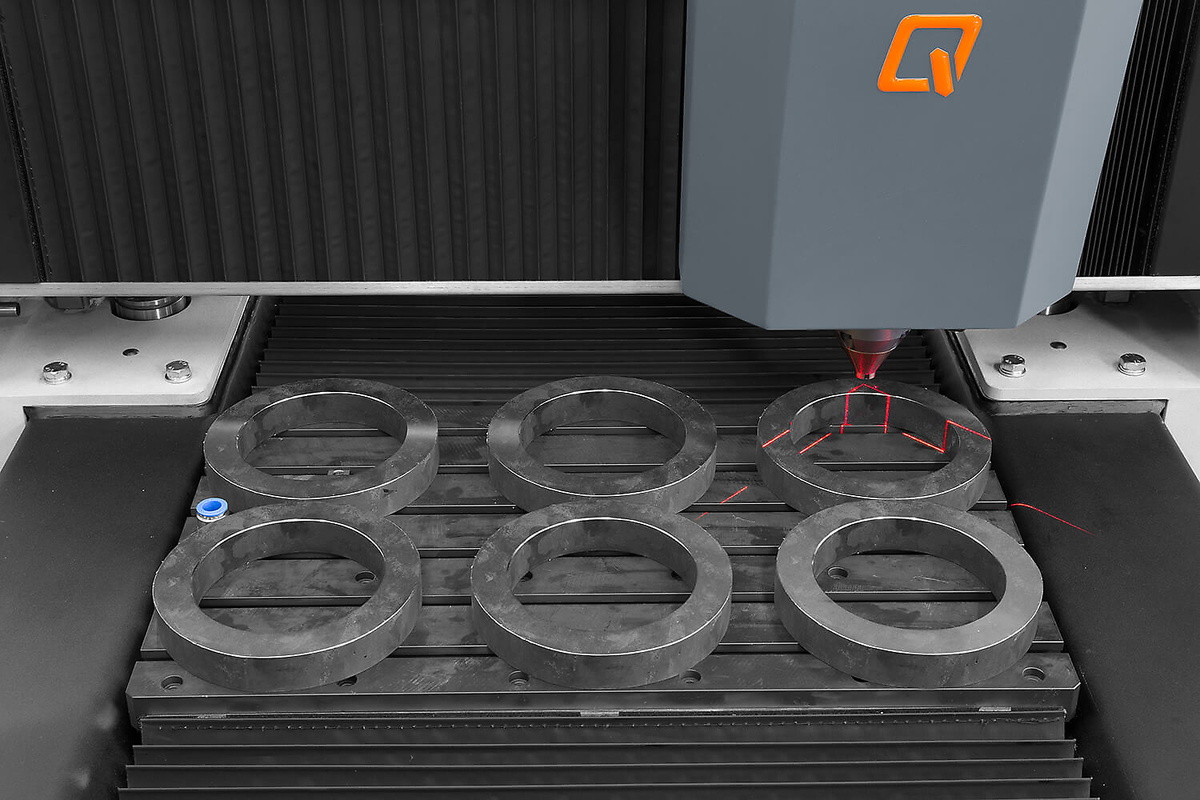

A portal (gantry) frame carries the test head over a large table, so heavy castings, forgings, plates and weldments are tested where they sit — no lifting into a small throat.
Automated Rockwell testing

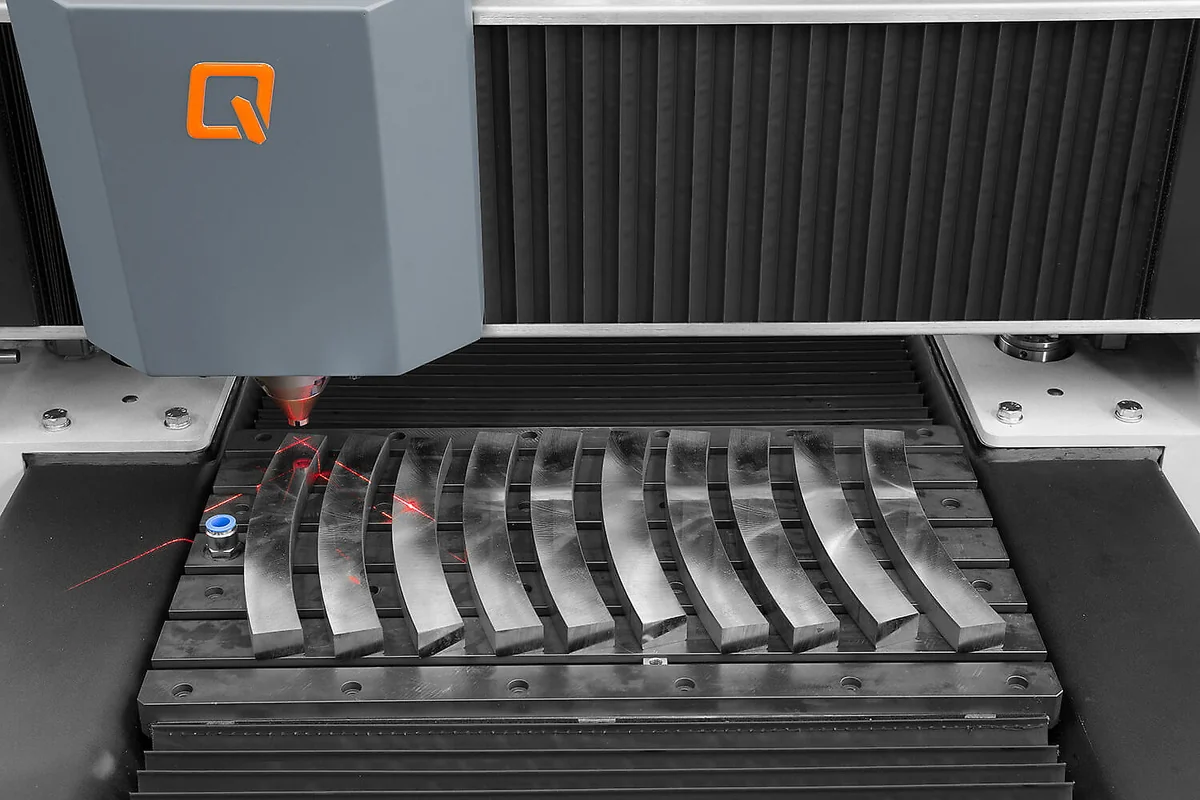

Rockwell testing to ISO 6508 / ASTM E18 with motorized positioning to programmed points and repeatable, documented series — built for consistent production and incoming QC.
Engineered to your parts
Working envelope, table, fixturing, positioning and throughput are configured to your components and workflow — this is a made-to-order solution, not an off-the-shelf frame.
Qpix software & connectivity
Driven by QATM Qpix software with templates, reporting and calibration management, and connectable to line and QC systems for traceable, audit-ready records.
How Additive Plus delivers it
A customized project — scoped, engineered, installed and validated to your parts and standards.
Step 01
Define requirements
We capture your part sizes and weights, the Rockwell scales and standards you test to, throughput and where the system will live on your floor.
Step 02
Engineer & build
QATM engineers the portal frame, table, positioning and fixturing to that brief, with Qpix software configured for your test programs and reports.
Step 03
Install & validate
Factory-trained engineers install the system, verify calibration against certified reference blocks, and train your operators — with a sub-24h support line.
Where a Rockwell portal earns its place
Rockwell hardness testing on parts that are too large, heavy or numerous for a bench-top frame.

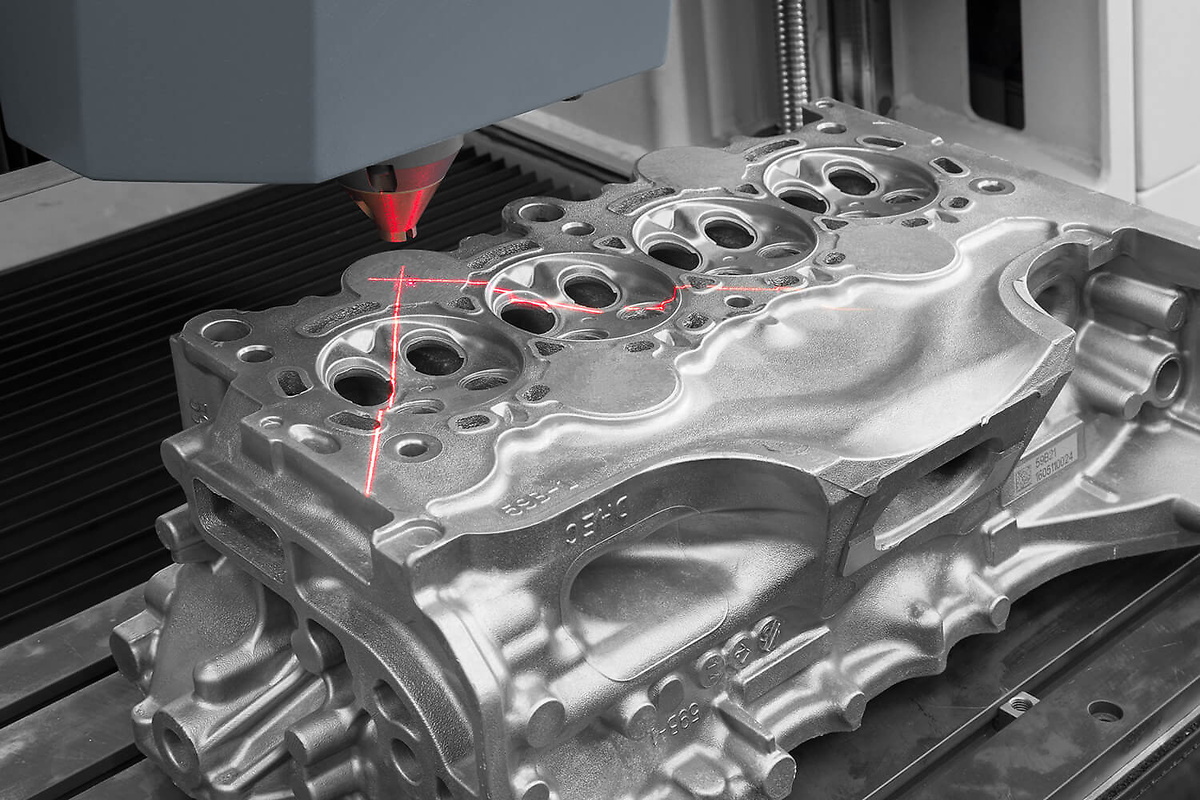

Large castings & forgings
Tested in place on the portal table
Plates & structures
Wide, flat components across a large area
High-throughput QC
Automated multi-point series
Production cells
Integrated into a line workflow
Incoming inspection
Repeatable checks on heavy stock
Audit-ready records
Qpix reporting and calibration tracking
Prefer a standard frame?
Compare the portal solution with our standard Qness hardness testers.
Send us your part sizes and weights, the Rockwell scales you test to and your throughput — an applications engineer will scope the portal envelope, fixturing and automation and confirm feasibility before you commit. Sub-4h reply, NDA standard.
Why source a Rockwell testing portal through Additive Plus
- A made-to-order solution engineered to your parts, standards and floor — not an off-the-shelf frame.
- Rockwell testing to ISO 6508 / ASTM E18 with QATM Qpix software, reporting and calibration management.
- Factory-trained install, on-site calibration and operator training included.
- Application and service support from a team that runs metallography in-house; sub-24h response.
Have parts too big for a standard frame?
Send us your part dimensions, weights and Rockwell scales, and we'll run a feasibility review and scope a portal solution before you commit.
Other products teams run alongside QATM Rockwell Hardness Testing Portal – Custom Automated Rockwell Testing System
Hardness Testers
QATM Qness 150 R Rockwell Hardness Tester – Regular & Superficial Rockwell | 1–250 kgf
The Qness 150 R incorporates the best of all proven concepts and practices
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qness 10 / 60 A+ Micro Hardness Tester – Vickers/Knoop/Brinell/Rockwell | 20 gf–62.5 kgf
hardness tester series Qness 10 / 60 takes micro hardness testing to a whole new level
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qness 150 CSA+ Universal Hardness Tester – Rockwell/Vickers/Brinell | 1–250 kgf
Automatic C-frame universal hardness tester — Rockwell, Vickers and Brinell from 1–250 kgf, with a motorized three-axis stage, direct HEIDENHAIN depth gauge and 5-megapixel sample-image camera. Configured, installed and calibrated by Additive Plus.
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qness 250 / 750 / 3000 M EVO Macro Hardness Tester – Brinell/Vickers/Rockwell/Knoop | 0.3–3000 kgf
Manual, semi-automatic macro hardness tester from QATM — Brinell, Vickers, Rockwell and Knoop across the 250, 750 and 3000 kgf classes, from 0.3 to 3000 kgf under electronic closed-loop force control.
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qness 200 CS Universal Hardness Tester – Rockwell/Vickers/Brinell | 0.5–187.5 kg
Automatic C-frame universal hardness tester — Rockwell, Vickers and Brinell across 0.5–187.5 kg (4.9–1839 N), with electronic force application, a direct 0.05 µm depth gauge, XLED Brinell optics and a 5 MP Ethernet camera.
- ✓ Three methods on one automatic C-frame, conformant to ISO 6508 / 6507 / 6506
- ✓ Qpix T2 software, DAkkS-certified indenters and XLED / 5×–100× lenses included
- ✓ Install, calibration and operator training included · lead time 6–10 weeks, configured to order
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qness 150 CS Rockwell Hardness Tester – Rockwell/Brinell/Vickers | 1–250 kg
Automatic C-frame Rockwell hardness tester with a direct depth-gauge on the indenter axis. Runs regular and superficial Rockwell, plus load-controlled Brinell and Vickers, from 1 to 250 kg with electronic force application and Qpix TE software.
On backorder
· Lead time: 6–10 weeks — configured to order
Hardness Testers
QATM Qpix Control2 Hardness Testing Software – CHD/Weld Analysis, Edge Recognition & Reporting
Advanced PC software for QATM Qness hardness testers — machine control, automated indentation evaluation and audit-ready reporting, with CHD/SHD/NHD case-depth analysis, weld and HAZ mapping, edge recognition and panorama imaging.
- ✓ Automated case-hardening-depth and weld evaluation, standard-referenced (ISO 6507 / 6506 / 6508)
- ✓ Edge recognition, template and test-block management, Qness Calibration Manager
- ✓ Licensed, installed and set up with your Qness system — configured to order
On backorder
· Licensed with your Qness system — request configuration and lead time
Hardness Testers
Hardness testing portal
The QATM hardness testing portal is a family of portal- and gantry-based automated hardness testing systems — fixed or moveable — bringing Brinell, Vickers and Rockwell testing to large, heavy parts such as rings, wheels, tyres and pipes, with automatic test-point preparation.
- ✓ Fixed or moveable portal — the tester travels to the part
- ✓ Rings Ø 600–1400 mm, workpieces up to 3 × 3 × 12 m
- ✓ Automatic test-point prep, portal feeding, optional mix-up test & marking
- ✓ Lead time: 4–8 months — engineered and built to order
On backorder
· Lead time: 4–8 months — engineered and built to orderFrom teams running customized hardness solutions
Unedited feedback from metrology and QC teams.
★★★★★
Our forgings were too heavy to load into any bench tester. The portal tests them where they sit, to spec, and the report format matched our QC system.
DR
Daniel R. Quality Manager · Heavy forgings
★★★★★
The scoping conversation was thorough — they sized the envelope and fixturing to our exact parts before quoting. No surprises at install.
PN
Priya N. Manufacturing Engineer · Heavy machinery
★★★★★
Automated multi-point Rockwell across a large plate used to be a two-person job. Now it runs a stored program and reports itself.
ML
Markus L. QC Supervisor · Steel processing
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
What is the Rockwell hardness testing portal?
It is a customized, automated Rockwell hardness testing solution built on a portal (gantry) frame. Instead of lifting a part into a bench-top tester's throat, the portal carries the test head over a large table so the component is tested in place. It performs Rockwell testing to ISO 6508 / ASTM E18 with motorized positioning and QATM Qpix software for programs, reporting and calibration. Because it is engineered to your parts, Additive Plus scopes it as a project rather than an off-the-shelf product.
What size and weight of parts can it handle?
The working envelope — table size, portal clearance, positioning travel and the supported part weight — is engineered to your components, so there is no single fixed limit. That is the point of a portal solution: it is sized to large castings, forgings, plates, weldments or structures that a standard frame cannot practically accept. Send us your part dimensions and weights and an applications engineer will confirm the envelope and feasibility.
Which Rockwell scales and standards does it use?
The portal performs Rockwell hardness testing to ISO 6508 and ASTM E18. The specific scales (for example HRA, HRB, HRC and superficial Rockwell) are configured to your material and specification. Each system is verified against certified reference blocks and managed with the Qpix Calibration Manager, so results are traceable and audit-ready. Tell us the scales you report to and we will confirm the configuration.
How is it automated, and can it run in a production line?
The portal uses motorized positioning to move the test head to programmed points and run repeatable, documented series. Depending on your brief it can be configured for high-throughput QC and integrated into a production cell or line workflow, with Qpix software handling test programs, reporting and data export to your QC or line systems. The level of automation and integration is defined during the engineering phase.
How does it differ from a standard Qness hardness tester?
A standard tester such as the Qness 250/750/3000 has a fixed frame and throat sized for parts you place into it. A portal solution instead brings the test head to the part across a large table, so it suits components too big, heavy or awkward to load into a standard frame — or applications needing many points over a wide area. If your parts fit a standard frame, that is usually the simpler and lower-cost choice; the portal is for cases where they do not.
What does the project process and lead time look like?
The process runs in three stages: define requirements (part sizes and weights, Rockwell scales, standards, throughput and floor space), engineer and build the portal, table, positioning and fixturing with Qpix configured to your programs, then install and validate on-site with calibration and operator training. Because each portal is engineered to order, lead time is confirmed with the quote — request a feasibility review to get scope and schedule.
Can Additive Plus help specify the right solution?
Yes. Because a portal is a made-to-order solution, the first step is a conversation. Send us your part dimensions and weights, the Rockwell scales and standards you test to, your throughput target and where the system will sit. An applications engineer — from a team that runs metallography in-house — will confirm feasibility, scope the portal and fixturing, and prepare a quote with lead time. Sub-24h response, NDA standard.
